Bently Nevada 330903-00-08-05-01-00 Safety-Reliable Proximity Transducer

Bently Nevada 330903-00-08-05-01-00 Safety-Reliable Proximity Transducer for Critical Control Sites

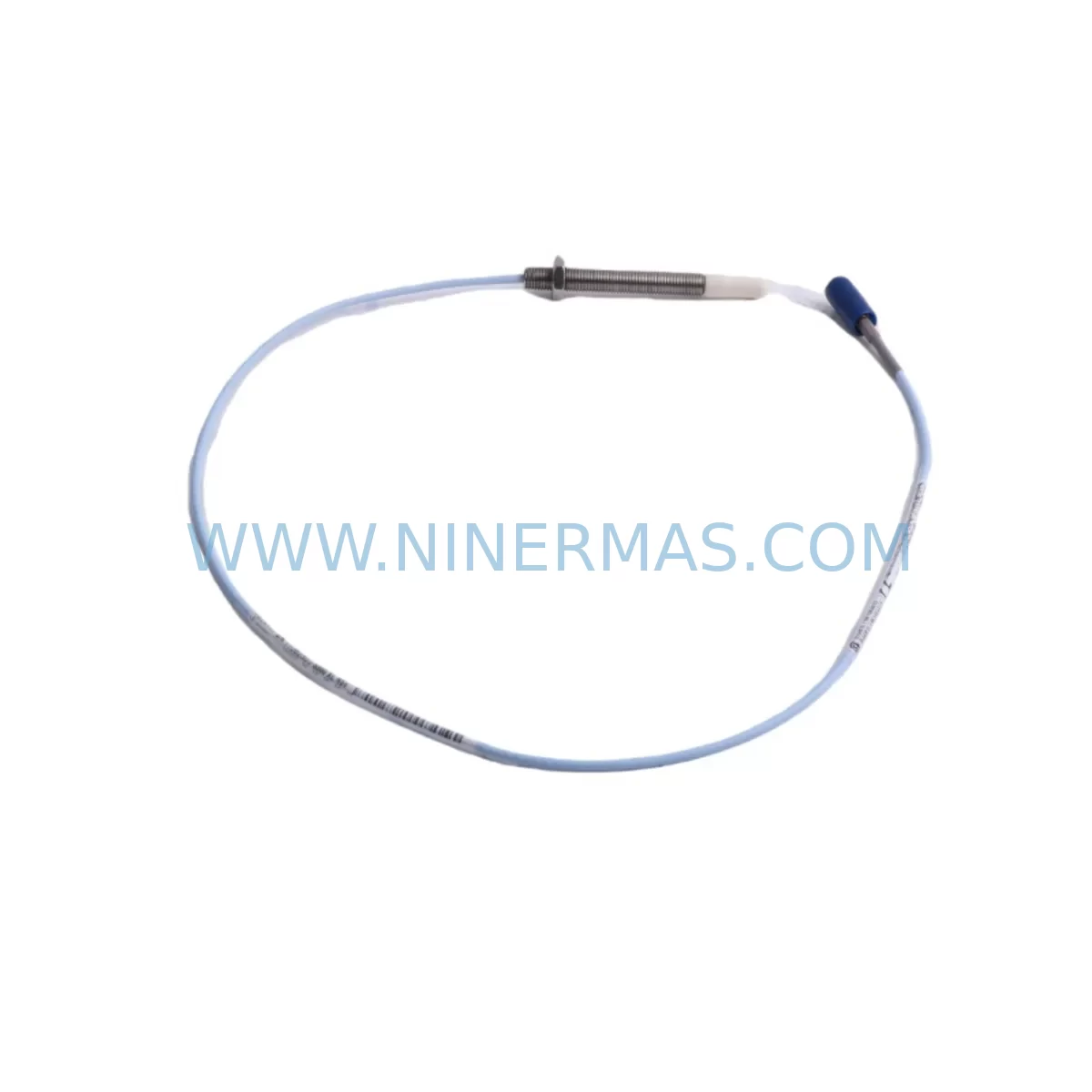

The Bently Nevada 330903-00-08-05-01-00 is a ruggedized proximity transducer engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the Bently Nevada 3300 Series proximity system, this transducer delivers exceptional signal stability and measurement accuracy, making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port equipment, and continuous manufacturing lines.

Designed to operate reliably where conventional sensors fail, the 330903-00-08-05-01-00 withstands high electromagnetic interference (EMI), extreme temperature fluctuations, mechanical vibration, dust ingress, and high-humidity environments. Its ruggedized construction ensures that critical control loops remain intact even under the harshest field conditions, directly reducing the risk of unplanned shutdowns, false trips, signal drift, and machinery damage.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-critical control architectures, the Bently Nevada 330903-00-08-05-01-00 proximity transducer functions as the primary sensing element within a tightly integrated machinery protection chain. Its eddy-current non-contact measurement principle eliminates mechanical wear, ensuring that the sensor continues to deliver accurate shaft displacement and vibration data without degradation over extended operational cycles.

Within a typical turbomachinery protection cabinet, this transducer pairs directly with the Bently Nevada 3300 XL Proximitor Sensor (330180 series), which conditions the raw transducer signal into a clean, calibrated voltage output suitable for monitoring systems. The signal is then fed into the Bently Nevada 3500 Series Machinery Protection System — a modular rack-based platform that processes vibration, position, and speed data in real time, triggering alarms or safety shutdowns before catastrophic failure occurs.

To maintain signal integrity across long cable runs in high-EMI environments such as motor control centers or variable frequency drive (VFD) cabinets, the Bently Nevada 330130 Series Extension Cable is used in conjunction with this transducer. Proper cable routing and shielding grounding practices, combined with the ruggedized construction of the 330903-00-08-05-01-00, effectively suppress signal noise caused by switching transients, ground loops, and electromagnetic coupling from adjacent power conductors.

Power supply stability is equally critical. The Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to the Proximitor sensors and monitoring rack, preventing voltage sags or surges from propagating into the measurement chain. In facilities where power quality is a concern — such as those with large motor starts or arc furnace operations — supplementing the system with a dedicated industrial DIN-rail UPS or a redundant 24 VDC power supply further insulates the protection system from upstream electrical disturbances.

For applications requiring speed and phase reference measurement alongside radial vibration monitoring, the Bently Nevada 330980 Series Keyphasor Transducer is commonly installed in the same proximity system architecture. The Keyphasor signal enables advanced diagnostic functions including orbit analysis, 1X/2X vector trending, and phase-referenced balancing — all of which depend on the consistent, low-noise output that the 330903-00-08-05-01-00 is designed to deliver.

In safety instrumented systems (SIS) where IEC 61511 compliance is required, the proximity transducer data may be routed through a safety-rated I/O module or a Triconex / Rockwell GuardLogix Safety PLC to form part of a high-integrity protective function. The reliable, drift-free output of the 330903-00-08-05-01-00 supports the diagnostic coverage requirements of SIL 2 and SIL 3 safety loops, reducing the probability of dangerous undetected failures in rotating equipment protection.

Terminal blocks, surge protection devices such as the Phoenix Contact TRABTECH series, and cable glands rated for the installation’s hazardous area classification complete the control cabinet assembly, ensuring that every component from the sensor tip to the monitoring rack contributes to a robust, interference-resistant safety architecture.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units, compressor trains, and reactor feed pumps, unplanned machinery trips carry enormous safety and financial consequences. The 330903-00-08-05-01-00 provides real-time shaft vibration and eccentricity data that enables condition-based maintenance strategies, allowing operators to detect developing bearing failures, rotor imbalance, or misalignment weeks before they escalate into forced outages or safety incidents. Its resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it well-suited for Zone 1 and Zone 2 classified areas when installed with appropriate barriers.

Power Generation: Steam turbines, gas turbines, and large generator sets in power plants operate at high speeds with extremely tight mechanical tolerances. The non-contact eddy-current measurement of the 330903-00-08-05-01-00 captures shaft dynamic behavior with microsecond resolution, feeding the 3500 Series protection system with the data needed to execute fast, reliable emergency shutdowns when vibration thresholds are exceeded — protecting assets worth tens of millions of dollars and preventing grid instability events.

Mining & Mineral Processing: Ball mills, SAG mills, conveyor drives, and slurry pumps in mining operations are subject to extreme mechanical loading, dust, and moisture. The ruggedized housing and sealed cable assembly of the 330903-00-08-05-01-00 maintain measurement accuracy in these conditions, supporting predictive maintenance programs that reduce unscheduled downtime in operations where every hour of lost production has significant cost impact.

Water & Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities must operate continuously to maintain public health infrastructure. Proximity transducers in these applications monitor shaft position to detect cavitation, bearing wear, and hydraulic instability, enabling maintenance teams to schedule interventions during planned outages rather than responding to emergency failures.

Metallurgy & Steel Production: Rolling mills, continuous casters, and induction furnace drives operate in environments with intense electromagnetic fields, high temperatures, and heavy vibration. The EMI-hardened design of the 330903-00-08-05-01-00 ensures that measurement signals remain clean and accurate even when installed adjacent to high-current bus bars and large induction heating systems.

Port Equipment & Marine Applications: Ship propulsion systems, crane drives, and port machinery require reliable vibration monitoring to prevent failures in remote or difficult-to-access locations. The wide operating temperature range and ruggedized construction of this transducer support reliable operation in salt-air, high-humidity marine environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 330903-00-08-05-01-00?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement units from stock, minimizing any disruption to your machinery protection system.

Q2: How is each unit tested before shipment?
Every 330903-00-08-05-01-00 unit undergoes pre-shipment functional verification including output signal check, insulation resistance test, and physical inspection for connector integrity and cable condition. Units that do not meet Bently Nevada performance specifications are quarantined and not dispatched.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330903-00-08-05-01-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and the 3500 Series Machinery Protection System rack. It follows the standard Bently Nevada proximity system wiring and calibration conventions, allowing direct replacement of existing transducers without system reconfiguration.

Q4: Can NINERMAS support long-term and emergency spare parts supply?
Yes. NINERMAS maintains inventory of the 330903-00-08-05-01-00 and related 3300 Series components to support both planned maintenance schedules and emergency replacement requirements. Our team can advise on recommended spare parts holdings for your specific machinery protection architecture and provide fast dispatch for critical situations.
