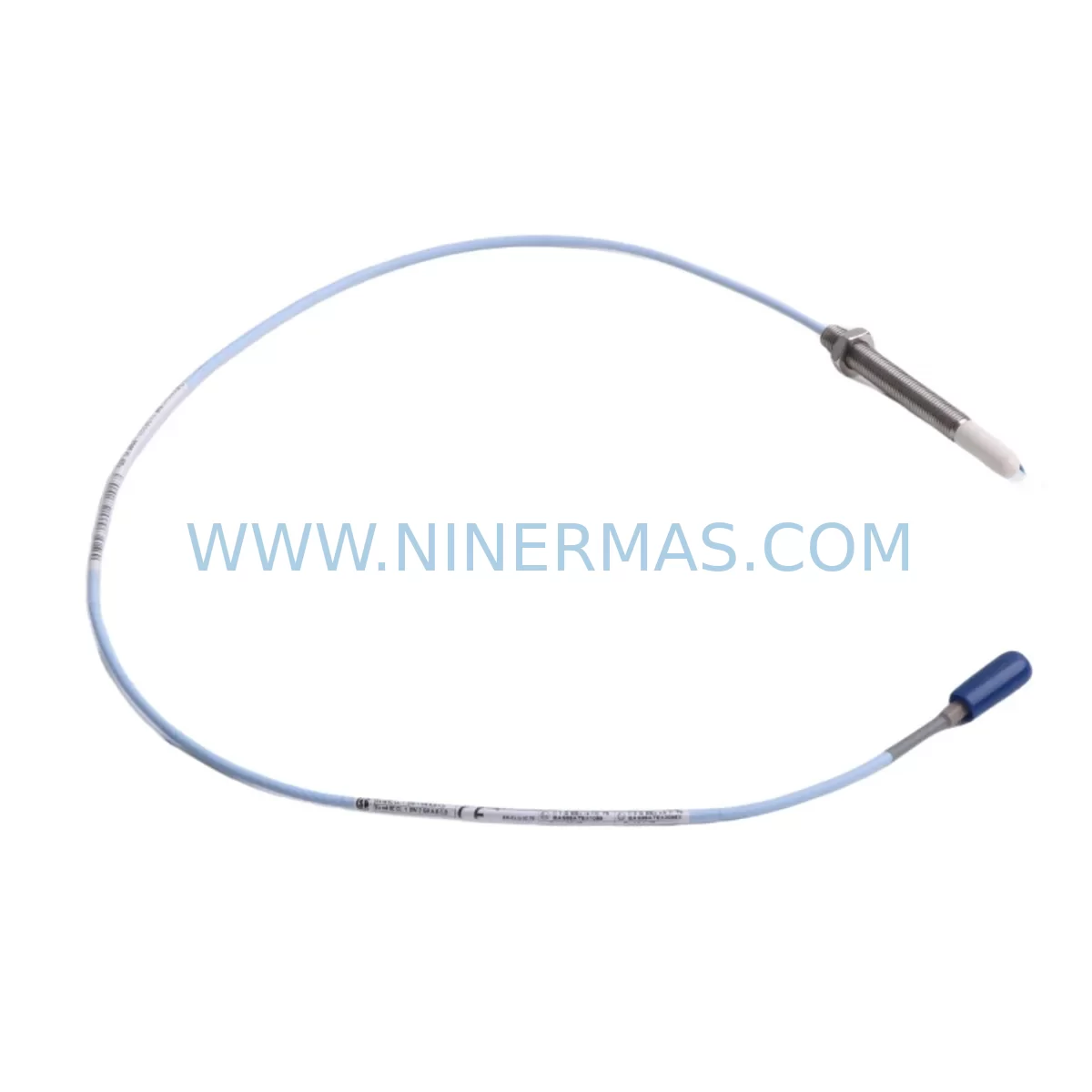

The Bently Nevada 330903-00-02-10-01-CN is a ruggedized eddy-current proximity probe module engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed as part of the GE Bently Nevada 3300 Series machinery protection ecosystem, this module delivers precise, real-time radial vibration and position measurement for rotating machinery — including turbines, compressors, pumps, fans, and gearboxes — where control loop integrity and personnel safety are non-negotiable.

In critical production facilities such as petrochemical plants, power generation stations, offshore platforms, and metallurgical processing lines, even a momentary signal interruption or measurement drift can trigger unplanned shutdowns, equipment damage, or safety incidents. The 330903-00-02-10-01-CN is purpose-built to eliminate these risks through its hardened signal conditioning architecture, robust mechanical construction, and validated compatibility with the Bently Nevada 3300 XL monitoring system.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection cabinet, the 330903-00-02-10-01-CN proximity probe module does not operate in isolation — it is one critical node in a layered safety and monitoring architecture. When integrated with the Bently Nevada 3300 XL Monitor, the probe’s analog output feeds directly into the monitor’s signal conditioning channels, enabling real-time alarm and trip logic without introducing latency or signal distortion. This tight hardware integration is essential in high-speed rotating machinery applications where a 1 ms delay in trip response can mean the difference between a controlled shutdown and catastrophic bearing failure.

To protect the signal path from power-line transients and surge events — common in heavy industrial switchgear environments — the probe system should be paired with a Bently Nevada 3300/55 Power Supply Module or equivalent regulated DC supply with surge suppression. Voltage fluctuations as small as ±2 VDC on the bias supply line can shift the probe’s gap voltage reading, causing false alarms or, worse, masking genuine vibration anomalies. A stable, filtered power source is therefore a non-negotiable element of any safety-grade proximity measurement loop.

In high electromagnetic interference environments — such as those near variable frequency drives (VFDs), large motor starters, or arc furnace control panels — the Bently Nevada 330130-080-00-00 armored extension cable provides additional shielding continuity between the probe tip and the monitor input. Maintaining shield integrity at every junction point prevents ground loops and common-mode noise from corrupting the –24 VDC output signal. For installations where cable routing must pass through conduit shared with power wiring, ferrite chokes at the monitor input terminals further attenuate high-frequency interference.

The 330903-00-02-10-01-CN is frequently deployed alongside Bently Nevada 330500-02-00 velocity transducers and 330180-X1-05 accelerometers in multi-parameter monitoring configurations. This combination allows the protection system to capture both low-frequency shaft displacement and high-frequency bearing defect signatures simultaneously — a critical capability in gearboxes, steam turbines, and centrifugal compressors where different failure modes manifest at different frequency bands. The Bently Nevada 3500/42M Proximitor I/O module provides the rack-level interface for these multi-channel configurations, ensuring clean signal routing within the 3500 Series safety rack.

For plants operating under IEC 61511 functional safety requirements, the proximity probe loop — comprising the 330903-00-02-10-01-CN probe, its dedicated Proximitor driver, and the 3300 XL or 3500 monitor — can be validated as part of a Safety Instrumented Function (SIF) with defined SIL levels. In such architectures, the Bently Nevada 3500/22M Transient Data Interface and the System 1 Condition Monitoring Software provide the data historian and diagnostic layer that supports proof-test documentation and functional safety audits. Maintaining a verified spare inventory of 330903-00-02-10-01-CN modules at site ensures that proof-test intervals can be met without extended equipment downtime.

In dusty or moisture-laden environments — such as cement plants, coal handling facilities, or coastal installations — the probe’s armored cable jacket and sealed tip construction resist ingress that would degrade measurement accuracy over time. Pairing the probe with a Bently Nevada 3300/16 Dual Voting Logic module adds a redundancy layer at the trip output level, ensuring that a single probe failure does not result in a spurious trip or, conversely, a missed trip in a 1oo2 or 2oo3 voting architecture.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous catalytic cracking units, ethylene crackers, and compressor trains, the 330903-00-02-10-01-CN monitors shaft radial vibration on critical rotating equipment operating 24/7 under API 670 protection requirements. Any deviation beyond alarm setpoints triggers controlled shutdown sequences before mechanical damage propagates to seals, bearings, or impellers — preventing both production loss and hazardous material release.

Power Generation — Steam and Gas Turbines: Large turbine-generator sets in thermal power stations rely on proximity probe arrays to monitor shaft eccentricity, differential expansion, and rotor runout during startup, load changes, and shutdown. The 330903-00-02-10-01-CN’s stable scale factor and low signal drift ensure that protection setpoints remain accurate across the full thermal cycle, from cold startup to full-load operation at elevated bearing temperatures.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and electrical noise from nearby high-voltage equipment. The ruggedized construction of the 330903-00-02-10-01-CN makes it well-suited for these conditions, providing reliable shaft position feedback to the mill’s protection and control system without requiring frequent recalibration or replacement.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities operate in humid, chemically aggressive environments. Proximity probe monitoring on these assets enables condition-based maintenance scheduling, reducing unplanned outages that could interrupt water supply or effluent treatment compliance.

Metallurgy and Steel Production: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps benefit from real-time vibration monitoring to detect bearing wear, rotor imbalance, and misalignment before they escalate to forced outages. The 330903-00-02-10-01-CN’s compatibility with the Bently Nevada 3500 rack system allows seamless integration into existing plant-wide condition monitoring networks.

Port and Marine Applications: Shipboard propulsion systems, cargo pump drives, and port crane hoisting machinery operate in high-humidity, salt-laden environments with significant vibration and shock loading. The probe’s robust mechanical design and sealed cable construction support reliable long-term operation in these challenging conditions, where maintenance access is limited and replacement logistics are complex.
