Bently Nevada 330881-28-15-122-03-02 Service-Ready Spare Part

Bently Nevada 330881-28-15-122-03-02 Service-Ready Spare Part for Industrial Maintenance

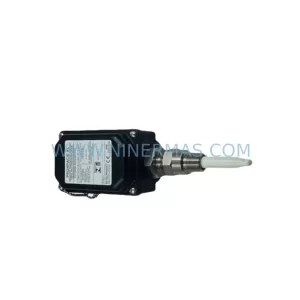

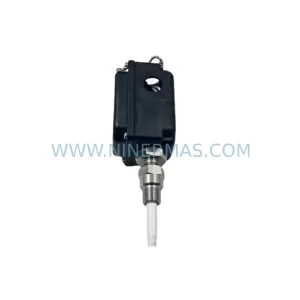

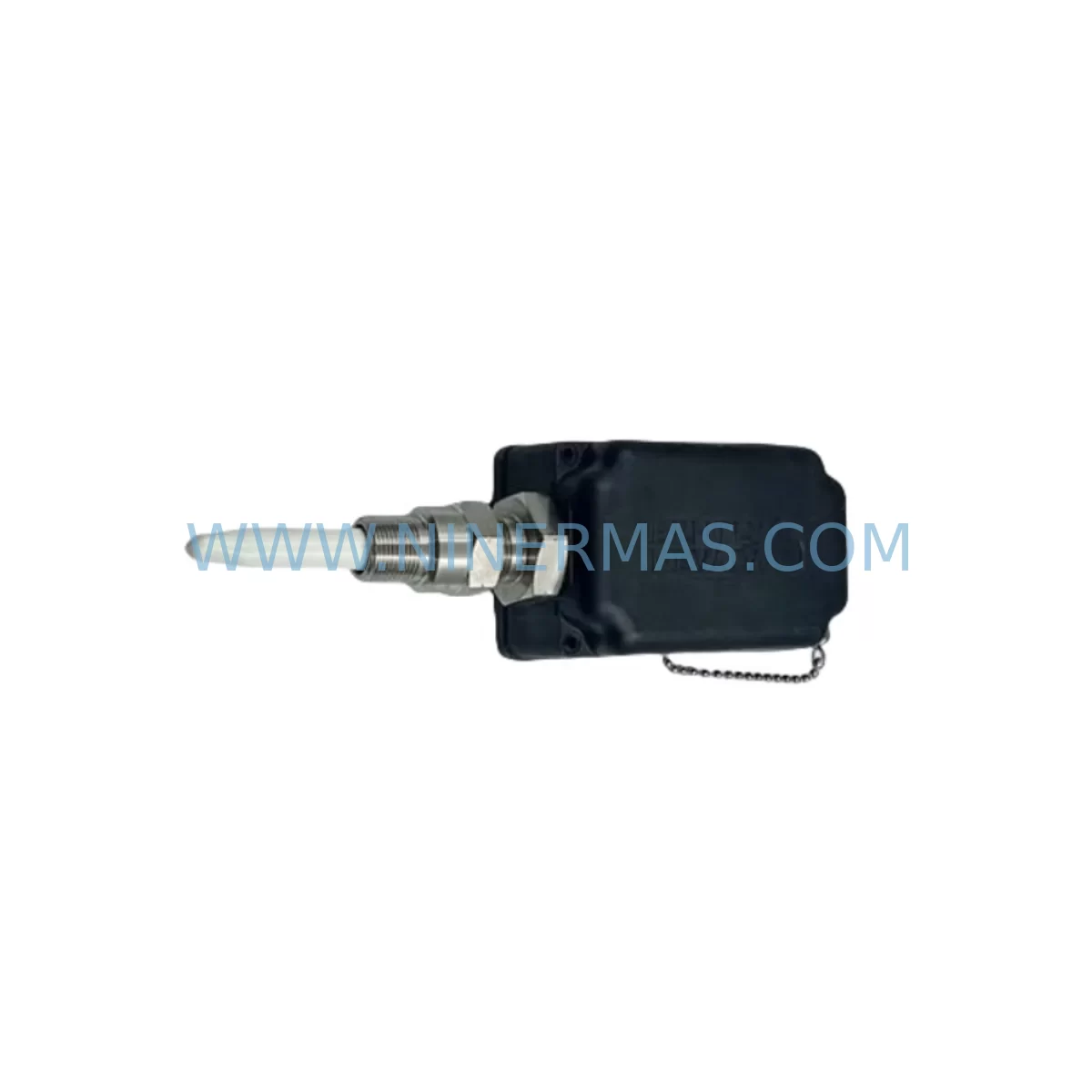

The Bently Nevada 330881-28-15-122-03-02 is a precision-engineered proximity transducer module designed for the PROXPAC XL Series condition monitoring system. As a service-ready spare part sourced and tested by NINERMAS, this unit is prepared for immediate field deployment to minimize unplanned downtime in rotating machinery protection applications. Whether you are managing a scheduled annual overhaul, responding to an emergency shutdown, or building a strategic spare parts inventory for a critical turbine or compressor train, the 330881-28-15-122-03-02 delivers the original Bently Nevada performance your system demands.

Proximity transducer systems are the backbone of vibration and position monitoring in turbomachinery, compressors, pumps, and gearboxes. A failed or degraded transducer in a PROXPAC XL rack can trigger false trips, mask real faults, or leave rotating equipment running unprotected. Maintaining a verified spare of the 330881-28-15-122-03-02 on the shelf is a fundamental risk-control measure for any maintenance engineering team responsible for continuous process operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330881-28-15-122-03-02 in a PROXPAC XL system is rarely an isolated task. Experienced maintenance engineers know that a transducer swap is the right moment to inspect the entire measurement chain and the surrounding control cabinet infrastructure. When this proximity transducer is pulled for replacement, the following components should be checked, tested, or replaced as part of the same work order:

The Bently Nevada 3300 XL 8mm Extension Cable (typically 5 m or 9 m, matched to the probe cable length) should be inspected for jacket damage, connector corrosion, and continuity. A degraded extension cable is a common source of intermittent gap voltage drift that is often misdiagnosed as a probe failure. Similarly, the Bently Nevada 3300 XL Proximitor Sensor (driver/oscillator module) mounted in the field junction box should be verified for correct output voltage and sensitivity factor — a mismatched or aging driver will corrupt the calibration of the new transducer.

Inside the control cabinet or machinery protection rack, the Bently Nevada 3500/42M Proximitor/Seismic Monitor or equivalent PROXPAC XL monitor card should be checked for firmware revision compatibility and channel configuration. The rack power supply module — typically a 3500/15 or equivalent — should be load-tested to confirm it can sustain stable ±24 VDC rails under full channel load, as power sag is a known cause of false vibration alarms. If the rack uses a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communications, verify that the communication link to the DCS or historian is intact after the transducer swap, since some systems log a channel fault that must be cleared at the RIM level.

On the signal side, check the terminal strip and field wiring at the junction box for loose terminations, moisture ingress, and correct shielding grounding. Ungrounded or double-grounded shields on proximity transducer cables introduce 50/60 Hz noise that can mask real sub-synchronous vibration components. If the plant uses signal isolators or galvanic isolators between the Bently Nevada field wiring and the DCS analog input cards, verify that the isolator bandwidth is sufficient for the vibration frequency range of the monitored machine — undersized isolators attenuate high-frequency components and reduce alarm sensitivity.

For plants running older PROXPAC XL racks alongside newer System 1 Evolution software, confirm that the transducer gap voltage and sensitivity settings in the software database are updated to match the 330881-28-15-122-03-02 specifications. Mismatched database entries are a leading cause of post-maintenance nuisance trips. Finally, if the monitored machine is a steam turbine or gas compressor, verify that the keyphasor transducer (typically a 330180 or 330130 series probe) is also in good condition, since the keyphasor signal is used for phase reference in all synchronous vibration analysis and a degraded keyphasor will corrupt the entire vibration dataset.

Site Replacement Workflow

Replacing the Bently Nevada 330881-28-15-122-03-02 follows a structured field procedure designed to minimize downtime and ensure system integrity from the moment the machine returns to service:

1. Pre-Replacement Verification: Confirm the replacement unit SKU matches the installed probe exactly — pay attention to the cable length suffix (“-28-” = 28 ft), tip diameter (“-15-” = 15 mm), and connector code (“-02”). A mismatched cable length will shift the gap voltage operating point and may require re-gapping at the probe tip, adding significant time to the job. NINERMAS ships each unit with a test certificate confirming output voltage and sensitivity factor measured against a calibrated target.

2. Safe Isolation: Follow the plant’s lock-out/tag-out (LOTO) procedure for the measurement channel. On a PROXPAC XL rack, individual channels can often be bypassed in the monitor software to prevent a spurious trip during the swap — confirm bypass status with the control room before disconnecting the field wiring.

3. Physical Replacement: Remove the old probe, clean the probe mount threads, and install the new 330881-28-15-122-03-02 to the OEM-specified torque. Route the cable to avoid heat sources and mechanical contact points. Reconnect the extension cable and verify connector seating.

4. Gap Setting and Calibration Check: With the machine stationary, measure the DC gap voltage at the Proximitor driver output. The nominal gap for a 15 mm probe is typically set to achieve -10 VDC ±0.5 VDC at the design air gap. Adjust the probe axial position as needed. Record the as-left gap voltage in the maintenance log.

5. Functional Test and Return to Service: Remove the channel bypass, confirm the monitor displays a valid vibration reading within expected baseline range, and verify that no alarms or faults are active. Update the System 1 or DCS historian tag with the replacement date and new probe serial number. The 12-month warranty period begins from the shipment date recorded on the NINERMAS packing list.

Spare Parts Support FAQ

Q1: Is the 330881-28-15-122-03-02 a direct drop-in replacement for the original Bently Nevada part?
Yes. NINERMAS supplies this part as an original Bently Nevada component. The SKU encodes the exact cable length, tip diameter, and connector configuration, so it installs directly into the existing PROXPAC XL probe mount and junction box without modification. Always verify the full SKU against the installed part before ordering to avoid cable-length or connector mismatches.

Q2: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact NINERMAS at sale@ninermas.com with the packing list number and a description of the failure mode. NINERMAS will arrange for inspection and replacement or credit. Warranty does not cover damage from incorrect installation, overvoltage, or mechanical impact.

Q3: How should maintenance teams manage long-term inventory of this part given Bently Nevada’s product lifecycle?
Bently Nevada PROXPAC XL components are mature-lifecycle products. Plants running these systems should maintain a minimum of one cold spare per critical machine train and consider a two-year forward stock for high-criticality applications such as main steam turbines or primary compressors. NINERMAS maintains long-term supply relationships and can support blanket purchase orders for multi-unit quantities with staggered delivery schedules. Contact our sales team to discuss a customized spare parts support agreement.

Q4: Can NINERMAS verify compatibility before shipment if I am unsure about the exact variant required?
Yes. Send your existing probe part number, the Proximitor driver model, and the rack slot configuration to sale@ninermas.com. Our technical team will confirm compatibility, check the gap voltage operating range, and advise on any cable or connector adapters required. All units are function-tested before shipment and shipped with documentation suitable for inclusion in your plant maintenance records.
