Bently Nevada 330881-28-08-090-00-02 Service-Ready Spare Part

Bently Nevada 330881-28-08-090-00-02 Service-Ready Spare Part for Industrial Maintenance

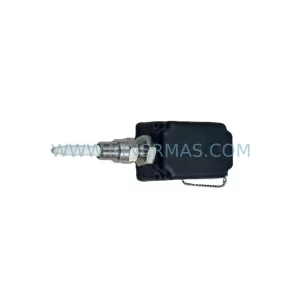

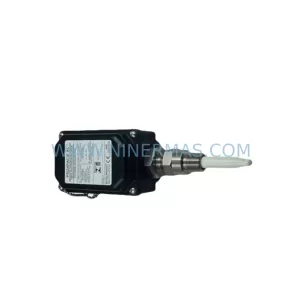

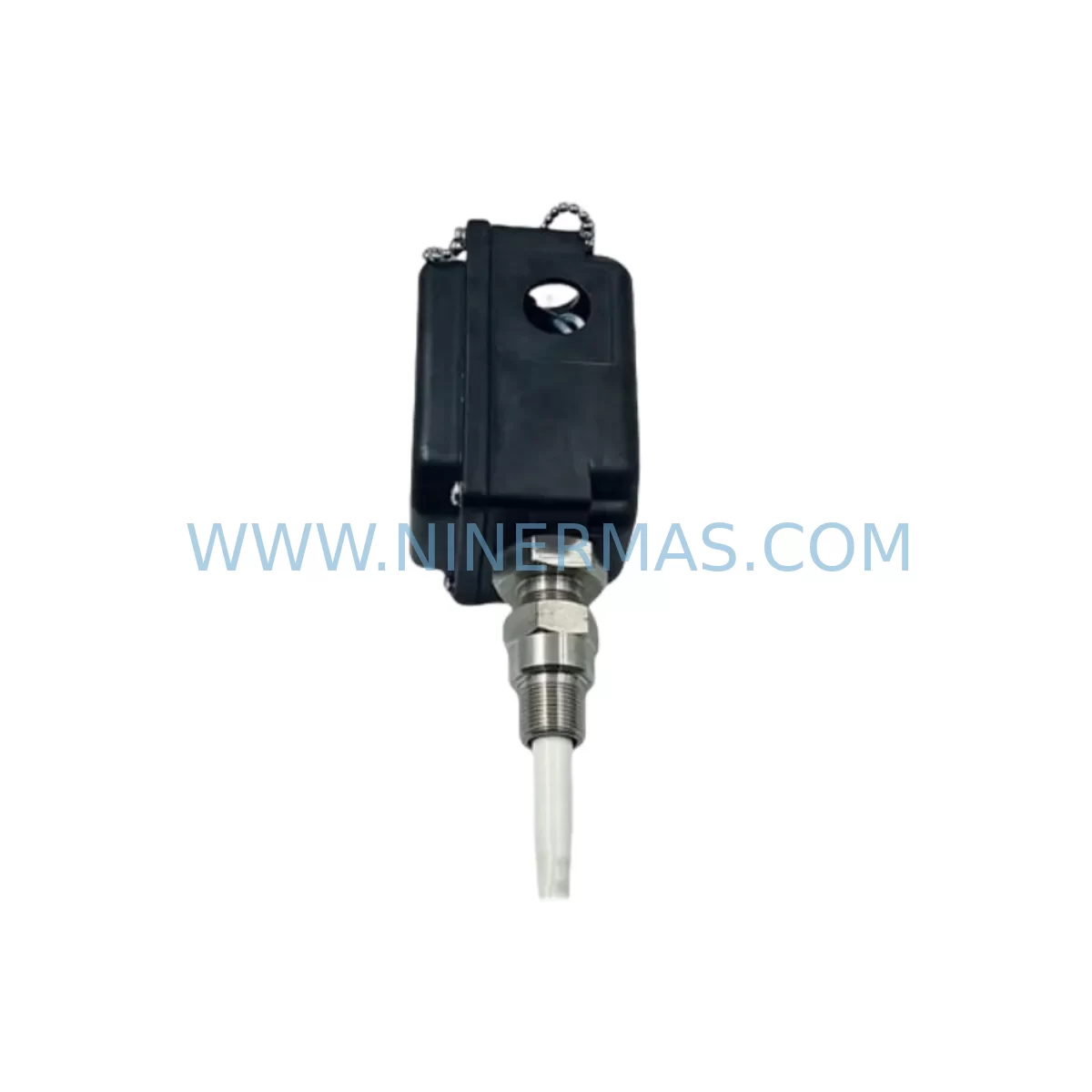

The Bently Nevada 330881-28-08-090-00-02 is an original 3300 XL NSv (Non-contact Shaft Vibration) proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As a critical sensing element in turbine protection, compressor monitoring, and pump surveillance systems, this probe is a front-line component in any predictive maintenance and condition monitoring program. Sourced directly from verified supply channels, this service-ready spare is tested prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

Whether you are responding to an unplanned trip event, executing a scheduled annual overhaul, or building a strategic spare parts inventory for a critical rotating asset, the 330881-28-08-090-00-02 delivers the dimensional accuracy, cable length, and sensitivity range required by the Bently Nevada 3300 XL monitoring platform. The probe’s 8 mm tip diameter and 90 mm cable configuration are engineered to integrate directly with existing conduit runs and probe holders without field modification, reducing replacement time and eliminating compatibility risk during emergency shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-28-08-090-00-02 proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure the integrity of the vibration monitoring loop. Maintenance engineers should begin by verifying the condition of the paired Bently Nevada 330180-91-05 Proximitor® sensor (or equivalent 3300 XL driver), as probe sensitivity drift is often caused by a degraded driver rather than the probe itself. The 330130-080-01-00 extension cable connecting the probe to the Proximitor should be inspected for jacket cracking, connector corrosion, and continuity — a damaged extension cable is a common source of erratic gap voltage readings that are frequently misdiagnosed as probe failure.

At the rack level, the 3500/42M Proximitor/Seismic Monitor input card should be checked for proper channel configuration, OK relay status, and alarm setpoint integrity. If the machine has been running with a degraded probe signal, the 3500/20 Rack Interface Module (RIM) communication status and the 3500/92 Communication Gateway should be reviewed to confirm that no latched fault conditions are masking additional channel anomalies. For plants using a System 1 Evolution condition monitoring platform, the historian data should be reviewed to identify any pre-trip vibration trends that may indicate bearing wear or rotor imbalance independent of the probe replacement.

During cabinet inspection, maintenance teams should also verify the integrity of the DC power supply module feeding the Proximitor — typically a –24 VDC regulated supply — and confirm that terminal block connections at the junction box are torqued to specification and free of oxidation. Where signal isolation is required between the monitoring rack and the plant DCS, the condition of any installed signal isolator or galvanic separator should be confirmed. If the machine is part of an API 670-compliant protection system, the overspeed detection module and thrust position monitor channel should be cross-checked during the same maintenance window to maximize the value of the planned outage.

For procurement engineers building or refreshing a critical spare parts kit, the 330881-28-08-090-00-02 should be stocked alongside its companion extension cable, at least one spare Proximitor driver, and a set of probe holder thread inserts to cover the most common field replacement scenarios without requiring additional procurement lead time during an emergency.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3500 rack. Place the affected channel in bypass mode to prevent a spurious machine trip during probe removal. Confirm the machine is in a safe state or that the bypass is acknowledged by the control room.

Step 2 — Gap Measurement & Documentation: Before removing the old probe, record the existing gap voltage (typically –10 VDC ± 0.5 V at the nominal air gap) and the physical gap measurement using a feeler gauge. This baseline is required to correctly set the replacement probe gap and confirm the new probe is operating within the linear range.

Step 3 — Probe Removal: Disconnect the extension cable at the junction box. Unthread the probe from the probe holder using the appropriate spanner. Inspect the probe holder threads and the target area on the shaft for wear, scoring, or contamination.

Step 4 — Installation of 330881-28-08-090-00-02: Install the new probe finger-tight, then adjust to achieve the nominal gap voltage specified in the machine’s vibration monitoring datasheet. Lock the probe in position with the locknut. Reconnect the extension cable and verify connector seating.

Step 5 — Functional Verification: Remove the channel bypass at the 3500 rack. Confirm the OK LED is illuminated, the gap voltage is within the acceptable window, and the channel is reading a stable, low-noise signal. Document the as-left gap voltage and probe serial number in the maintenance management system.

Step 6 — Return to Service: Notify the control room that the channel is restored. Update the spare parts inventory to reflect consumption of the 330881-28-08-090-00-02 and initiate a replenishment order to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 330881-28-08-090-00-02 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330881-28-08-090-00-02 is a 3300 XL NSv series probe and is compatible with 3300 XL Proximitor sensors. It is also widely used in conjunction with 3500 Series rack monitors when paired with the appropriate 3300 XL Proximitor driver. Always confirm the driver part number and system configuration with your site’s vibration monitoring datasheet before installation.

Q2: How is the probe tested before shipment?
Each unit undergoes functional output verification and sensitivity confirmation prior to dispatch. The probe is checked against the nominal 7.87 V/mm sensitivity specification and the OK output is verified. A test report is available upon request. All units are shipped with protective end caps and anti-static packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as specified in the Bently Nevada 3300 XL product documentation. It does not cover damage resulting from incorrect installation, operation outside the specified environmental or electrical limits, or physical damage incurred after delivery. Warranty claims are processed with full technical support from our team.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. NINERMAS maintains ongoing supply relationships for Bently Nevada 3300 XL series components and can support scheduled delivery programs, consignment stock arrangements, and emergency same-day quotation for critical spares. Contact our team to discuss volume pricing, lead time commitments, and multi-site supply agreements.
