Bently Nevada 330881-28-07-155-03-02 Service-Ready Spare Part

Bently Nevada 330881-28-07-155-03-02 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

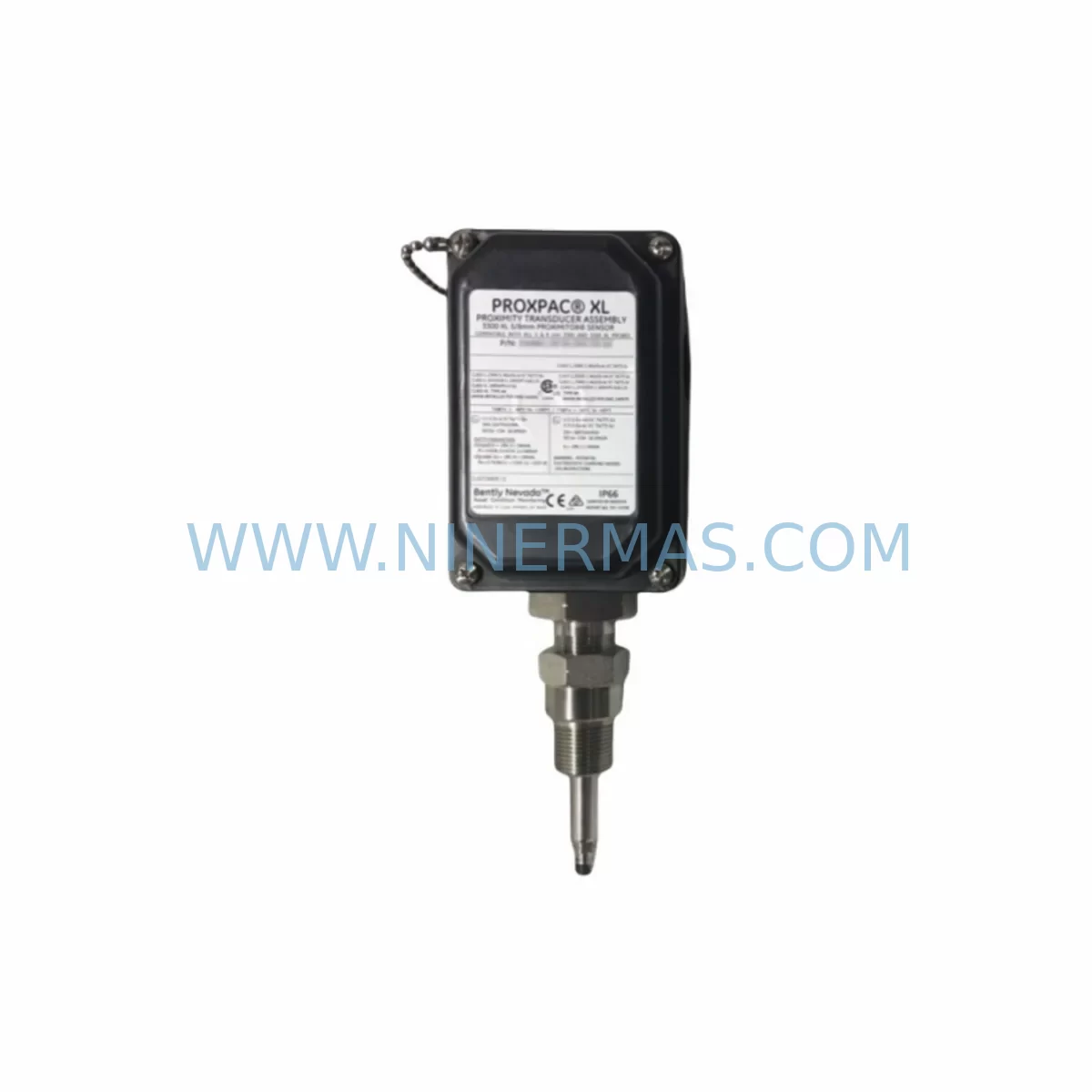

The Bently Nevada 330881-28-07-155-03-02 is a PROXPAC XL series proximity transducer system component engineered for continuous vibration monitoring in critical rotating machinery environments. As an original-grade industrial spare part, this unit is designed to deliver reliable eddy-current sensing performance in turbines, compressors, pumps, and gearboxes where unplanned downtime carries significant operational and financial consequences. Maintenance engineers and procurement teams managing rotating equipment reliability programs recognize the 330881 series as a cornerstone of Bently Nevada’s 3300 XL monitoring architecture — a platform widely deployed across oil & gas, power generation, petrochemical, and heavy manufacturing facilities worldwide.

When a proximity transducer system fails or degrades, the consequences extend beyond a single sensor. The entire vibration channel — from the probe tip through the extension cable and into the proximitor module — must be evaluated as an integrated measurement loop. Stocking the 330881-28-07-155-03-02 as a ready-to-install spare eliminates the most common source of extended downtime: waiting on lead times for a critical sensing component while a machine sits idle. With a tested, serialized unit on the shelf, your maintenance team can execute a channel swap, verify gap voltage, and restore the monitoring loop within a single shift window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Bently Nevada 3300 XL or 3500 series monitoring system requires a holistic view of the entire measurement chain and control cabinet. When scheduling replacement of the 330881-28-07-155-03-02 proximity transducer system, experienced reliability engineers use the opportunity to inspect and — where condition warrants — proactively replace adjacent components that share the same failure exposure window.

Begin with the Bently Nevada 3300 XL Proximitor Module (such as the 330180 or 330130 series), which conditions the raw eddy-current signal into a usable DC output. A degraded proximitor can produce erratic gap readings even when the probe and cable are healthy, leading to nuisance trips or — more dangerously — masked faults. Alongside the proximitor, inspect the 3300 XL I/O module and its terminal block connections for corrosion, loose ferrules, or insulation breakdown caused by heat cycling in the control cabinet.

The extension cable assembly (typically a 330130 or 330180 matched cable) is a frequent wear item in high-vibration or high-temperature installations. Cable jacket cracking, connector pin oxidation, and shield continuity loss are common failure modes that are easily overlooked during a quick sensor swap. Always perform a full loop resistance and capacitance check after installing the new 330881-28-07-155-03-02 to confirm the cable is not introducing measurement error.

Within the same control cabinet, review the condition of the Bently Nevada 3500/15 Power Supply module or equivalent rack power supply. An unstable –24 VDC rail will cause systematic gap voltage drift across all proximity channels simultaneously — a failure mode that is frequently misdiagnosed as a mechanical issue. Pair this inspection with a check of the 3500/20 Rack Interface Module (RIM) and its communication link to the plant DCS or historian, ensuring that Modbus or Ethernet/IP data integrity is maintained after the channel is restored.

For facilities running integrated machinery protection and condition monitoring, also verify the status of any Bently Nevada 3500/42M Proximitor / Seismic Monitor cards sharing the same rack, as a power event during transducer replacement can affect adjacent cards. Signal isolators or galvanic isolation barriers installed between the 3500 rack outputs and the DCS analog input cards should be tested for drift, particularly in older installations where isolation barrier capacitors may have aged. Fuse integrity on the –24 VDC distribution rail and the condition of DIN rail terminal blocks (such as Phoenix Contact or Weidmüller series) should be confirmed before returning the loop to service.

Where the machinery protection system interfaces with a plant HMI or operator workstation running System 1 Evolution or equivalent condition monitoring software, confirm that the channel configuration — scale factor, gap voltage setpoints, alert and danger thresholds — is correctly restored after the replacement. Incorrect scale factor entry following a transducer swap is a documented source of false trips in the weeks following maintenance.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3500 rack I/O module. Do not remove power from the full rack unless required; most 3500 series racks support hot-swap of individual I/O modules, allowing adjacent channels to remain in service during the replacement.

Step 2 — Document Existing Gap Voltage: Before disconnecting the old 330881-28-07-155-03-02, record the existing gap voltage (typically displayed on the System 1 or DCS historian). This baseline confirms the target surface condition and provides a reference for post-installation verification.

Step 3 — Remove Old Transducer System: Disconnect the extension cable from the proximitor module. Remove the probe from the bracket, taking care not to disturb the target surface or shaft. Inspect the probe tip for wear, pitting, or contamination that may indicate a broader machinery issue.

Step 4 — Install Replacement Unit: Install the new 330881-28-07-155-03-02 into the existing bracket. Set the probe gap to the manufacturer-specified distance (typically 1.0 mm ±0.1 mm for standard steel targets) using a feeler gauge or the gap voltage method. Torque the locknut to specification.

Step 5 — Reconnect & Verify: Reconnect the extension cable and proximitor. Power the channel and measure gap voltage at the proximitor output terminals. Confirm the reading falls within the calibrated range (typically –9.5 VDC to –10.5 VDC at nominal gap for a 5 mm probe). Compare against the pre-removal baseline.

Step 6 — Restore Monitoring & Document: Re-enable the monitoring channel at the rack. Confirm alert and danger setpoints are active. Update the maintenance management system (CMMS) with the replacement record, including the new unit serial number, installation date, and gap voltage reading. This documentation supports warranty claims and future reliability analysis.

This workflow is applicable to legacy 3300 XL installations and current 3500 series racks, making the 330881-28-07-155-03-02 a compatible replacement across both platforms without requiring rack reconfiguration in most standard installations.

Spare Parts Support FAQ

Q1: Is the 330881-28-07-155-03-02 a direct drop-in replacement for older 330881 series units?
In most installations, yes. The 330881-28-07-155-03-02 is dimensionally and electrically compatible with earlier 330881 suffix variants used in 3300 XL and 3500 series racks. However, always verify the probe diameter, cable length suffix, and connector type against your existing installation drawings before ordering. If your system uses a non-standard target material or a modified bracket, contact our technical team for compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 330881-28-07-155-03-02 unit shipped by NINERMAS undergoes functional output verification — including gap voltage linearity check and cable continuity test — before dispatch. Units are individually serialized and packed to prevent transit damage. A test report is available upon request for quality-critical procurement processes.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or mechanical impact. NINERMAS provides long-term supply support for the 330881 series, including assistance with obsolescence planning for facilities managing aging 3300 XL infrastructure.

Q4: How should we manage spare parts inventory for proximity transducer systems to minimize downtime risk?
Industry best practice for critical rotating machinery is to maintain a minimum of one complete transducer system (probe + extension cable + proximitor) per monitored machine train as an on-site hot spare. For facilities with multiple identical machines, a shared pool of two to three units per transducer model is typically sufficient. NINERMAS supports blanket order arrangements and scheduled replenishment programs to help procurement engineers maintain optimal stock levels without tying up excessive capital in slow-moving inventory.
