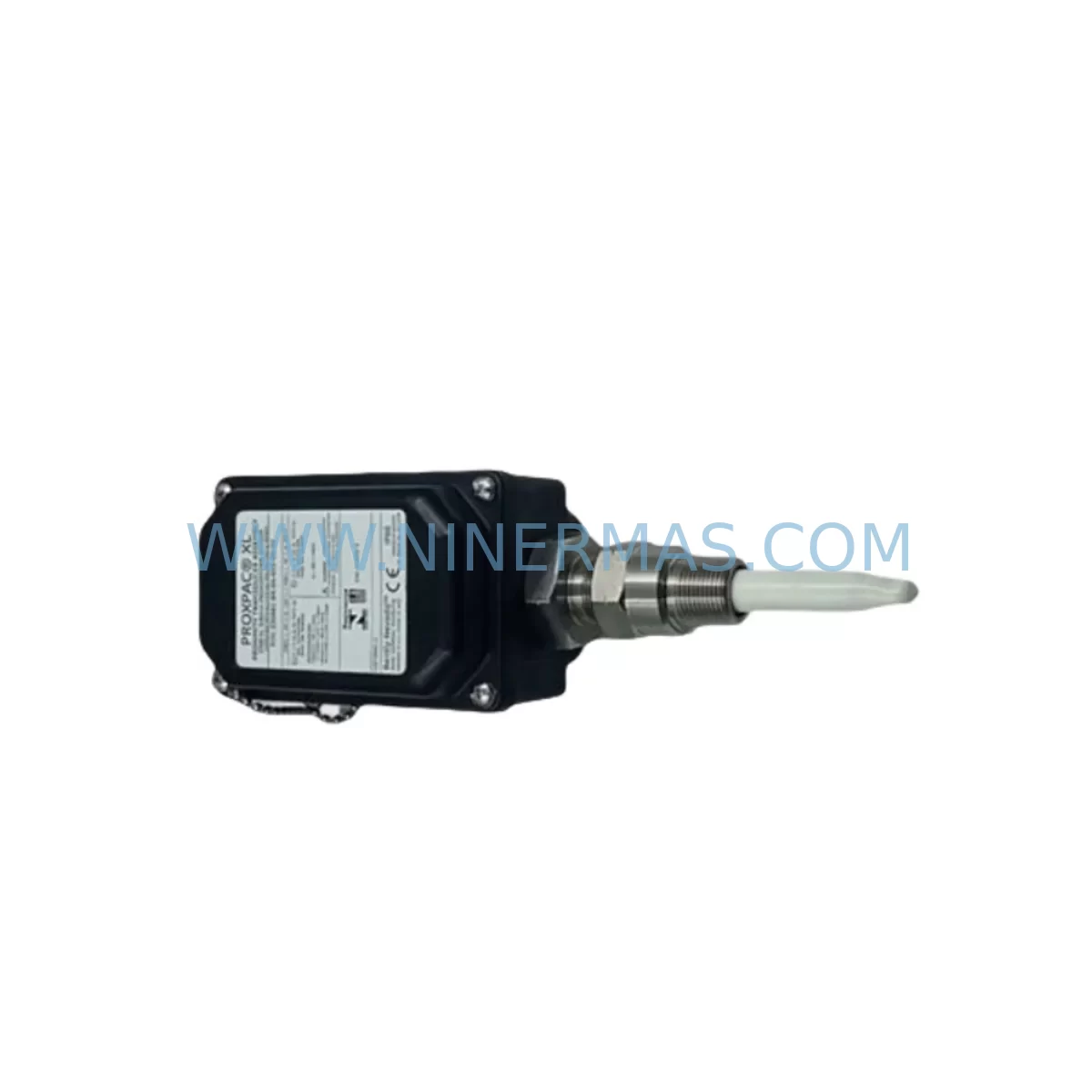

Bently Nevada 330881-28-05-070-00-02 Service-Ready Spare Part

Bently Nevada 330881-28-05-070-00-02 Service-Ready Spare Part for Industrial Maintenance

The Bently Nevada 330881-28-05-070-00-02 is a precision-engineered spare part designed for the PROXPAC XL Series vibration monitoring and machinery protection systems. As rotating equipment reliability becomes increasingly critical in process industries, having a verified, service-ready replacement for this module on hand is a cornerstone of any proactive maintenance strategy. Whether you are managing a turbine protection panel, a compressor monitoring rack, or a multi-channel vibration surveillance system, the 330881-28-05-070-00-02 delivers the original-specification performance required to restore system integrity and minimize unplanned downtime.

Sourced and tested to meet OEM standards, this spare part is suitable for emergency replacement, scheduled overhaul, and long-term inventory stocking. Each unit undergoes pre-shipment functional verification to ensure it arrives ready for immediate installation. With a 12-month warranty and long-term supply commitment, NINERMAS supports maintenance engineers and procurement teams across petrochemical, power generation, oil & gas, and heavy manufacturing sectors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-28-05-070-00-02 in a PROXPAC XL monitoring rack, a thorough site inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should treat this replacement as an opportunity to audit the entire vibration monitoring loop.

Begin by inspecting the Bently Nevada 3500/42M Proximitor I/O Module and the associated 3500/20 Rack Interface Module, as these components share the same backplane power bus and communication path. A degraded rack interface can cause false alarms or signal loss even after a successful module swap. Simultaneously, verify the condition of the 3300 XL 8mm Proximity Transducer System probes and extension cables — worn or kinked probe cables are a leading cause of premature module failure and should be replaced as a set when the signal conditioner is changed.

Check the 24 VDC power supply module feeding the PROXPAC XL chassis. Voltage ripple or supply instability will directly impact measurement accuracy and can shorten the service life of the replacement 330881-28-05-070-00-02. If the panel uses a redundant power architecture, test both supply rails independently. Inspect the terminal blocks and field wiring connectors for corrosion, loose crimps, or insulation breakdown — particularly in high-vibration or high-humidity environments.

For systems integrated with a DCS or PLC via 4–20 mA analog input cards, confirm that the receiving I/O channel is calibrated and that the loop resistance is within specification. If the plant uses a Modbus RTU or FOUNDATION Fieldbus communication module for remote monitoring, validate the communication link after module replacement to ensure alarm setpoints and trip values are correctly transmitted to the control room.

In control cabinets housing multiple PROXPAC XL channels, also inspect the signal isolators on shared analog loops, the fuse holders and miniature circuit breakers protecting each monitoring channel, and any surge protection devices on field cable entries. These passive components are frequently overlooked during corrective maintenance but are critical for protecting the new module from transient damage. Where HMI panels display vibration trend data, confirm that the display configuration and engineering unit scaling remain consistent after the module swap to avoid misinterpretation of post-maintenance readings.

Stocking the 330881-28-05-070-00-02 alongside complementary spares — including a spare 3500/15 Power Supply Module, a set of 3300 XL proximity probe assemblies, and a spare 3500/22M Transient Data Interface — creates a complete first-response kit that enables full system restoration within a single maintenance window, dramatically reducing mean time to repair (MTTR) for rotating equipment protection systems.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the affected PROXPAC XL rack channel following site LOTO procedures. Document the existing alarm and trip setpoints from the 3500 rack configuration software before removal.

Step 2 — Module Removal: Disconnect field wiring connectors and carefully extract the existing 330881-28-05-070-00-02 from the chassis slot. Inspect the backplane connector for bent pins or contamination.

Step 3 — Compatibility Verification: Confirm the replacement unit’s firmware revision and hardware configuration match the system requirements. Cross-reference the rack slot assignment and channel configuration in the 3500 Rack Configuration Software (RCS).

Step 4 — Installation & Wiring: Seat the new module firmly into the chassis slot. Reconnect field wiring per the original termination diagram. Verify torque on all terminal screws.

Step 5 — Functional Test: Re-energize the channel and verify OK LED status. Confirm live vibration readings against a known reference (e.g., a calibrated shaker or adjacent channel comparison). Check that 4–20 mA output corresponds correctly to the measured vibration amplitude.

Step 6 — System Handover: Restore alarm and trip setpoints. Update the maintenance log with the replacement date, new module serial number, and post-installation test results. Notify the control room of system restoration.

This structured workflow minimizes the risk of configuration errors, ensures compatibility is confirmed before re-energization, and provides a clear audit trail for regulatory and reliability reporting.

Spare Parts Support FAQ

Q1: Is the 330881-28-05-070-00-02 a direct drop-in replacement for the existing PROXPAC XL module?
Yes. The 330881-28-05-070-00-02 is designed as a direct replacement for the PROXPAC XL Series. It maintains the same mechanical form factor, electrical interface, and signal conditioning characteristics as the original. No chassis modification is required. Always verify the firmware revision against your system’s RCS configuration file before installation to ensure full compatibility.

Q2: What is the recommended inventory strategy for this spare part?
For critical rotating equipment protection systems, we recommend maintaining a minimum of one spare 330881-28-05-070-00-02 per monitored machine train, with an additional buffer unit for plants operating more than four PROXPAC XL channels. Annual inventory review aligned with your turnaround schedule ensures spares remain within their storage life and are available for emergency deployment without lead-time risk.

Q3: How is the unit tested before shipment?
Every 330881-28-05-070-00-02 dispatched by NINERMAS undergoes a pre-shipment functional verification process. This includes power-on self-test, signal output calibration check, and connector integrity inspection. A test report is available upon request. Units are packaged in anti-static, shock-resistant packaging to protect against transit damage.

Q4: What warranty and long-term supply support does NINERMAS provide?
All units carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains long-term stock of Bently Nevada PROXPAC XL Series components to support plants operating legacy systems beyond OEM active production. For volume procurement, blanket order agreements and consignment stocking arrangements are available to ensure supply continuity without capital lock-up.
