Bently Nevada 330881-28-04-85-03-02 Retrofit ProxPac XL

Bently Nevada 330881-28-04-85-03-02 Retrofit-Compatible ProxPac XL for Legacy Vibration Monitoring Systems

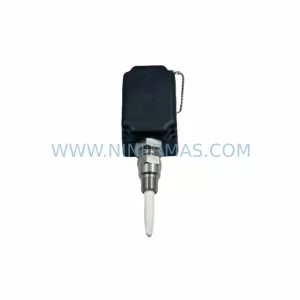

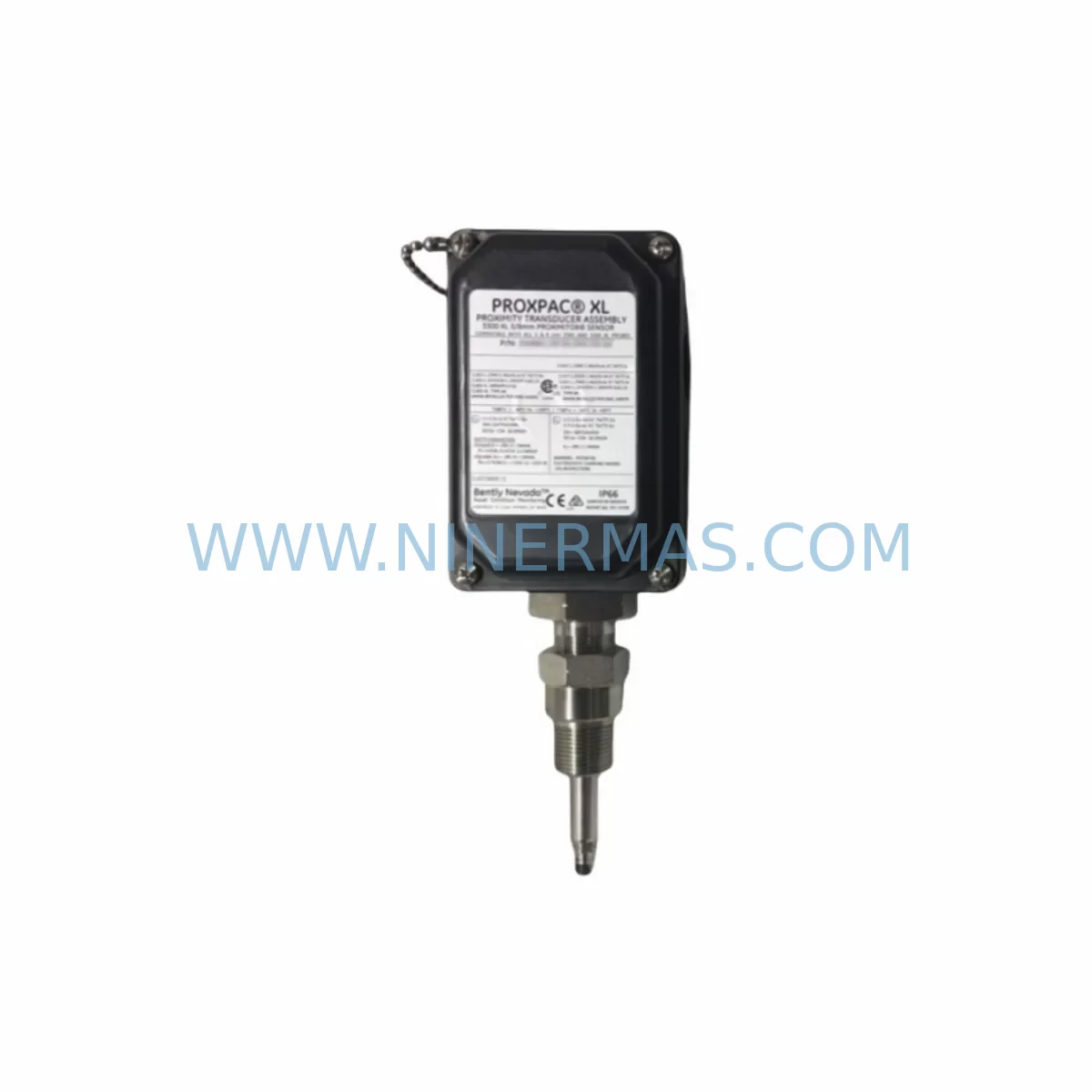

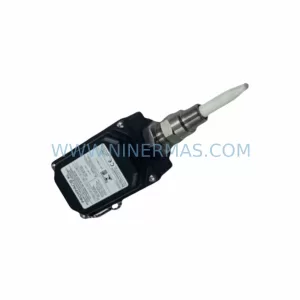

The Bently Nevada 330881-28-04-85-03-02 is a ProxPac XL proximity transducer system module designed for continuous vibration and position monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series and 7200 Series installations reach end-of-life, this module serves as a direct retrofit-compatible replacement, enabling plant engineers to restore system integrity without full platform migration. Whether you are recovering a discontinued spare, upgrading an aging control cabinet, or extending the operational life of an existing monitoring rack, the 330881-28-04-85-03-02 provides a verified drop-in solution backed by 12-month warranty coverage and pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting the 330881-28-04-85-03-02 into an existing vibration monitoring installation requires a structured review of the surrounding system architecture. In most 3300 Series rack configurations, the ProxPac XL extension cable interfaces directly with the 3300/16 Dual Proximitor Monitor or the 3300/55 Keyphasor Module, both of which must be confirmed operational before the new transducer assembly is commissioned. Engineers should verify that the existing Proximitor sensor — typically a 190501 or 330180 Series probe — is still within calibration tolerance, as a degraded probe will produce erroneous gap voltage readings regardless of the condition of the extension cable.

Power supply integrity is a critical pre-check. The 3300 Series rack draws regulated -24 VDC from a dedicated power supply module such as the 3300/20 or 3300/25. Before installing the 330881-28-04-85-03-02, confirm that the supply rail is within specification and that no adjacent I/O modules — including 4–20 mA output cards or relay output modules — are drawing excess current that could affect signal quality. Terminal wiring should be inspected for corrosion, especially in high-humidity or offshore environments where shield continuity failures are common.

For plants migrating toward the Bently Nevada 3500 Series platform, the 330881-28-04-85-03-02 can serve as a bridging component during phased migration. The 3500/42M Proximitor/Seismic Monitor accepts the same transducer signal chain, and the ProxPac XL cable assembly can be reused in the interim while new rack infrastructure is staged. During this transition, the System 1 Evolution software platform should be used to verify that all channel configurations, alert setpoints, and danger thresholds are correctly transferred from the legacy monitoring database. HMI screens built on the older System 1 v5 or v6 interface will require tag remapping if the rack address or channel number changes during the migration.

Backplane slot assignment must be confirmed before physical installation. In multi-rack configurations, the module address is determined by the DIP switch or rotary switch setting on the monitor card, not the physical slot position. Incorrect addressing will cause the System 1 software to misidentify the channel, leading to false alarm conditions or missed trips. Installation space should also be verified — the ProxPac XL assembly requires adequate conduit routing clearance, particularly in retrofit scenarios where the original cable tray layout was designed for shorter standard-length ProxPac assemblies.

Signal isolation is recommended when the 330881-28-04-85-03-02 is installed in cabinets that also house variable frequency drives, high-voltage switchgear, or other EMI-generating equipment. A signal isolator or barrier module inserted between the Proximitor output and the monitor card input can prevent ground loop interference from corrupting vibration trend data. This is especially important in retrofit scenarios where the original cable shielding may have been compromised by previous maintenance activities.

Downtime Control During System Migration

Minimizing unplanned downtime during a ProxPac XL replacement requires pre-staging all components before the maintenance window opens. The 330881-28-04-85-03-02 should be bench-tested against a known-good Proximitor sensor prior to installation, with gap voltage and output signal verified at the expected operating air gap. This pre-shipment verification, combined with the 12-month warranty coverage provided with every unit, ensures that the replacement module is confirmed functional before it reaches the field.

To protect the original program logic during migration, a full backup of the System 1 configuration database — including all channel parameters, alarm setpoints, and trend history — should be exported before any hardware changes are made. If the migration involves replacing a 3300 Series monitor card alongside the ProxPac XL assembly, the new 3500 Series card should be pre-configured offline using the 3500 Rack Configuration Software before installation, reducing the time the machine is offline to the physical swap and final verification steps only.

Field continuity can be maintained in some applications by using a temporary bypass relay or portable vibration analyzer to monitor the shaft during the hardware changeover. This approach is particularly valuable in continuous process industries — such as petrochemical, power generation, or pulp and paper — where even brief unmonitored operation of critical rotating equipment represents an unacceptable risk. Once the 330881-28-04-85-03-02 is installed and the gap voltage is confirmed within the linear range, the monitor card should be taken out of bypass and all alarm functions verified before the machine is returned to service.

Retrofit Support FAQ

Q: Is the 330881-28-04-85-03-02 a direct replacement for my existing ProxPac XL assembly?
A: Yes, provided the cable length suffix (-28, indicating 28-foot extension) matches your field installation distance. Confirm the connector type and Proximitor sensor model compatibility before ordering. Our team can assist with cross-reference verification.

Q: Has this unit been tested before shipment?
A: Every 330881-28-04-85-03-02 unit undergoes functional testing prior to dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: What wiring changes are required during installation?
A: In most cases, the existing terminal connections at the monitor card can be reused without modification. Inspect the shield termination at both ends of the cable run and verify that the coaxial connector is fully seated. If the original cable tray routing is retained, no additional conduit work should be required.

Q: Do you maintain stock for immediate delivery?
A: We maintain inventory of the 330881-28-04-85-03-02 and related ProxPac XL components to support urgent retrofit and emergency replacement requirements. Contact our team to confirm current stock availability and lead time for your specific configuration.
