Bently Nevada 330881-28-04-150-06-02 Service-Ready Spare Part

Bently Nevada 330881-28-04-150-06-02 Service-Ready Spare Part: Spare Part Replacement & Downtime Risk Control

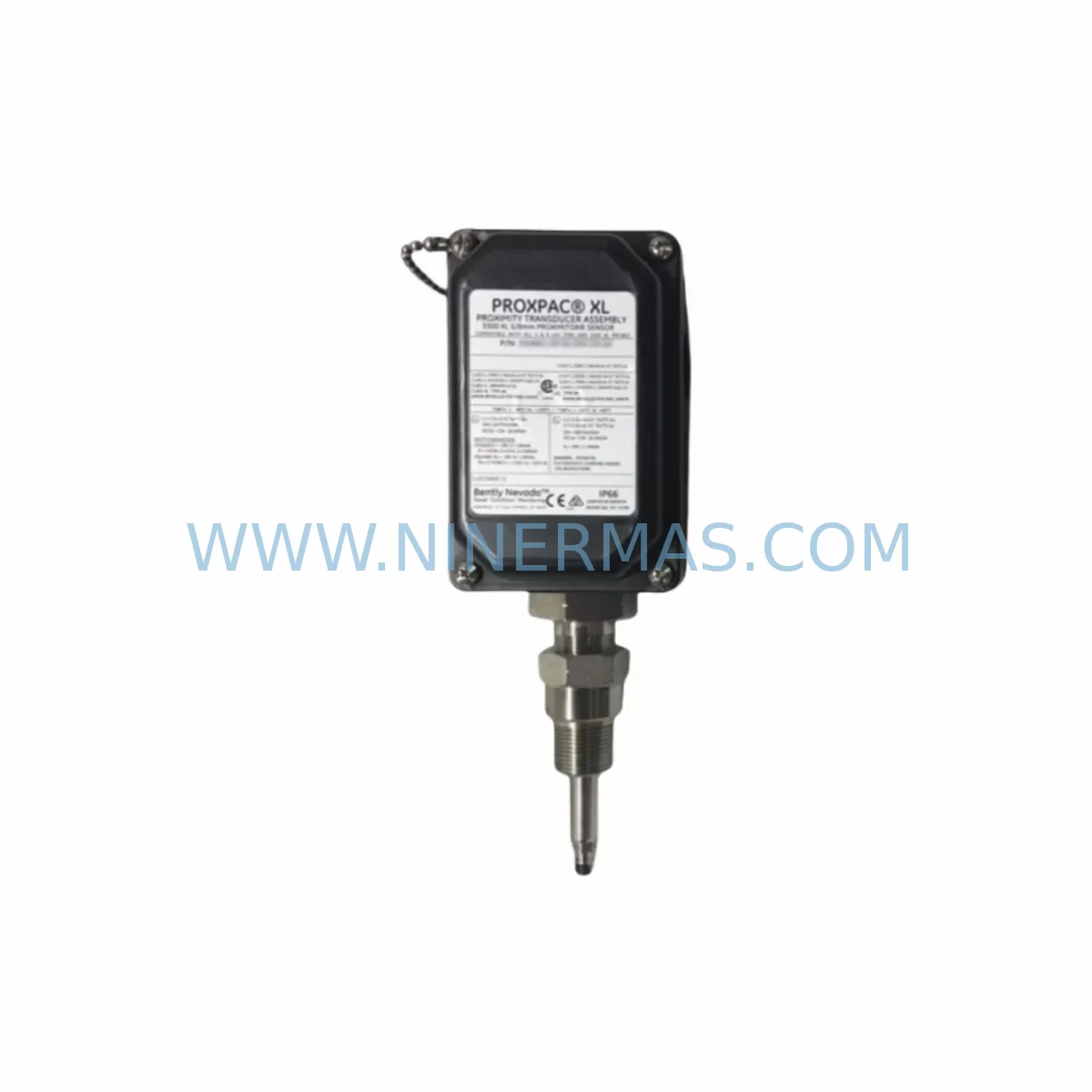

The Bently Nevada 330881-28-04-150-06-02 is a ruggedized proximity module designed for continuous vibration monitoring in demanding industrial environments. As a critical component within the Bently Nevada 3300 Series machinery protection system, this module provides reliable non-contact measurement of shaft displacement, radial vibration, and axial position — making it indispensable for rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

When a proximity module fails or degrades, the consequences extend far beyond a single sensor. The entire vibration monitoring loop — from the proximitor/extension cable through to the 3300 rack system — must be evaluated to ensure system integrity is restored. Maintenance engineers who have worked with Bently Nevada systems understand that replacing the 330881-28-04-150-06-02 without inspecting the associated 330130 proximitor, the 330180 extension cable, and the 3300/16 I/O module is a common source of repeat failures and unnecessary downtime.

For procurement engineers managing spare parts inventory, the 330881-28-04-150-06-02 should be treated as a Tier-1 critical spare — stocked on-site and verified against the installed base before annual turnarounds. Its ruggedized design makes it suitable for high-vibration, high-temperature environments, but like all precision measurement components, it requires periodic calibration verification and physical inspection of the probe tip and mounting hardware.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Bently Nevada 330881-28-04-150-06-02 replacement goes well beyond swapping the proximity probe. During any scheduled or emergency replacement, maintenance teams should conduct a full loop check of the vibration monitoring channel. This includes verifying the condition and gap voltage output of the 330130 proximitor, inspecting the 330180 extension cable for insulation damage or connector corrosion, and confirming that the 3300/16 I/O module is receiving a clean signal within the expected -18 VDC to -24 VDC proximitor power range.

At the rack level, engineers should inspect the 3300 Series rack backplane for any signs of moisture ingress or connector wear, and verify that the 3300/20 power supply module is delivering stable voltage to all monitoring channels. If the facility operates a 3500 Series system alongside legacy 3300 equipment, cross-compatibility of the proximitor and extension cable must be confirmed before installation.

For control cabinet inspections associated with this replacement, it is good practice to simultaneously check the condition of terminal blocks and wiring within the junction box, inspect any signal isolators or barriers in the loop (particularly in hazardous area installations where Zener barriers or galvanic isolators protect the intrinsically safe circuit), and verify that the HMI or DCS historian is correctly receiving and trending the vibration channel data after the replacement is complete.

Procurement engineers building annual maintenance kits for rotating machinery should consider stocking the 330881-28-04-150-06-02 alongside the 330130 proximitor, 330180 extension cable, and a spare 3300/16 I/O module as a complete channel replacement kit. This approach minimizes diagnostic time during emergency shutdowns and supports a rapid return-to-service strategy. For facilities with multiple identical trains — such as parallel compressor or turbine installations — maintaining at least two complete channel kits per train is a widely adopted best practice in the industry.

Site Replacement Workflow

When replacing the Bently Nevada 330881-28-04-150-06-02 on-site, begin by isolating the monitoring channel at the 3300 rack and documenting the existing gap voltage reading before removal. This baseline measurement is essential for verifying correct installation of the replacement probe. Remove the existing probe carefully, inspecting the probe tip for wear, pitting, or contamination that may indicate a shaft surface issue requiring separate attention.

Install the replacement 330881-28-04-150-06-02 to the manufacturer’s specified gap distance — typically 1.0 mm to 2.5 mm depending on the target shaft material and surface finish — and verify the gap voltage falls within the calibrated range using a digital multimeter before reconnecting to the proximitor. Route the integral cable to avoid contact with hot surfaces or high-voltage conductors, and secure with appropriate cable clamps to prevent vibration-induced fatigue at the connector.

After reconnection, perform a full channel functional test at the 3300 rack, confirming that the OK relay is energized, the vibration reading is within the expected baseline range for the machine at rest, and the alarm and danger setpoints are correctly configured. Document the as-found and as-left gap voltages in the maintenance management system to support future trend analysis and predictive maintenance planning. This disciplined replacement workflow reduces the risk of repeat failures and supports compliance with machinery protection standards such as API 670.

Spare Parts Support FAQ

Q: Is the 330881-28-04-150-06-02 compatible with both 3300 and 3500 Series Bently Nevada systems?
A: The 330881 series proximity probes are primarily designed for use with the Bently Nevada 3300 Series monitoring system and the associated 330130 proximitor. Compatibility with 3500 Series systems depends on the specific I/O module and proximitor configuration in use. We recommend confirming the target system’s proximitor power supply voltage and signal conditioning requirements before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: What testing is performed before shipment?
A: Each 330881-28-04-150-06-02 unit is inspected and functionally tested before dispatch. Testing includes visual inspection of the probe tip and cable assembly, continuity and insulation resistance checks, and verification of the probe’s static output characteristics. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q: How should I manage long-term spare parts inventory for this component?
A: For facilities with critical rotating machinery, we recommend maintaining a minimum of one to two units of the 330881-28-04-150-06-02 on-site as part of a dedicated vibration monitoring spare parts kit. Proximity probes have a finite service life influenced by operating temperature, shaft surface condition, and environmental contamination. Annual inspection and gap voltage trending can help predict end-of-life before failure occurs. NINERMAS supports long-term supply agreements to ensure consistent availability for multi-year maintenance programs.

Q: Can NINERMAS supply replacement units for discontinued or obsolete Bently Nevada part numbers?
A: Yes. NINERMAS specializes in sourcing original and compatible spare parts for legacy industrial automation and machinery protection systems, including discontinued Bently Nevada product lines. If your installed base includes older 3300 Series components that are no longer available through standard distribution channels, contact our team with the full part number and application details. We maintain an extensive inventory of service-ready spare parts to support long-term system operation and obsolescence management.
