Bently Nevada 330881-28-04-150-00-02 Service-Ready Spare Part

Bently Nevada 330881-28-04-150-00-02 Service-Ready Spare Part for Industrial Maintenance

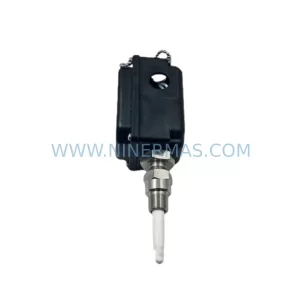

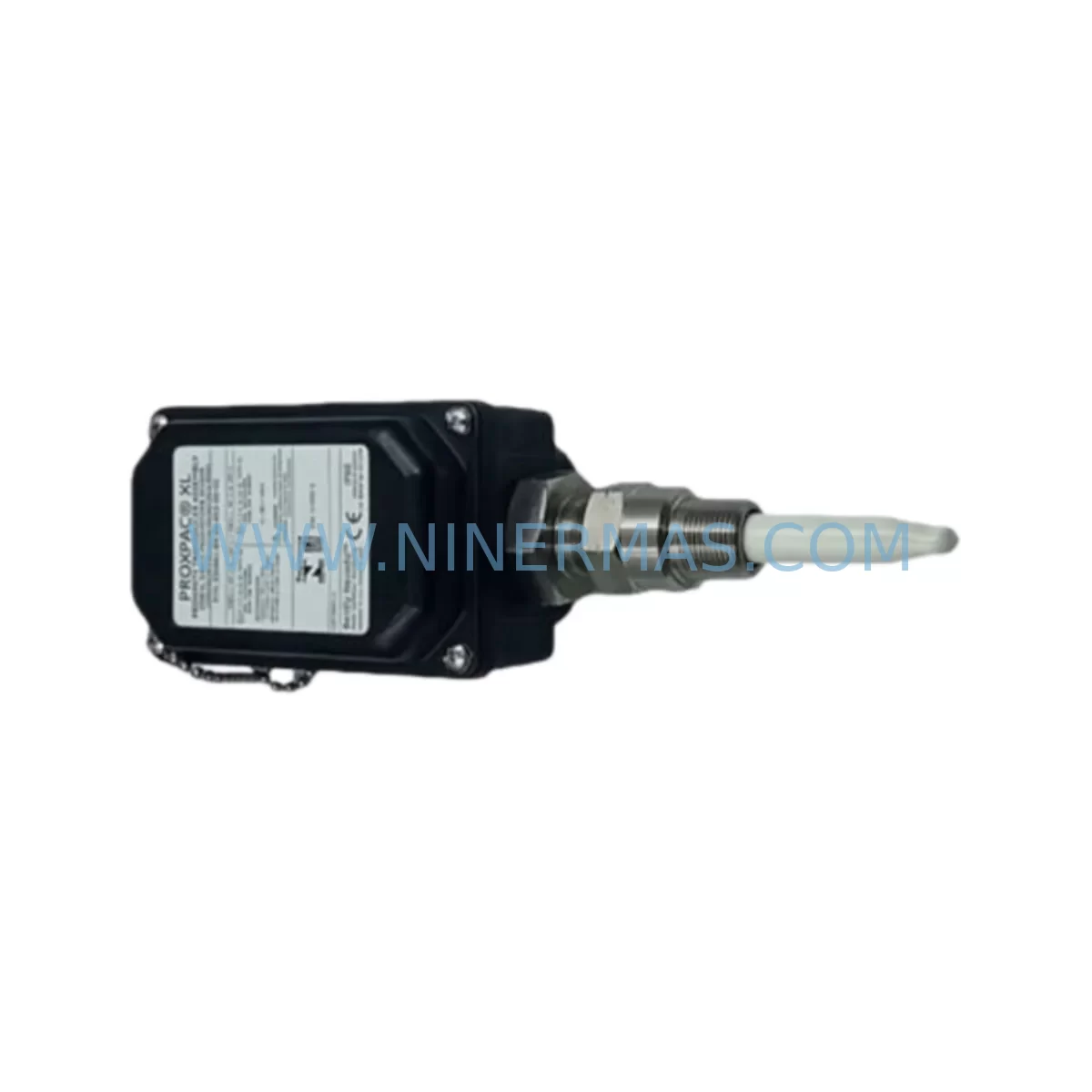

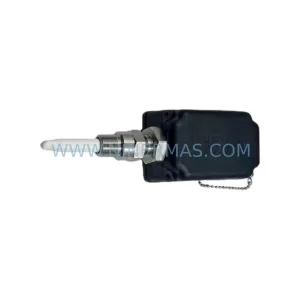

The Bently Nevada 330881-28-04-150-00-02 is a ruggedized proximity transducer engineered for continuous vibration and position monitoring in demanding industrial environments. As a critical component within the Bently Nevada 330881 Series, this transducer delivers reliable non-contact measurement of shaft displacement, radial vibration, and axial position — making it an essential spare part for rotating machinery protection systems in power generation, oil and gas, petrochemical, and heavy manufacturing facilities.

When a proximity transducer fails or degrades, the consequences extend far beyond a single sensor replacement. Unplanned downtime on turbines, compressors, pumps, and motors can cost thousands of dollars per hour. Maintaining a service-ready stock of the 330881-28-04-150-00-02 ensures your maintenance team can execute rapid swap-outs during both scheduled outages and emergency shutdowns, restoring machine protection coverage without delay.

This unit is fully compatible with Bently Nevada 3300 Series monitor systems and integrates seamlessly with the standard Proximitor® signal conditioning ecosystem. Before deploying a replacement transducer, maintenance engineers should verify the integrity of the associated extension cable — typically an 330130 or 330180 Series cable — as cable degradation is a common root cause of false readings and nuisance trips. The Proximitor® sensor housing, driver electronics, and connector terminations should also be inspected for moisture ingress, mechanical damage, and proper grounding continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for rotating machinery protection systems requires a holistic view of the entire signal chain — not just the transducer itself. When scheduling replacement of the 330881-28-04-150-00-02, maintenance and procurement engineers should simultaneously audit the following components to prevent repeat failures and ensure system integrity after recommissioning.

The 330130 Series Extension Cable and 330180 Series Armored Extension Cable are the most common companion components. These cables transmit the raw eddy current signal from the transducer to the Proximitor® driver, and any impedance mismatch, shield break, or connector corrosion will directly corrupt vibration readings. Cables routed through high-vibration zones or exposed to process fluids should be replaced on a defined interval rather than on failure alone.

The 330180 Proximitor® Sensor (signal conditioner/driver) should be bench-tested whenever a transducer is replaced. A degraded driver can mask a healthy transducer’s output or generate false gap voltages that trigger spurious alarms. Inspect the driver’s power supply input — typically sourced from a 3300 Series Monitor rack power supply module — for voltage stability and ripple within specification.

Within the Bently Nevada 3500 Series Rack or 3300 Series Monitor, the 3500/42M Proximitor®/Seismic Monitor Module and associated I/O terminal blocks should be checked for loose wiring, oxidized terminals, and correct channel configuration. Relay output modules — such as the 3500/32 Relay Module — that are wired to trip logic for the monitored machine should be tested for proper setpoint response after any transducer replacement to confirm the protection chain remains intact.

For facilities running DCS or PLC-integrated machinery protection, verify that the 4–20 mA or voltage analog outputs from the monitor rack are correctly received at the distributed I/O cards. Signal isolators or barriers installed between the monitor rack and the control system should be inspected for drift, particularly in older installations where component aging may introduce offset errors that are not immediately apparent during normal operation.

Procurement engineers sourcing the 330881-28-04-150-00-02 as a long-term inventory spare should also consider stocking the 330905 Proximitor® Sensor as a complementary driver spare, along with a set of 3300 XL 8mm Proximity Transducer assemblies for cross-compatibility in mixed-generation installations. Maintaining a minimum of two units of the 330881-28-04-150-00-02 per critical machine train is a widely adopted best practice in facilities with high availability requirements.

Site Replacement Workflow

Replacing the 330881-28-04-150-00-02 in the field follows a structured sequence to minimize downtime and avoid recommissioning errors. Begin by documenting the existing gap voltage reading at the monitor channel — this baseline confirms the outgoing transducer’s last known condition and provides a reference for the incoming unit’s calibration check.

After isolating the machine and de-energizing the proximity system, remove the transducer by carefully backing out the locknut and probe body. Inspect the target area on the shaft for surface damage, scoring, or contamination that could affect the new transducer’s gap calibration. Clean the target zone and verify shaft runout is within acceptable limits before installing the replacement unit.

Install the 330881-28-04-150-00-02 to the manufacturer’s specified gap — typically 1.0 mm to 1.5 mm for standard applications — and verify the gap voltage at the monitor channel falls within the linear range (approximately -10 VDC to -18 VDC for a -24 VDC supply). Reconnect the extension cable, ensuring the coaxial connector is fully seated and the cable is routed away from high-voltage conductors and heat sources.

Before returning the machine to service, perform a channel-by-channel functional check at the monitor rack, confirm alarm and danger setpoints are active, and verify relay outputs respond correctly to simulated over-limit conditions. Document the replacement in the maintenance management system with the new transducer’s serial number, installation gap, and gap voltage reading. This record supports warranty claims and provides traceability for future audits.

For legacy systems where the original 330881 Series mounting hardware is no longer available, the ruggedized housing design of the 330881-28-04-150-00-02 is compatible with standard 1-inch NPT or metric M28 probe holders, simplifying integration into older control cabinets and machinery frames without requiring structural modifications.

Spare Parts Support FAQ

Q1: Is the 330881-28-04-150-00-02 compatible with both 3300 and 3500 Series Bently Nevada monitor racks?
The 330881-28-04-150-00-02 is natively compatible with the Bently Nevada 3300 Series monitor system. Integration with the 3500 Series rack is achievable using the appropriate Proximitor® interface module and signal conditioning adapter. Always verify channel configuration and input impedance settings in the monitor software before commissioning the replacement unit in a 3500 Series environment.

Q2: What is the recommended spare parts inventory strategy for this transducer?
For critical rotating machinery — turbines, compressors, and large pumps — a minimum of two units per machine train is recommended as on-site inventory. Facilities with multiple identical machines should maintain a pooled spare of at least three to five units to cover simultaneous failures during major outages. Given the 12-month warranty and stable shelf life of eddy current transducers when stored in a dry, temperature-controlled environment, holding a 12–24 month supply is a low-risk procurement strategy.

Q3: How is the 330881-28-04-150-00-02 tested before shipment?
Each unit undergoes full functional verification prior to dispatch, including output sensitivity check, gap voltage linearity test across the specified measurement range, and connector integrity inspection. A test report is available upon request. Units are packaged in anti-static, shock-resistant packaging to prevent transit damage.

Q4: What is the warranty coverage and long-term supply commitment for this part?
The 330881-28-04-150-00-02 is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains long-term sourcing relationships to support continued availability of 330881 Series components, including for facilities managing legacy system life extension programs where OEM supply has been discontinued or lead times are extended.
