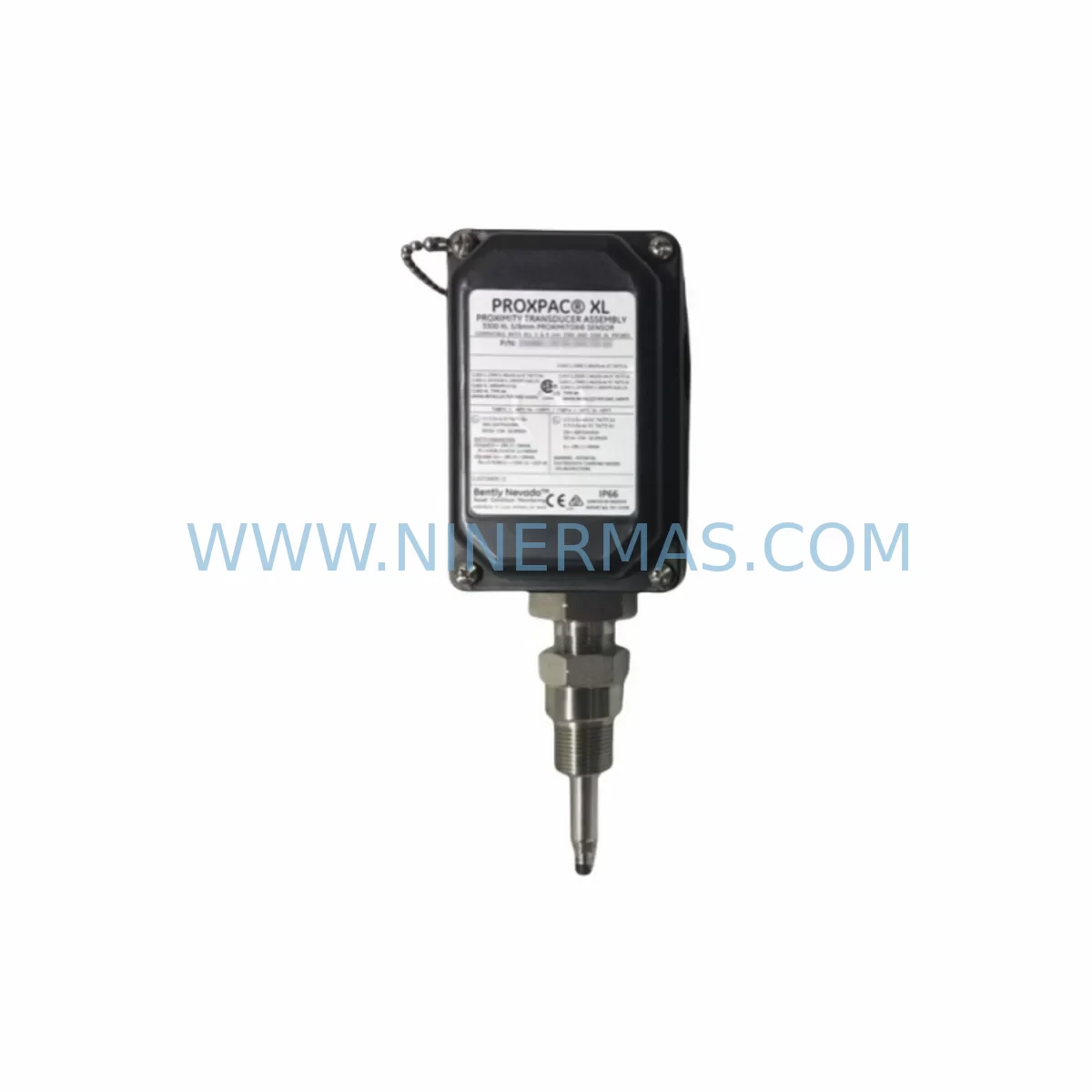

Bently Nevada 330881-28-04-145-03-02 Retrofit Proximity Transducer

Bently Nevada 330881-28-04-145-03-02 Retrofit-Compatible Proximity Transducer for Legacy Vibration Monitoring Systems

The Bently Nevada 330881-28-04-145-03-02 is a high-precision eddy current proximity transducer engineered for non-contact measurement of shaft displacement, vibration, and position in rotating machinery. Designed as a direct retrofit replacement for aging 3300 Series and legacy XL Series monitoring installations, this transducer delivers the same signal output characteristics, gap voltage range, and sensitivity specifications as the original factory unit — enabling seamless integration into existing control architectures without requiring reprogramming of the host monitor or recalibration of the overall measurement chain.

For facilities managing aging turbomachinery protection systems, the 330881-28-04-145-03-02 addresses one of the most common field challenges: sourcing a verified, tested replacement for a discontinued proximity transducer without triggering a full system overhaul. Whether your plant is running a Bently Nevada 3300 XL 8mm system, a legacy 7200 Series monitor rack, or an older 3500 Series rack-based protection system, this transducer is engineered to restore measurement integrity with minimal downtime and zero compromise on signal fidelity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330881-28-04-145-03-02 into a legacy vibration monitoring system begins well before the transducer arrives on site. Engineers responsible for the retrofit should first audit the existing installation to confirm the driver module pairing — the 330180 or 330130 extension cable and the associated proximitor/driver such as the 3300 XL 8mm Proximitor must be verified for compatibility with the new probe tip. Mismatched system components are the leading cause of erroneous gap voltage readings during commissioning.

Next, confirm the monitor rack configuration. In a 3500 Series rack, the transducer connects to a 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor module. The channel address, OK relay logic, and alert/danger setpoints stored in the rack’s configuration software (System 1 or Rack Configuration Software) must be reviewed to ensure they remain valid after the transducer swap. If the plant is running an older 7200 Series monitor, the technician should verify that the OK LED behavior and the buffered output signal levels match the expected range for the downstream data acquisition system or DCS input card.

Terminal wiring is another critical checkpoint. The 330881-28-04-145-03-02 uses a standard coaxial connector at the proximitor end. Before disconnecting the legacy probe, photograph and document the existing wiring at the junction box or terminal strip. Pay particular attention to shield grounding — improper shield termination is a frequent source of noise on the buffered output, which can trigger nuisance alerts in the 3500 rack or cause erratic readings in the plant’s historian or condition monitoring platform.

For plants that are simultaneously upgrading their control infrastructure — for example, migrating from a legacy DCS to a modern Emerson DeltaV or Honeywell Experion system — the 330881-28-04-145-03-02 provides a stable analog output that can feed directly into new I/O marshalling panels without requiring signal conditioning. If the new DCS uses HART-enabled I/O cards, a signal isolator or HART multiplexer may be required to bridge the analog vibration signal into the digital process network. In these scenarios, the transducer itself remains unchanged; the integration work is concentrated at the I/O termination and the historian tag mapping level.

Backplane and rack space should also be confirmed before ordering. In a 3500 Series rack, each monitor module occupies a defined slot, and the rack’s power supply module — typically the 3500/15 Power Supply — must have sufficient capacity to support the full complement of installed monitor cards plus the new transducer load. If the rack is near capacity, a supplemental 3500/15 or a rack expansion may be required before the retrofit can proceed.

Finally, if the plant’s HMI displays vibration trend data sourced from the 3500 rack’s System 1 software, the technician should verify that the tag names, engineering unit scaling, and alarm thresholds in the HMI faceplate remain consistent after the transducer replacement. In most cases, a like-for-like probe swap does not require HMI reconfiguration, but any change to the monitor channel’s full-scale range or OK relay logic will propagate to the HMI and must be tested before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window opens, the replacement 330881-28-04-145-03-02 should be bench-tested against a known-good driver and extension cable to confirm the gap voltage curve, sensitivity, and OK output behavior. This pre-shipment verification — which NINERMAS performs on every unit prior to dispatch — eliminates the risk of discovering a defective component after the machine has already been taken offline.

During the outage, the recommended sequence is: isolate the monitor channel, remove the legacy probe, install the 330881-28-04-145-03-02, set the initial gap to the manufacturer’s recommended air gap (typically 1.0 mm to 1.5 mm for an 8 mm probe), and verify the gap voltage at the proximitor output before reconnecting the monitor channel. This sequence protects the original program logic in the 3500 rack — no configuration changes are required, and the rack’s OK relay will re-energize automatically once the gap voltage falls within the configured OK range.

For critical machinery where even a brief loss of vibration protection is unacceptable, a temporary bypass relay can be used to hold the OK output in the energized state during the physical swap. This approach maintains the machine’s protection logic in a known state and prevents nuisance trips to the DCS or safety instrumented system during the transducer exchange. Once the new probe is installed and the gap voltage is confirmed, the bypass relay is removed and the monitor channel is returned to normal operation.

Post-installation, a short trend capture — typically 15 to 30 minutes of continuous vibration data — should be reviewed to confirm that the new transducer is tracking shaft motion consistently with the adjacent measurement points. Any step change in the DC gap voltage or an unexpected increase in the AC vibration component should be investigated before the machine is returned to full load. NINERMAS provides technical support during the commissioning phase to assist with gap setting, signal verification, and documentation of the as-installed configuration.

Retrofit Support FAQ

Q: Is the 330881-28-04-145-03-02 a direct drop-in replacement for the 330780 and 330101 proximity transducers?
A: Yes, for most 3300 XL and 3500 Series installations. The 330881-28-04-145-03-02 shares the same 8 mm tip diameter, sensitivity specification, and gap voltage range as the 330780 and 330101. However, you must confirm that the extension cable length and the proximitor model are matched to the new probe, as the overall system cable length affects the calibrated sensitivity of the measurement chain.

Q: Will I need to reconfigure the 3500 rack or update the System 1 database after replacing the transducer?
A: In a like-for-like replacement scenario, no rack reconfiguration is required. The monitor channel’s setpoints, OK relay logic, and full-scale range remain valid. If you are also changing the extension cable length or the proximitor model, a recalibration of the gap voltage OK range may be necessary, and the System 1 database should be updated to reflect the new as-installed configuration.

Q: What is included with the shipment, and what is the warranty coverage?
A: Each 330881-28-04-145-03-02 unit is shipped with a factory test report confirming gap voltage curve and sensitivity verification. The unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains in-stock inventory of this model to support urgent replacement requirements with short lead times.

Q: Can this transducer be used in a new installation, or is it only suitable for retrofit applications?
A: The 330881-28-04-145-03-02 is fully suitable for both new installations and retrofit applications. It meets the original Bently Nevada factory specification and can be installed in any system that supports an 8 mm eddy current proximity transducer with standard 3300/3500 Series signal conditioning. For new installations, confirm the probe boss thread size, the required cable routing path, and the monitor channel configuration before finalizing the order.

—
