Bently Nevada 330881-28-04-034-06-02 Safety-Reliable Proximity Transducer

Bently Nevada 330881-28-04-034-06-02 Safety-Reliable Proximity Transducer for Critical Control Sites

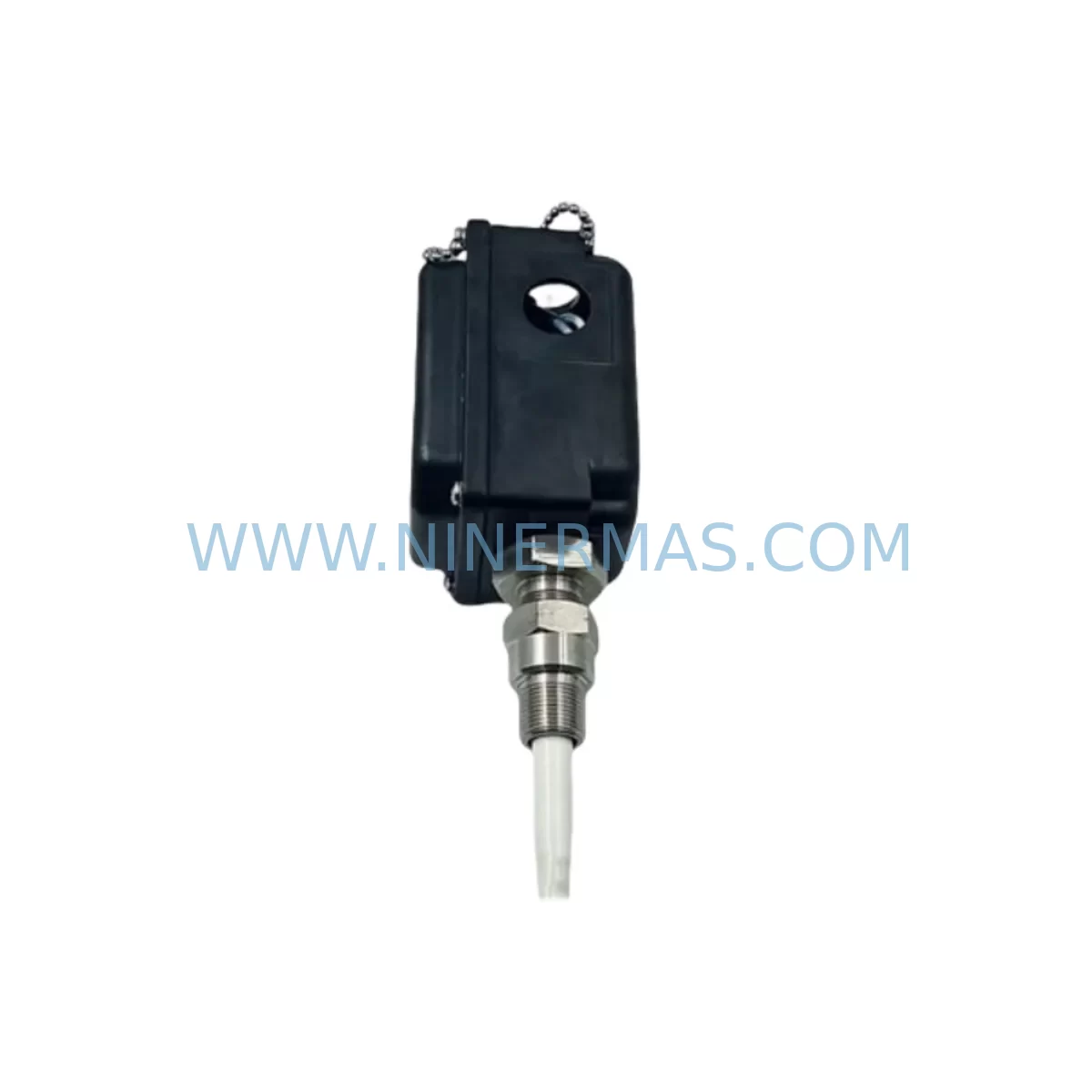

The Bently Nevada 330881-28-04-034-06-02 is a PROXPAC XL series eddy-current proximity transducer engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery protection systems, this transducer is a cornerstone component in control cabinets and safety instrumented systems (SIS) where measurement accuracy and uptime are non-negotiable.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, and metallurgical processing lines — even a momentary lapse in shaft vibration monitoring can trigger unplanned shutdowns, equipment damage, or catastrophic failure. The 330881-28-04-034-06-02 is purpose-built to eliminate these risks, providing stable, drift-free proximity measurement under conditions of high electromagnetic interference (EMI), elevated temperature, mechanical vibration, moisture ingress, and airborne particulate contamination.

This transducer integrates seamlessly with the Bently Nevada 3300 XL series system architecture, working in conjunction with the 330180-91-00 extension cable and 330130-040-00-00 proximitor sensor to form a complete, calibrated measurement chain. The signal output is fully compatible with 3500/40M proximitor monitor rack modules, enabling direct integration into existing Bently Nevada 3500 series machinery protection systems without signal conditioning modifications. When paired with a 3500/22M transient data interface, the system supports full waveform capture for advanced diagnostics and predictive maintenance programs.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control cabinet configurations — particularly those governing turbine protection, compressor train monitoring, and pump seal gap measurement — the 330881-28-04-034-06-02 serves as the primary sensing element in a layered risk reduction architecture. Signal drift and false trips are among the leading causes of nuisance shutdowns in rotating machinery systems. This transducer’s thermally stable coil design and precision-matched gap factor virtually eliminate zero-shift errors that commonly occur when inferior sensors are exposed to thermal cycling in enclosed control enclosures.

For surge protection and power supply stability within the same control cabinet, the Bently Nevada 3500/15 power supply module provides regulated, isolated DC power to the proximitor and monitor rack, ensuring that voltage fluctuations on the plant bus do not propagate into the measurement chain. Upstream, a Phoenix Contact TRABTECH surge protection device or equivalent DIN-rail mounted transient suppressor is recommended to guard against lightning-induced surges and switching transients that can permanently damage sensitive eddy-current circuitry.

Communication integrity is equally critical. In facilities using Modbus RTU or FOUNDATION Fieldbus architectures, the 3500 series rack’s communication gateway module transmits real-time vibration data to the plant DCS or safety PLC — such as a Rockwell Automation ControlLogix L7x or Siemens S7-400H redundant controller — without introducing latency that could delay protective relay actuation. Proper cable segregation between the proximitor coaxial signal cable and high-voltage power conductors within the cabinet is essential; the use of Panduit cable management systems and ferrite core suppressors on adjacent variable frequency drives (VFDs) further reduces induced noise on the measurement signal.

For installations in Zone 1 or Zone 2 hazardous areas, the transducer is typically paired with a Bently Nevada 3300 XL intrinsically safe barrier or a certified Zener barrier assembly, maintaining the integrity of the Ex ia protection concept throughout the measurement loop. This combination satisfies IEC 60079-11 requirements for intrinsically safe apparatus in explosive atmospheres — a mandatory consideration in offshore platforms, LNG terminals, and chemical reactor buildings.

Critical Industrial Safety Applications

The 330881-28-04-034-06-02 is deployed across a broad spectrum of critical industrial applications where continuous, accurate shaft monitoring is a safety and regulatory requirement:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors, this transducer provides the radial vibration and axial position data required by API 670 machinery protection standards. In these environments, a single undetected bearing failure can result in hydrocarbon release, fire, or explosion — making the reliability of the 330881-28-04-034-06-02 a direct contributor to process safety management (PSM) compliance.

Power Generation: Steam turbine and gas turbine protection systems in combined-cycle power plants rely on proximity transducers to monitor rotor eccentricity, differential expansion, and thrust position. The PROXPAC XL’s wide operating temperature range and resistance to steam condensation make it suitable for both high-pressure turbine sections and low-pressure exhaust ends, where ambient conditions vary dramatically across the machine train.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate extreme levels of structural vibration and airborne dust. The robust construction of the 330881-28-04-034-06-02, combined with its sealed coaxial cable assembly, ensures reliable operation in these high-contamination environments, reducing the frequency of sensor replacement and associated maintenance downtime.

Water & Wastewater Treatment: High-service pumping stations and blower trains in municipal water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance and bearing wear before catastrophic failure. The transducer’s low-maintenance design and long service life reduce total cost of ownership in facilities where maintenance resources are limited.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower systems operate in environments characterized by intense heat, scale, and electromagnetic noise from large DC drives. The 330881-28-04-034-06-02’s EMI-hardened signal path maintains measurement accuracy even in proximity to high-current bus bars and thyristor drive cabinets.

Port & Marine: Shipboard propulsion systems, bow thrusters, and cargo pump turbines require vibration monitoring solutions that can withstand salt spray, humidity cycling, and the mechanical shock loads inherent in marine operations. The transducer’s corrosion-resistant probe tip and sealed connector assembly meet the environmental demands of these installations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330881-28-04-034-06-02?
The 12-month warranty covers all manufacturing defects, signal output deviations beyond published specifications, and premature failure of the probe tip, coaxial cable assembly, or connector under normal operating conditions. Warranty claims are supported with replacement unit dispatch and full technical documentation to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330881-28-04-034-06-02 unit undergoes outgoing quality inspection including gap factor verification, output sensitivity calibration check, insulation resistance testing, and connector integrity verification before dispatch. Test records are available upon request to support site acceptance testing and regulatory documentation requirements.

Q3: Is this transducer compatible with existing Bently Nevada 3500 series monitor racks without recalibration?
Yes. The 330881-28-04-034-06-02 is factory-calibrated to the standard 200 mV/mil sensitivity of the 3300 XL system, ensuring drop-in compatibility with 3500/40M, 3500/42M, and 3500/45 monitor modules. No rack reconfiguration or scale factor adjustment is required when replacing a like-for-like unit, significantly reducing commissioning time during planned maintenance windows.

Q4: Can long-term supply and spare parts availability be guaranteed?
NINERMAS maintains dedicated inventory of the 330881-28-04-034-06-02 and associated PROXPAC XL components to support both planned maintenance schedules and emergency breakdown requirements. Our supply chain is structured to support customers with multi-year maintenance contracts, ensuring that critical spare parts are available without lead-time risk, even for legacy system configurations that original equipment manufacturers may have discontinued.
