Bently Nevada 330881-28-00-200-06-02 Service-Ready Spare Part

Bently Nevada 330881-28-00-200-06-02 Service-Ready Spare Part for Industrial Maintenance

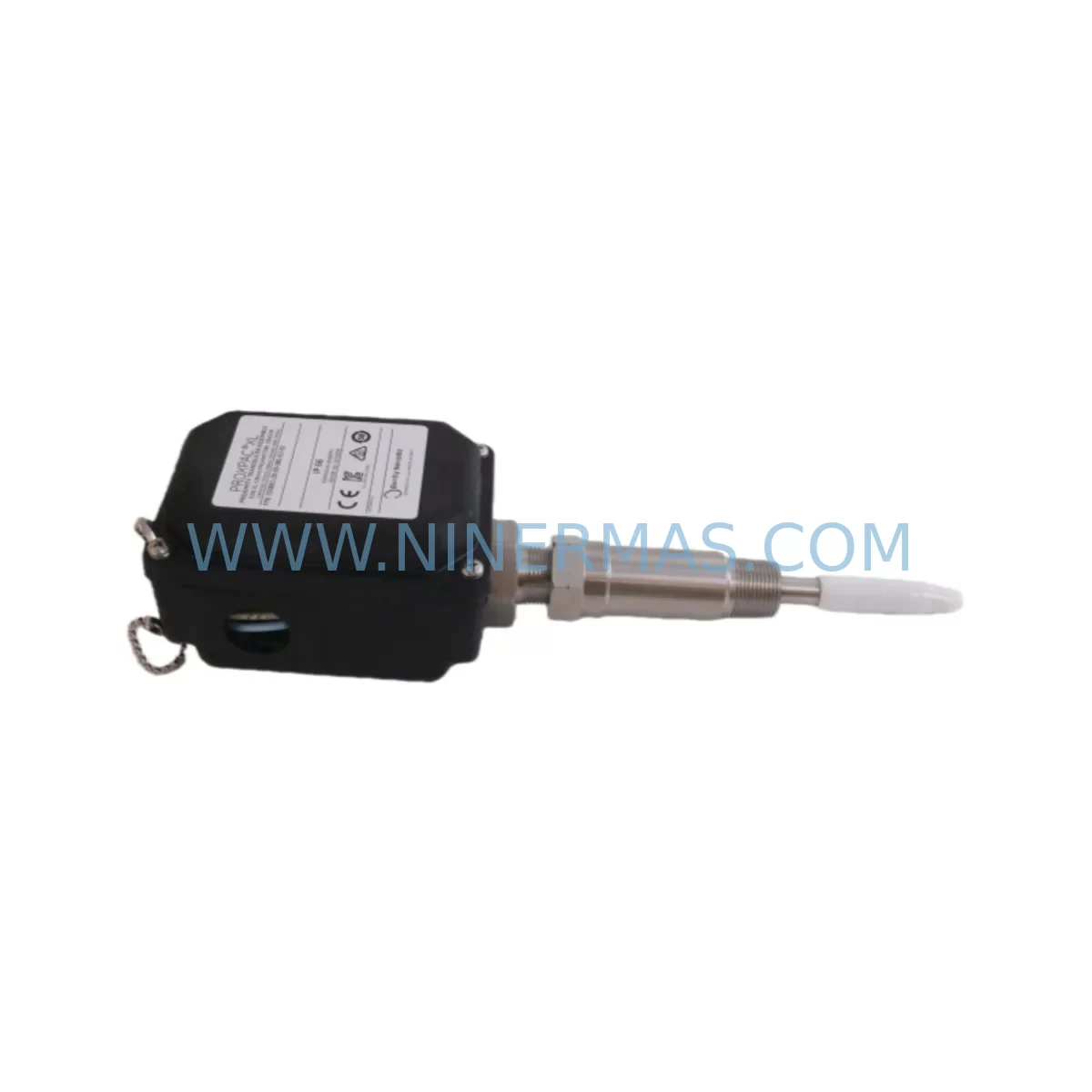

The Bently Nevada 330881-28-00-200-06-02 is a ruggedized safety proximity module engineered for continuous vibration monitoring in critical rotating machinery environments. As an original-specification spare part, this module is purpose-built for integration within Bently Nevada’s 3300 Series and 330881 Series monitoring systems, delivering reliable eddy-current proximity sensing for turbines, compressors, pumps, and other high-value industrial assets where unplanned downtime carries significant operational and financial consequences.

For maintenance engineers managing rotating equipment in oil & gas, power generation, petrochemical, and heavy manufacturing facilities, having a verified, service-ready replacement of the 330881-28-00-200-06-02 on the shelf is a fundamental element of any sound predictive maintenance strategy. This module supports the proximity transducer system’s role in detecting shaft displacement, radial vibration, and axial position — parameters that are central to both API 670 compliance and plant safety interlock logic.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330881-28-00-200-06-02 proximity module is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site inspection should extend to the entire vibration monitoring loop and the associated control cabinet infrastructure.

Begin by verifying the condition of the 330130-080-00-05 proximitor sensor and its extension cable — cable damage or connector corrosion is a frequent root cause of proximity signal degradation that can be misattributed to the module. Inspect the 330180-X1-05 proximity transducer for tip wear or contamination, particularly in environments with oil mist or particulate exposure. The 3300/16 monitor rack backplane connectors should be cleaned and torque-checked, as loose rack connections introduce intermittent faults that complicate fault isolation.

On the power supply side, confirm that the 3300/05 power supply module is delivering stable ±24 VDC within specification — an under-voltage condition will cause erratic proximity readings even with a new module installed. If the cabinet houses a 3500/15 power supply for adjacent 3500 Series monitors, verify its output independently. Terminal blocks and field wiring terminations within the junction box should be inspected for oxidation, especially in humid or coastal installations.

For facilities running integrated safety systems, check the status of the 3300/55 dual voting monitor or any relay output modules connected downstream of the proximity channel. A replacement proximity module that feeds a safety interlock must be loop-tested end-to-end before the machine is returned to service. Additionally, review the 3300/25 keyphasor module if phase-referenced vibration analysis is part of the monitoring strategy — a degraded keyphasor signal will corrupt vector data even when the proximity channel is healthy.

Procurement engineers sourcing the 330881-28-00-200-06-02 should also consider maintaining buffer stock of the 330130 series proximitor sensors, 330854 extension cables, and 3300 series I/O terminal boards to support rapid response to multi-point failures during major overhauls. Sourcing these components from a single verified supplier reduces lead time risk and simplifies traceability documentation for audits.

Site Replacement Workflow

Replacing the 330881-28-00-200-06-02 in the field follows a structured sequence to minimize downtime and ensure system integrity. First, coordinate with the control room to place the affected monitoring channel in bypass mode per your site’s management of change (MOC) procedure — this prevents a spurious trip during module removal. Document the existing gap voltage reading from the monitor display before disconnecting the proximitor cable, as this baseline will be used to verify correct reinstallation gap setting.

Remove the module from the 3300 Series rack by releasing the front-panel locking mechanism and sliding the card out along the guide rails. Inspect the rack slot’s backplane connector pins for damage or contamination before inserting the replacement 330881-28-00-200-06-02. After seating the new module, reconnect the proximitor cable and power up the channel. Adjust the probe gap at the machine to achieve the manufacturer-specified gap voltage (typically –10.0 VDC for standard 5 mm probes), then verify the static and dynamic output against the monitor’s acceptance criteria.

Perform a full channel functional test — including OK relay operation, danger setpoint verification, and 4–20 mA output calibration if applicable — before releasing the channel from bypass. Record all as-found and as-left data in the maintenance management system (CMMS) to support future trend analysis and regulatory compliance. This disciplined replacement workflow, combined with a pre-tested, warranty-backed spare, is the most effective way to restore machinery protection coverage and return the asset to full operational status with confidence.

Spare Parts Support FAQ

Q1: Is the 330881-28-00-200-06-02 compatible with both 3300 and 3500 Series Bently Nevada racks?
The 330881-28-00-200-06-02 is designed for the 3300 Series monitor rack architecture. It is not directly interchangeable with 3500 Series I/O modules, which use a different form factor and communication protocol. Always verify rack series compatibility before ordering. If you are transitioning from a 3300 to a 3500 Series system, contact our technical team for a compatibility assessment.

Q2: How do you verify the module is genuine and has been tested before shipment?
Every 330881-28-00-200-06-02 unit supplied by NINERMAS undergoes pre-shipment functional testing, including power-on verification and output signal check. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery. Traceability documentation is available upon request to support your incoming inspection process.

Q3: What is the recommended spare parts inventory strategy for this module?
For facilities with four or more proximity monitoring channels using the 330881 series, maintaining a minimum of one spare module per monitoring rack is recommended. High-criticality assets — such as main steam turbines or gas compressors — warrant a dedicated hot spare held in the control room. Pair this with buffer stock of proximitor sensors and extension cables to cover the full measurement chain and avoid partial-repair delays during emergency shutdowns.

Q4: Can NINERMAS support long-term supply of the 330881-28-00-200-06-02 for legacy system maintenance?
Yes. NINERMAS specializes in long-term supply of industrial automation spare parts, including legacy and discontinued Bently Nevada components. We maintain sourcing relationships that allow us to fulfill repeat orders for the 330881-28-00-200-06-02 and related 3300 Series components over extended maintenance contracts. Contact us to discuss annual blanket order arrangements that lock in pricing and guarantee availability for your planned maintenance schedule.
