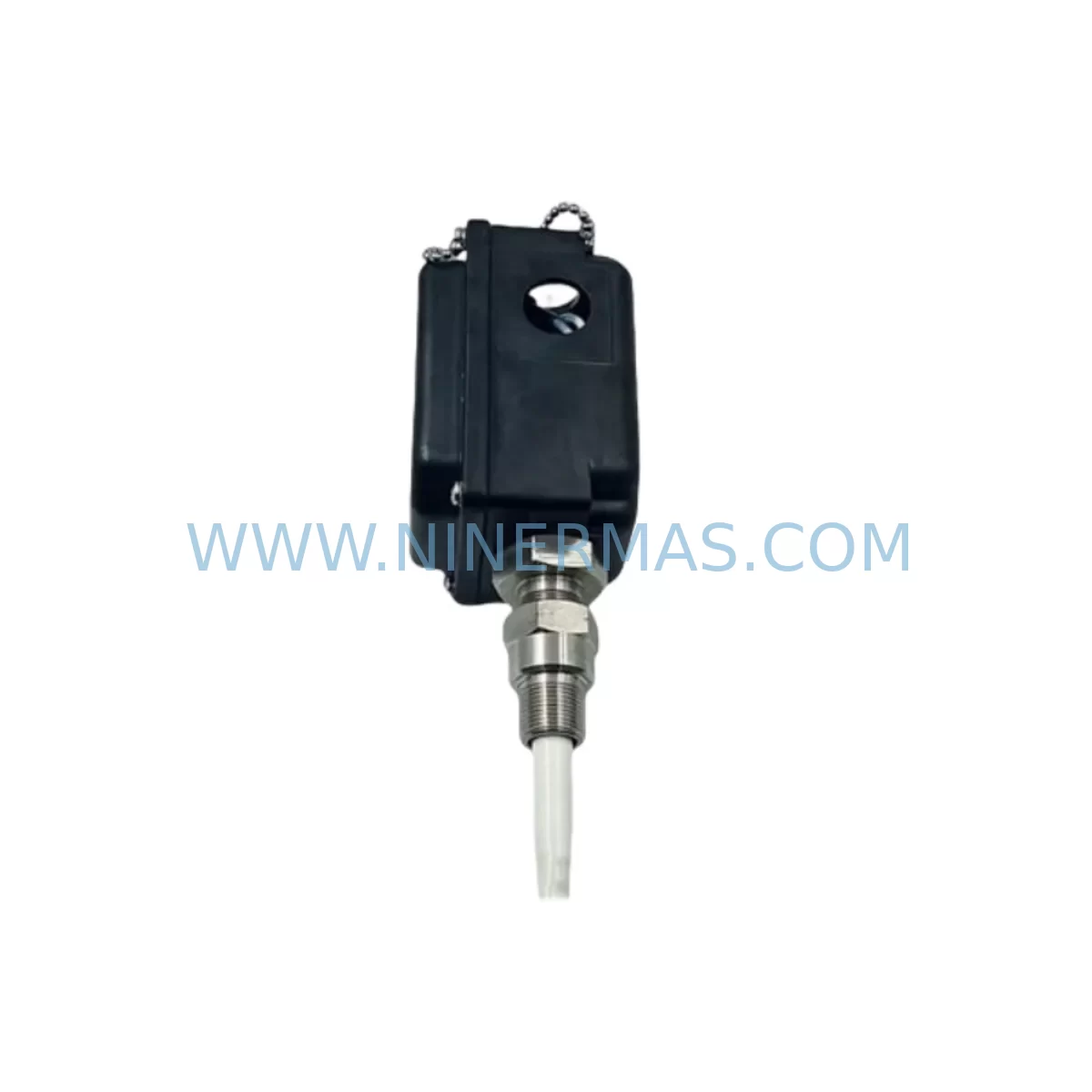

Bently Nevada 330881-28-00-070-03-02 Retrofit Proximity Transducer

Bently Nevada 330881-28-00-070-03-02 Retrofit-Compatible Proximity Transducer for Legacy Systems

The Bently Nevada 330881-28-00-070-03-02 is a high-precision eddy-current proximity transducer engineered for seamless integration into aging PROXPAC XL monitoring architectures and broader Bently Nevada 3300 Series vibration monitoring platforms. As original equipment manufacturers discontinue legacy sensor lines, plant engineers and reliability teams face increasing pressure to source verified drop-in replacements that preserve signal integrity, maintain calibration traceability, and eliminate the need for full system overhauls. This unit addresses exactly that challenge — delivering a retrofit-ready solution that slots into existing installations with minimal downtime and maximum confidence.

Whether you are managing a turbine monitoring panel, a compressor train protection system, or a rotating machinery health platform built around Bently Nevada hardware, the 330881-28-00-070-03-02 provides the electrical and mechanical compatibility required to restore full system functionality without rewriting control logic or replacing adjacent infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330881-28-00-070-03-02 into a legacy monitoring system begins well before the physical swap. Engineers should start by auditing the existing wiring harness and extension cable — Bently Nevada armored extension cables such as the 330130 series are commonly paired with this transducer family and must be inspected for insulation degradation, connector corrosion, and continuity before reuse. If the extension cable is compromised, replacing it alongside the transducer eliminates a common source of intermittent signal faults that are difficult to diagnose after installation.

The proximitor driver module — typically a Bently Nevada 3300 XL Proximitor such as the 330180 or 330185 series — must be verified for compatibility with the replacement transducer’s sensitivity specification (mV/mil or mV/µm). Mismatched sensitivity between the probe and driver is one of the most frequent commissioning errors during retrofit projects and can result in false vibration alarms or suppressed trip signals. Always cross-reference the transducer’s calibration certificate against the proximitor’s configured scale factor in the monitoring rack.

For installations housed within a Bently Nevada 3500 Series rack-based machinery protection system, the transducer connects through dedicated I/O modules such as the 3500/42M Proximitor / Seismic Monitor or the 3500/40M Proximitor Monitor. These modules accept the standard Bently Nevada coaxial signal and power supply format, meaning no rewiring of the backplane or rack power distribution is required when replacing a like-for-like transducer. However, engineers should confirm that the module firmware version supports the transducer’s output range and that the channel configuration in the Rack Configuration Software (RCS) reflects the correct probe type and gap range.

In plants where the vibration monitoring data feeds into a DCS or PLC platform — such as a Honeywell Experion, Emerson DeltaV, or Rockwell Automation ControlLogix system — the analog signal path from the proximitor output to the AI card must be verified for loop integrity. A simple milliamp loop calibrator applied at the proximitor output terminal can confirm that the signal reaches the DCS input card within the expected engineering unit range before the machine is returned to service.

Where the original installation includes a Bently Nevada TDXnet or System 1 condition monitoring software platform, the transducer channel configuration — including probe type, gap voltage, and alarm setpoints — should be exported and archived before the swap. After installation, the same configuration can be re-imported, reducing the risk of setpoint drift or accidental alarm threshold changes during the maintenance window. If the plant has migrated to Bently Nevada System 1 Evolution, verify that the new transducer’s dynamic range is correctly mapped to the software’s trend and alarm database.

For control cabinets where space is constrained, confirm that the replacement transducer’s body length and connector orientation match the original. The 330881 series uses a standardized probe body diameter and thread pitch, but tip-to-connector length variants exist within the SKU structure — the -28- segment in 330881-28-00-070-03-02 encodes the cable length, so verify this against the physical installation gap before ordering. If the target material or surface finish differs from the original calibration target, a field recalibration using a Bently Nevada calibration fixture is recommended to maintain measurement accuracy.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330881-28-00-070-03-02 should be bench-tested against a calibration target to confirm output voltage at the nominal gap distance. This pre-verification step — which takes less than 30 minutes with a standard Bently Nevada calibration fixture and a digital voltmeter — eliminates the risk of discovering a defective unit after the machine has already been taken offline.

During the swap, the original probe’s gap setting should be recorded using a feeler gauge or dial indicator before removal. Replicating this gap with the replacement transducer ensures that the proximitor output voltage returns to the pre-outage baseline, allowing the control system to resume normal operation without requiring alarm setpoint adjustments. If the machine’s rotor or shaft has been serviced during the same outage, a fresh gap calibration is mandatory regardless of the transducer replacement.

To protect the original program logic in the associated PLC or safety system, the control program should be backed up to an offline storage medium before any wiring changes are made. For systems using a Bently Nevada 3500 rack, the rack configuration file should also be saved. This ensures that if a power interruption occurs during the maintenance window, the system can be restored to its pre-outage state without relying on memory or manual re-entry of setpoints.

After installation, a staged restart sequence — bringing the monitoring system online before the machine, verifying all channel outputs, and confirming alarm and trip relay states — allows the maintenance team to catch wiring errors or configuration mismatches before the machine reaches operating speed. This approach consistently reduces total commissioning time and supports a controlled return to production with full monitoring coverage active from the first rotation.

All units supplied by NINERMAS are subject to outgoing inspection and functional testing prior to shipment. In-stock inventory is available for same-week dispatch, supporting urgent maintenance schedules and unplanned outage recovery scenarios.

Retrofit Support FAQ

Q: Is the 330881-28-00-070-03-02 a direct drop-in replacement for the original PROXPAC XL transducer?
A: Yes, in the vast majority of installations. The unit shares the same probe body geometry, thread specification, and coaxial connector format as the original PROXPAC XL transducer. Before installation, confirm the cable length suffix (-28-) matches your physical installation requirement and verify the sensitivity specification against your proximitor driver module’s configured scale factor.

Q: What commissioning steps are required after installation?
A: Set the probe-to-target gap to the value specified in your original calibration record (typically 1.0–2.5 mm for standard 8mm probes). Measure the proximitor output voltage at the nominal gap and confirm it falls within the expected range (typically -10 to -18 VDC depending on configuration). Update the DCS or SCADA engineering unit scaling if the replacement transducer’s sensitivity differs from the original. Archive the post-installation calibration record for future reference.

Q: Can this transducer be used with Bently Nevada 3500 Series rack systems?
A: Yes. The 330881-28-00-070-03-02 is compatible with Bently Nevada 3500 Series I/O modules including the 3500/42M and 3500/40M Proximitor Monitor cards. No backplane rewiring is required. Confirm the channel configuration in the Rack Configuration Software reflects the correct probe type and gap range after installation.

Q: What warranty and supply terms apply?
A: All units carry a 12-month warranty covering manufacturing defects and signal performance under specified operating conditions. NINERMAS maintains in-stock inventory of the 330881-28-00-070-03-02 to support urgent maintenance and unplanned outage recovery. Units are functionally tested and inspected before shipment. Contact our team for lead time confirmation and volume pricing.
