Bently Nevada 330881-16-05-035-01-02 Service-Ready Spare Part

Bently Nevada 330881-16-05-035-01-02 Service-Ready Spare Part for Industrial Maintenance

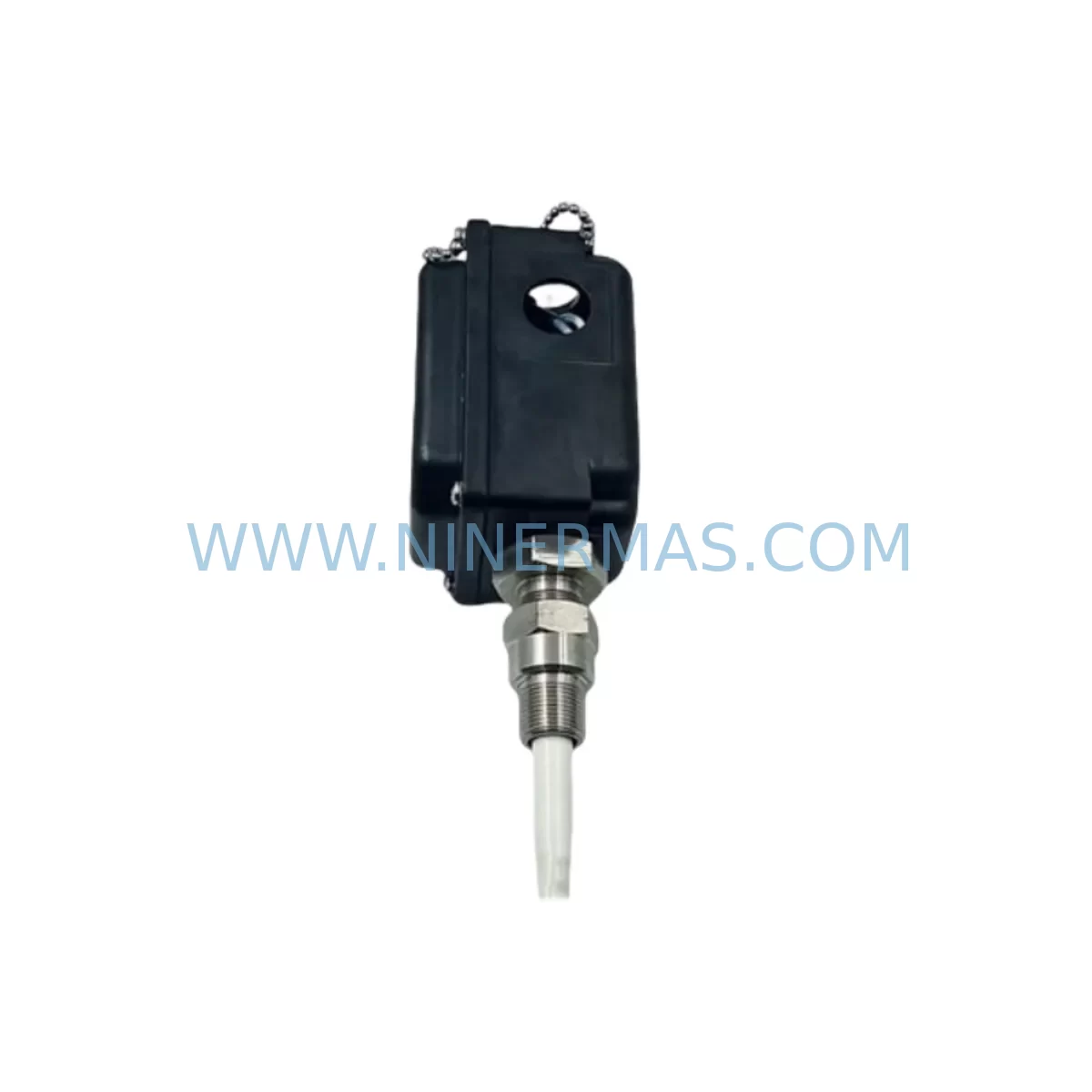

The Bently Nevada 330881-16-05-035-01-02 is a precision proximity transducer extension cable assembly designed for the PROXPAC XL Series condition monitoring system. As a service-ready spare part, it is engineered to support rapid field replacement, minimizing unplanned downtime in rotating machinery protection applications including turbines, compressors, pumps, and motors. Sourced and tested to original Bently Nevada specifications, this component is a critical asset in any industrial maintenance inventory strategy.

For maintenance engineers managing vibration monitoring systems, the 330881-16-05-035-01-02 serves as the signal transmission link between the proximity probe and the Proximitor sensor. Its role in the measurement chain makes it a high-priority spare: a degraded or failed extension cable can produce false vibration readings, trigger nuisance trips, or — more critically — mask real machinery faults. Keeping a verified replacement on the shelf is a fundamental element of any predictive maintenance or reliability-centered maintenance (RCM) program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330881-16-05-035-01-02 extension cable, a thorough site inspection of the surrounding measurement loop is essential to ensure system integrity and prevent repeat failures. Maintenance engineers should treat this replacement as an opportunity to audit the full transducer chain and associated control infrastructure.

Begin by inspecting the 330780 or 330730 Series proximity probe at the machine end. Check for tip damage, thread wear, and gap voltage drift — a worn probe paired with a new cable will still produce unreliable readings. Verify the 330180 or 330185 Proximitor sensor output voltage and confirm it falls within the calibrated linear range for the installed gap. If the Proximitor is more than five years old or shows signs of moisture ingress, consider replacing it alongside the extension cable as a matched set.

At the rack level, inspect the 3500/40M or 3500/42M Proximitor I/O Module within the 3500 Series monitoring rack. Confirm that channel configuration, alert and danger setpoints, and OK relay logic are correctly programmed. Check the 3500/15 Power Supply Module for output voltage stability — an unstable rack power supply is a common root cause of intermittent transducer faults that are often misdiagnosed as cable failures.

Review the 3500/20 Rack Interface Module (RIM) for communication health, particularly if the rack is integrated into a DCS or safety instrumented system (SIS) via Modbus or Ethernet. Inspect terminal blocks and field junction boxes for corrosion, loose terminations, and moisture — these are frequent failure points in outdoor or high-humidity installations. Signal isolation barriers or galvanic isolators in the signal path should also be checked for impedance drift.

For plants running legacy 3300 XL Series racks, confirm that the extension cable impedance matches the original system design. Mixed-generation components can introduce calibration offsets. If the plant is in a long-term asset life extension program, consider documenting the full transducer serial numbers and calibration records for each measurement point — this supports both regulatory compliance and future spare parts planning.

Procurement engineers should note that the 330881 series extension cables are available in multiple lengths and connector configurations. Maintaining a minimum of two units per critical machine train in the spare parts store is recommended. Pair this with stocked 330730 probes, 330180 Proximitor sensors, and 3500/15 power supply modules to cover the most common failure modes in a single maintenance event without waiting for emergency procurement.

Site Replacement Workflow

Replacing the 330881-16-05-035-01-02 in the field follows a structured procedure to minimize downtime and avoid introducing new faults during the maintenance window:

1. Isolate and document: Record the existing gap voltage, OK status, and vibration baseline before disconnecting the cable. This provides a reference for post-installation verification.
2. Disconnect safely: De-energize the Proximitor sensor or bypass the channel in the 3500 rack to prevent false trips during cable swap. Follow site LOTO procedures.
3. Inspect connectors: Before installing the new 330881-16-05-035-01-02, inspect both the probe-end and Proximitor-end connectors for pin damage, contamination, or corrosion. Clean with approved contact cleaner if necessary.
4. Install and route: Route the new extension cable following the original cable path. Avoid sharp bends, contact with hot surfaces, and proximity to high-voltage conductors. Secure with appropriate cable clamps.
5. Re-gap and verify: After connection, restore power and verify gap voltage is within the linear range (typically -10 VDC ± 1 V for standard 5 mm gap). Confirm OK relay is energized and vibration reading is stable and consistent with historical baseline.
6. Document and close: Record the new cable serial number, installation date, and post-replacement readings in the CMMS. Update the spare parts inventory to trigger replenishment of the consumed unit.

This workflow supports a typical replacement time of under two hours for a single measurement point, enabling rapid return to normal operation with full system confidence.

Spare Parts Support FAQ

Q1: Is the 330881-16-05-035-01-02 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330881 series extension cables are designed for use within the Bently Nevada PROXPAC XL transducer system, which is compatible with both the 3300 XL and 3500 Series monitoring racks. Always verify the cable length and connector configuration match your installed system before ordering. Our team can assist with compatibility confirmation prior to shipment.

Q2: What testing is performed before shipment?
Each 330881-16-05-035-01-02 unit undergoes pre-shipment inspection including continuity testing, connector integrity verification, and visual inspection for cable jacket damage. Units are packaged in anti-static, moisture-resistant packaging to ensure they arrive in service-ready condition. A 12-month warranty is provided from the date of shipment.

Q3: Can this spare part support long-term supply for aging plant assets?
Absolutely. NINERMAS maintains ongoing stock of 330881 series components to support plants operating legacy Bently Nevada systems beyond the original product lifecycle. We offer long-term supply agreements and can assist procurement teams in building a multi-year spare parts strategy for critical rotating machinery protection systems.

Q4: What is the recommended spare parts inventory strategy for this component?
For critical machine trains (turbines, compressors, large pumps), we recommend maintaining a minimum of two 330881-16-05-035-01-02 units on-site. For plants with multiple measurement points using the same cable configuration, a pooled inventory of four to six units is advisable. Pair with stocked Proximitor sensors and probe assemblies to enable complete transducer chain replacement during a single maintenance window, eliminating multi-event downtime.
