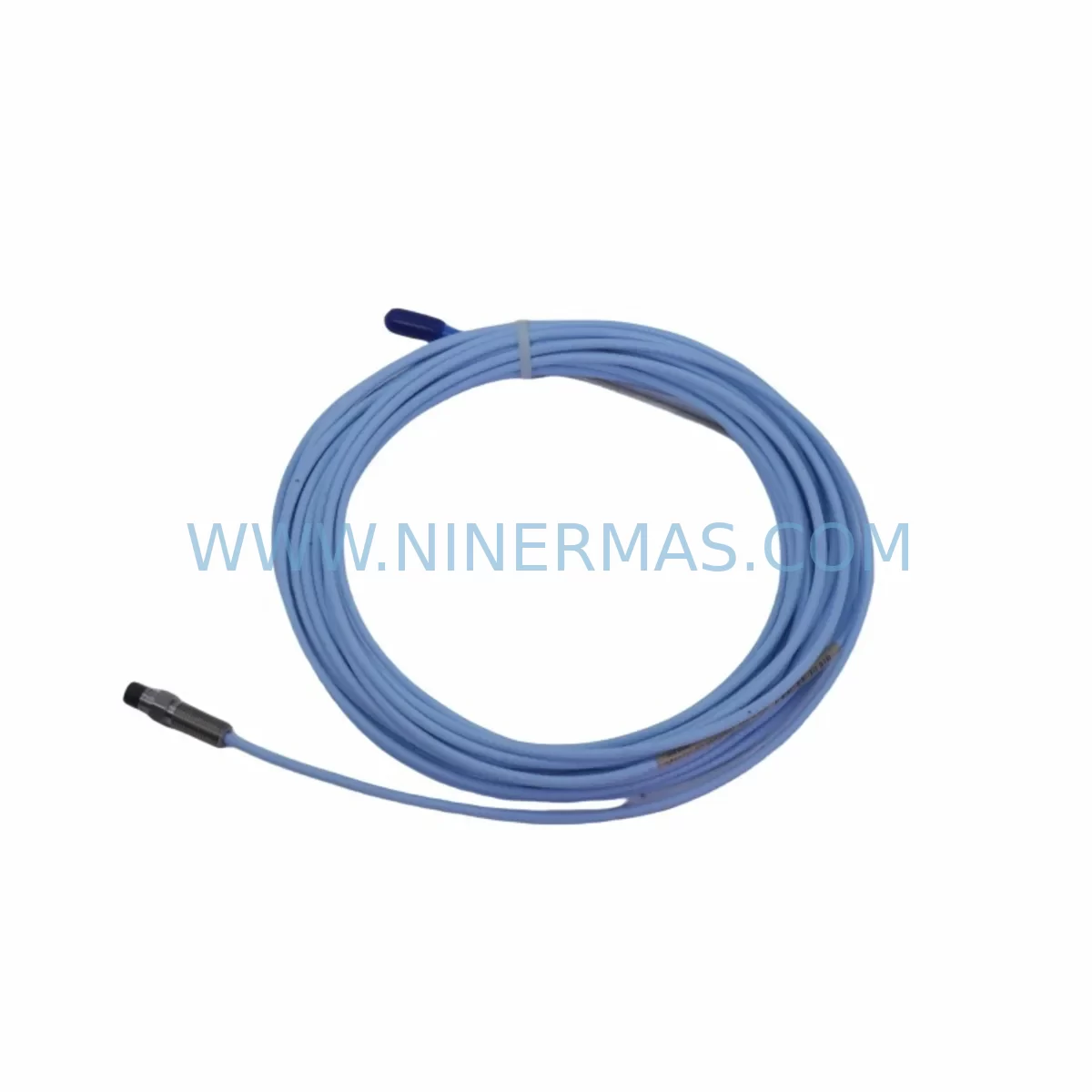

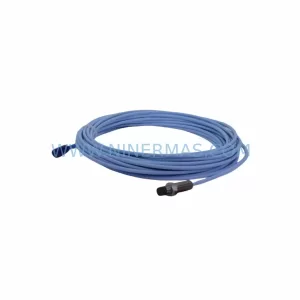

Bently Nevada 330881-16-00-307-06-02 Retrofit Proximitor

Bently Nevada 330881-16-00-307-06-02 Retrofit-Compatible Proximitor for Legacy Systems

The Bently Nevada 330881-16-00-307-06-02 is a PROXPAC XL Series proximitor module engineered for eddy-current proximity sensing in rotating machinery protection systems. As original Bently Nevada hardware reaches end-of-life and spare parts become increasingly scarce, this unit serves as a direct retrofit solution for facilities operating legacy 3300 Series and 7200 Series monitoring racks. Whether you are managing a planned upgrade or responding to an unplanned failure, the 330881-16-00-307-06-02 is designed to restore system continuity with minimal engineering intervention and controlled downtime.

This proximitor is compatible with standard Bently Nevada coaxial cable assemblies and is intended for use with 8mm and 11mm proximity probe systems. It accepts the industry-standard -24 VDC bias voltage and outputs a linear voltage signal proportional to the gap between the probe tip and the observed target surface. Engineers replacing a failed or obsolete proximitor in an existing installation should verify the cable length, extension cable type, and system scale factor before commissioning to ensure the replacement unit matches the original calibration parameters stored in the monitor or DCS configuration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a proximitor in an active machinery protection system requires careful pre-engineering to avoid introducing measurement errors or triggering spurious trips. Before removing the existing 330881-16-00-307-06-02 or its predecessor, maintenance engineers should document the current gap voltage reading, the OK relay status, and the alarm and danger setpoints configured in the associated monitor card — typically a Bently Nevada 3300/16 Dual Voting or a 3500/42M Proximitor Monitor. These values must be preserved and re-verified after the new unit is installed.

Cable continuity is a critical checkpoint. The coaxial extension cable connecting the probe to the proximitor must be inspected for impedance integrity. A mismatched or damaged extension cable — even one that appears physically intact — can introduce scale factor errors that shift the output voltage curve and cause the monitor to report incorrect vibration amplitude or position readings. If the extension cable is also being replaced as part of the retrofit, ensure the total system cable length (probe plus extension) matches the calibrated length for the replacement proximitor.

For installations where the 330881-16-00-307-06-02 feeds into a 3500 Series rack, engineers should also verify the I/O module configuration within the rack. The 3500/20 Rack Interface Module manages communication between the rack and the host DCS or safety system, and any change in transducer type or scale factor must be reflected in the rack configuration software before the system is returned to service. Similarly, if the plant uses a System 1 condition monitoring platform, the database configuration for the measurement point should be updated to reflect the new hardware revision.

In control cabinets where space is constrained, confirm that the replacement proximitor housing dimensions are compatible with the existing mounting arrangement. Some legacy installations use custom brackets or cable management trays that may need minor modification. Power supply capacity should also be reviewed — the -24 VDC supply rail serving the proximitor bank must have sufficient headroom to support the replacement unit without causing voltage sag that could affect adjacent channels, such as those served by a Bently Nevada 3500/15 Power Supply Module.

Where the plant is migrating from an older 7200 Series rack to a 3500 Series platform as part of a broader modernization program, the 330881-16-00-307-06-02 can serve as an interim solution to maintain measurement continuity on existing probe installations while the new rack infrastructure is commissioned. This approach allows engineering teams to phase the migration, validating each measurement point individually rather than executing a full cutover that risks extended downtime. During this transition, a Bently Nevada 3500/22M Transient Data Interface or a 3500/40M Proximitor Monitor may be introduced alongside the existing hardware to provide parallel monitoring capability.

For facilities that also operate Keyphasor systems, the 330881-16-00-307-06-02 installation should be coordinated with the Keyphasor probe and proximitor channel to ensure phase reference signals remain synchronized. The Keyphasor module — often a Bently Nevada 3500/25 or a standalone 330180 Keyphasor Proximitor — must be verified for correct gap and trigger level settings after any adjacent channel work is completed. This is especially important in vector-based vibration analysis where phase angle accuracy directly affects the reliability of balancing and diagnostic data.

Downtime Control During System Migration

Minimizing downtime during a proximitor replacement begins with pre-staging. The replacement 330881-16-00-307-06-02 unit should be bench-tested before the maintenance window opens. Using a Bently Nevada calibration fixture or a precision gap simulator, verify that the output voltage at the nominal gap distance matches the expected scale factor. This pre-verification step eliminates the risk of discovering a defective unit after the machine has been taken offline.

During the replacement window, the original monitor configuration — including alarm setpoints, danger setpoints, time delays, and OK relay logic — should be exported from the rack configuration software and saved to a backup file before any hardware changes are made. This protects the original program logic and allows rapid restoration if the replacement procedure encounters an unexpected complication. For racks managed through Bently Nevada’s System 1 software or a third-party DCS historian, confirm that the data archiving function is suspended or flagged during the maintenance window to prevent false data from contaminating the historical trend database.

Once the replacement unit is installed and the coaxial cable connections are secured, perform a static gap check before energizing the full monitoring system. Confirm the OK relay closes at the correct gap range and that the output voltage is within the expected linear range. Only after these checks are satisfied should the monitor card be returned to its normal operating mode and the machine brought back online. This structured commissioning sequence — pre-stage, backup, replace, verify, restore — typically allows a single-channel proximitor replacement to be completed within a two-to-four hour planned maintenance window, significantly reducing the risk of extended unplanned outages.

For multi-channel replacements or full rack migrations, a phased approach is strongly recommended. Replacing one channel at a time, verifying each before proceeding to the next, maintains partial monitoring coverage throughout the migration and limits the exposure window during which the machinery is operating without full protection. This approach is particularly important in critical applications such as compressor trains, steam turbines, and large pump systems where continuous vibration monitoring is a safety and reliability requirement.

Retrofit Support FAQ

Q: Is the 330881-16-00-307-06-02 a direct replacement for earlier 330881 series proximitors?
A: In most cases, yes. The 330881-16-00-307-06-02 is designed to be backward-compatible with earlier 330881 series variants within the PROXPAC XL platform. However, you should verify the suffix codes against your existing installation documentation, as differences in cable length designation, temperature rating, or connector type may affect direct interchangeability. Contact our technical team with your existing part number for a confirmed cross-reference before ordering.

Q: What commissioning checks are required after installation?
A: After physical installation, perform a static gap voltage check to confirm the output is within the linear range for your target gap distance. Verify the OK relay closes correctly, and confirm that alarm and danger setpoints in the monitor card match your pre-maintenance backup. If the unit feeds into a System 1 database or DCS historian, update the hardware configuration record and validate that trend data is being logged correctly before returning the machine to service.

Q: Can this unit be used with non-Bently Nevada monitor racks or third-party vibration systems?
A: The 330881-16-00-307-06-02 outputs a standard linear DC voltage signal, which is compatible with most third-party vibration monitors and DCS analog input cards that accept the Bently Nevada -24 VDC bias and voltage output format. Compatibility should be confirmed against the input specifications of the receiving monitor or I/O card. Our team can assist with signal compatibility verification for specific third-party platforms.

Q: What does the 12-month warranty cover, and what is the lead time for in-stock units?
A: All units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are typically dispatched within 1–3 business days. Each unit undergoes functional testing prior to shipment. For urgent requirements, expedited shipping options are available — contact our sales team directly to confirm current stock availability and delivery schedule.
