Bently Nevada 330876-02-50-00-00 Retrofit Proximity Probe

Bently Nevada 330876-02-50-00-00 Retrofit Proximity Probe: Legacy System Compatibility & Smooth Upgrade Path

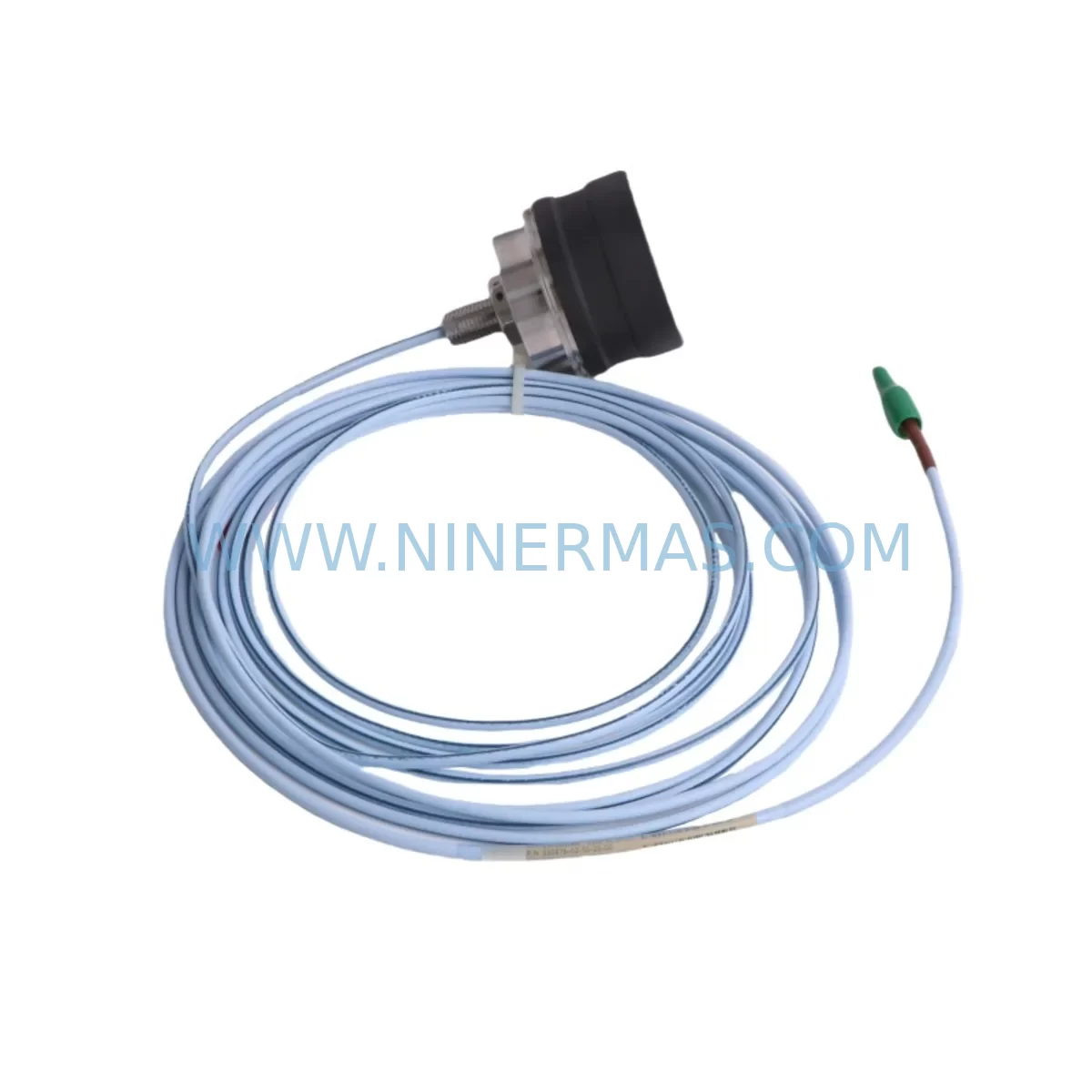

The Bently Nevada 330876-02-50-00-00 is a ruggedized proximity probe module engineered for continuous vibration and position monitoring in demanding industrial environments. As legacy 3300 XL series installations reach end-of-life or face discontinued spare parts availability, this module remains one of the most sought-after retrofit-compatible components for engineers tasked with modernizing aging machinery protection systems without full platform replacement. Whether you are maintaining a turbine monitoring rack, upgrading a compressor control cabinet, or extending the service life of an existing Bently Nevada 3500 series migration path, the 330876-02-50-00-00 delivers the signal integrity and mechanical robustness required for uninterrupted plant operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330876-02-50-00-00 into an existing machinery protection rack requires a structured approach that accounts for both mechanical and electrical compatibility. Before removing the legacy probe, engineers should document the current gap voltage reading using the existing Bently Nevada 3500/20 rack interface module or a dedicated proximitor driver such as the 330180-51-05 extension cable assembly. This baseline reading is critical for post-installation calibration and ensures the new probe operates within the same sensitivity range as the original unit.

On the mechanical side, confirm that the probe tip-to-target gap can be set within the linear range — typically 0.25 mm to 2.54 mm for steel targets. If the existing probe mount uses a locknut and jam nut configuration, inspect the threads for wear before reinstalling. In high-vibration environments such as gas turbine bearing housings or centrifugal compressor pedestals, consider applying thread-locking compound rated for the operating temperature range.

For the signal chain, the 330876-02-50-00-00 connects to a proximitor/driver module — commonly the Bently Nevada 330180 series driver or the integrated driver within a 3500/40M or 3500/42M monitor card. Verify that the driver’s input impedance and supply voltage match the probe’s specifications. If the existing rack uses a 3300 XL monitor card, confirm whether a direct card swap to a 3500 series monitor is part of the upgrade scope, as this may require reconfiguring the rack backplane and updating the System 1 software configuration database.

I/O mapping is another critical step. If the proximity probe feeds a 3500/44M thrust position monitor or a 3500/46M speed monitor, the channel assignment and full-scale range settings in the monitor’s configuration must be verified against the new probe’s sensitivity factor (typically 7.87 V/mm for standard steel targets). Any mismatch will trigger false alarms or, worse, suppress genuine machinery fault indications. Similarly, if the signal feeds a DCS or safety instrumented system via a 4–20 mA output card, the scaling must be re-verified after probe replacement.

In control cabinet upgrade projects where the Bently Nevada rack sits alongside Allen-Bradley ControlLogix or Siemens S7-300 PLCs, the proximity probe signal is often cross-wired to analog input modules for redundant monitoring. Ensure that the signal isolation between the Bently Nevada system and the PLC analog input card is maintained — a signal isolator or barrier may be required if the original installation did not include one. This is especially important when migrating from older 3300 series racks to 3500 series racks, where the grounding philosophy may differ.

HMI screen updates are frequently overlooked during probe replacements. If the plant uses a Wonderware InTouch or Ignition SCADA system with dedicated vibration trend displays, the tag scaling and alarm setpoints tied to the proximity probe channel should be reviewed and updated to reflect the new probe’s sensitivity and gap voltage range. Failure to update HMI alarm limits can result in nuisance trips or missed fault conditions during the post-retrofit commissioning period.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is achievable with careful pre-staging and a clear commissioning sequence. Begin by pre-configuring the replacement 330876-02-50-00-00 on the bench: set the probe in a fixture at the nominal gap distance, connect it to the target driver, and verify the output voltage before the scheduled maintenance window. This bench verification step eliminates the most common source of commissioning delays — a probe that arrives with a damaged tip or a connector that does not seat correctly in the extension cable.

During the actual swap, keep the existing probe connected and powered until the last possible moment. Use the live gap voltage reading as a reference point for setting the new probe’s initial gap. Once the new probe is installed and the gap is set, restore power to the driver and confirm the output voltage before reconnecting to the monitor card. This sequence protects the original program logic in the 3500 series rack from triggering a machinery trip due to an open-circuit condition during the swap.

If the upgrade involves replacing not just the probe but also the associated 3500/40M or 3500/42M monitor card, coordinate the card swap with the control room operator to temporarily bypass the affected channel in the safety logic. Document the bypass start and end times in the plant’s management of change (MOC) system. After the new card is installed and the probe is reconnected, perform a full channel functional test — including a simulated high-vibration condition using a calibrated signal generator — before releasing the bypass and returning the channel to normal monitoring service.

For plants running continuous processes where even a brief shutdown is costly, consider a hot-standby approach: install a second proximity probe mount adjacent to the existing one, route the new 330876-02-50-00-00 to a spare channel on the 3500 rack, verify its readings against the live channel, and then cut over during a brief planned outage. This approach is particularly effective in steam turbine applications where the bearing housing design permits dual-probe mounting.

Retrofit Support FAQ

Q1: Is the 330876-02-50-00-00 a direct drop-in replacement for the discontinued 330875 series probes?
A: In most installations, yes. The 330876-02-50-00-00 shares the same thread size, cable connector, and sensitivity specification as the 330875 series. However, always verify the driver module compatibility and re-measure the gap voltage after installation, as minor manufacturing tolerances between probe generations can shift the output by ±0.3 V at nominal gap.

Q2: What commissioning checks are required after installing this probe on a 3500 series rack?
A: After mechanical installation, verify the gap voltage (target: –10.0 VDC ±0.5 V for steel at nominal gap), confirm the channel is reading correctly in the 3500 rack’s front-panel display, check that the System 1 software is receiving valid data on the associated channel, and perform a simulated vibration test if the process permits. Update HMI alarm setpoints if the probe sensitivity factor differs from the previous unit.

Q3: Does NINERMAS provide pre-shipment testing for the 330876-02-50-00-00?
A: Yes. Each unit undergoes functional verification prior to shipment, including gap voltage output check and connector integrity inspection. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and stock availability?
A: The 330876-02-50-00-00 is maintained in stock for immediate dispatch. Standard lead time for in-stock units is 3–7 business days depending on destination. For urgent requirements, expedited shipping options are available. Contact our team to confirm current inventory levels before placing a critical-path order.
