Bently Nevada 330854-040-25-CN Safety Ruggedized Extension Cable

Bently Nevada 330854-040-25-CN Safety Ruggedized Extension Cable for Critical Control Sites

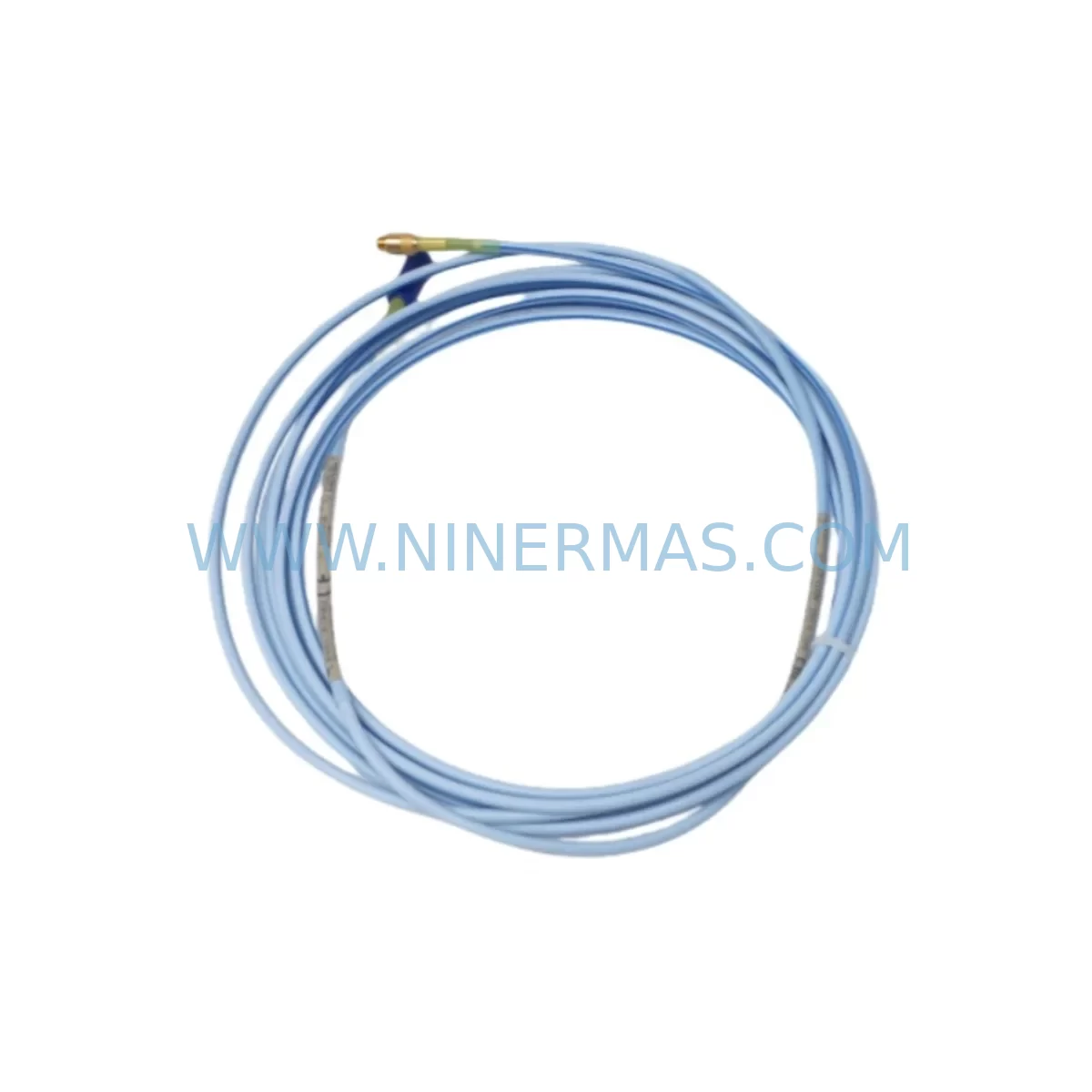

The Bently Nevada 330854-040-25-CN Ruggedized Extension Cable is an industrial-grade signal extension cable engineered for safety-critical vibration monitoring and machinery protection systems. Designed to operate reliably within the Bently Nevada 3300 Series and 3500 Series machinery protection platforms, this cable delivers consistent, low-noise signal transmission between proximity probes and signal conditioning modules — even in the most demanding industrial environments.

In continuous production facilities such as petrochemical plants, power generation stations, and metallurgical processing sites, signal integrity is not optional — it is a safety imperative. The 330854-040-25-CN is constructed with ruggedized shielding and precision-matched impedance to eliminate signal drift, reduce electromagnetic interference pickup, and maintain accurate vibration data under high-temperature, high-vibration, and high-humidity conditions. Its 25-foot (approximately 7.6 m) cable length is optimized for standard control cabinet-to-field sensor routing, minimizing installation complexity while preserving measurement accuracy.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection cabinet, the 330854-040-25-CN extension cable serves as the critical signal link between the field-mounted proximity probe and the Bently Nevada 3300 XL 8mm Proximity Transducer System or the 3500/42M Proximitor / Seismic Monitor module. Signal degradation at this junction is one of the most common — and most dangerous — sources of false trips and missed fault detection in rotating machinery protection.

When paired with the Bently Nevada 330180-X1-CN Proximitor Sensor, the 330854-040-25-CN ensures that the complete transducer chain — from probe tip to monitor input — maintains the calibrated sensitivity and gap voltage required for accurate shaft displacement measurement. Any impedance mismatch or shield discontinuity in this chain can introduce signal noise that mimics real vibration events, triggering unnecessary shutdowns or, worse, masking genuine mechanical faults.

For installations in high-electromagnetic-interference environments — such as those near large variable frequency drives, motor control centers, or high-voltage switchgear — the ruggedized double-shielded construction of the 330854-040-25-CN significantly reduces the risk of induced noise on the 0 to -24 VDC proximity signal. This is especially important when the Bently Nevada 3500/20 Rack Interface Module is used as the system backbone, as it relies on clean, stable analog inputs from each transducer channel to generate accurate alarm and trip outputs.

In power plant turbine protection systems, the 330854-040-25-CN is commonly deployed alongside the Bently Nevada 3500/15 Power Supply Module, which provides the stable, isolated DC power required by the Proximitor sensors. Power supply ripple or transient surges — common in facilities with large motor starts or capacitor bank switching — can couple into unshielded signal cables and cause spurious vibration readings. The ruggedized shielding of the 330854-040-25-CN acts as a first line of defense against such power-line-induced interference.

For facilities managing multiple machine trains — such as compressor strings in LNG plants or boiler feed pump sets in thermal power stations — the Bently Nevada 3500/22M Transient Data Interface is often used to capture high-resolution vibration waveforms during startup and shutdown transients. In these applications, the signal quality delivered by the 330854-040-25-CN extension cable directly affects the accuracy of waveform capture, making cable selection a safety-critical engineering decision rather than a procurement afterthought.

Additionally, in hazardous area installations classified as Zone 1 or Zone 2 under IEC 60079, the 330854-040-25-CN is selected for its compatibility with Bently Nevada Zener barrier and galvanic isolator assemblies used in intrinsically safe transducer circuits. Maintaining the integrity of the IS circuit depends entirely on the cable’s capacitance and inductance parameters remaining within certified limits — parameters that the 330854-040-25-CN is factory-verified to meet.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In crude distillation units and catalytic cracking compressor trains, the 330854-040-25-CN is used to connect shaft radial vibration probes to the 3500 Series protection rack. Continuous, uninterrupted vibration monitoring is mandatory under API 670 machinery protection standards, and cable reliability is a direct contributor to plant safety integrity.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power stations rely on Bently Nevada proximity transducer systems for shaft eccentricity, differential expansion, and radial vibration monitoring. The 330854-040-25-CN extension cable is a standard component in these installations, providing the signal path between the probe and the 3500/40M Proximitor / Seismic Monitor module mounted in the turbine control room.

Mining & Mineral Processing: Large ball mills, SAG mills, and slurry pumps in mining operations are subject to extreme vibration, dust, and moisture. The ruggedized jacket of the 330854-040-25-CN withstands these conditions while maintaining signal integrity for the machinery protection system, reducing the risk of undetected bearing failures that could cause catastrophic equipment damage and personnel injury.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent seal failures and unplanned outages. The 330854-040-25-CN provides a reliable signal path in these wet, chemically aggressive environments.

Metallurgy & Steel Production: Rolling mill drives, continuous casting machines, and blast furnace blowers operate in environments with extreme heat, vibration, and electromagnetic noise from large DC drives. The 330854-040-25-CN’s ruggedized construction and EMI shielding make it the preferred extension cable for these applications.

Port & Marine Applications: Ship propulsion systems, crane drives, and offshore platform compressors require vibration monitoring systems that can withstand salt spray, humidity, and mechanical shock. The 330854-040-25-CN meets these environmental demands while maintaining the signal quality required for reliable machinery protection.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 330854-040-25-CN carry?
All 330854-040-25-CN Ruggedized Extension Cables supplied by NINERMAS carry a 12-month warranty covering manufacturing defects, connector integrity, and signal performance. Warranty claims are processed promptly with replacement or full refund options.

Q2: How is the cable tested before shipment?
Each unit undergoes pre-shipment inspection including visual inspection of connectors and jacket, continuity and shield integrity verification, and dimensional checks against Bently Nevada OEM specifications. This ensures that every cable delivered to site is ready for immediate installation without field rework.

Q3: Is the 330854-040-25-CN compatible with all Bently Nevada 3300 and 3500 Series systems?
Yes. The 330854-040-25-CN is designed and verified for use with the full range of Bently Nevada 3300 XL and 3500 Series proximity transducer systems, including 8 mm, 11 mm, and 14 mm probe configurations. Always verify the probe system part number and cable length requirement before ordering to ensure system-level compatibility.

Q4: Can NINERMAS support long-term or repeat supply of this cable?
Yes. NINERMAS maintains dedicated inventory of the 330854-040-25-CN and related Bently Nevada extension cables to support planned maintenance programs, turnaround spare kits, and emergency replacement requirements. Contact our team for volume pricing, lead time confirmation, and consignment stock arrangements for critical plant spares.
