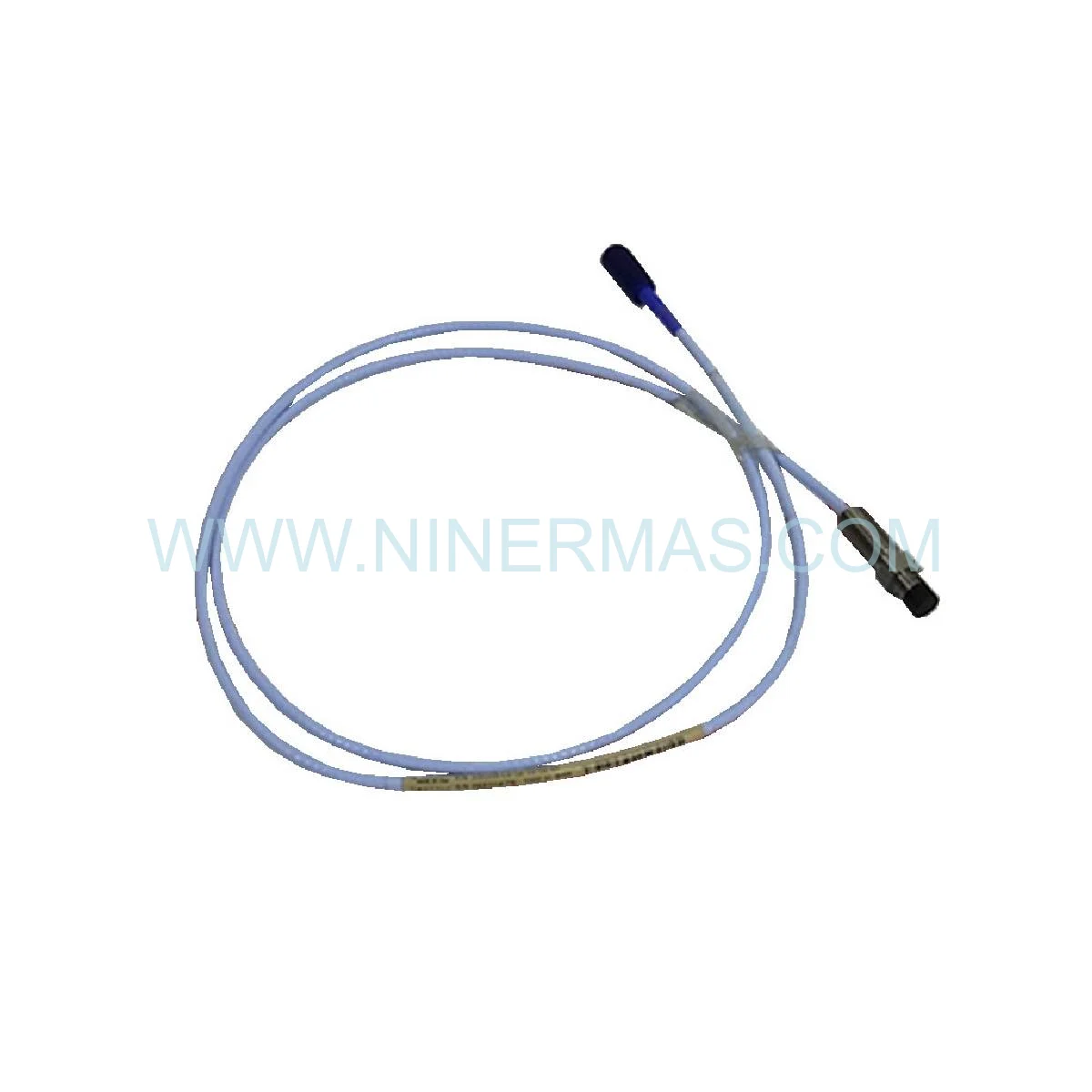

Bently Nevada 330730-080-02-05 Triaxial Extension Cable | New & Original

Bently Nevada 330730-080-02-05 Triaxial Extension Cable | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing rotating equipment health, the Bently Nevada 330730-080-02-05 is not merely a cable — it is the signal backbone of your entire vibration monitoring architecture. In mission-critical applications such as steam turbine protection and centrifugal compressor surveillance, this 75-foot FEP-insulated triaxial extension cable ensures that raw proximity sensor data reaches the monitoring rack with zero signal degradation. Its role in sustaining system availability cannot be overstated: a compromised cable path is statistically one of the leading causes of false trips and unplanned shutdowns in process automation environments.

Engineered for operational excellence in harsh industrial settings, the 330730-080-02-05 features FEP (Fluorinated Ethylene Propylene) insulation rated from -65°C to +200°C, making it fully compatible with high-temperature turbine bays, petrochemical process units, and offshore platform installations. During installation, engineers must observe a minimum bend radius of 10 the cable diameter and route the cable away from variable-frequency drives and high-voltage bus bars to preserve EMI rejection performance. Connector terminations should be torqued to specification and verified with a TDR (Time Domain Reflectometer) prior to system commissioning.

As a critical spare part strategy, stocking the 330730-080-02-05 is a non-negotiable element of any predictive maintenance program. With many legacy 3300 series installations still operating across global refineries and power plants, sourcing original factory-packaged cables from a verified distributor eliminates the risk of counterfeit components entering your protection loop — a risk that carries both safety and compliance consequences.

Key Operational Features

Triaxial Shielded Construction — Delivers high-availability signal integrity with 95% minimum braid coverage, suppressing EMI/RFI in electrically noisy plant environments.
FEP High-Temperature Insulation — Sustains performance across -65°C to +200°C, ensuring seamless integration in turbine halls and reactor areas.
75-Foot (22.86m) Reach — Enables flexible sensor-to-monitor routing in large-scale machinery layouts without signal attenuation.
50-Ohm Impedance Matching — Precision-matched to Bently Nevada 3300 series system integration requirements for accurate proximity measurement.
Redundancy-Ready Design — Compatible with dual-channel and redundant monitoring configurations for high-availability protection systems.
Chemical & Solvent Resistance — FEP jacket withstands exposure to oils, hydraulic fluids, and corrosive process chemicals common in I/O module environments.

Maintenance & Performance Benchmarks

The 330730-080-02-05 is engineered to adapt across diverse industrial network architectures — from single-machine monitoring cells to plant-wide DCS-integrated protection systems. In small-scale installations, the cable connects a single proximity probe to a dedicated 3300 series monitor with minimal infrastructure. In large refinery or power generation environments, it operates within multi-drop sensor arrays feeding centralized process optimization platforms, where signal consistency across dozens of measurement points is essential for accurate trend analysis.

Performance benchmarks confirm that FEP triaxial cables maintain <0.5% signal variance over their rated temperature range, a critical parameter when monitoring shaft displacement to API 670 standards. Periodic maintenance should include visual inspection of connector bodies for corrosion, insulation spot-checks using a megohmmeter, and verification of shield continuity. Mean time between failures (MTBF) for properly installed Bently Nevada extension cables in controlled environments exceeds 15 years, underscoring their value as long-term automation components in any reliability-centered maintenance (RCM) program.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 330730-080-02-05 unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized channels and dispatched in Original Factory Packaging — sealed, labeled, and traceable to manufacturing batch records. For facilities managing EOL (End-of-Life) or legacy 3300 series installations, our global supply network maintains buffer stock specifically for discontinued and hard-to-source automation components, ensuring your protection systems remain operational without costly platform migrations.

Same-Day Dispatch available for in-stock units (order confirmation before 14:00 CST).
Worldwide Express Logistics via DHL, FedEx, and UPS — typical transit 3-7 business days to major industrial hubs.
Global Supply for EOL/Legacy Modules — dedicated sourcing desk for obsolete Bently Nevada part numbers.
Export Documentation — full commercial invoice, packing list, and certificate of origin provided for customs clearance.
Secure Packaging — anti-static, moisture-barrier packaging for all sensitive I/O modules and cable assemblies.

Engineering Support & FAQ

Q1: Is the 330730-080-02-05 compatible with both 5mm and 8mm Bently Nevada proximity probes?
A: The 330730-080-02-05 is designed for use within the Bently Nevada 3300 series ecosystem. Compatibility depends on the specific probe and proximitor model in your system. Please verify against your system’s wiring diagram or contact our engineering team with your full system configuration for confirmation.

Q2: What firmware or monitor versions are compatible with this extension cable?
A: As a passive cable assembly, the 330730-080-02-05 has no firmware dependency. It is compatible with all 3300 series monitor revisions. Ensure your monitor’s input impedance specification matches the 50-ohm cable characteristic for optimal signal fidelity.

Q3: How do I verify cable integrity before installation?
A: Perform a TDR (Time Domain Reflectometer) sweep to check for impedance discontinuities, and use a megohmmeter at 500VDC to verify insulation resistance (>100MΩ). Confirm shield continuity end-to-end with a low-resistance ohmmeter before routing.

Q4: What is the warranty process if the cable fails within the warranty period?
A: Contact sale@ninermas.com with your order number, failure description, and photographic evidence. Our team will initiate an RMA (Return Merchandise Authorization) within 24 business hours. Replacement units are dispatched upon receipt and inspection of the returned item.

Q5: Can this cable be used in hazardous area (ATEX/IECEx) installations?
A: The 330730-080-02-05 itself is not ATEX-certified as a standalone component. For hazardous area deployments, consult the full Bently Nevada system documentation and verify that the complete sensor-cable-monitor assembly meets the required zone classification with appropriate barriers or isolators.

Q6: Do you provide certificates of conformance or material test reports?
A: Yes. Upon request, NINERMAS can provide a Certificate of Conformance (CoC) for traceability purposes. Material test reports are subject to availability from the original manufacturer’s batch records.
