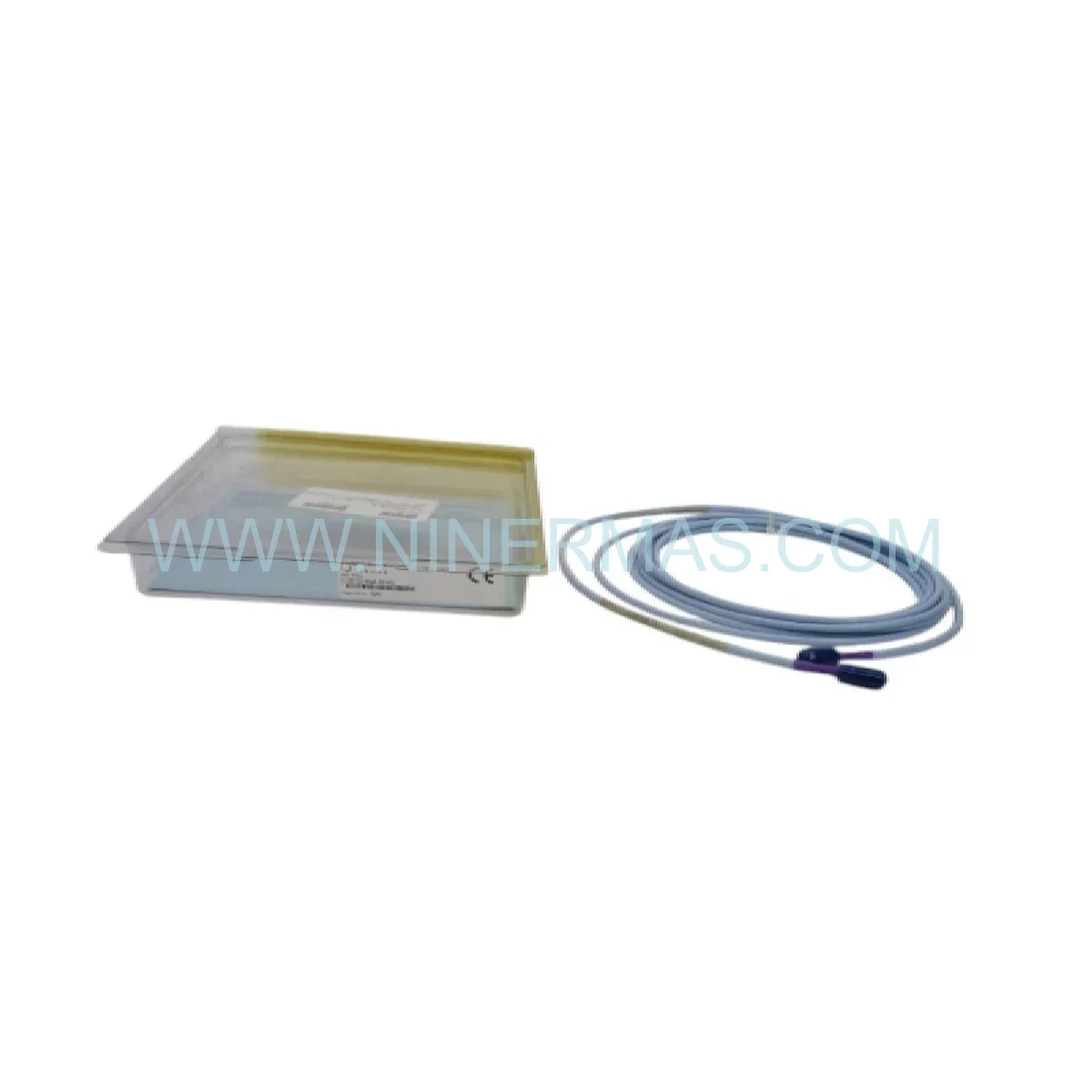

Bently Nevada 330730-040-01-05 Extension Cable | 3300 XL 11mm New & Original

Bently Nevada 330730-040-01-05 | 3300 XL 11mm Proximity Extension Cable — Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, maintaining system availability in rotating equipment environments demands components that perform without compromise. The Bently Nevada 330730-040-01-05 is a mission-critical interconnect engineered for 3300 XL 11mm proximity transducer architectures, delivering consistent signal fidelity that underpins continuous machinery health surveillance. In turbomachinery protection systems — where milliseconds of signal latency can trigger unplanned shutdowns — the 330730-040-01-05 serves as the backbone of process optimization, ensuring vibration data reaches monitoring modules with zero degradation.

Deployed across refineries, power generation stations, and petrochemical complexes, the 330730-040-01-05 demonstrates exceptional durability under thermal cycling, chemical exposure, and persistent mechanical vibration. Its armored, PTFE-insulated construction resists oils, coolants, and aggressive solvents, while the shielded design suppresses EMI/RFI interference from adjacent VFDs and high-voltage switchgear. Installation teams should maintain a minimum bend radius of 50mm and route cables through dedicated instrumentation trays, separated from power conductors, to preserve signal integrity throughout the service life.

For maintenance planners focused on operational excellence, stocking the 330730-040-01-05 as a certified spare eliminates critical lead-time risk. Legacy proximity systems and EOL instrumentation loops depend on this exact part number for seamless integration — substituting non-OEM alternatives introduces impedance mismatches and calibration drift that compromise system integration and overall plant reliability.

Key Operational Features

Mission-Critical Signal Integrity: 50-ohm nominal impedance with >90% EMI/RFI shielding effectiveness for noise-immune data transmission.
High Availability Construction: Armored, PTFE-insulated cable body rated 40°C to +85°C for continuous duty in harsh industrial environments.
Seamless System Integration: BNC-to-BNC connectors ensure plug-and-play compatibility with 3300 XL proximity monitoring architectures and legacy 3300 series platforms.
Redundancy-Ready Design: Supports daisy-chain extension configurations for installations requiring runs beyond 4 meters, maintaining signal quality up to 9-meter total cable length.
Process Optimization Support: Precision-matched electrical characteristics eliminate the need for field recalibration after cable replacement, reducing MTTR significantly.
I/O Module Compatibility: Fully compatible with Bently Nevada proximitor sensors and I/O modules across the 3300 XL automation components ecosystem.

Maintenance & Performance Benchmarks

The 330730-040-01-05 is engineered to adapt across diverse industrial network architectures — from single-machine monitoring loops in small compressor stations to multi-train vibration surveillance networks in large LNG facilities. In distributed control environments, the cable’s consistent 50-ohm impedance profile ensures compatibility with both standalone proximitor sensors and rack-mounted I/O modules without requiring signal conditioning adjustments.

Performance benchmarks confirm insulation resistance exceeding 100 MΩ at 500V DC under factory test conditions, with shield continuity verified across the full 4-meter length. Annual field inspection protocols should include visual armor integrity checks, connector torque verification, and insulation resistance spot-testing. Signal drift exceeding ±0.5V at the proximitor output is a reliable indicator of cable degradation and warrants immediate replacement to sustain automation components performance at specification.

For large-scale industrial networks deploying multiple proximity channels, standardizing on the 330730-040-01-05 across all 11mm transducer loops simplifies spare parts inventory management and accelerates fault isolation during unplanned outages — a direct contribution to operational excellence and reduced lifecycle maintenance costs.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 330730-040-01-05 unit shipped by NINERMAS COMPANY LIMITED is sourced directly from authorized distribution channels and dispatched in original factory packaging, preserving connector integrity and cable geometry during transit. For mission-critical maintenance scenarios, same-day dispatch is available for in-stock units — minimizing production downtime and supporting aggressive maintenance windows.

Our global supply network specializes in EOL and legacy automation components, ensuring availability of the 330730-040-01-05 even when standard distribution channels report extended lead times. Worldwide express logistics partnerships enable delivery to North America, Europe, the Middle East, and Southeast Asia within 3-7 business days. Each shipment includes a certificate of conformance and factory test documentation upon request, supporting your quality assurance and traceability requirements.

Engineering Support & FAQ

Q: What is the correct installation procedure for the 330730-040-01-05 in a 3300 XL proximity loop?
A: De-energize the proximitor sensor before disconnecting any cables. Connect the probe cable to the input BNC of the 330730-040-01-05, then route the output BNC to the proximitor sensor input. Maintain a minimum 50mm bend radius throughout the cable path. Re-energize and verify DC gap voltage at the proximitor output (typically 10V to 18V for 11mm systems) to confirm correct installation.

Q: Which firmware versions and proximitor models are compatible with this extension cable?
A: The 330730-040-01-05 is a passive component with no firmware dependency. It is compatible with all Bently Nevada 3300 XL proximitor models, including 330180, 330101, and 330103 series, as well as earlier 3300 series proximitors. Verify connector type compatibility for installations predating the 3300 XL platform.

Q: Can multiple 330730-040-01-05 cables be chained to extend total cable length?
A: Yes, extension cables may be daisy-chained, but total cable length — including the probe cable — must not exceed 9 meters (30 feet) to maintain signal quality within Bently Nevada specification. Exceeding this limit introduces signal attenuation and gap voltage errors that compromise vibration measurement accuracy.

Q: How is the warranty claim process handled for this part?
A: Contact sale@ninermas.com with your order reference, part number (330730-040-01-05), and a description of the observed fault. Our technical team will initiate a return merchandise authorization (RMA) within 24 business hours. Confirmed manufacturing defects are covered under our 12-month warranty with replacement or full refund options.

Q: Is the 330730-040-01-05 suitable for use in hazardous classified areas?
A: As a passive cable assembly, the 330730-040-01-05 does not carry its own hazardous area certification. It may be used in Zone 1/Zone 2 or Division 1/Division 2 installations when paired with appropriately certified intrinsically safe barriers and proximitor modules. Consult your site’s area classification documentation and system integrator for compliance verification.

Q: What diagnostic steps should be taken if signal drift is observed after cable installation?
A: First, verify connector seating at both BNC terminations. Measure insulation resistance (target >100 MΩ at 500V DC) and shield continuity end-to-end. Inspect the cable path for kinking, abrasion, or chemical damage. If insulation resistance is below threshold or shield continuity is broken, replace the 330730-040-01-05 immediately to restore measurement integrity.
