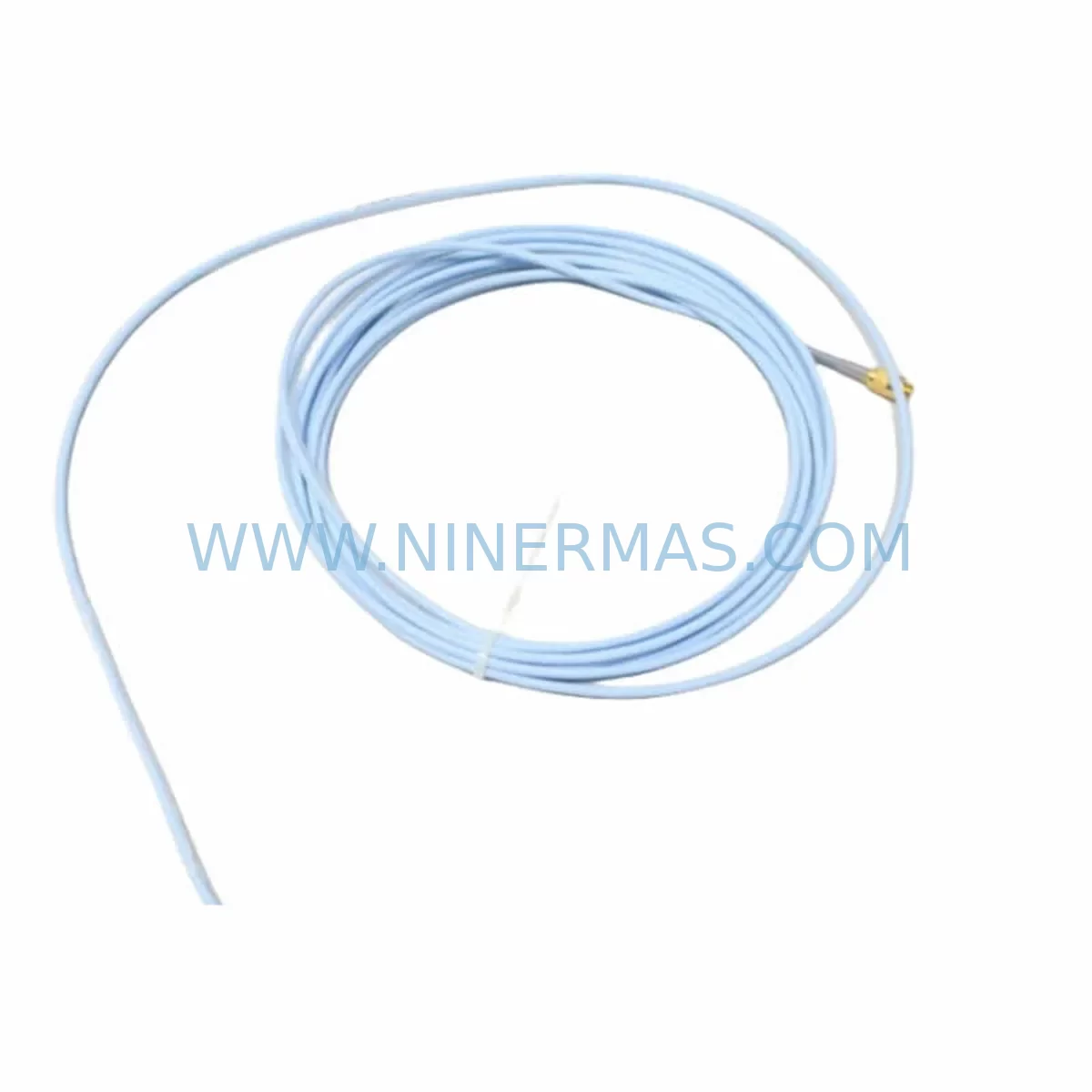

The Bently Nevada 330730-040-00-00 Ruggedized Cable Extension Module is a critical spare part for industrial vibration monitoring and rotating machinery protection systems. Designed for use within the Bently Nevada 3300 Series proximity measurement ecosystem, this ruggedized cable extension ensures reliable signal transmission between proximity probes and monitor modules in harsh industrial environments — including petrochemical plants, power generation facilities, compressor stations, and heavy manufacturing lines.

For maintenance engineers managing continuous operations, unplanned downtime caused by a failed cable extension can cascade into costly production losses. Keeping a verified, tested unit of the 330730-040-00-00 in your on-site spare parts inventory is a proven strategy for rapid fault isolation and same-shift restoration. This module is engineered to withstand high-vibration, high-temperature, and chemically aggressive environments, making it a preferred choice for MRO procurement teams sourcing long-term replacement components for aging 3300 Series installations.

At NINERMAS, every unit of the 330730-040-00-00 is inspected and functionally tested prior to shipment, backed by a 12-month warranty, and supported by long-term supply continuity — ensuring your maintenance program is never interrupted by sourcing gaps.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330730-040-00-00 cable extension in the field, a thorough maintenance engineer will treat the replacement as an opportunity to audit the entire proximity measurement loop. The cable extension does not operate in isolation — its performance is directly tied to the condition of adjacent components in the same signal chain and control cabinet.

Begin by verifying the Bently Nevada 3300 XL Proximitor Sensor (driver/oscillator module) paired with this extension. A degraded driver will produce erratic gap voltage even with a new cable, masking the root cause of the fault. Simultaneously, inspect the 3300/16 or 3300/20 Vibration Monitor input card for connector corrosion or bent pins that may have caused intermittent signal loss attributed to the cable.

Check the 24 VDC power supply module feeding the monitor rack — under-voltage conditions accelerate connector oxidation and can cause false proximity alarms. If your installation uses a Bently Nevada 3500 Rack System alongside legacy 3300 modules, confirm that the I/O module and 3500/42M Proximitor I/O Module are within calibration tolerance before returning the loop to service.

For installations in compressor trains or turbine control cabinets, also inspect the terminal blocks and DIN rail assemblies within the junction box where the cable extension terminates. Loose terminations are a leading cause of signal noise that is incorrectly diagnosed as cable failure. Review the signal isolator or barrier modules (such as Zener barriers or galvanic isolators) if the proximity loop crosses a hazardous area boundary — these components degrade silently and should be part of any annual inspection checklist.

Procurement engineers building a resilient MRO spare parts kit around the 330730-040-00-00 should also stock the matching 330730-080-00-00 (80 ft extension variant) for longer cable runs, as well as the 330105 proximity probe and 330180 Proximitor driver to cover the full transducer system. Including a spare 3300/16 monitor module and a set of coaxial connector repair kits will further reduce mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Isolate the affected proximity channel at the monitor rack. Document the existing gap voltage reading before disconnection to establish a baseline for post-installation verification.

Step 2 — Cable Removal: Disconnect the extension at both the probe/driver junction and the monitor input. Inspect the removed cable for jacket cracking, connector corrosion, or mechanical damage to confirm the diagnosis.

Step 3 — New Module Installation: Install the 330730-040-00-00 replacement. Ensure coaxial connectors are hand-tightened to the correct torque (finger-tight plus 1/4 turn) to avoid connector damage. Route the cable away from high-voltage conductors and moving machinery.

Step 4 — System Verification: Power up the proximity loop and measure gap voltage at the monitor. Compare against the documented baseline and the Bently Nevada calibration chart for the probe/driver/extension combination. Acceptable gap voltage for most 3300 XL systems is in the –10 VDC to –18 VDC range at the design gap.

Step 5 — Return to Service: Confirm alarm and danger setpoints are active. Log the replacement in the CMMS with the new part serial number and date. Update the spare parts inventory to trigger reorder of a replacement unit — maintaining at least one on-shelf spare per critical machine train is best practice for rotating equipment reliability programs.

This workflow is compatible with legacy 3300 Series installations and can be adapted for sites transitioning to the Bently Nevada 3500 Series, where cable extension compatibility should be verified against the updated system documentation before installation.

Spare Parts Support FAQ

Q1: Is the 330730-040-00-00 compatible with both the 3300 and 3500 Series Bently Nevada systems?
The 330730-040-00-00 is natively designed for the 3300 XL Proximity Transducer System. Compatibility with 3500 Series installations depends on the specific I/O module and system configuration. We recommend verifying the total cable system length (probe + extension + driver) against Bently Nevada’s calibration tables before installation in a 3500 Series rack. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: How does NINERMAS verify the condition of spare units before shipment?
Every 330730-040-00-00 unit shipped by NINERMAS undergoes a pre-dispatch functional inspection covering connector integrity, cable jacket condition, and signal continuity. Units that do not meet OEM specification are quarantined. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts inventory strategy for this cable extension?
For critical rotating machinery (compressors, turbines, pumps), reliability engineers typically maintain a minimum of one on-shelf spare per machine train monitored by a 3300 Series system. For plants with multiple trains, a pooled inventory of 2–3 units of the 330730-040-00-00 — alongside matching probe and driver spares — is recommended to support both planned annual shutdowns and emergency corrective maintenance without waiting on lead times.

Q4: Can NINERMAS support long-term or repeat supply of the 330730-040-00-00 for multi-year maintenance contracts?
Yes. NINERMAS maintains long-term sourcing relationships for Bently Nevada 3300 Series components, including the 330730-040-00-00 and related accessories. We support blanket purchase orders, scheduled delivery programs, and emergency expedite requests. Contact our team to discuss supply agreements aligned with your plant’s annual maintenance calendar.

—
