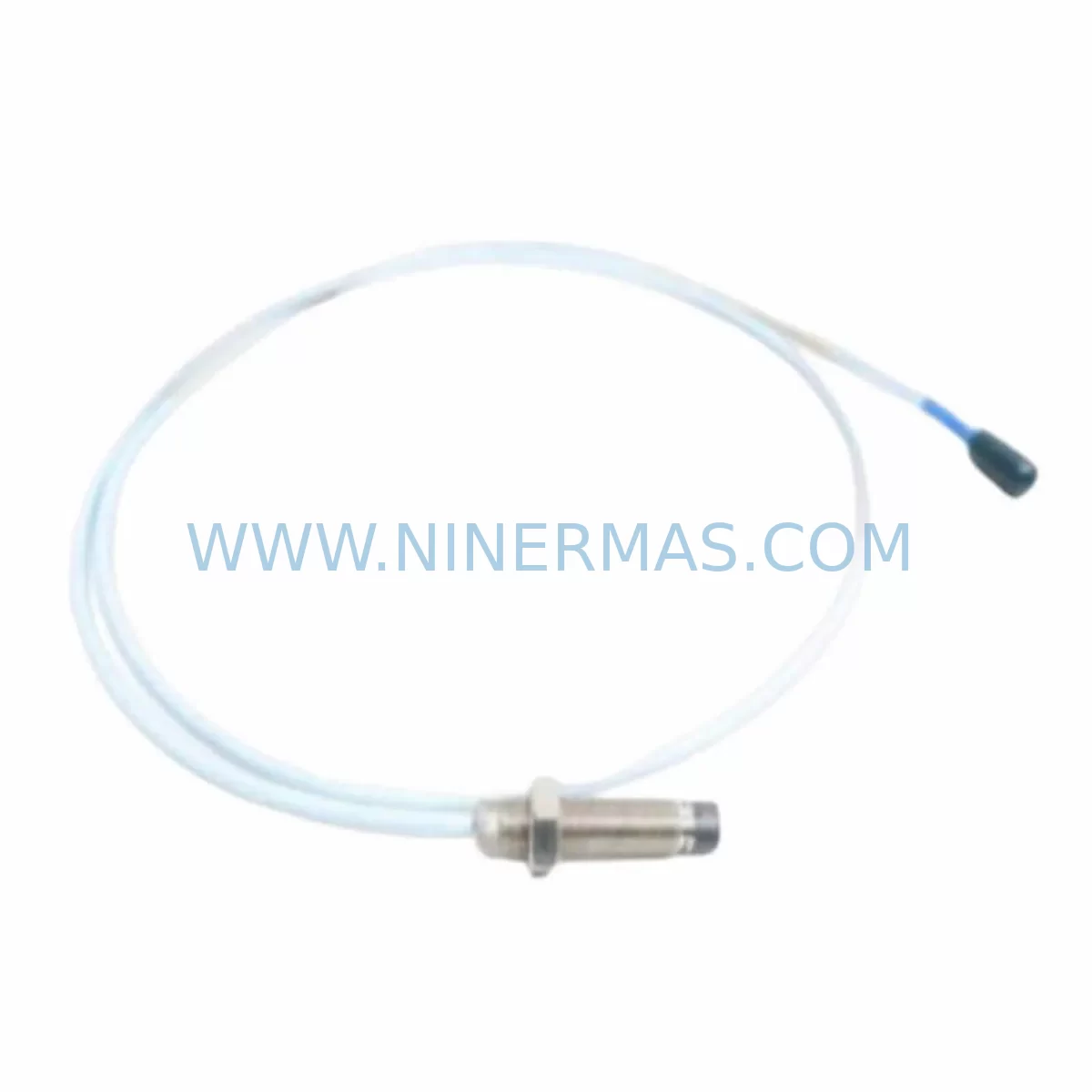

Bently Nevada 330709-000-120-10-02-00 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330709-000-120-10-02-00 Service-Ready Spare Part for Industrial Maintenance

The Bently Nevada 330709-000-120-10-02-00 is a service-ready spare part designed for the 3300 XL Series condition monitoring platform — one of the most widely deployed vibration monitoring systems in rotating machinery applications across power generation, oil & gas, petrochemical, and heavy industrial environments. When a critical monitor module fails or reaches end-of-service life, unplanned downtime can cascade across an entire production line. Sourcing a verified, original-specification replacement is the fastest path to restoring system integrity and resuming safe operation.

At NINERMAS, every unit of the 330709-000-120-10-02-00 is inspected, function-tested, and shipped with a 12-month warranty — giving maintenance engineers and procurement teams the confidence to stock this module as a primary or secondary spare in their control room inventory. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a long-term spare parts program for aging 3300 XL infrastructure, this module is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330709-000-120-10-02-00 in a live 3300 XL system is rarely an isolated task. Experienced maintenance engineers know that a monitor module failure is often a symptom of broader stress in the measurement loop or the control cabinet environment. A thorough site inspection during replacement should cover the full signal chain and supporting infrastructure.

Begin with the proximitor/extension cable assembly — the 3300 XL system relies on matched probe, extension cable, and proximitor sets (such as the 330180 or 330130 series proximity probes) to maintain calibrated gap voltage and sensitivity. If the monitor module has failed due to signal overrange or open-circuit conditions, inspect the probe tip for mechanical damage and verify the extension cable for continuity and shielding integrity. A degraded cable can cause recurring module faults even after a board replacement.

Next, verify the rack power supply module. The 3300 XL chassis typically draws regulated DC power from a dedicated power supply card (such as the 3300/15 or equivalent rack PSU). A marginal power supply delivering out-of-tolerance voltage can stress monitor modules and accelerate failure. Measure output voltage under load and compare against the rack’s rated specification before reinstalling the replacement 330709-000-120-10-02-00.

Check the I/O terminal blocks and field wiring at the rear of the rack. Loose terminations, corroded screw terminals, or undersized conductors in the 4–20 mA output loop can introduce noise or signal dropout that is misdiagnosed as a module fault. Torque all terminals to specification and inspect for signs of heat discoloration or insulation breakdown.

If the 3300 XL rack interfaces with a DCS or safety instrumented system (SIS) via hardwired relay outputs or serial communication, confirm that the relay output module (such as the 3300/16 relay module) is functioning correctly and that trip setpoints have not drifted. A spurious trip signal from a faulty relay card can be incorrectly attributed to the monitor module during fault diagnosis.

For systems integrated with a System 1 Evolution or legacy System 1 software platform via the TDI (Transient Data Interface) or Ethernet communication card, verify that the communication module is online and that the replacement monitor module is recognized by the software after installation. Configuration parameters — including full-scale range, alert and danger setpoints, and Keyphasor assignments — must be confirmed in the software after any hardware swap.

Finally, review the condition of the Keyphasor module (e.g., 3300/25 or 3500/25 series) if the system uses phase-referenced vibration measurements. A degraded Keyphasor signal affects vector measurements across all channels in the rack and can produce misleading diagnostic data during post-maintenance verification runs. Stocking a Keyphasor module as part of your 3300 XL spare parts kit is strongly recommended for facilities with critical rotating machinery.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow your site LOTO procedure. Inhibit alarms and trips in the DCS or SIS for the affected measurement points before removing the module to prevent spurious shutdowns during the swap.

Step 2 — Document Current Configuration: Record all setpoint values, channel assignments, and software configuration parameters from System 1 or the local display before powering down the rack slot. Take a photograph of the rear terminal wiring for reference.

Step 3 — Module Removal: Loosen the front-panel captive screws, slide the 330709-000-120-10-02-00 module out of the rack slot, and place it in an ESD-safe bag. Do not leave the slot open for extended periods in dusty or humid environments.

Step 4 — Inspect Backplane Connector: Before inserting the replacement module, visually inspect the backplane connector pins for bent contacts, corrosion, or debris. Clean with approved contact cleaner if necessary.

Step 5 — Install Replacement Module: Slide the new 330709-000-120-10-02-00 into the slot, seat firmly, and tighten captive screws. Restore power to the rack slot and confirm the module’s front-panel LED status indicators show normal operation.

Step 6 — Verify Configuration and Calibration: Reconnect to System 1 or the local configuration interface. Confirm that all channel parameters have been correctly loaded. Perform a static calibration check using a signal simulator if required by your site maintenance procedure.

Step 7 — Restore Alarms and Return to Service: Remove alarm inhibits in the DCS/SIS, confirm live vibration readings are within expected range, and document the replacement in your CMMS with the new module’s serial number and the 12-month warranty start date.

Spare Parts Support FAQ

Q1: Is the 330709-000-120-10-02-00 an original Bently Nevada part or a third-party replacement?
Every unit supplied by NINERMAS is an original Bently Nevada spare part sourced through established industrial supply channels. We do not supply counterfeit, cloned, or reverse-engineered substitutes. Each module is inspected and function-tested prior to shipment to confirm it meets OEM electrical and mechanical specifications.

Q2: What warranty coverage is provided, and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, NINERMAS will arrange a replacement or credit. Warranty claims require the original invoice and a brief description of the failure mode.

Q3: Can I order multiple units for a long-term spare parts program or blanket purchase order?
Yes. NINERMAS supports blanket orders, annual procurement agreements, and multi-unit stocking programs for the 330709-000-120-10-02-00 and related 3300 XL components. Long-term supply commitments help facilities lock in pricing and ensure availability for planned shutdowns and emergency replacements. Contact our sales team to discuss volume pricing and delivery scheduling.

Q4: How do I confirm compatibility before ordering if my system uses a non-standard rack configuration?
Provide your rack model number, existing module part numbers, and system software version to our technical team at sale@ninermas.com. We will verify compatibility against the 3300 XL system documentation and confirm the correct replacement part before your order is processed. Pre-shipment function testing is standard on all units.
