Bently Nevada 330709-000-090-10-02-00 Retrofit Proximitor for Legacy Systems

Bently Nevada 330709-000-090-10-02-00 Retrofit Proximitor for Legacy Systems

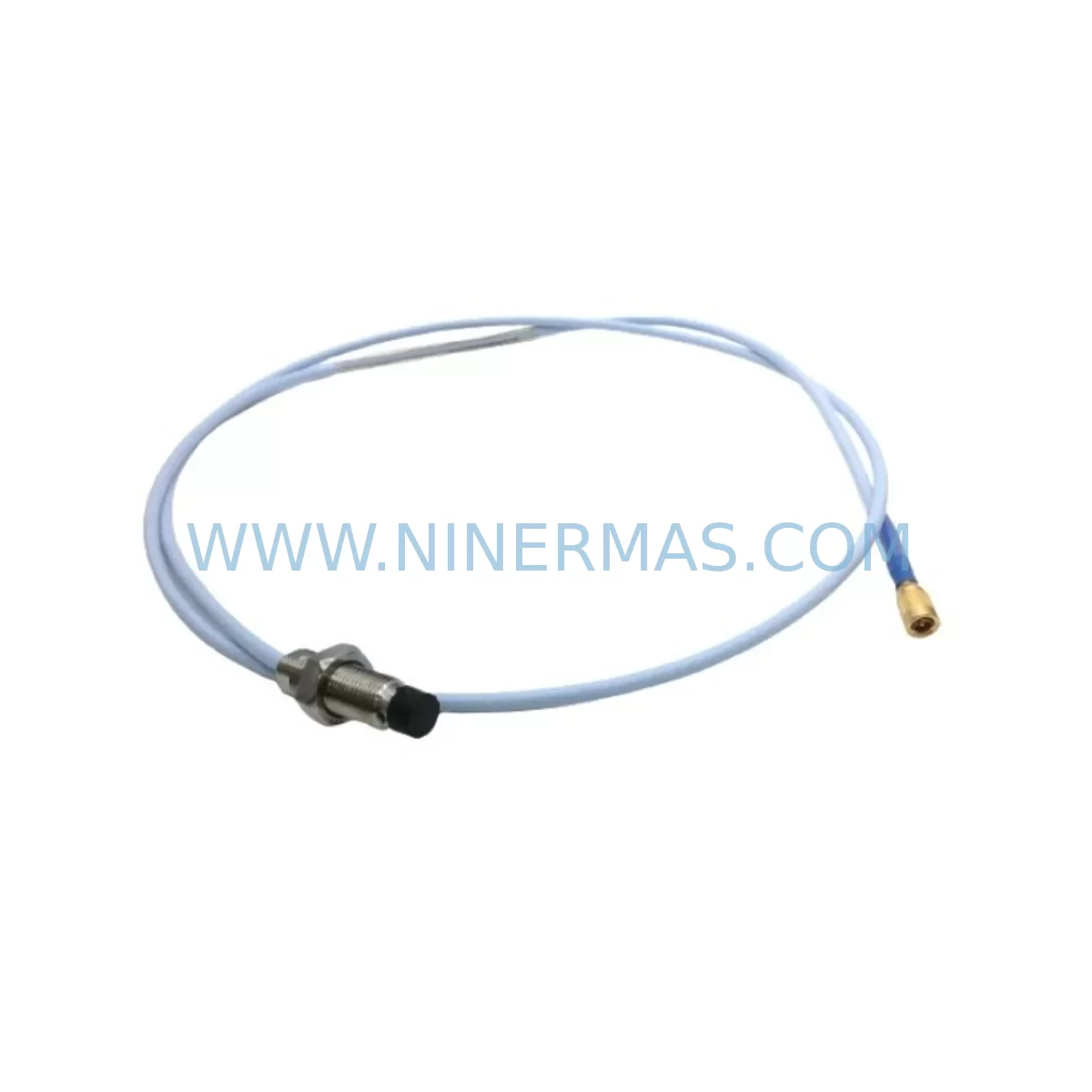

The Bently Nevada 330709-000-090-10-02-00 is a 3300 XL Series 8mm Proximitor Sensor designed for eddy-current proximity measurement in rotating machinery protection and condition monitoring applications. As original Bently Nevada production of this model has reached end-of-life status, maintenance engineers and system integrators managing legacy turbomachinery protection panels increasingly rely on verified retrofit-compatible replacements to sustain continuous plant operations without forcing a full platform migration. This unit is pre-shipment tested, supplied with a 12-month warranty, and held in ready-to-ship inventory to minimize procurement lead times for critical spare parts programs.

Whether you are maintaining a legacy vibration monitoring rack, upgrading a control cabinet, or executing a planned outage replacement, the 330709-000-090-10-02-00 integrates directly into existing 3300 XL system architectures. Its 8mm probe tip diameter, standard 5-metre extension cable interface, and -24 VDC supply voltage are fully consistent with the original factory specification, allowing drop-in replacement without rewiring terminal blocks or modifying DCS input cards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330709-000-090-10-02-00 into a legacy protection system begins well before the unit arrives on site. Maintenance planners should first audit the existing probe-to-Proximitor cable assembly. In most 3300 XL installations, the field wiring uses a 330130-080-00-00 armoured extension cable routed from the bearing housing to the Proximitor junction box. If this cable shows signs of insulation degradation or connector corrosion, it should be replaced concurrently to avoid introducing a new fault source after the Proximitor swap.

At the rack level, confirm that the 3500/42M Machinery Protection Monitor or the 3500/22M Transient Data Interface assigned to this channel is configured for the correct probe type and gap voltage range. If the rack was previously running an older 330709-000-080-10-02-00 or 330709-000-070-10-02-00 variant, the monitor configuration is typically identical and no parameter changes are required. However, if the rack has been partially upgraded and now includes a mix of 3300 XL and 3500 Series modules, verify that the backplane slot addressing and I/O mapping in the System 1 or Rack Configuration Software still align with the channel assignments documented in the original loop diagram.

Power supply integrity is a frequently overlooked factor in Proximitor retrofits. The 3500/15 Power Supply module feeding the rack must deliver a stable -24 VDC rail within ±1 VDC tolerance under full load. If the rack is operating near its power budget — particularly in cabinets that have been expanded with additional 3500/40M or 3500/50 monitor cards — measure the actual rail voltage before installing the replacement Proximitor. A marginal supply can cause intermittent gap voltage errors that are difficult to distinguish from a faulty sensor during post-installation verification.

For installations where the original 330709-000-090-10-02-00 was mounted in a remote junction box rather than directly at the bearing, inspect the 330180-51-00 field wiring barrier or equivalent signal isolator in the loop. Barrier degradation can introduce offset errors in the Proximitor output that persist even after a sensor replacement. Replacing the barrier alongside the Proximitor during a planned outage eliminates this variable and reduces the risk of a repeat callout.

Where the protection system feeds a DCS historian or safety instrumented system via a 4–20 mA converter card, confirm that the analogue output scaling programmed in the converter matches the new Proximitor’s output curve. This is particularly relevant in plants that have migrated HMI graphics from an older Bently Nevada System 1 platform to a modern SCADA or DCS faceplate — the engineering unit conversion factors embedded in the HMI display may need to be verified against the replacement sensor’s documented sensitivity.

Downtime Control During System Migration

Minimising unplanned downtime during a Proximitor replacement requires a structured pre-outage preparation sequence. Before isolating the channel, capture a baseline vibration trend from the System 1 historian or the 3500/42M front-panel display. This baseline serves as the acceptance reference during post-installation commissioning and allows the maintenance team to confirm that the replacement unit is reading within the expected gap voltage and vibration amplitude range before the machine is returned to service.

Where the protection system does not support hot-swap of individual monitor channels, coordinate the replacement window with the operations team to align with a scheduled process hold or low-load period. Bypassing the trip output on the affected channel in the 3500/42M before disconnecting the field wiring prevents a spurious machine trip during the swap. Document the bypass activation and restoration in the permit-to-work system to maintain safety audit traceability.

During the physical swap, label all field wiring terminals before disconnection. The 330709-000-090-10-02-00 uses a three-conductor connection — power, common, and output — and terminal polarity errors are the most common cause of commissioning delays. After reconnection, perform a static gap check by measuring the Proximitor output voltage with the shaft stationary. A reading of -10 VDC ±1 VDC at the nominal air gap confirms correct installation before the machine is restarted. Record the as-found and as-left gap voltages in the maintenance management system to support future trend analysis and bearing wear monitoring.

For sites operating under IEC 61511 or ISA-84 safety requirements, the replacement Proximitor must be functionally tested as part of the proof test procedure before the safety function is restored. Retain the pre-shipment test certificate supplied with the 330709-000-090-10-02-00 as documentary evidence of factory acceptance testing for inclusion in the safety case file.

Retrofit Support FAQ

Q1: Is the 330709-000-090-10-02-00 a direct drop-in replacement for the 330709-000-080-10-02-00?
Yes. Both units share the same 8mm probe diameter, -24 VDC supply voltage, and analogue output range. The suffix difference reflects cable length configuration. Confirm the total probe-plus-extension cable length matches your installation before ordering to ensure the system gap voltage falls within the -10 VDC nominal operating point.

Q2: What pre-shipment testing is performed on this unit?
Each 330709-000-090-10-02-00 supplied by NINERMAS undergoes functional output verification, insulation resistance testing, and gap voltage calibration check prior to dispatch. A test record is included with the shipment. The unit is covered by a 12-month warranty from the date of shipment against manufacturing defects and functional performance deviations.

Q3: Can this Proximitor be used with a 3500 Series monitor rack instead of a 3300 XL rack?
Yes, provided the 3500 Series monitor card — such as the 3500/42M — is configured for the 3300 XL 8mm probe type. The analogue output interface is compatible. Verify the monitor’s internal configuration using Rack Configuration Software and confirm that the channel’s full-scale range and alert/danger setpoints are adjusted to match the replacement sensor’s sensitivity specification.

Q4: What is the typical lead time and stock availability?
The 330709-000-090-10-02-00 is held in ready-to-ship inventory. Standard dispatch is within 2–5 business days of order confirmation. For urgent breakdown requirements, contact the NINERMAS sales team directly to confirm same-day or next-day dispatch availability. Long-term reserved inventory agreements are available for sites with recurring spare parts requirements across the 3300 XL and 3500 Series platform.
