Bently Nevada 330708-00-25-90-02-00 Spare Part

Bently Nevada 330708-00-25-90-02-00 Service-Ready Spare Part for Industrial Maintenance

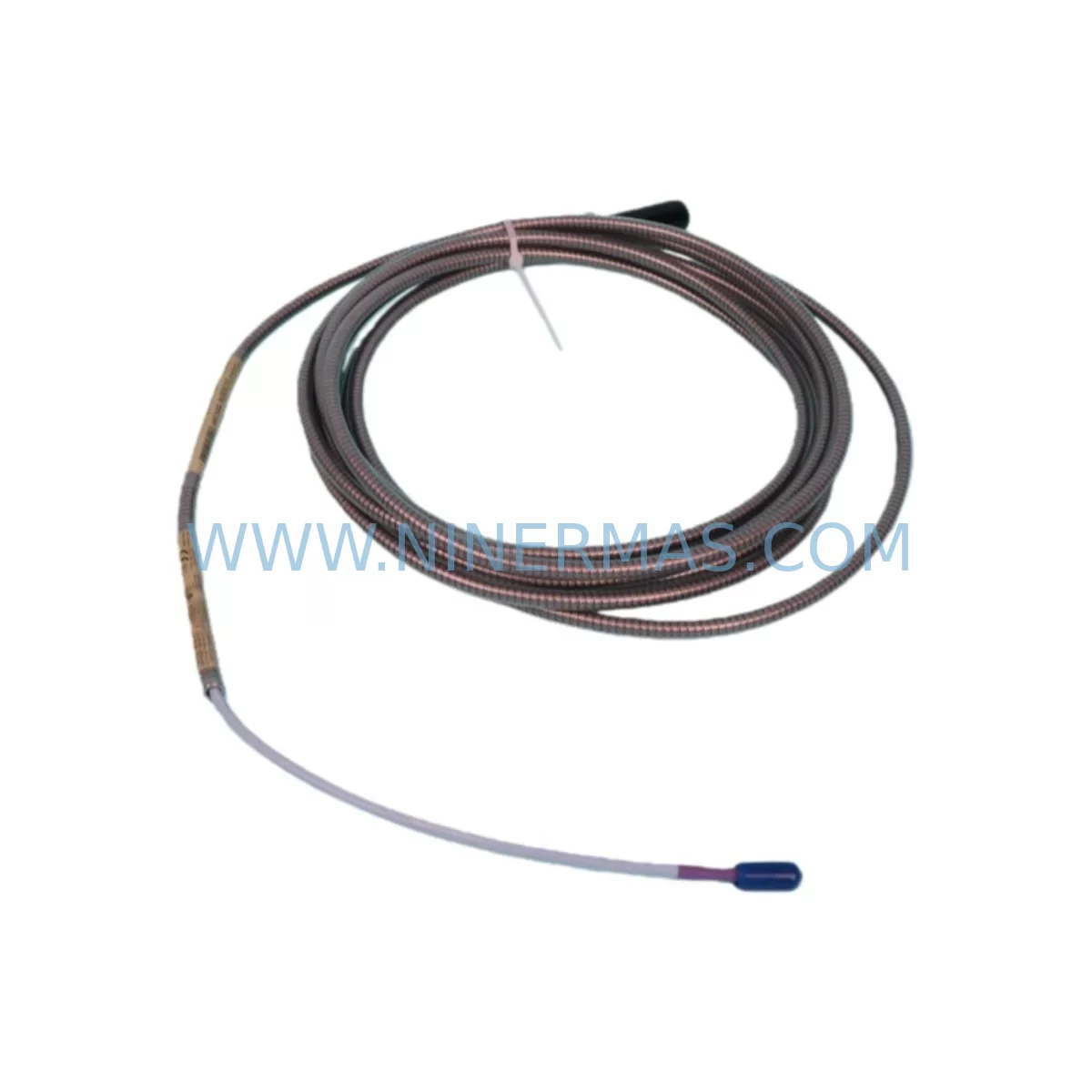

The Bently Nevada 330708-00-25-90-02-00 is an extension cable designed for use within the 3300 XL Series proximity transducer system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. For maintenance engineers managing turbines, compressors, pumps, and gearboxes in continuous-process industries, this cable is a critical link in the signal chain between the proximity probe and the Bently Nevada monitor. When this component fails or degrades, the entire vibration channel goes offline, leaving rotating equipment unprotected and triggering unplanned shutdowns.

At NINERMAS, we stock the 330708-00-25-90-02-00 as a verified OEM-compatible spare, pre-tested before shipment and backed by a 12-month warranty. Our inventory is maintained specifically to support emergency replacement, annual turnaround, and long-term spare parts programs for facilities that cannot afford extended lead times from original manufacturers.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault in the vibration monitoring channel, the 330708-00-25-90-02-00 extension cable is often the first component to inspect — yet it is frequently overlooked in favor of the probe or proximitor. A degraded cable can introduce signal noise, DC bias drift, or complete signal loss that mimics probe failure. Before condemning the probe, always verify cable continuity, connector seating, and shield integrity.

A complete 3300 XL channel consists of three components that must be treated as a matched system: the proximity probe (such as the Bently Nevada 330730-040-00-00 or 330780-50-00), the extension cable (this SKU), and the proximitor sensor (such as the 3300 XL 8mm Proximitor 330180-91-00). If the cable is being replaced due to connector damage or jacket failure, it is best practice to simultaneously inspect the probe tip for wear and verify the proximitor output voltage at the monitor terminal.

In the monitor rack, the Bently Nevada 3500/40M Proximitor/Seismic Monitor receives the conditioned signal. If the channel shows a not-OK status after cable replacement, check the monitor input card seating and verify that the 3500/20 Rack Interface Module is communicating correctly with the system controller. Loose backplane connections in the 3500 rack are a common secondary fault that surfaces during cable replacement work.

For facilities running older 3300/16 monitors, the 330708 cable series remains fully compatible, but engineers should also audit the 3300/16 power supply module during the same maintenance window. Power supply degradation in aging monitor racks is a leading cause of false not-OK trips that are misattributed to transducer faults.

From a procurement perspective, a well-structured spare parts kit for a single 3300 XL channel should include: the extension cable (330708 series), at least one spare probe, a spare proximitor, and a set of BNC-to-coax adapter connectors for field termination. For facilities with multiple machines on a common monitoring bus, maintaining a minimum of two cable spares per machine train is recommended to support rapid swap-out during unplanned outages.

Signal isolation is another consideration in high-EMI environments such as motor control centers or near variable frequency drives. In these installations, a signal isolator or conditioner installed between the proximitor output and the monitor input can prevent ground loop interference from corrupting the vibration signal. This is particularly relevant in retrofitted panels where the 3300 XL system shares a cabinet with newer digital I/O modules or Ethernet-based communication cards.

For facilities transitioning from legacy 3300 systems to the Bently Nevada 3500 platform, the 330708 extension cable remains usable during the transition period, allowing phased upgrades without full channel replacement. This compatibility reduces capital expenditure and allows maintenance teams to prioritize the most critical machine trains for upgrade while keeping older channels operational.

Site Replacement Workflow

Replacing the 330708-00-25-90-02-00 in the field is a straightforward procedure when the correct spare is on hand, but improper handling of the coaxial connectors is the most common cause of repeat failures.

Step 1 — Isolate the channel: Place the monitor channel in bypass mode (if supported) or acknowledge the not-OK alarm before disconnecting the cable. This prevents a spurious trip from propagating to the machine protection system.

Step 2 — Inspect and document: Before removing the old cable, photograph the connector orientation and routing path. Note any signs of jacket damage, connector corrosion, or mechanical stress at the bend points near the probe and proximitor.

Step 3 — Install the replacement cable: Hand-tighten coaxial connectors to the specified torque — typically finger-tight plus 1/8 turn. Do not use pliers on the connector body. Verify that the cable is routed away from high-voltage conductors and secured with appropriate cable ties or conduit.

Step 4 — Verify gap voltage: After reconnection, measure the proximitor output voltage (typically -10 VDC at the calibrated gap) and confirm it falls within the system acceptance range. Adjust the probe gap if necessary.

Step 5 — Return to service: Remove the bypass, confirm the monitor shows OK status, and log the replacement in the maintenance management system with the new cable serial number and installation date.

This workflow minimizes downtime and ensures that the replacement is documented for future reliability analysis. NINERMAS provides technical support for compatibility verification prior to shipment — contact our team with your system configuration details to confirm the correct cable variant for your installation.

Spare Parts Support FAQ

Q1: Is the 330708-00-25-90-02-00 covered by a warranty?
Yes. All units shipped by NINERMAS are covered by a 12-month warranty from the date of shipment. If the component fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Each unit undergoes pre-shipment functional testing to verify connector integrity and cable continuity.

Q2: How do I confirm compatibility with my existing 3300 XL system?
The 330708 extension cable series is designed for use with Bently Nevada 3300 XL probes and proximitors. Compatibility is determined by the probe series (8mm or 5mm), the proximitor model, and the required cable length. Please provide your probe part number and proximitor model when contacting NINERMAS, and our technical team will confirm the correct SKU variant before shipment.

Q3: Can NINERMAS supply this part on an ongoing basis for our annual maintenance program?
Yes. NINERMAS maintains long-term inventory of the 330708 series and can support scheduled annual procurement, emergency spot orders, and blanket purchase agreements. We recommend establishing a minimum stock level of two cables per machine train for facilities with critical rotating equipment. Contact us to discuss a supply agreement tailored to your maintenance schedule.

Q4: What should I do if the replacement cable does not resolve the not-OK alarm?
If the alarm persists after cable replacement, the fault is likely in the probe tip (check for wear or contamination on the sensing face), the proximitor sensor (verify output voltage and power supply), or the monitor input card (check seating and channel configuration). NINERMAS can assist with fault isolation by reviewing your system configuration and recommending the appropriate replacement component from our inventory.
