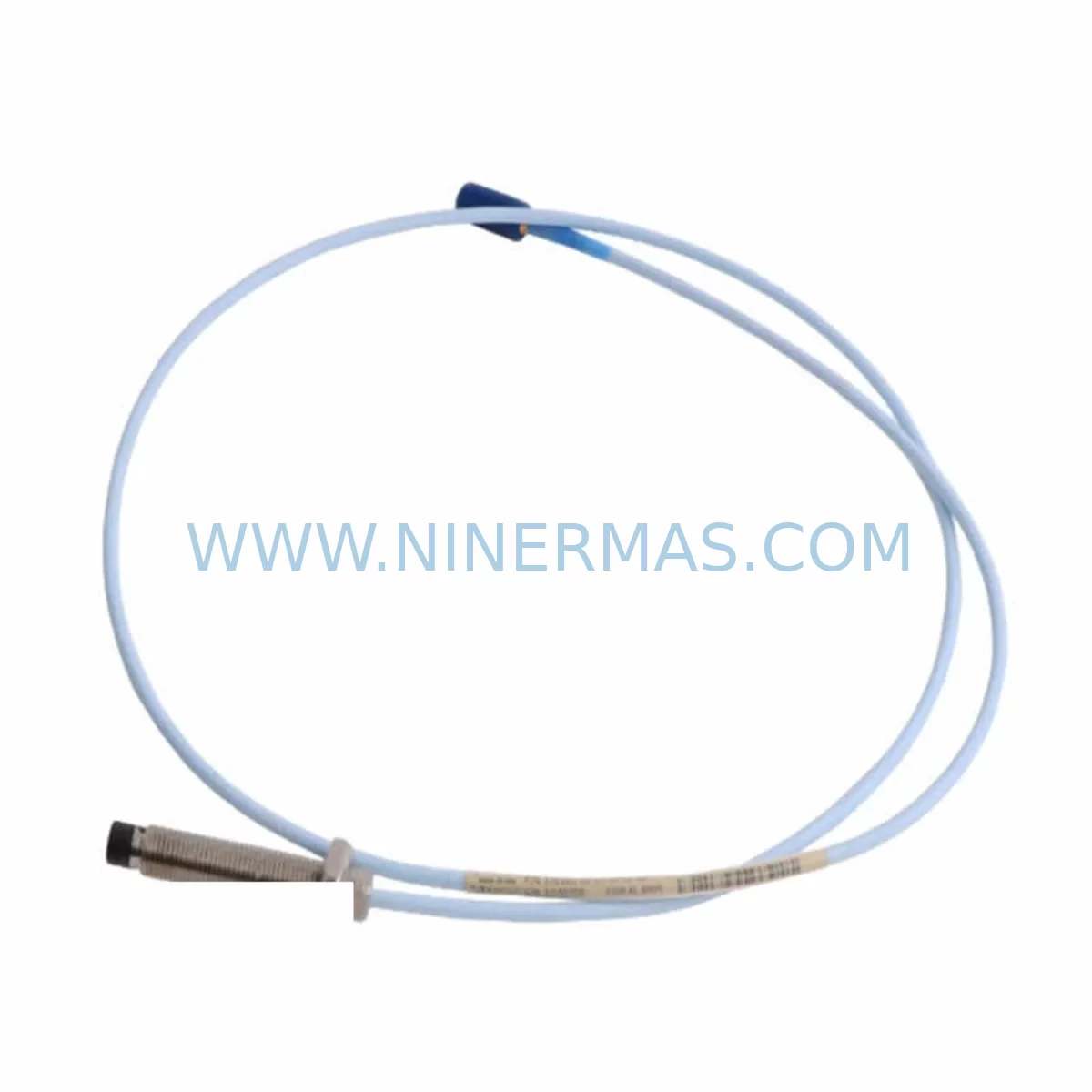

Bently Nevada 330708-00-10-90-02-00 Service-Ready Spare Part

Bently Nevada 330708-00-10-90-02-00 Service-Ready Spare Part for Industrial Maintenance

The Bently Nevada 330708-00-10-90-02-00 is a precision proximity transducer designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy manufacturing industries. When a vibration monitoring channel fails or a transducer reaches end-of-service life, rapid replacement with a verified original spare is critical to restoring continuous machinery protection and avoiding unplanned downtime on turbines, compressors, pumps, and motors.

At NINERMAS, this part is pre-tested prior to shipment, supplied with a 12-month warranty, and supported by a long-term spare parts program designed for maintenance engineers who cannot afford supply chain uncertainty on safety-critical instrumentation. Whether you are responding to an emergency shutdown, executing a planned annual overhaul, or building a strategic spare parts inventory for your control room, the 330708-00-10-90-02-00 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330708-00-10-90-02-00 transducer in the field is rarely an isolated task. Experienced maintenance engineers know that a failed proximity probe is often a symptom of broader wear or environmental stress in the monitoring loop. During any replacement event, it is best practice to inspect the full signal chain and associated components to prevent repeat failures and ensure measurement integrity is fully restored before returning the machine to service.

Begin by verifying the condition of the 330130-080-00-00 extension cable — the interconnecting cable between the probe and the proximitor. Cable jacket damage, connector corrosion, or shield continuity faults are common causes of erratic vibration readings that are misdiagnosed as probe failures. Next, inspect the 330180-X0-05 proximitor/driver (the signal conditioning module), which converts the raw eddy-current signal into a usable DC voltage for the monitor rack. A degraded proximitor will produce offset bias voltages and non-linear output even with a new probe installed.

At the monitor rack level, confirm that the 3300/16-02-01-01-00-00 monitor module is functioning correctly and that its channel configuration matches the new transducer’s gap voltage and sensitivity settings. If the rack has been in service for more than five years, it is advisable to also inspect the 3300/05 power supply module for output voltage stability, as power supply degradation is a leading cause of false alarms and nuisance trips in 3300 XL systems.

For installations where the 3300 XL rack interfaces with a DCS or safety system, verify the integrity of the 4–20 mA output signal wiring and any associated signal isolators or barriers — particularly in hazardous area installations where Zener barriers or galvanic isolators protect the intrinsically safe circuit. Loose terminal connections on the DIN rail terminal blocks feeding the monitor rack are a frequently overlooked source of intermittent faults during vibration events.

If the machine is a steam turbine or gas compressor with a full machinery protection suite, the replacement event is also an appropriate time to verify the calibration status of adjacent 330500-series thrust position probes and any 330900-series speed sensors sharing the same monitor chassis. Coordinated inspection of all channels during a planned outage window significantly reduces the risk of a secondary trip event after restart.

Finally, for sites running a hybrid monitoring architecture where the 3300 XL feeds data to a System 1 condition monitoring platform, confirm that the new transducer’s sensitivity coefficient and gap voltage are correctly entered in the software configuration to maintain accurate trend data continuity.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitor channel is in bypass or alarm inhibit mode before disconnecting the transducer.

Step 2 — Gap Measurement: Using a digital multimeter, measure the existing probe’s bias voltage at the proximitor output terminals. Record the value as a baseline reference. Typical target gap voltage for 8 mm probes is –10.0 VDC ± 0.5 VDC at the nominal air gap.

Step 3 — Probe Removal: Unthread the 330708-00-10-90-02-00 from the bearing housing bracket. Inspect the probe tip for mechanical damage, pitting, or contamination. Inspect the mounting bracket for cracks or misalignment.

Step 4 — New Probe Installation: Install the replacement 330708-00-10-90-02-00. Set the air gap per the OEM specification using a feeler gauge or the bias voltage method. Torque the locknut to the specified value to prevent vibration-induced loosening.

Step 5 — Signal Verification: Reconnect the extension cable and proximitor. Power up the channel and verify bias voltage is within the linear range. Confirm the monitor rack displays a valid, stable reading with no fault or danger alarms.

Step 6 — System Return to Service: Remove bypass/inhibit, restore normal monitoring, and document the replacement in the site maintenance management system (CMMS). Update the spare parts inventory record accordingly.

This workflow is compatible with direct replacement of legacy 330700-series probes in existing 3300 XL installations, eliminating the need for bracket modifications or cable rerouting in most standard configurations.

Spare Parts Support FAQ

Q1: Is the 330708-00-10-90-02-00 a direct replacement for older 330700-series probes in existing 3300 XL racks?
In most standard installations, yes. The 330708 series maintains dimensional and electrical compatibility with the 330700 series mounting configurations. However, always verify the gap voltage and sensitivity settings in the monitor configuration match the replacement probe’s specification sheet before returning the channel to service.

Q2: What does the 12-month warranty cover, and how is it validated?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested prior to dispatch. Warranty claims are supported by the shipment documentation and test record provided with the order.

Q3: Can NINERMAS support long-term or blanket purchase orders for 330708-00-10-90-02-00 to cover multi-site maintenance programs?
Yes. NINERMAS operates a spare parts commitment program that allows customers to reserve stock under fixed pricing agreements for 12–24 month periods. This is particularly suited to operators managing multiple rotating machinery trains across several plant sites who require supply certainty for critical instrumentation spares.

Q4: How do I confirm compatibility before ordering if my installation uses a non-standard cable or bracket configuration?
Contact NINERMAS with your full part number suffix breakdown and installation drawing reference. Our technical team will confirm compatibility and, where necessary, identify the correct variant or adapter to ensure a drop-in replacement without system modification.
