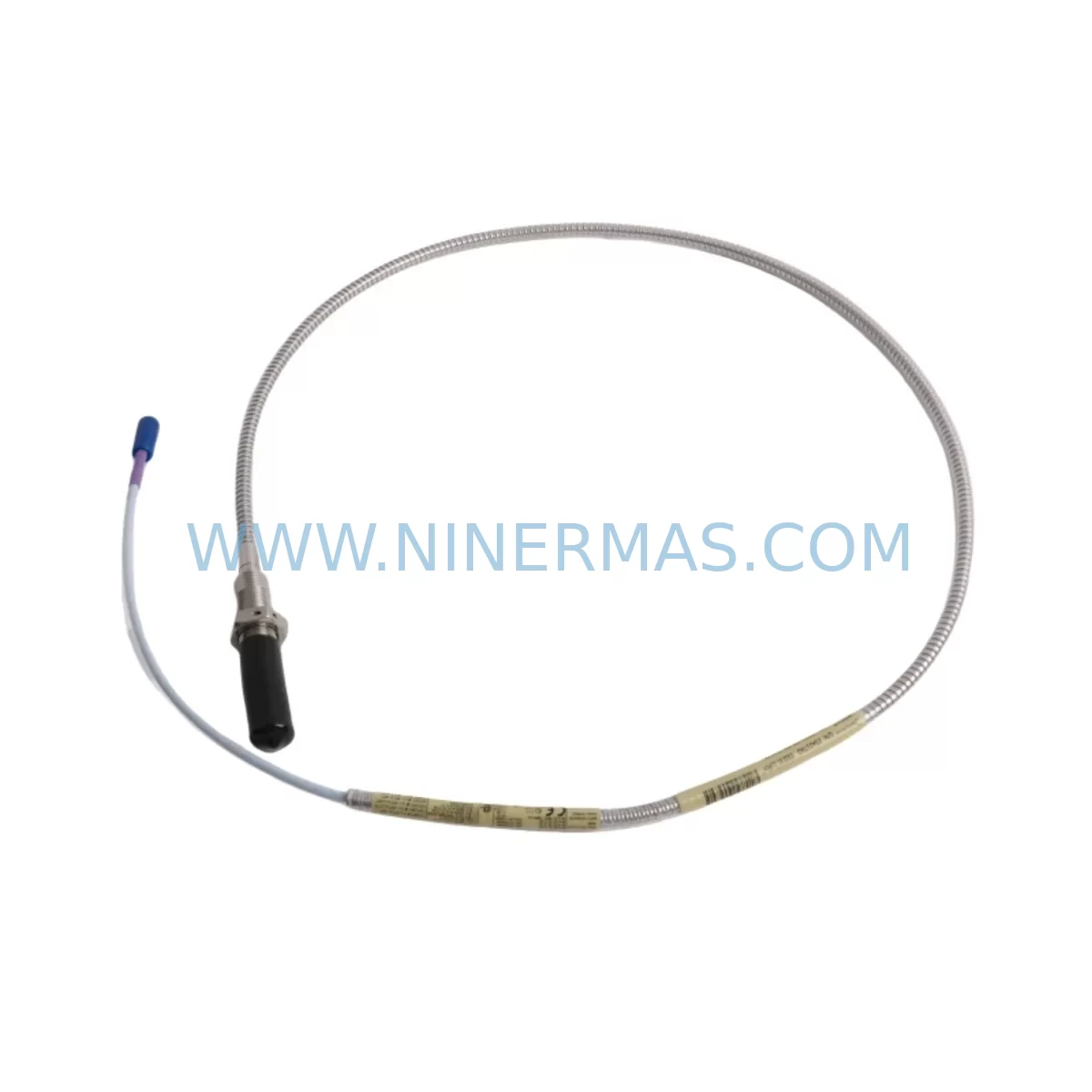

Bently Nevada 330704-000-100-10-02-00 Industrial Spare Part

Bently Nevada 330704-000-100-10-02-00 Industrial Spare Part: Spare Replacement & Downtime Risk Control

The Bently Nevada 330704-000-100-10-02-00 is a precision-engineered component within the 3300 XL 8mm Proximity System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection across oil & gas, power generation, petrochemical, and heavy manufacturing industries. When this component fails or degrades, the consequences extend far beyond a single sensor: the entire machinery protection loop is compromised, placing turbines, compressors, pumps, and critical rotating assets at risk of undetected mechanical failure.

At NINERMAS, every 330704-000-100-10-02-00 unit is sourced as an original Bently Nevada spare part, pre-shipment tested, and dispatched with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times when a machine is down or a scheduled outage window is closing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330704-000-100-10-02-00 in isolation is rarely sufficient for a complete and reliable repair. Maintenance engineers working on the 3300 XL Proximity System should treat this replacement as an opportunity to audit the full measurement chain and associated control cabinet components.

Begin with the 3300 XL proximitor/driver module — typically a 330180 or 330130 series driver — which conditions the raw proximity signal before it reaches the monitor. A worn or contaminated transducer cable can mask driver degradation; replacing the transducer without verifying driver output voltage and gap voltage calibration leaves a latent fault in the loop. Similarly, the 3300/16 or 3300/20 series vibration monitor should be checked for alarm setpoint integrity and channel health.

Within the control cabinet, inspect the terminal blocks and field wiring connecting the proximitor to the monitor. Corroded or loose terminations are a leading cause of intermittent signal faults that are frequently misdiagnosed as transducer failure. If the system uses a 3300 XL junction box or field barrier, verify that the barrier’s impedance characteristics remain within specification — degraded barriers introduce signal offset errors that corrupt vibration readings.

For facilities running System 1 Evolution or legacy System 1 condition monitoring software, confirm that the replacement transducer’s gap voltage and sensitivity values are correctly entered in the software configuration. Mismatched sensitivity coefficients will produce erroneous vibration amplitude readings even with a fully functional new transducer.

Procurement engineers building annual spare parts budgets should consider stocking the 330130-080-00-05 proximitor, a compatible 330030 series extension cable, and at minimum one spare 3300/16 monitor card alongside the 330704-000-100-10-02-00 transducer. For facilities with multiple identical machines, a ratio of one spare transducer assembly per three installed units is a widely accepted inventory benchmark in rotating machinery maintenance programs. Additionally, 3300 XL power supply modules and I/O interface cards used in the monitor rack should be included in the annual spare parts review, as power-related faults are a common root cause of false trips and nuisance alarms in proximity monitoring systems.

Site Replacement Workflow

The 330704-000-100-10-02-00 is designed as a direct drop-in replacement for existing 330704-series transducer assemblies within the 3300 XL 8mm Proximity System. No system reconfiguration, firmware update, or monitor recalibration is required when replacing a like-for-like unit — a critical advantage during emergency shutdowns where minimizing time-to-restart is the primary objective.

Before installation, verify the gap voltage specification for your specific machine train. The standard 8mm proximity system operates with a nominal gap voltage of −10.0 VDC at the calibrated gap distance; confirm this against your machine’s original commissioning records or the monitor’s current gap voltage display. Install the replacement transducer, route the extension cable to avoid mechanical contact with rotating components, and reconnect at the junction box or proximitor input. After powering up, allow the system a minimum of 15 minutes to thermally stabilize before recording final gap voltage and vibration baseline readings.

For facilities transitioning away from end-of-life 3300 series hardware, the 330704-000-100-10-02-00 also serves as a bridge component — maintaining measurement continuity while a phased migration to newer Bently Nevada platform hardware is planned. This approach eliminates the risk of a forced, unplanned cutover and allows engineering teams to validate the new system in parallel before decommissioning legacy hardware.

Spare Parts Support FAQ

Q1: Is the 330704-000-100-10-02-00 compatible with all 3300 XL 8mm Proximity System configurations?
The 330704-000-100-10-02-00 is compatible with standard 3300 XL 8mm proximity system installations using 330130 or 330180 series proximitor/driver modules. Compatibility with non-standard cable lengths, custom barrier configurations, or third-party monitor interfaces should be verified against your system’s original engineering documentation before installation.

Q2: What is included in the 12-month warranty, and what does pre-shipment testing cover?
Every unit shipped by NINERMAS undergoes functional and electrical verification prior to dispatch, including output signal integrity and connector condition checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified environmental limits.

Q3: How should we manage long-term supply risk for the 330704-000-100-10-02-00?
Given the extended lifecycle of 3300 XL systems in many facilities, procurement teams should treat the 330704-000-100-10-02-00 as a strategic spare. NINERMAS maintains ongoing inventory and can support blanket purchase orders or scheduled delivery programs for facilities with multiple installed units. Contact our team to discuss long-term supply agreements that align with your annual maintenance budget cycles.

Q4: Can this part be used to extend the life of an aging 3300 XL system that is no longer under OEM support?
Yes. The 330704-000-100-10-02-00 is fully compatible with installed 3300 XL systems regardless of OEM support status. Many facilities continue to operate 3300 XL hardware reliably for years beyond the original OEM support window by maintaining an adequate spare parts inventory. NINERMAS specializes in supporting these extended-life scenarios with original spare parts, technical guidance, and reliable supply continuity.
