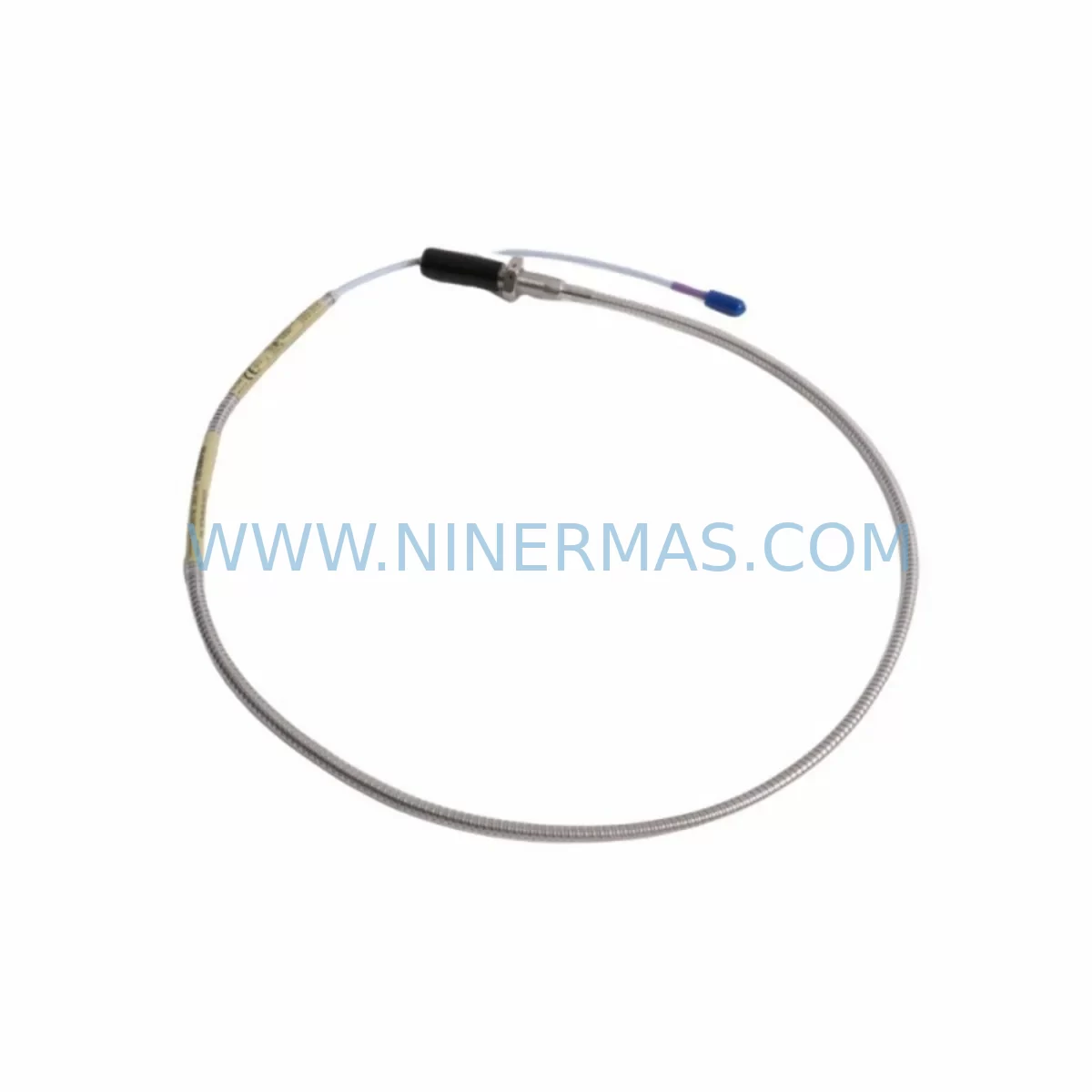

Bently Nevada 330704-000-100-10-01-05 Retrofit 3300 XL

Bently Nevada 330704-000-100-10-01-05 Retrofit-Compatible Vibration Monitor for Legacy 3300 XL Systems

The Bently Nevada 330704-000-100-10-01-05 is a proximity signal conditioner module designed for the 3300 XL Series machinery protection system. As original equipment reaches end-of-life and spare parts become increasingly scarce, this module serves as a critical retrofit solution for facilities operating legacy rotating machinery monitoring infrastructure. Whether you are replacing a failed unit in an existing rack or undertaking a broader control system modernization, the 330704-000-100-10-01-05 provides a verified, tested path to restoring full vibration monitoring capability with minimal disruption to your production environment.

This module is engineered to interface directly with the 3300 XL rack architecture, accepting signals from standard eddy-current proximity probes and extension cables. Before installation, engineers should confirm the existing probe gap voltage, driver output range, and signal conditioning chain to ensure compatibility with the replacement module’s input specifications. The 330704-000-100-10-01-05 accepts the standard -24 VDC power supply common to the 3300 XL system, and terminal wiring follows the original Bently Nevada field wiring convention, reducing re-termination risk during hot-swap or planned outage windows.

In retrofit planning, it is essential to verify the backplane slot assignment and module address configuration before powering the replacement unit. The 3300 XL system uses a rack-based addressing scheme, and incorrect slot placement can result in communication faults with the system monitor or data manager. Technicians should document the existing module address settings from the System 1 software or the local keypad interface before removal, and replicate those settings on the replacement 330704-000-100-10-01-05 prior to insertion.

Program logic compatibility is another key consideration. If the facility uses a DCS or PLC — such as a Rockwell Automation ControlLogix or a Honeywell Experion system — to receive OK relay outputs or 4–20 mA transducer signals from the 3300 XL rack, the signal mapping and alarm setpoints stored in the host controller must be reviewed. In many cases, the replacement module will restore the original signal chain without requiring PLC program changes, but this should be verified during the pre-commissioning phase. HMI screens that display vibration trend data, gap voltage, or alarm status should also be checked to confirm that tag assignments remain valid after the module swap.

For facilities migrating from older 3300 Series hardware to the 3300 XL platform, the 330704-000-100-10-01-05 is frequently used alongside other 3300 XL components including the 3300/20 Rack Monitor, 3300/55 Dual Voting Logic module, 3300/46 Tachometer module, and 3300/16D-05 Dual Proximitor monitor. These modules share the same rack power bus and communication backplane, and their simultaneous availability is important when planning a phased rack rebuild or a full system restoration after an unplanned failure event.

Communication link integrity between the 3300 XL rack and the System 1 condition monitoring software should be validated after module replacement. The RS-232 or Ethernet gateway connection — often routed through a 3500/92 or 3500/93 communication gateway in mixed-generation installations — must be confirmed as active and polling the correct rack address. In plants where the 3300 XL coexists with newer Bently Nevada 3500 Series racks, the network topology and gateway configuration may require adjustment to accommodate the restored module.

Physical installation space should be confirmed before ordering. The 330704-000-100-10-01-05 occupies a single slot in the 3300 XL rack and requires standard clearance for field wiring access on the front terminal block. In congested control cabinets, technicians should verify that adjacent modules — such as power supply modules or I/O interface cards — do not obstruct insertion or terminal access. Cable management and strain relief for the proximity probe cables should also be inspected and renewed if the existing installation shows signs of wear or insulation degradation.

Downtime control is a primary concern in any rotating machinery protection system retrofit. The 330704-000-100-10-01-05 is supplied from tested, verified stock with full functional testing completed prior to shipment. This allows maintenance teams to execute a direct swap during a planned outage window, bypassing the extended lead times associated with new OEM procurement. Having a pre-tested replacement module on the shelf — alongside compatible spare components such as proximity probes, extension cables, and power supply modules — is the most effective strategy for minimizing mean time to repair in the event of an unplanned module failure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330704-000-100-10-01-05 into an existing 3300 XL installation begins with a thorough audit of the current rack configuration. Technicians should record the slot positions of all installed modules — including the 3300/20 Rack Monitor, any 3300/46 Tachometer modules, and 3300/55 Dual Voting Logic modules — and cross-reference these against the original system documentation. Power budget calculations for the rack power supply module should be reviewed to confirm that the replacement module does not exceed available capacity, particularly in fully populated racks.

Terminal block wiring should be photographed and documented before disconnection. The proximity probe signal pair, power supply conductors, and OK relay output wiring must be re-terminated to the replacement module’s terminal block in the correct sequence. In installations where the field wiring includes shielded twisted-pair cables routed through conduit or cable trays, shield grounding practice should be maintained consistently to avoid introducing noise into the vibration signal chain.

Where the 3300 XL rack interfaces with a broader plant automation network — for example, providing vibration alarm outputs to a Rockwell Automation ControlLogix PLC via hardwired relay contacts, or transmitting 4–20 mA signals to a Honeywell Experion DCS analog input card — the interface wiring and signal scaling should be verified as part of the commissioning checklist. Signal isolators installed between the 3300 XL output and the DCS input should also be inspected and tested to confirm correct operation after the module replacement.

For plants that use a programming cable or laptop-based configuration tool to set alarm thresholds and OK relay logic on the 3300 XL modules, the configuration file from the original module should be retrieved from the System 1 database or from a local backup before the swap. This configuration data — including vibration alarm setpoints, danger levels, and time delay settings — should be loaded into the replacement 330704-000-100-10-01-05 and verified against the original values before the system is returned to service.

Downtime Control During System Migration

Minimizing downtime during a 3300 XL module replacement requires advance preparation and a structured execution plan. The most effective approach is to stage the replacement module — pre-configured with the correct address settings and alarm parameters — alongside all required tools and spare consumables before the planned outage window begins. This eliminates the risk of discovering configuration or compatibility issues after the machine has been taken offline.

Where the process permits, a bypass or inhibit function available in the 3300 XL system can be used to suppress alarms on the affected channel during the swap, preventing nuisance trips to the host control system. The inhibit status should be clearly communicated to the control room and documented in the work permit. Once the replacement 330704-000-100-10-01-05 is installed and powered, the probe gap voltage should be measured and confirmed within the acceptable range before the inhibit is removed and the channel is returned to normal monitoring service.

For facilities where the 3300 XL rack is integrated with a System 1 condition monitoring workstation, the software should be monitored in real time during the commissioning phase to confirm that the replacement module is communicating correctly and that vibration trend data is being logged without gaps. Any communication faults or data quality alarms should be resolved before the machine is returned to full load operation. Maintaining a pre-tested spare 330704-000-100-10-01-05 in local inventory — along with compatible proximity probes and extension cables — is the most reliable strategy for achieving rapid recovery from future unplanned failures.

Retrofit Support FAQ

Q: Is the 330704-000-100-10-01-05 a direct drop-in replacement for the original module in my 3300 XL rack?
A: Yes. The 330704-000-100-10-01-05 is designed to fit the standard 3300 XL single-slot rack position and uses the same terminal wiring convention as the original module. Module address settings should be verified and matched to the original configuration before installation to ensure correct system communication.

Q: What testing is performed before shipment?
A: Each 330704-000-100-10-01-05 unit is functionally tested prior to shipment to verify power supply acceptance, signal conditioning performance, and output integrity. A test report is available upon request. All units are supplied with a 12-month warranty covering defects in materials and workmanship.

Q: Do I need to update my PLC program or HMI configuration after replacing this module?
A: In most cases, no program changes are required if the replacement module is configured with the same address and alarm settings as the original. However, it is recommended to verify that all hardwired relay outputs, 4–20 mA signals, and communication links are functioning correctly during the commissioning phase before returning the machine to service.

Q: What is the typical lead time and do you maintain stock?
A: We maintain verified stock of the 330704-000-100-10-01-05 and can typically ship within 1–3 business days of order confirmation. For urgent requirements, please contact our team directly to confirm current availability and expedited shipping options.
