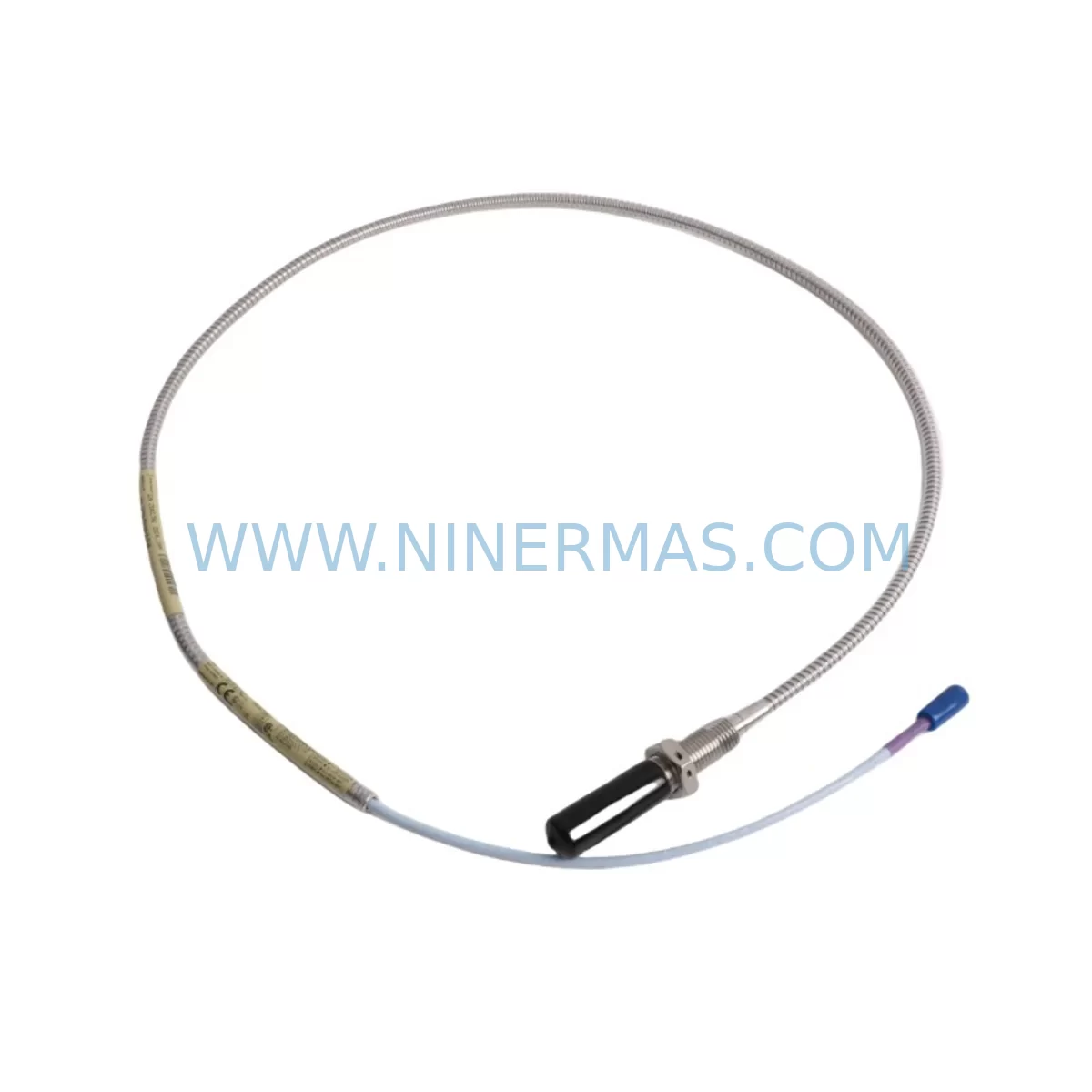

Bently Nevada 330704-000-080-10-02-CN Retrofit Proximity Probe

Bently Nevada 330704-000-080-10-02-CN Retrofit Proximity Probe for Legacy Systems

The Bently Nevada 330704-000-080-10-02-CN is a proximity probe module designed for the 3300 XL Series vibration monitoring platform. As original equipment reaches end-of-life and spare parts become increasingly scarce, this unit serves as a direct retrofit-compatible replacement for aging installations across oil & gas, power generation, petrochemical, and heavy industrial facilities. Whether you are restoring a failed monitoring channel, upgrading a legacy control cabinet, or extending the service life of an existing 3300 XL rack, the 330704-000-080-10-02-CN delivers the signal integrity and mechanical compatibility required for seamless integration without reprogramming the host system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330704-000-080-10-02-CN begins well before the unit arrives on site. Engineers should first audit the existing 3300 XL rack configuration, confirming which slots are occupied by proximitor modules such as the 3300/16 Proximitor Monitor or the 3300/20 Proximitor Monitor, and verifying that the backplane power supply — typically a 3300/15 Power Supply — can sustain the additional load if multiple channels are being restored simultaneously.

Terminal wiring is a critical checkpoint. The coaxial cable from the probe tip routes through an extension cable (commonly the 330130-080-00-00 or equivalent 8-metre extension) to the proximitor input. Technicians must inspect the coaxial connector for corrosion, confirm shield continuity, and verify that the cable jacket has not been compromised by heat or mechanical abrasion in the conduit run. Any degradation in the extension cable will directly affect gap voltage stability and vibration amplitude accuracy.

For facilities that are simultaneously migrating from the 3300 XL platform to the newer Bently Nevada 3500 Series, the 330704-000-080-10-02-CN can serve as a bridging spare — keeping the legacy rack operational while the 3500/42M Proximitor Monitor and associated 3500/22M Transient Data Interface are being commissioned in parallel. This parallel-run strategy allows the control room HMI — often a System 1 Evolution condition monitoring workstation — to continue receiving live vibration data without a monitoring gap during the cutover window.

I/O mapping should be reviewed in the DCS or safety system. If the proximity channel feeds a Triconex Safety Instrumented System or a Rockwell Automation ControlLogix rack via a 4–20 mA hardwired input, the engineering team must confirm that the new probe’s output scaling matches the existing loop calibration. Signal isolators — such as a Phoenix Contact MACX MCR signal conditioner — may be inserted in the loop if ground loop interference is detected during commissioning. Programming changes in the host PLC or DCS are generally not required when the replacement probe is a like-for-like swap, but alarm setpoints and danger thresholds should be re-verified against the original machinery protection study.

Installation space inside the control cabinet or junction box must be confirmed before ordering. The 330704-000-080-10-02-CN probe body requires a clear axial approach path to the target shaft, with the mounting bracket providing rigid support to prevent probe tip vibration. If the original bracket has corroded or deformed, a replacement stainless steel bracket should be sourced concurrently. All units supplied by NINERMAS are pre-tested for gap voltage output and signal linearity prior to shipment, reducing on-site commissioning time and minimising the risk of a second outage.

Downtime Control During System Migration

Minimising unplanned downtime is the primary concern when replacing a proximity probe on a running machine train. The recommended approach is to schedule the swap during a planned maintenance window, coordinating with the operations team to confirm that the monitored shaft — typically a compressor, turbine, or pump — can be safely brought offline for the duration of the probe replacement and gap voltage calibration.

Before de-energising the 3300 XL rack, the technician should export the current System 1 or rack configuration file to preserve all channel scaling, alarm setpoints, and OK relay logic. This configuration backup ensures that if the replacement proximitor module requires re-initialisation, the original parameters can be restored in minutes rather than hours. The HMI trend displays should be screenshotted or logged to provide a baseline for post-commissioning comparison.

During the physical swap, the extension cable should remain connected to the proximitor while the probe tip is removed from the mounting bracket. This allows the proximitor to remain powered and the OK relay to be monitored — if the relay drops during probe removal, the control room will receive a not-OK alarm, which is expected and should be communicated to the board operator in advance to prevent a spurious shutdown. Once the new 330704-000-080-10-02-CN is installed and the gap set to the nominal –12 VDC (approximately 1.27 mm for an 8 mm probe), the OK relay should re-energise within seconds.

Post-installation, a 30-minute observation period at normal operating speed is recommended to confirm that vibration amplitude readings are stable, that the gap voltage is within the linear range, and that no electromagnetic interference is affecting the signal. All findings should be documented in the site maintenance record to support future audits and warranty claims.

Retrofit Support FAQ

Q1: Is the 330704-000-080-10-02-CN a direct replacement for other 330704 series probes?
A: The 330704 family shares the same 8 mm eddy-current sensing technology and M10 x 1 mounting thread. The suffix codes indicate cable length, connector type, and temperature rating. The -080-10-02-CN variant is an 8-metre, standard-temperature probe with a CN-suffix connector configuration. Before substituting a different suffix, confirm that the extension cable, proximitor input impedance, and gap voltage range are compatible with your specific installation.

Q2: What commissioning steps are required after installation?
A: Set the probe gap to achieve a DC output of –10 to –18 VDC (nominally –12 VDC at 1.27 mm). Verify the proximitor supply voltage is within specification (typically –24 VDC). Confirm the OK relay energises and that the vibration channel reads a stable baseline. Check the System 1 or rack display for any channel fault flags. Document the as-left gap voltage in the maintenance record.

Q3: Does NINERMAS test units before shipment?
A: Yes. Every 330704-000-080-10-02-CN unit is functionally tested for gap voltage output, signal linearity, and connector integrity before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with physical protection for the probe tip and coaxial connector.

Q4: What warranty and supply lead time should I expect?
A: All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. NINERMAS maintains stock of the 330704-000-080-10-02-CN and common companion components. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact our team for urgent requirements or volume pricing.
