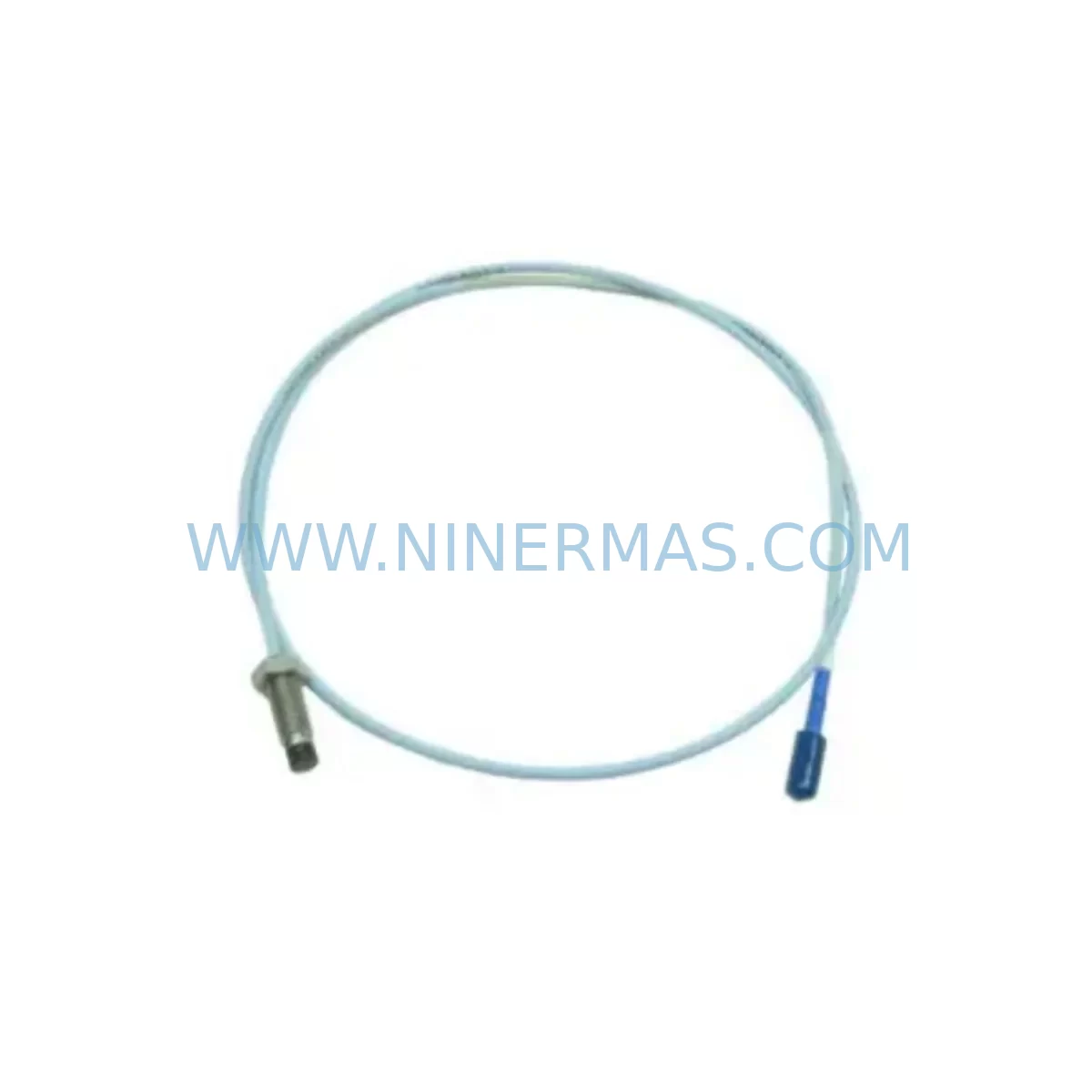

Bently Nevada 330704-000-080-10-01-00 Safety-Reliable Probe

Bently Nevada 330704-000-080-10-01-00 Safety-Reliable Probe for Critical Industrial Control Sites

The Bently Nevada 330704-000-080-10-01-00 is a high-precision proximity probe engineered for the 3300 XL Proximity Probe System — one of the most trusted machine protection platforms deployed across global heavy industry. Designed to deliver continuous, non-contact vibration and position measurement, this probe is a cornerstone component in safety-critical rotating machinery monitoring systems where control interruption, signal drift, or measurement failure carries unacceptable operational and safety consequences.

In continuous production environments — including petrochemical plants, power generation facilities, steel mills, and offshore platforms — the integrity of shaft vibration monitoring directly determines whether a machine trips safely or fails catastrophically. The 330704-000-080-10-01-00 is built to maintain measurement accuracy under high electromagnetic interference (EMI), mechanical vibration, thermal cycling, and exposure to process fluids, dust, and humidity. Its robust construction and validated signal chain make it a preferred replacement and upgrade solution for aging 3300 XL installations where original components are approaching end-of-life.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 330704-000-080-10-01-00 as part of a complete machine protection architecture significantly reduces the risk of unplanned shutdowns and safety interlock failures. In a properly configured 3300 XL system, this probe works in conjunction with the 330180-91-00 Proximitor Sensor, which conditions the eddy-current signal and delivers a calibrated DC voltage output to the monitoring rack. Signal integrity between the probe and Proximitor is maintained through the 330130-080-00-00 Extension Cable, which provides the correct impedance match and shielding continuity across the full measurement chain.

At the rack level, the conditioned signal feeds into the 3500/42M Proximitor/Seismic Monitor, a dual-channel module that performs real-time vibration and position alarming with configurable danger and alert setpoints. The 3500/22M Transient Data Interface captures high-resolution waveform data during transient events such as machine startups and coastdowns — critical for diagnosing rotor instability before it escalates to a trip condition. Relay outputs from the 3500/32 4-Channel Relay Module drive safety interlock circuits, ensuring that a confirmed danger condition results in a controlled machine shutdown rather than an uncontrolled failure.

Power supply stability is equally critical in high-reliability control cabinets. The 3500/15 Power Supply Module provides redundant, regulated DC power to the monitoring rack, eliminating the risk of measurement dropout caused by power line transients or voltage sags. For phase reference and speed monitoring — essential for vector-based vibration analysis — the 3500/25 Key Phasor Module integrates directly with the 3300 XL measurement chain, enabling once-per-revolution synchronization across all monitored channels.

In installations where the probe-to-Proximitor cable run exceeds standard lengths, the 330878-50-00 Interconnect Cable provides a verified, system-qualified extension that preserves sensitivity calibration without introducing signal attenuation or ground loop interference. For sites requiring a complete probe replacement at the measurement point, the 330103-00-05-10-02-00 8mm Proximity Probe and the 330701-00-00 Proximitor Sensor are compatible companion components that maintain full system traceability and calibration integrity.

Together, these components form a layered machine protection strategy that addresses the full signal chain — from the rotating shaft surface to the safety relay output — minimizing the probability of both false trips and missed danger conditions in critical rotating machinery applications.

Critical Industrial Safety Applications

The Bently Nevada 330704-000-080-10-01-00 proximity probe is deployed across a wide range of safety-critical industrial environments where continuous rotating machinery monitoring is mandated by process safety management (PSM) programs, API 670 compliance requirements, or site-specific machinery protection standards.

In petrochemical and refinery facilities, this probe monitors compressor and pump shaft vibration in hydrogen service, high-pressure ethylene loops, and catalytic cracker wet gas compressors — applications where a bearing failure without early warning can result in fire, explosion, or toxic release. In power generation plants — both gas turbine and steam turbine installations — the 330704-000-080-10-01-00 provides the radial vibration signal that feeds turbine protection systems, enabling safe load rejection and controlled shutdown before rotor damage occurs.

In mining and mineral processing operations, the probe is used on large ball mill drives, SAG mill pinion bearings, and slurry pump shafts operating in high-dust, high-vibration environments where conventional contact sensors fail prematurely. Water and wastewater treatment facilities rely on this probe for continuous monitoring of large vertical turbine pumps and blower trains, where undetected bearing wear leads to catastrophic shaft failures and extended service outages.

In metallurgical and steel production environments — including rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains — the probe’s resistance to high ambient temperatures and electromagnetic interference from large motor drives makes it the preferred measurement solution. Port and marine applications, including crane hoist drives and ship propulsion shaft monitoring systems, also benefit from the probe’s sealed construction and resistance to salt-laden, humid atmospheres.

Across all these applications, the 330704-000-080-10-01-00 delivers the measurement reliability that safety interlock systems depend on — ensuring that protection logic acts on accurate, stable signals rather than noise-corrupted or drifted measurements.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 330704-000-080-10-01-00?
Every unit supplied by Ninermas carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement dispatch and full technical documentation. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on this proximity probe?
Prior to dispatch, each 330704-000-080-10-01-00 unit undergoes a full functional verification procedure including sensitivity calibration check (target: 7.87 V/mm ± tolerance), coaxial connector integrity inspection, cable continuity and insulation resistance test, and visual inspection for mechanical damage. A test record is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL Proximitor sensors and 3500 series monitoring racks?
Yes. The 330704-000-080-10-01-00 is designed as a direct replacement and upgrade solution for the Bently Nevada 3300 XL system. It is fully compatible with 330180-series Proximitor sensors and integrates with 3500 series monitoring modules including the 3500/42M and 3500/22M without requiring recalibration of the monitoring rack, provided the target material and gap setting are correctly established during installation.

Q4: Can Ninermas support long-term supply and repeat procurement for this SKU?
Ninermas maintains reserved inventory agreements for critical end-of-life and long-lead Bently Nevada components, including the 330704-000-080-10-01-00. For maintenance engineering teams and procurement departments requiring scheduled supply across multiple shutdown cycles, we support blanket order arrangements with confirmed lead times and stock reservation. Contact our team to discuss long-term supply planning for your site’s machine protection inventory.
