Bently Nevada 330704-000-070-10-01-CN Service-Ready Spare Part

Bently Nevada 330704-000-070-10-01-CN Service-Ready Spare Part for Industrial Maintenance

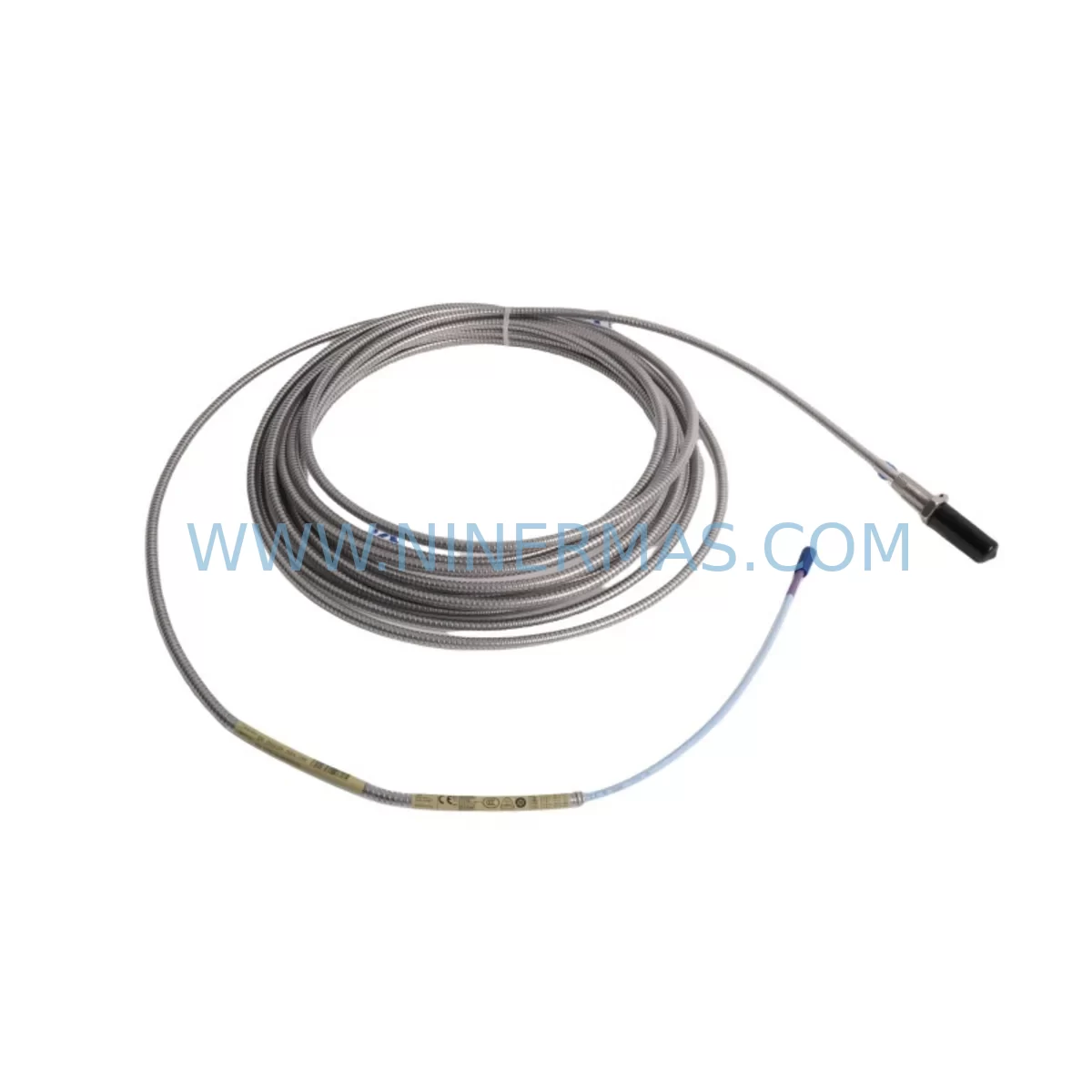

The Bently Nevada 330704-000-070-10-01-CN is an original proximity transducer designed for use within the Bently Nevada 3300 XL continuous vibration monitoring system. As a critical sensing element in rotating machinery protection, this transducer measures radial shaft vibration, axial position, and differential expansion in turbines, compressors, pumps, and other high-value rotating assets. When this component fails or degrades, the consequences extend far beyond a single sensor — unplanned downtime, loss of machinery protection, and potential catastrophic equipment damage are all on the table. Sourcing a verified, service-ready replacement is not optional; it is a core element of any responsible maintenance strategy.

At NINERMAS, every 330704-000-070-10-01-CN unit is sourced from authorized supply channels, inspected prior to dispatch, and covered by a 12-month warranty. We support maintenance engineers and procurement teams across power generation, oil & gas, petrochemical, and heavy manufacturing sectors who need fast, reliable access to original Bently Nevada spare parts without the lead times associated with OEM direct procurement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330704-000-070-10-01-CN transducer in the field is rarely an isolated task. The 3300 XL proximity system is an integrated measurement chain, and a fault in any one element — probe, extension cable, driver, or monitor card — can produce identical symptoms: loss of signal, false trip, or degraded measurement accuracy. A disciplined maintenance engineer will treat a transducer replacement as an opportunity to audit the entire measurement loop.

Begin by inspecting the Bently Nevada 330130 extension cable that connects the probe to the driver. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown, particularly in high-temperature or high-vibration environments. A worn extension cable will compromise the performance of even a brand-new transducer. Similarly, the 330180 proximitor / driver module should be verified for correct bias voltage output (typically –18 to –24 VDC at the driver output) before the new probe is commissioned.

Within the control cabinet, check the 3300 XL monitor card (such as the 3300/16 or 3300/20 dual-channel monitor) for alarm setpoint integrity and channel configuration. If the monitor card has been in service for more than five years without recalibration, this replacement event is an appropriate trigger for a scheduled calibration check. Inspect the 3300 XL rack power supply — typically a 3300/05 or equivalent — for output voltage stability, as power supply ripple is a known source of measurement noise in eddy-current systems.

For sites running parallel protection architectures, verify that the 3500 Series barrier or I/O module (if used as an interface between the 3300 XL field device and a DCS or safety system) is correctly configured for the new transducer’s output range. Signal isolators and Zener barriers in intrinsically safe installations should also be inspected for continuity and correct entity parameters. Terminal blocks and field wiring within the junction box should be checked for tightness and corrosion — loose connections at the BNC or 10-32 coaxial connector are a common source of intermittent faults that are misdiagnosed as transducer failure.

If the machinery protection system interfaces with a DCS historian or condition monitoring platform (such as System 1 or a third-party SCADA), confirm that the channel tag, engineering unit scaling, and alarm thresholds are correctly restored after the replacement. For sites with HMI panels displaying real-time vibration trends, verify that the new transducer’s gap voltage is within the linear range and that the HMI display reflects the correct baseline after installation.

Procurement engineers should note that the 330704 family includes multiple cable-length and connector variants. Confirm the exact suffix (cable length, connector style, and temperature rating) before ordering to avoid installation delays. NINERMAS maintains stock across the most common 330704 variants and can advise on cross-reference compatibility with legacy 330500 or 330900 series probes for older installations where the original part number is no longer available.

Site Replacement Workflow

When the 330704-000-070-10-01-CN is identified as the failed or degraded component, follow a structured replacement workflow to minimize downtime and ensure system integrity is restored correctly.

Step 1 — Isolation and Documentation: Isolate the affected channel at the monitor card. Record the existing gap voltage, vibration baseline, and alarm setpoints before disconnecting the probe. This data is essential for post-installation verification.

Step 2 — Physical Removal: Disconnect the extension cable from the probe. Remove the probe from the bearing housing, noting the installed gap (number of turns from contact). Clean the probe tip and target area. Inspect the target surface for scoring or runout that may have contributed to the transducer failure.

Step 3 — Installation of Replacement Unit: Install the new 330704-000-070-10-01-CN to the same gap as the removed unit (or per the OEM gap specification for the target material and probe series). Reconnect the extension cable and verify connector seating. Apply thread-locking compound per site standards.

Step 4 — Commissioning and Verification: With the channel active, measure the gap voltage at the driver output. Confirm the reading falls within the linear range (typically –10 to –18 VDC for a correctly gapped 3300 XL probe). Compare the vibration baseline to the pre-removal record. Restore alarm setpoints and confirm the channel is active in the monitor.

Step 5 — Documentation and Spare Stock Update: Update the maintenance management system (CMMS) with the replacement record. Replenish the consumed spare to maintain minimum stock levels. For critical machinery, NINERMAS recommends holding a minimum of one replacement transducer, one extension cable, and one driver module per critical measurement point.

Spare Parts Support FAQ

Q1: Is the 330704-000-070-10-01-CN covered by a warranty?
Yes. Every unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. Each unit undergoes functional inspection and output verification before dispatch. If a unit fails within the warranty period under normal operating conditions, NINERMAS will provide a replacement or full refund.

Q2: Can this transducer replace older Bently Nevada probe models?
The 330704 series is the current-generation replacement for several legacy Bently Nevada proximity probes, including selected 330500 and 330900 series variants. Compatibility depends on the target material, gap range, and driver/extension cable in use. Contact NINERMAS with your existing part number and system configuration for a confirmed cross-reference before ordering.

Q3: What is the typical lead time and how is the unit tested before shipment?
In-stock units ship within 2–5 business days. Each unit is inspected for physical condition and verified for correct output characteristics prior to packaging. Export documentation, including packing lists and certificates of conformance, is provided upon request for customs and quality records.

Q4: How should we manage long-term spare parts inventory for the 3300 XL system?
For critical rotating machinery, we recommend a min/max inventory strategy: maintain at least one probe, one extension cable, and one driver module per critical measurement loop. Given that Bently Nevada 3300 XL components are mature-generation products, sourcing lead times from OEM channels can be extended. NINERMAS provides long-term supply support for 3300 XL spare parts, including low-volume repeat orders and reserved stock arrangements for high-consumption sites.
