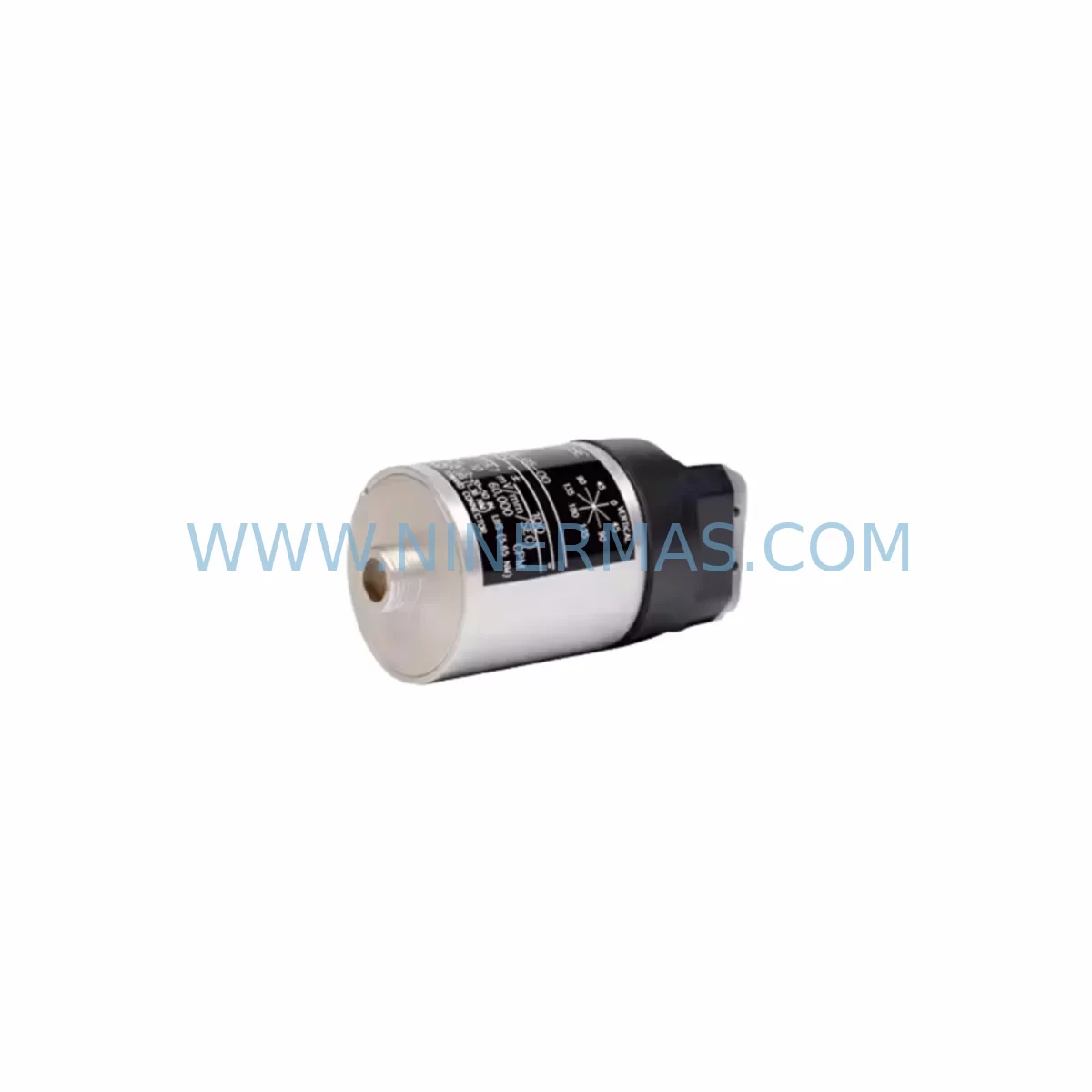

The Bently Nevada 330703-020-110-10-01-05 is a critical spare part within the 3300 XL Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. When this module fails or degrades, the consequences extend beyond a single measurement channel: the entire protection loop for a turbine, compressor, or pump train may be compromised, triggering unplanned shutdowns or, worse, undetected mechanical faults that escalate into catastrophic equipment damage.

At NINERMAS, we stock the 330703-020-110-10-01-05 as a service-ready, pre-shipment tested spare to support maintenance engineers and procurement teams who cannot afford extended lead times on critical protection hardware. Every unit is functionally verified before dispatch and backed by a 12-month warranty, giving your maintenance team the confidence to execute rapid replacements without compromising system integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330703-020-110-10-01-05 in a live 3300 XL system is rarely an isolated task. Experienced maintenance engineers understand that a module swap is an opportunity to audit the entire protection loop and adjacent components for latent degradation — preventing the next unplanned outage before it occurs.

During a scheduled replacement or emergency intervention, the following components and subsystems should be inspected or replaced concurrently:

• 3300 XL Rack Power Supply Module — Verify output voltage stability (±24 VDC rails). A degraded power supply is a common root cause of intermittent monitor faults that are misdiagnosed as module failures. The Bently Nevada 3300/20 power supply module is the standard companion unit in most rack configurations.
• 3300 XL System Backplane — Inspect connector pins and bus integrity. Backplane corrosion or mechanical stress from repeated module insertions can cause intermittent signal loss that mimics module failure.
• Proximitor Sensor (3300 XL Series) — The Bently Nevada 330180 or 330101 proximity probe and driver assemblies should be checked for gap voltage, cable continuity, and tip condition. A worn probe delivering a degraded signal will cause the replacement monitor module to report false alarms immediately after installation.
• Extension Cable Assembly — Inspect the armored extension cable between the probe and Proximitor for insulation damage, connector corrosion, and shield continuity. Cable faults are frequently overlooked during module replacements and result in repeat failures.
• I/O Terminal Blocks and Field Wiring — Verify torque on all terminal connections feeding the monitor module. Loose field wiring is a leading cause of signal noise and spurious trips in vibration protection systems.
• Relay Output Module — If the 330703-020-110-10-01-05 drives relay outputs for trip or alarm functions, inspect the associated relay module (e.g., Bently Nevada 3300/16 relay output module) for contact wear and coil integrity.
• Communication Gateway / TDI Module — For systems integrated with DCS or historian platforms via the Bently Nevada 3500/92 or similar communication interface, verify that the gateway is correctly receiving data from the replaced module after restart.
• System 1 Software Configuration Backup — Before any module swap, export the current rack configuration from Bently Nevada System 1 software. Confirm that the replacement module’s firmware revision is compatible with the existing rack configuration file to avoid post-replacement communication errors.
• Fuse and Surge Protection — Check inline fuses on field wiring circuits and any transient voltage suppression (TVS) devices protecting the monitor inputs, particularly in installations near variable frequency drives (VFDs) or high-voltage switchgear.
• Adjacent Monitor Modules in the Same Rack — If one module in a 3300 XL rack has failed, inspect neighboring modules for signs of thermal stress, discoloration, or connector damage. Shared rack power and bus faults can cause cascading module degradation.

Proactive inspection of these components during a planned replacement window significantly reduces the probability of a repeat callout and supports the business case for a structured spare parts inventory program covering the full 3300 XL rack population at your facility.

Site Replacement Workflow

The 330703-020-110-10-01-05 is designed for hot-swap or cold-swap replacement within the 3300 XL rack, depending on your site safety procedures and system configuration. The following workflow reflects best practice for minimizing downtime while maintaining system integrity:

1. Pre-Replacement Verification: Confirm the replacement module part number matches the installed unit exactly — including the full suffix string (020-110-10-01-05). Suffix digits encode channel count, relay configuration, and communication options. A mismatch will result in configuration errors or protection gaps.
2. System 1 Configuration Export: Export the current rack configuration and record all setpoint values, alarm thresholds, and trip multipliers for the affected channel(s) before removal.
3. Bypass Procedure: Coordinate with the control room to place the affected channel(s) in bypass mode per your site Management of Change (MOC) procedure. This prevents spurious trips during the swap.
4. Module Removal: Power down the rack slot if required by site procedure. Remove the module using the front-panel ejector levers. Inspect the backplane connector for bent pins or debris before inserting the replacement.
5. Replacement Installation: Insert the 330703-020-110-10-01-05 replacement unit firmly until the ejector levers latch. Restore rack power and verify the module’s front-panel LED status indicators show normal operation.
6. Configuration Restore and Verification: Using System 1 software, confirm that the replacement module has accepted the configuration file. Verify all setpoints, alarm levels, and communication links are restored correctly.
7. Functional Test: Apply a known reference signal (or use the rack’s built-in self-test function) to verify that the replacement module is measuring correctly and that relay outputs respond at the correct thresholds.
8. Bypass Release: Remove the bypass and return the channel to normal protection service. Document the replacement in your CMMS with the module serial number, installation date, and test results.

This structured approach reduces mean time to repair (MTTR), ensures traceability, and supports compliance with IEC 61511 or API 670 functional safety requirements applicable to machinery protection systems.
