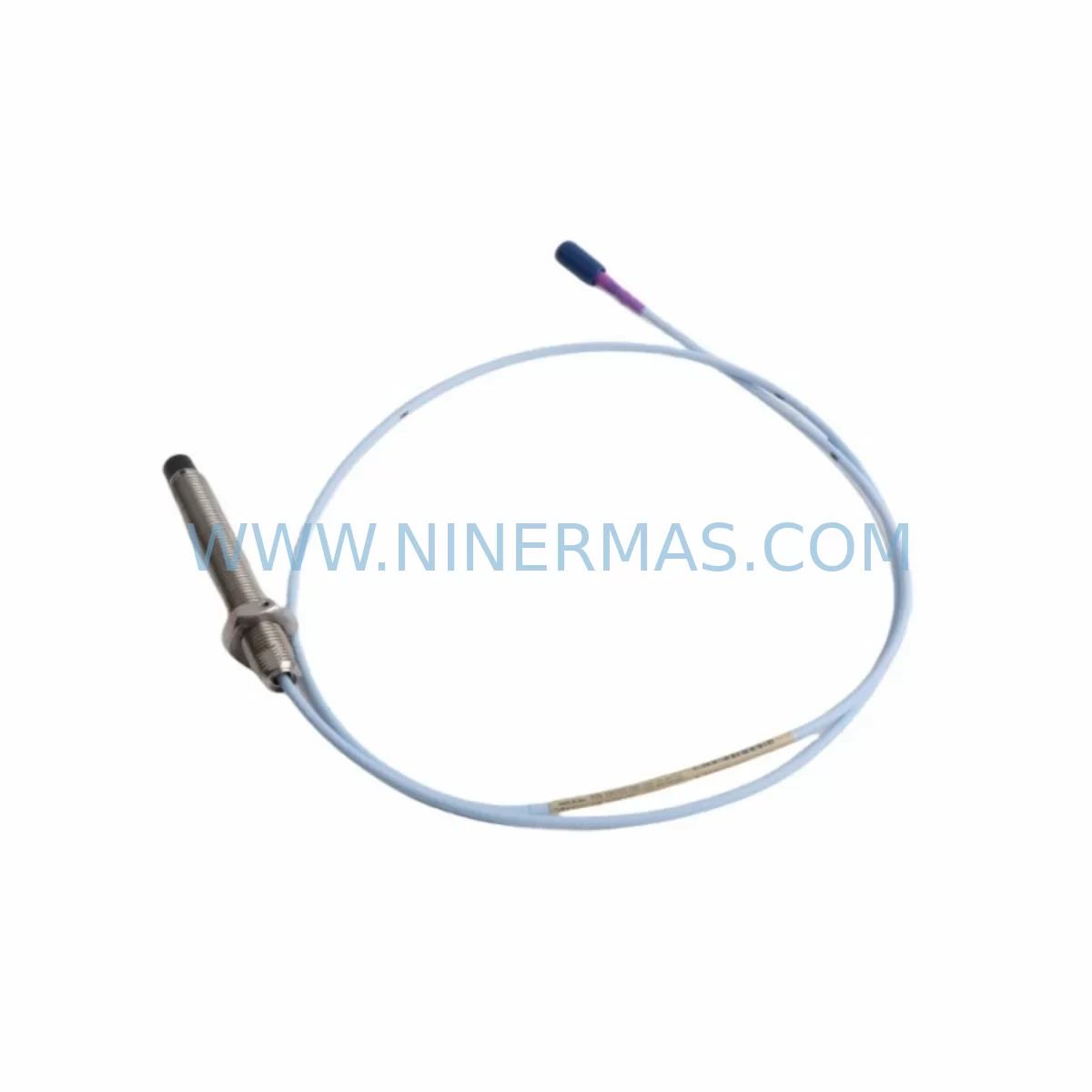

Bently Nevada 330703-000-100-10-01-CN Retrofit Proximity Transducer

Bently Nevada 330703-000-100-10-01-CN Retrofit-Compatible Proximity Transducer for Legacy Systems

The Bently Nevada 330703-000-100-10-01-CN is a high-precision proximity transducer engineered for the 3300 XL series machinery protection and condition monitoring platform. As aging industrial facilities face increasing pressure to maintain uptime while managing obsolete spare parts, this transducer serves as a critical retrofit solution for plants still operating legacy Bently Nevada 3300 XL monitor racks. Whether you are replacing a failed unit, extending the service life of an existing installation, or executing a phased control system upgrade, the 330703-000-100-10-01-CN delivers the signal integrity and dimensional compatibility required for seamless field integration.

Designed to the eddy current sensing principle, this transducer operates as part of a three-component measurement chain — transducer, extension cable, and proximitor/oscillator — making it fully compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor system. When planning a replacement, engineers must verify that the existing proximitor module, such as the 330180-X1-05 or 330130-040-00-00 series, is calibrated to the same target material and gap range as the incoming transducer. Mismatched calibration curves between the transducer and proximitor are among the most common causes of signal offset errors during retrofit commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330703-000-100-10-01-CN into an existing machinery protection system requires a structured pre-installation review. Begin by auditing the current monitor rack configuration. In a typical 3300 XL installation, the rack houses multiple monitor modules — such as the 3300/20 Radial Vibration Monitor or 3300/25 Thrust Position Monitor — each paired with a dedicated proximitor and transducer channel. Confirm that the channel assigned to the replacement transducer is correctly addressed in the rack’s I/O map and that no address conflicts exist with adjacent modules.

Next, inspect the extension cable assembly. The total system cable length — transducer cable plus extension cable — must match the proximitor’s calibrated range. Common extension cables used in 3300 XL systems include the 330130-040-00-00 and 330130-080-00-00 series. If the existing extension cable is damaged or its length does not match the new transducer’s specification, it must be replaced simultaneously to avoid scale factor errors. Routing the extension cable away from high-voltage conduit and VFD wiring is essential to prevent electromagnetic interference on the low-level analog signal.

Power supply integrity is another critical checkpoint. The proximitor module draws regulated power from the rack’s internal power supply — typically a 3300/05 Power Supply Module or equivalent. Verify that the supply voltage (typically -24 VDC) is within specification before energizing the new transducer. A degraded power supply can introduce noise into the gap voltage reading and trigger false OK relay trips during commissioning.

For facilities running a hybrid environment — where some channels have already been migrated to the newer Bently Nevada 3500 Series platform — the 330703-000-100-10-01-CN can be used as an interim transducer on legacy 3300 XL channels while the migration is completed in phases. This approach minimizes the need for simultaneous rack replacement across all measurement points and allows maintenance teams to validate each channel independently before the next planned outage.

HMI screen updates are often overlooked during transducer replacement. If the plant’s DCS or SCADA system — whether running on a Rockwell ControlLogix platform or a third-party historian — displays gap voltage or vibration amplitude from this channel, confirm that the engineering unit scaling and alarm setpoints remain valid after the swap. A change in transducer sensitivity or cable length can shift the nominal gap voltage, requiring a corresponding update to the HMI faceplate and alarm database.

Finally, document the as-left gap voltage, OK relay status, and vibration baseline immediately after installation. This data serves as the reference for future predictive maintenance trending and simplifies troubleshooting if an alarm condition occurs during the next production run.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a proximity transducer on a running machine train. Where process conditions allow, the preferred approach is to perform the transducer swap during a scheduled maintenance window rather than under emergency conditions. Pre-stage the 330703-000-100-10-01-CN, the matching extension cable, and all required hand tools — including the correct probe driver and lock nut wrench — before the machine is taken offline.

Before removing the existing transducer, record the current gap voltage displayed on the monitor module or DCS. This value, combined with the known sensitivity of the outgoing transducer, allows you to calculate the physical air gap at the measurement point. Use this gap dimension as the installation target for the new transducer, adjusting in small increments until the gap voltage on the replacement unit falls within the monitor’s acceptance window — typically ±10% of the nominal gap voltage specified in the system documentation.

Protect the original control program logic throughout the migration. If the monitor rack is connected to a safety system or interlock, coordinate with the control room to place the affected channel in bypass mode before disconnecting the transducer. This prevents a spurious trip from propagating to the machine protection relay and causing an unintended shutdown of adjacent equipment. Restore the bypass only after the new transducer has been verified in service and the OK relay has confirmed a healthy signal.

For multi-point installations where several transducers are being replaced in the same outage, work sequentially — complete and verify each channel before moving to the next. This discipline ensures that any wiring error or gap setting issue is isolated to a single channel and does not compromise the integrity of the entire monitoring system during restart.

Retrofit Support FAQ

Q1: Is the 330703-000-100-10-01-CN a direct drop-in replacement for other 3300 XL proximity transducers?
A: It is dimensionally and electrically compatible with other 8 mm transducers in the Bently Nevada 3300 XL series, provided the total system cable length and target material match the proximitor’s calibration. Always verify the proximitor model number and calibration curve before ordering to ensure a matched system.

Q2: What commissioning checks are required after installation?
A: After installation, measure the gap voltage at the monitor module and confirm it falls within the specified nominal range (typically -10 VDC ± 10% for a standard 1.0 mm gap on steel). Check the OK relay output, verify that no alarm or danger setpoints are exceeded at rest, and record the baseline vibration reading before returning the machine to service.

Q3: Can this transducer be used with the Bently Nevada 3500 Series monitors?
A: The 330703-000-100-10-01-CN is designed for the 3300 XL platform. Use with 3500 Series monitors requires verification of input impedance, cable length compatibility, and proximitor matching. Contact NINERMAS technical support for application-specific guidance before cross-platform installation.

Q4: What are the warranty and supply terms?
A: All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing. In-stock units are available for prompt dispatch. Contact our team to confirm current inventory status and lead time for your project schedule.
