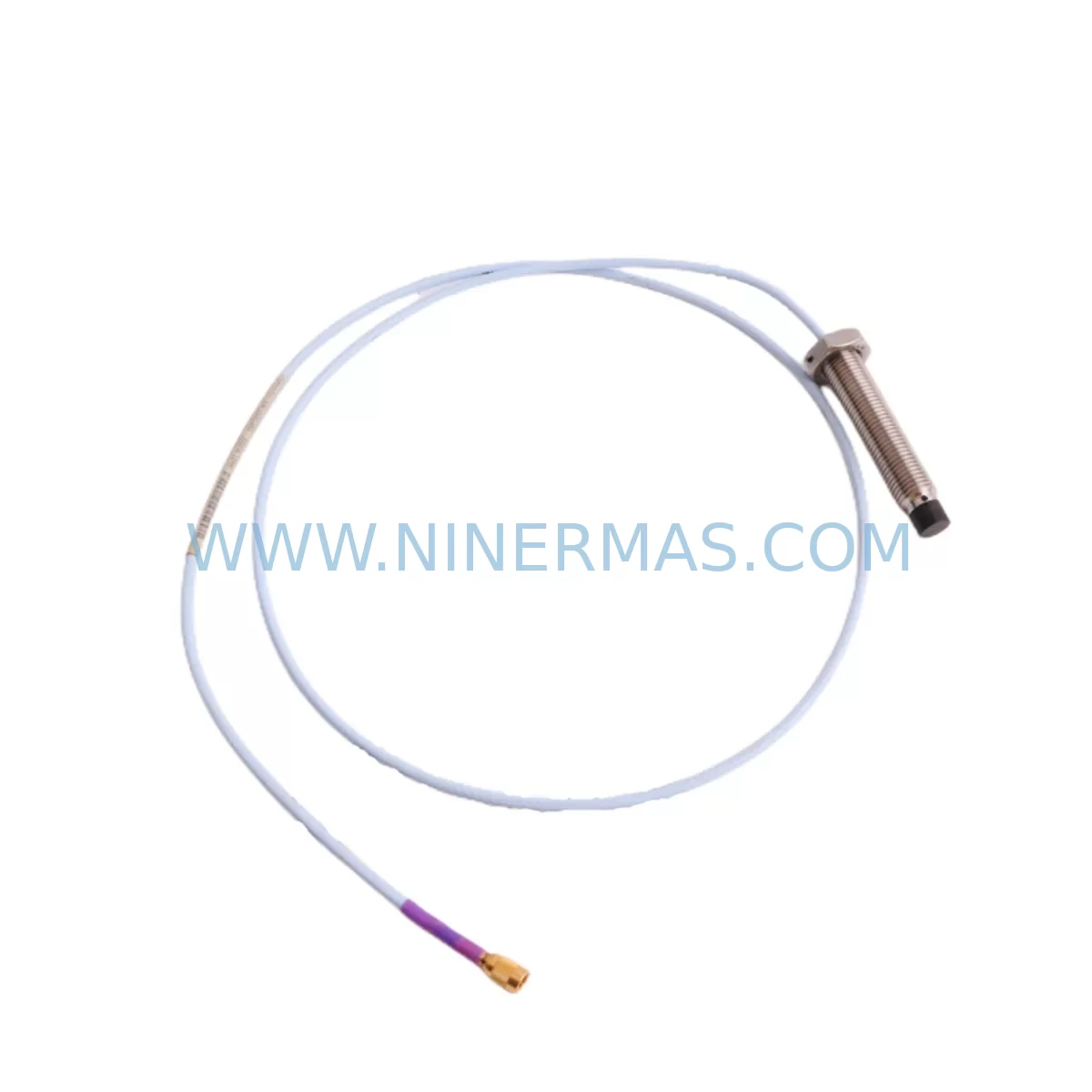

Bently Nevada 330703-000-070-10-02-00 Retrofit Proximity Transducer

Bently Nevada 330703-000-070-10-02-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

The Bently Nevada 330703-000-070-10-02-00 is a proximity transducer system component designed for the 3300XL Series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial sectors. As original equipment manufacturers phase out legacy 3300XL components, facilities running aging turbines, compressors, pumps, and gearboxes face increasing pressure to source verified replacement parts that maintain signal integrity, system compatibility, and uninterrupted protection logic.

This unit is stocked and tested to serve as a direct retrofit replacement for installations where the original 330703-000-070-10-02-00 has reached end-of-life, suffered field damage, or is no longer available through standard OEM channels. Each unit shipped by NINERMAS undergoes pre-delivery functional verification to confirm output linearity, gap voltage response, and connector integrity before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330703-000-070-10-02-00, the scope of work typically extends beyond the transducer itself. In most 3300XL installations, the proximity probe works as part of a three-component system: the probe, the extension cable (such as the 330130 series extension cables), and the proximitor/oscillator driver (commonly the 3300 XL 8mm Proximitor). All three components must be matched in terms of system gain and cable length to ensure accurate gap voltage output. If any one component is substituted without recalibrating the system, the monitor card — for example a 3500/40M Proximitor Monitor or a 3300/20 Rack Monitor — may generate false alerts or fail to detect actual shaft displacement events.

For facilities upgrading from older 3300 (non-XL) platforms to the 3300XL architecture, the migration also involves reviewing the rack backplane configuration. The 3300XL rack accepts specific I/O module placements, and technicians must confirm slot addressing and jumper settings on each monitor card before powering the system. In parallel, the 3500 Series Rack Interface Module (RIM) may need to be reconfigured if the plant is integrating the vibration data into a DCS or safety instrumented system via Modbus or 4–20 mA output.

Power supply capacity is another critical checkpoint. The 3300XL rack draws regulated DC power from dedicated power supply modules; adding replacement transducer channels or expanding I/O with additional 3300/16 or 3300/46 monitor cards increases the total current draw. Before commissioning the retrofit, verify that the existing power supply module — or its replacement — can support the updated load without voltage droop that could affect measurement accuracy.

Terminal wiring at the junction box and field barrier must also be inspected. Corroded terminals, mismatched wire gauges, or improperly shielded cable runs introduce noise into the transducer signal chain, which can manifest as elevated vibration readings or erratic Keyphasor triggering. Replacing field wiring back to the marshalling cabinet is often the most time-consuming part of a 3300XL retrofit, and should be scoped into the project plan from the outset.

For plants that also operate Bently Nevada 3500 Series racks alongside legacy 3300XL systems, the 330703-000-070-10-02-00 transducer can often serve both platforms, provided the proximitor driver and cable system are correctly matched. This cross-platform compatibility reduces the number of unique spare part SKUs that maintenance teams need to stock, simplifying inventory management across multi-train machinery protection systems.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a proximity transducer on a running machine train. The recommended approach is to pre-stage the replacement 330703-000-070-10-02-00 unit alongside the matched extension cable and proximitor before scheduling the outage window. Confirm the gap voltage of the new assembly on a bench fixture before installation — this eliminates the risk of discovering a calibration issue after the machine has been taken offline.

During the swap, preserve the original program logic in the 3300XL monitor card by documenting all setpoint values, alert and danger thresholds, time delays, and voting logic before disconnecting any field wiring. If the monitor card itself is also being replaced as part of the retrofit, use the Bently Nevada System 1 software or the local keypad interface to export the configuration before removal. Restoring a verified configuration file is significantly faster than re-entering parameters manually under time pressure.

For critical machinery where continuous protection is required, consider using a temporary bypass relay or a portable vibration analyzer to maintain shaft monitoring coverage during the transducer replacement window. This approach is particularly important on single-train compressors or turbines where a protection gap could trigger a safety review or regulatory notification.

After installation, perform a static gap check by measuring the DC voltage at the proximitor output with the shaft stationary. The reading should fall within the linear range specified for the 330703-000-070-10-02-00 and its matched cable system. Then verify dynamic response by slowly rotating the shaft by hand and confirming that the monitor card registers the expected 1X and 2X frequency components. Only after both checks pass should the machine be returned to service and the bypass removed.

Retrofit Support FAQ

Q: Is the 330703-000-070-10-02-00 a direct drop-in replacement for other 330703 suffix variants?
A: The 330703 base part number covers a family of proximity transducers with varying tip diameters, cable lengths, and temperature ratings encoded in the suffix. The -000-070-10-02-00 suffix specifies a particular configuration. Before ordering, confirm that the suffix of the failed unit matches this SKU exactly, or contact NINERMAS to cross-reference your existing part number against available stock.

Q: What extension cable and proximitor must be paired with this transducer?
A: The 330703-000-070-10-02-00 must be used with a matched Bently Nevada 330130 series extension cable and a compatible 3300 XL Proximitor. The total cable system length (probe cable + extension cable) determines the system gain. Mixing unmatched components will shift the gap voltage output outside the monitor card’s calibrated input range and produce inaccurate readings.

Q: Has this unit been tested before shipment?
A: Yes. All units shipped by NINERMAS are functionally tested prior to dispatch. Testing covers output voltage linearity across the specified gap range, connector continuity, and cable shield integrity. A test report is available upon request for quality documentation purposes.

Q: What warranty coverage is provided?
A: NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team, and replacement units can be dispatched from available inventory to minimize your system downtime.
