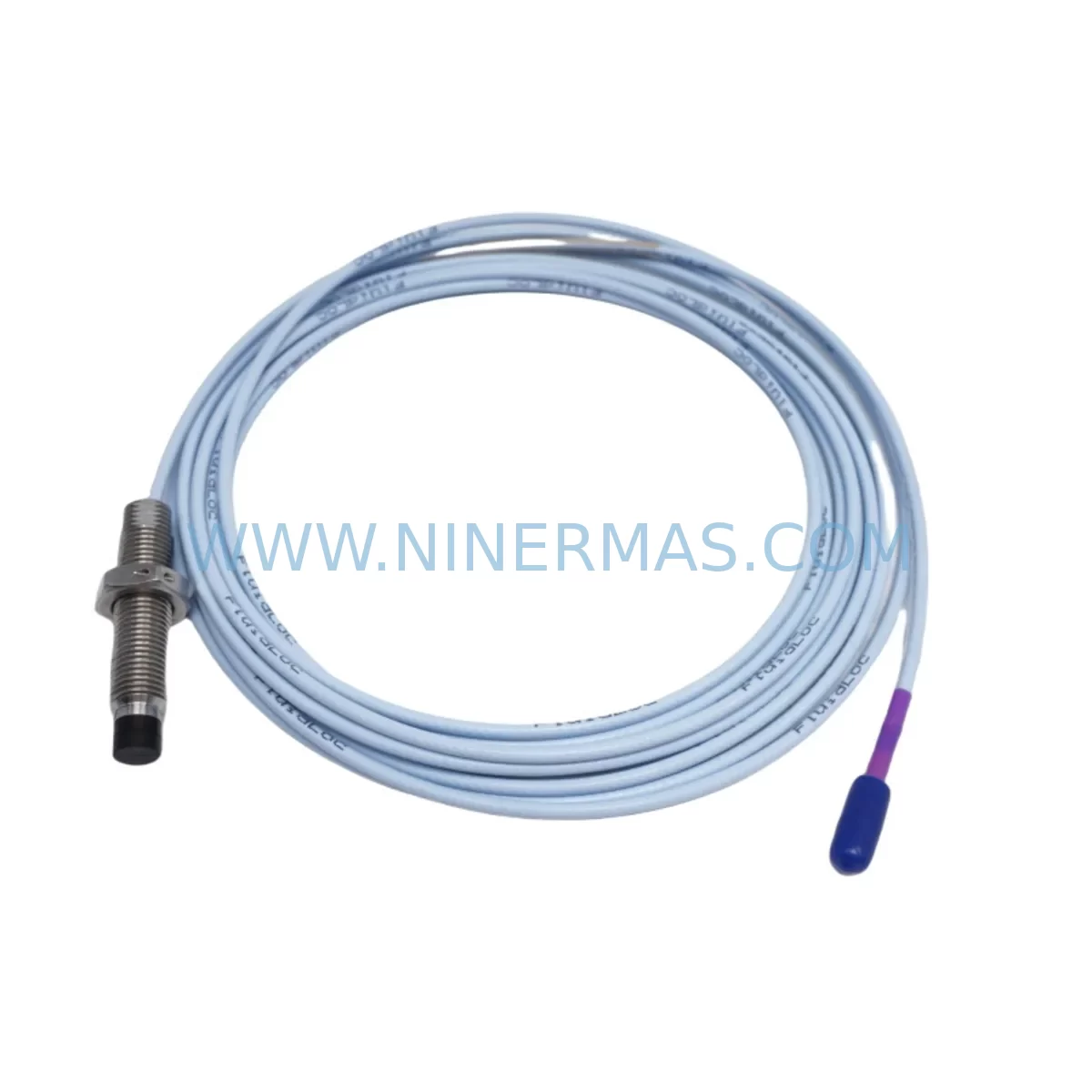

The Bently Nevada 330703-000-060-50-02-05 is a precision proximity transducer designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy manufacturing industries. Maintaining a service-ready stock of this transducer is a fundamental requirement for any maintenance team responsible for turbines, compressors, pumps, and other critical rotating assets where unplanned downtime carries significant operational and financial consequences.

As a direct replacement for aging or failed proximity transducers in the 3300 XL ecosystem, the 330703-000-060-50-02-05 delivers the same signal output characteristics, gap voltage specifications, and mechanical dimensions as the original factory-installed unit. This ensures seamless drop-in compatibility without requiring recalibration of the associated 3300 XL proximitor/driver module or adjustment of the monitoring system’s alarm and danger setpoints — a critical advantage during emergency replacement scenarios where minimizing mean time to repair (MTTR) is the top priority.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL-based monitoring system goes well beyond replacing the proximity transducer itself. When a 330703-000-060-50-02-05 is flagged for replacement — whether during a scheduled outage, a routine gap check, or an emergency fault response — the maintenance engineer should treat the event as an opportunity to inspect the entire signal chain and associated cabinet components.

Begin with the 3300 XL Proximitor/Driver module (such as the 3300/16 or 3300/20 series), which conditions the transducer’s raw signal into a usable output for the monitoring rack. A worn or thermally stressed proximitor can introduce offset errors that mimic transducer failure, so verifying its output voltage and frequency response is essential before closing out the work order. Alongside the proximitor, inspect the extension cable assembly — the 330130 or 330180 series cables are common companions to this transducer — checking for jacket abrasion, connector corrosion, and continuity across the full cable run.

Within the control cabinet, verify the –24 VDC power supply feeding the proximitor rack. Voltage sag or ripple on this rail is a frequent root cause of false vibration alarms and should be measured under load. If the cabinet houses a 3500 Series rack or a hybrid monitoring configuration, confirm that the I/O module’s input impedance and signal range remain compatible with the 3300 XL transducer output. For systems integrated with a DCS or PLC — such as a Honeywell Experion, Emerson DeltaV, or Siemens S7 platform — validate that the 4–20 mA or digital output from the monitoring rack is correctly mapped and that no scaling changes are required after the transducer swap.

Maintenance teams should also inspect terminal blocks and wiring terminations within the junction box and marshalling cabinet. Loose or oxidized terminals are a leading cause of intermittent signal faults that are often misattributed to transducer degradation. Where signal isolation is required between the field device and the control system, check the condition of any installed signal isolators or barriers — particularly in hazardous area installations where Zener barriers or galvanic isolators protect the intrinsically safe circuit. Finally, review the status of any relay output modules tied to the vibration monitoring channel; a transducer replacement is an ideal time to confirm that alarm and danger relay setpoints are correctly configured and that the relay contacts are clean and functional.

For facilities running aging 3300 XL installations, consider stocking companion spares including the 3300/16 proximitor module, 330130-080-00-00 extension cable, 3300 XL power supply module, and relevant terminal block assemblies to support rapid recovery across multiple failure modes without waiting on lead times.

Site Replacement Workflow

Replacing the 330703-000-060-50-02-05 in the field follows a structured sequence designed to minimize downtime and ensure system integrity from the moment the new transducer is installed. Before beginning, confirm that the replacement unit’s part number and revision level match the installed configuration — pay particular attention to the cable length suffix and connector type, as incorrect variants will require adapter hardware that adds installation time and potential signal degradation.

With the monitoring channel placed in bypass or the associated alarm inhibited per your site’s management of change (MOC) procedure, remove the failed transducer by carefully backing it out of the threaded bracket while supporting the cable to avoid stress on the connector. Clean the probe tip area and inspect the target surface for scoring or runout that may have contributed to the transducer’s premature failure. Install the new 330703-000-060-50-02-05 and set the gap to the manufacturer’s recommended value — typically 1.0 mm to 1.5 mm for standard steel targets — using a calibrated gap-setting tool and a digital voltmeter to verify the static gap voltage falls within the linear range of –10 VDC to –18 VDC.

Once the gap is confirmed, restore the monitoring channel and observe the dynamic signal on the monitoring system’s display or a portable data collector. Verify that the 1X and 2X vibration amplitudes are consistent with historical baseline data and that no unexpected noise floor elevation is present. Document the as-found and as-left gap voltages in the equipment history record to support future trend analysis and predictive maintenance decisions. This workflow applies equally to legacy 3300 XL installations and to hybrid systems where the transducer feeds into a newer 3500 Series or third-party monitoring rack, ensuring compatibility is maintained and system performance is preserved across the full service life of the rotating asset.

Spare Parts Support FAQ

Q1: Is the 330703-000-060-50-02-05 a direct drop-in replacement for the original Bently Nevada factory-installed unit?
Yes. The 330703-000-060-50-02-05 is manufactured to the same dimensional, electrical, and performance specifications as the original 3300 XL series proximity transducer. No recalibration of the proximitor module or adjustment of monitoring system setpoints is required, provided the gap is set correctly during installation.

Q2: What pre-shipment testing is performed on this spare part?
Each unit undergoes functional verification prior to dispatch, including static gap voltage output confirmation and cable continuity testing. Units are packaged to prevent mechanical damage and electrostatic discharge during transit. A test report is available upon request for critical applications.

Q3: What is the recommended inventory strategy for this transducer in a multi-machine facility?
For facilities operating three or more machines monitored by 3300 XL systems, maintaining a minimum of two service-ready units of the 330703-000-060-50-02-05 is recommended. This buffer supports simultaneous failure events and eliminates lead-time exposure during peak maintenance periods or annual turnarounds. Pair this with stocked extension cables and a spare proximitor module to cover the most common failure modes in a single cabinet pull.
