Bently Nevada 330703-000-040-50-01-00 Service-Ready Spare Part

Bently Nevada 330703-000-040-50-01-00 Service-Ready Spare Part for Industrial Maintenance

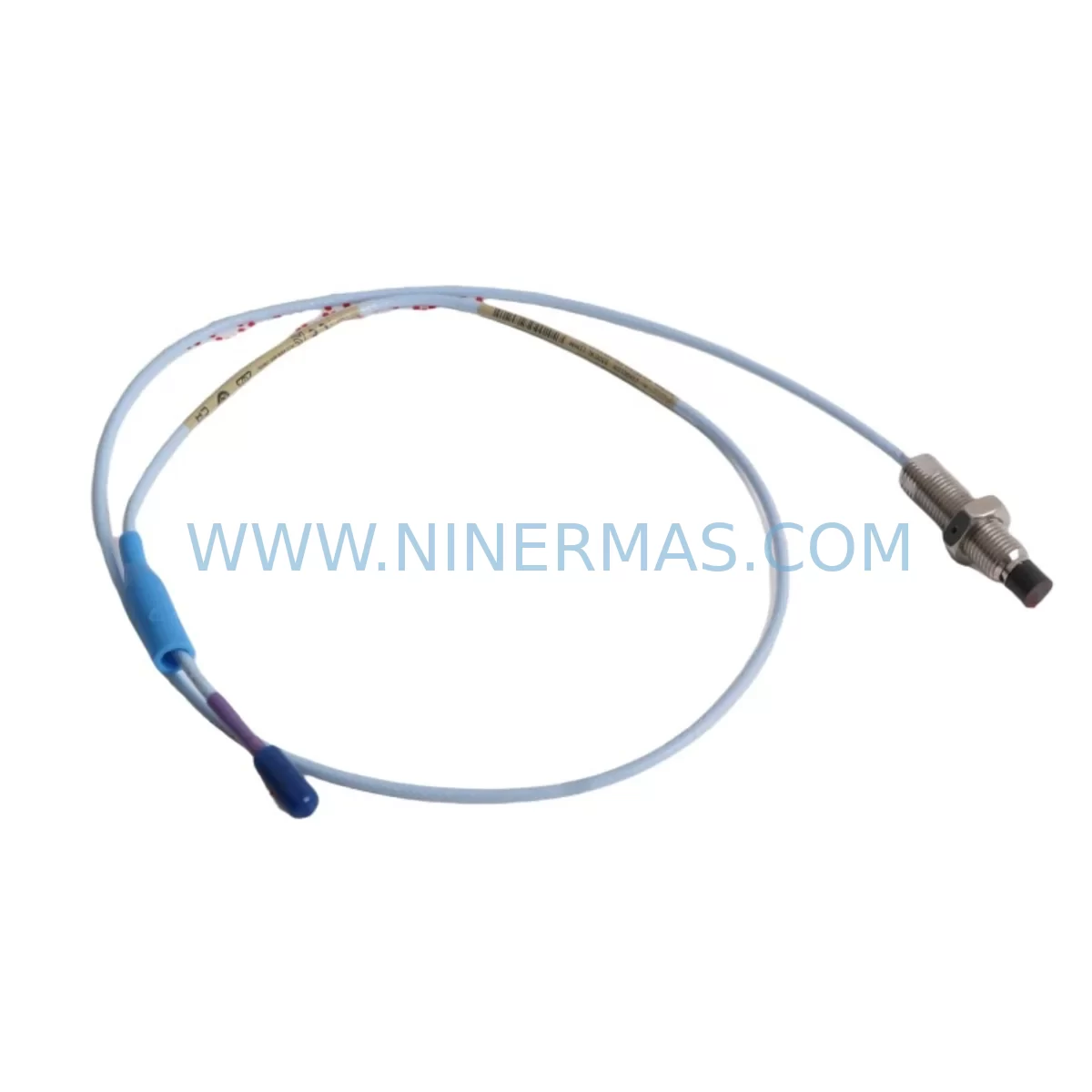

The Bently Nevada 330703-000-040-50-01-00 is a precision proximity probe engineered for the 3300 XL Series eddy-current transducer system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned annual overhaul, responding to an unscheduled shutdown, or building a strategic spare parts inventory for a critical turbine, compressor, or pump train, this probe delivers the dimensional accuracy, gap voltage linearity, and signal integrity that Bently Nevada’s 3300 XL system demands.

For maintenance engineers and reliability teams operating in petrochemical plants, power generation facilities, offshore platforms, or heavy manufacturing environments, the 330703-000-040-50-01-00 represents a direct, service-ready replacement that eliminates the compatibility risk associated with non-original substitutes. Its 5-metre integral cable, 8 mm tip diameter, and calibrated sensitivity of 7.87 V/mm (200 mV/mil) are factory-matched to the 3300 XL driver electronics, ensuring that no field recalibration of the monitor rack is required upon installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330703-000-040-50-01-00 proximity probe is flagged for replacement — whether through a rising noise floor on the vibration channel, a gap voltage drift outside the ±0.5 V acceptance band, or physical damage to the probe tip or cable jacket — experienced maintenance planners know that the probe itself is rarely the only component that warrants attention during the same work order.

The 3300 XL transducer chain begins at the probe tip and ends at the monitor card in the rack. A complete inspection should therefore include the 3300 XL extension cable (typically a 330130-series armoured cable) that connects the probe to the Proximitor® sensor, since cable shield continuity and connector integrity degrade in high-vibration or high-temperature environments at a rate comparable to the probe itself. The 330180 Proximitor® sensor — the signal conditioning module that converts the probe’s impedance change into a calibrated DC voltage — should be bench-tested for output linearity and noise performance whenever the probe is replaced, as a marginal Proximitor® will mask the improvement gained from a new probe.

At the monitor rack level, the 3300/16 or 3300/20 monitor cards that receive the Proximitor® output should be inspected for relay contact wear, OK-circuit threshold drift, and backplane connector seating. If the machine train includes thrust position monitoring alongside radial vibration, the paired 330703-series axial probe on the same shaft should be gap-checked simultaneously to avoid a second outage within the same maintenance cycle.

Power supply integrity is equally critical. The 3300 XL system power supply module providing −24 VDC to the Proximitor® sensors should be load-tested, and its output ripple verified against the ±1 VDC specification. A degraded power supply introduces a common-mode noise floor that affects every channel in the rack simultaneously, making individual probe replacement ineffective. Spare 3300 XL power supply modules are therefore a prudent addition to any critical-machine spare parts kit.

For plants running integrated machinery protection and condition monitoring, the System 1 Evolution data acquisition nodes and their associated I/O terminal boards should be inspected for loose field wiring terminations and corrosion on the screw terminals — a common source of intermittent channel faults that are frequently misdiagnosed as probe failures. Where signal runs exceed 30 metres or pass through electrically noisy environments, signal isolators or galvanic isolators in the 4–20 mA or voltage output loops should be checked for isolation resistance and bandwidth.

Finally, if the machine is equipped with a Keyphasor® transducer (such as the 330980 or 330905 series) for phase reference and speed measurement, its gap voltage and cable condition should be verified during the same outage window, since Keyphasor® signal loss disables all phase-referenced measurements across the entire monitor rack.

Procurement engineers should note that building a matched spare set — probe, extension cable, and Proximitor® sensor — reduces mean time to repair (MTTR) by eliminating the need for individual component sourcing during an unplanned outage. NINERMAS maintains stock of the complete 3300 XL transducer chain to support emergency dispatch requirements.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or cold-work permit as applicable. De-energise the −24 VDC supply to the affected Proximitor® sensor at the rack terminal board before disconnecting any field wiring.

Step 2 — Document existing gap voltage: Record the as-found gap voltage from the monitor display or System 1 trend data. A value outside −10 V ± 0.5 V (at the nominal 1.0 mm installation gap for an 8 mm probe on AISI 4140 steel) confirms the probe or extension cable is the fault source.

Step 3 — Remove the probe assembly: Disconnect the extension cable at the Proximitor® sensor. Unscrew the probe from its bracket, noting the number of turns to establish the approximate reinstallation gap. Inspect the probe tip for mechanical damage, pitting, or contamination.

Step 4 — Install the 330703-000-040-50-01-00 replacement: Thread the new probe to the same approximate depth. Reconnect the extension cable. Re-energise the Proximitor® sensor and measure the gap voltage. Adjust probe depth until the gap voltage reads within the −10 V ± 0.5 V acceptance window. Lock the probe with the jam nut to the torque specified in the 3300 XL installation manual.

Step 5 — Functional verification: Confirm the monitor channel returns to OK status. Verify that vibration readings are within the expected baseline range for the machine at no-load and at operating speed. Log the as-left gap voltage in the maintenance management system (CMMS) for future reference.

Step 6 — Return to service: Close the work order, update the spare parts inventory record, and initiate a replenishment order for the consumed probe to maintain the minimum stock level defined in the site criticality matrix.

This workflow applies equally to scheduled replacements during annual turnarounds and to emergency replacements during unplanned shutdowns. Because the 330703-000-040-50-01-00 is a factory-calibrated, drop-in replacement for the 3300 XL system, no monitor rack reconfiguration or software parameter change is required, minimising the skill level and time required for field execution.

Spare Parts Support FAQ

Q1: Is the 330703-000-040-50-01-00 a direct replacement for older 3300 XL proximity probes with the same tip diameter and cable length?
Yes. The 330703-000-040-50-01-00 is dimensionally and electrically compatible with earlier 3300 XL 8 mm probes of equivalent cable length. The sensitivity (7.87 V/mm) and linear range are consistent across the 3300 XL product family, so no Proximitor® sensor recalibration or monitor card parameter change is required when replacing a like-for-like probe. Always verify the target material specification matches AISI 4140 or the equivalent material factor listed in the 3300 XL calibration data sheet.

Q2: What is the recommended inventory strategy for this probe in a critical rotating machinery application?
Industry best practice for API 670-compliant machinery protection systems recommends holding a minimum of one spare probe per monitored shaft, plus one additional unit per machine train for emergency coverage. For plants with multiple identical machines — such as parallel compressor strings — a pooled spare of two to three units per probe model is typically sufficient. NINERMAS can support blanket purchase orders and scheduled delivery programmes to help procurement teams maintain target stock levels without tying up excessive working capital.

Q3: How does NINERMAS verify the condition of spare parts before shipment?
Every 330703-000-040-50-01-00 unit dispatched by NINERMAS undergoes a pre-shipment inspection that includes visual examination of the probe tip, cable jacket, and connector; continuity and insulation resistance testing of the integral cable; and verification of the coaxial connector mating integrity. Units are shipped in original or equivalent protective packaging with a 12-month warranty covering manufacturing defects and electrical performance. A test report is available upon request for critical-machine applications.

Q4: Can NINERMAS support long-term supply for legacy 3300 XL systems that are no longer in active production?
Yes. NINERMAS specialises in the supply of original and service-ready spare parts for legacy industrial automation and machinery protection systems, including the full Bently Nevada 3300 XL transducer family. We maintain stock of probes, extension cables, Proximitor® sensors, and monitor cards to support plants committed to extending the operational life of existing 3300 XL installations. Contact our technical sales team to discuss long-term supply agreements, lead times, and volume pricing.
