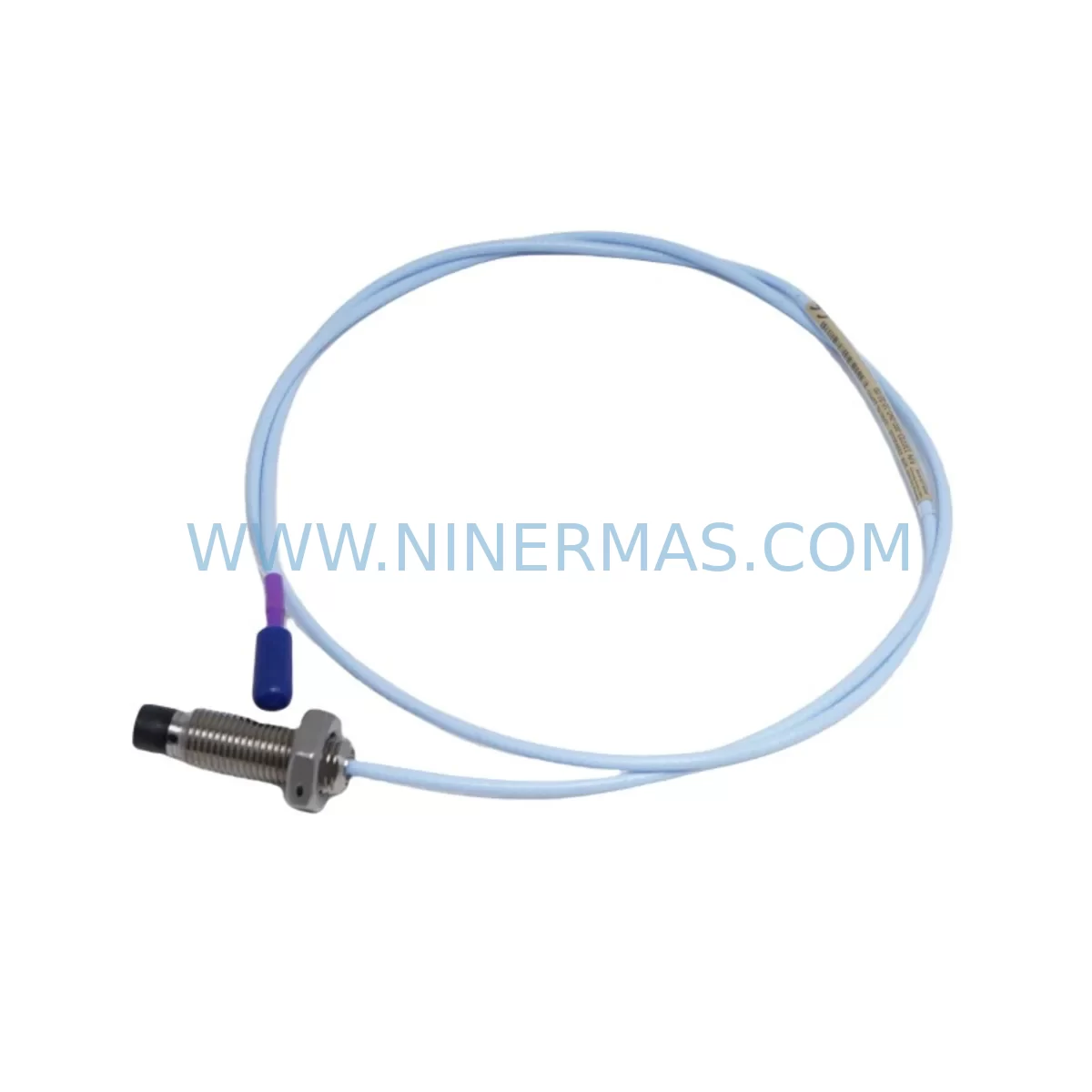

Bently Nevada 330703-000-040-10-02-0 Service-Ready Spare Part

Bently Nevada 330703-000-040-10-02-0 Service-Ready Spare Part for Industrial Maintenance

The Bently Nevada 330703-000-040-10-02-0 is a critical spare part within the 3300 XL Series vibration monitoring platform — one of the most widely deployed condition monitoring systems in rotating machinery protection across oil & gas, power generation, petrochemical, and heavy manufacturing industries. When a vibration monitor module fails or degrades, the consequences extend far beyond a single instrument: unmonitored shaft displacement, bearing wear, or rotor imbalance can escalate into unplanned shutdowns, catastrophic equipment damage, and costly production losses. Maintaining a service-ready 330703-000-040-10-02-0 in your spare parts inventory is a fundamental risk-control measure for any maintenance team responsible for turbine trains, compressors, pumps, or gearboxes protected by the 3300 XL architecture.

At NINERMAS, every 330703-000-040-10-02-0 unit is sourced, inspected, and dispatched with a 12-month warranty, ensuring that your replacement module performs to original Bently Nevada specifications from the moment it is installed. Our inventory is maintained to support both emergency breakdown orders and planned annual overhaul procurement, with fast international shipping to minimize downtime exposure for your facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330703-000-040-10-02-0 in isolation is rarely sufficient for a thorough maintenance intervention. Maintenance engineers and reliability teams should treat a module swap as an opportunity to audit the entire vibration monitoring loop and the surrounding control cabinet infrastructure. Begin with the Bently Nevada 3300 XL rack itself — inspect the backplane connectors for oxidation, verify that the rack power supply module (such as the 3300/20 Power Supply) is delivering stable 24 VDC within tolerance, and confirm that all adjacent monitor cards are seated correctly and showing OK status.

The transducer cabling connected to this module deserves equal attention. Proximitor extension cables — typically RG-58 or equivalent shielded coaxial cable — should be checked for insulation damage, connector corrosion, and shield continuity. A degraded cable can introduce noise that mimics a failing monitor card, leading to misdiagnosis. At the same time, verify the Bently Nevada 3300/16 or 3300/55 Proximitor sensors at the machine end: gap voltage should fall within the linear range (typically −10 VDC ± 1 VDC at the calibrated gap), and any sensor showing erratic output should be replaced alongside the monitor module.

Within the control cabinet, inspect the terminal blocks and field wiring terminations associated with the 330703-000-040-10-02-0 I/O connections. Loose or corroded terminals are a leading cause of intermittent faults that are difficult to reproduce during bench testing. If the 3300 XL system is integrated with a DCS or safety instrumented system via 4–20 mA signals, verify signal integrity at the marshalling panel and confirm that the receiving analog input card — whether a Yokogawa, Emerson DeltaV, or Honeywell C300 module — is reading within expected range.

For facilities running the 3300 XL alongside a Bently Nevada 3500 Series rack for more critical machinery, this is also a good time to cross-check the 3500/42M Proximitor/Seismic Monitor or 3500/22M Transient Data Interface for any pending alerts. Relay output wiring from the 330703-000-040-10-02-0 should be traced to the associated shutdown logic — whether hardwired to a relay panel or routed through a safety PLC — to confirm that trip setpoints are correctly configured and that relay contacts are not showing signs of wear or welding.

If your facility uses a Bently Nevada System 1 software platform for online condition monitoring, reconnect and validate the communication link after module replacement to ensure that trend data resumes correctly and that no historical gap will mask an emerging fault. For older installations where System 1 integration is not available, a portable vibration analyzer should be used to baseline the machine immediately after restart to confirm that the new module is reading consistently with pre-failure historical data.

From a spare parts inventory perspective, procurement engineers should consider stocking at least one additional 330703-000-040-10-02-0 alongside complementary consumables: spare Proximitor sensors, a length of pre-terminated extension cable, a set of terminal block inserts for the 3300 XL rack, and a replacement rack power supply fuse. This bill-of-materials approach ensures that a single field technician can complete a full loop restoration without waiting for secondary parts shipments — a critical advantage when every hour of downtime carries significant production cost.

Site Replacement Workflow

Before removing the 330703-000-040-10-02-0 from service, document the current configuration: record all setpoint values (Alert 1, Alert 2, Danger), the transducer type and gap voltage, the 4–20 mA output scaling, and any relay logic assignments. This information is essential for configuring the replacement module identically and avoiding nuisance trips during commissioning.

Power down the affected monitor slot using the rack’s individual card inhibit function if available, or coordinate with the control room to place the associated machinery protection channel in bypass before removing the card. This prevents a spurious trip signal from propagating to the shutdown system during the swap. Insert the new 330703-000-040-10-02-0, restore power, and allow the module to complete its self-test sequence — the OK LED should illuminate within 30 seconds under normal conditions.

Re-enter all setpoint and configuration parameters, then verify the 4–20 mA output against a known reference (a calibrated loop calibrator or the DCS trend display) before releasing the channel from bypass. Perform a final gap voltage check at the Proximitor sensor to confirm the transducer is operating within its linear range, and document the as-left readings in your CMMS for future reference. This structured workflow reduces the risk of configuration errors that can cause either missed trips or nuisance shutdowns — both of which carry significant operational and safety consequences.

For legacy installations where the 330703-000-040-10-02-0 is replacing an older 330703 series variant with a different suffix, confirm backward compatibility with the rack firmware version before installation. NINERMAS technical support can assist with compatibility verification prior to shipment to eliminate on-site surprises.

Spare Parts Support FAQ

Q1: Is the 330703-000-040-10-02-0 a direct drop-in replacement for other 330703 suffix variants?
A: The 330703 series uses suffix codes to denote configuration options such as measurement range, output type, and approval ratings. While many suffix variants share the same physical form factor and rack interface, setpoint and scaling parameters may differ. Always verify the full part number against your existing module label and system documentation before installation. NINERMAS can provide pre-shipment compatibility confirmation upon request.

Q2: What does the 12-month warranty cover, and how is it supported?
A: NINERMAS’s 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch. In the event of a warranty claim, NINERMAS provides a replacement unit or full refund, with return logistics coordinated by our support team. Contact sale@ninermas.com for warranty registration and claim procedures.

Q3: Can NINERMAS support long-term or blanket purchase orders for the 330703-000-040-10-02-0?
A: Yes. NINERMAS supports long-term supply agreements for critical spare parts, including the 330703-000-040-10-02-0 and related 3300 XL Series components. Blanket orders allow procurement teams to lock in pricing, guarantee stock availability, and simplify annual maintenance budgeting. Contact our sales team to discuss volume pricing and delivery scheduling.

Q4: How should I store the 330703-000-040-10-02-0 as a shelf spare to maintain its service readiness?
A: Store the module in its original anti-static packaging in a climate-controlled environment (10°C–40°C, relative humidity below 85% non-condensing). Avoid exposure to vibration, magnetic fields, or corrosive atmospheres. Inspect shelf spares annually and rotate stock on a first-in, first-out basis. Modules stored beyond 5 years should be functionally tested before deployment to confirm that electrolytic capacitors and relay contacts remain within specification.
