Bently Nevada 330500-08-04 Service-Ready Spare Part

Bently Nevada 330500-08-04 Service-Ready Spare Part for Industrial Maintenance

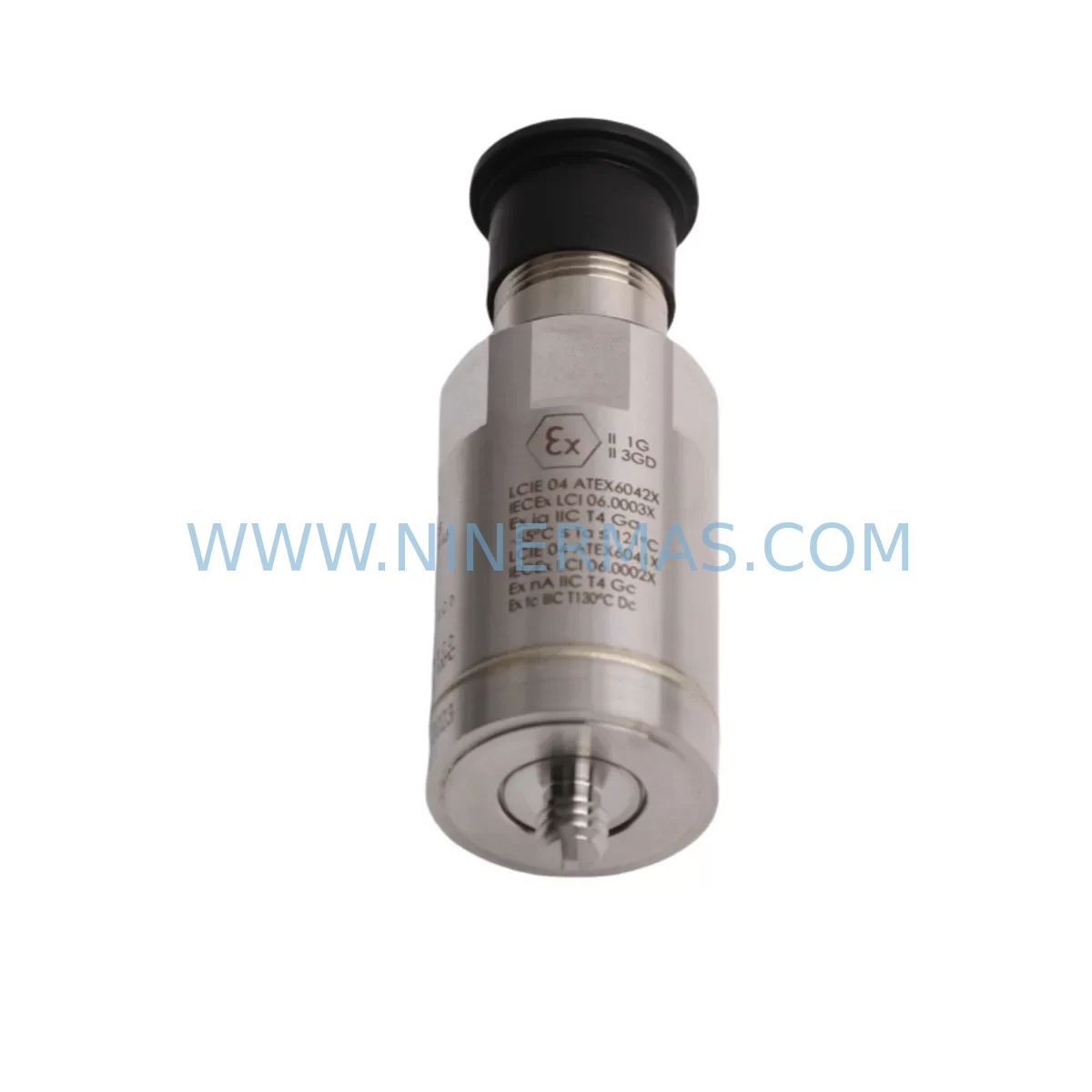

The Bently Nevada 330500-08-04 is a ruggedized piezo-velocity sensor engineered for continuous vibration monitoring in demanding industrial environments. As a critical spare part within the Bently Nevada 3300 Series machinery protection ecosystem, this sensor delivers reliable velocity measurements on rotating equipment including turbines, compressors, pumps, and motors. Sourced as an original replacement component, the 330500-08-04 is fully compatible with existing Bently Nevada monitoring systems and is ready for immediate field installation to minimize unplanned downtime.

For maintenance engineers managing rotating machinery assets, having the 330500-08-04 in your spare parts inventory is a fundamental risk-reduction strategy. Piezo-velocity sensors are subject to mechanical fatigue, cable wear, and connector degradation over extended service cycles. A failed sensor can blind your condition monitoring system, leaving critical machinery unprotected and exposing your facility to catastrophic failure events. Stocking this sensor as a service-ready spare ensures that when a fault is detected or a sensor fails during routine inspection, your team can execute a rapid swap and restore full monitoring coverage within minutes rather than waiting days or weeks for procurement.

From a procurement engineering perspective, the 330500-08-04 represents a well-established, long-lifecycle component within the Bently Nevada product family. Its compatibility with the 3300 Series monitoring framework means it integrates directly with existing field wiring, connector assemblies, and system configuration — no recalibration of the monitoring rack is required when replacing a like-for-like unit. This compatibility assurance is essential for facilities operating under strict change management protocols, where introducing an unvalidated replacement could trigger lengthy requalification processes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330500-08-04 in the field, a thorough maintenance engineer will treat the sensor swap as an opportunity to inspect the entire vibration monitoring loop and adjacent control cabinet components. Begin by verifying the integrity of the sensor cable and field connector — connector corrosion and cable jacket cracking are common failure modes in harsh environments that can cause intermittent signal loss even after a new sensor is installed. Inspect the cable routing for chafing points near machinery guards or conduit edges.

At the monitoring rack, confirm that the corresponding Bently Nevada 3300/16-02-01-01-00-00-00 or equivalent 3300 Series monitor module is functioning correctly and that its OK relay output is healthy. A degraded monitor card can misinterpret a good sensor signal, leading to nuisance trips or, worse, missed alarms. While the cabinet is open, inspect the 3300/05 power supply module that feeds the monitoring rack — power supply ripple or voltage sag is a known cause of false vibration readings and should be verified with a multimeter before closing out the work order.

For facilities running integrated machinery protection, the 330500-08-04 sensor signal feeds into alarm and trip logic that may also interact with Bently Nevada 3500 Series rack systems on larger turbomachinery trains. If your site has a mixed 3300/3500 architecture, confirm that the replacement sensor’s sensitivity and output range are correctly matched to the monitor channel configuration. Additionally, review the proximitor/seismic interface module settings if the channel is configured for dual-input protection combining proximity probe data with velocity sensor data.

During annual shutdown maintenance, the 330500-08-04 replacement is typically bundled with inspection of proximity probe systems (e.g., 330180 series probes and extension cables), keyphasor sensors, and associated junction box terminal blocks. Terminal block corrosion and loose screw connections are a leading cause of signal degradation that is often misdiagnosed as sensor failure. Cleaning and re-torquing terminal connections at the junction box should be a standard step in any sensor replacement procedure.

For DCS-integrated sites, verify that the 4–20 mA output signal conditioner or signal isolator downstream of the monitoring rack is passing the velocity signal correctly to the DCS historian. A failed isolator can cause the DCS to display a flat-line trend even when the Bently Nevada monitor is reading correctly. If your facility uses a System 1 Evolution software platform for online machinery diagnostics, confirm that the new sensor’s channel is re-enabled and trending correctly in the software after replacement. Finally, update your spare parts register and CMMS work order to reflect the sensor serial number change, ensuring traceability for future maintenance cycles.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a hot-work or cold-work permit as required by site safety procedures. For non-trip-critical sensor replacements on running machinery, confirm with the control room that the monitor channel can be bypassed or inhibited during the swap to prevent a spurious trip.

Step 2 — Sensor Removal: Disconnect the field connector at the sensor body. Note the mounting orientation and torque specification for the sensor stud or mounting pad. Remove the sensor carefully to avoid damaging the mounting surface, which is critical for maintaining correct sensor-to-machine contact and accurate readings.

Step 3 — Inspection: Inspect the mounting surface for corrosion, thread damage, or contamination. Clean the surface before installing the replacement 330500-08-04. Inspect the field cable connector for pin damage or moisture ingress and replace the connector assembly if any defects are found.

Step 4 — Installation: Install the new 330500-08-04 to the manufacturer’s torque specification. Reconnect the field cable connector and verify the connector locking mechanism is fully engaged. Restore the monitor channel from bypass/inhibit status.

Step 5 — Verification: Confirm the Bently Nevada monitor OK LED is illuminated and that the vibration reading is within the expected baseline range for the machine at its current operating condition. Compare the new reading against historical trend data in System 1 or your DCS historian to validate sensor performance before closing the work order.

Step 6 — Documentation: Record the replacement in your CMMS, update the spare parts inventory, and note the new sensor serial number. Schedule the next inspection interval per your predictive maintenance program.

Spare Parts Support FAQ

Q1: Is the 330500-08-04 a direct drop-in replacement for the existing sensor without reconfiguration?
Yes. The 330500-08-04 is a like-for-like replacement within the Bently Nevada 3300 Series ecosystem. It uses the same connector interface, mounting configuration, and output signal characteristics as the original unit, so no monitor rack reconfiguration is required. Always verify the channel sensitivity setting in the monitor matches the replacement sensor’s rated sensitivity before returning the channel to service.

Q2: What pre-shipment testing is performed on this spare part?
Each 330500-08-04 unit undergoes functional testing prior to dispatch to verify electrical continuity, output signal integrity, and connector condition. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging to ensure they arrive in service-ready condition.

Q3: How should this sensor be stored in a spare parts inventory?
Store the 330500-08-04 in a clean, dry environment away from direct sunlight, extreme temperatures, and strong electromagnetic fields. Keep the unit in its original packaging until installation. Inspect the connector and cable termination annually if the unit remains in long-term storage. Recommended storage temperature: 0°C to 65°C (32°F to 149°F).

Q4: What is the warranty coverage and what does it include?
This spare part is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, or operation outside the specified environmental ratings. For warranty claims or long-term supply agreements, contact our technical sales team directly.
