Bently Nevada 330500-07-02 Retrofit-Compatible Piezo-Velocity Module

Bently Nevada 330500-07-02 Retrofit-Compatible Piezo-Velocity Module: Legacy System Compatibility and Smooth Upgrade Path

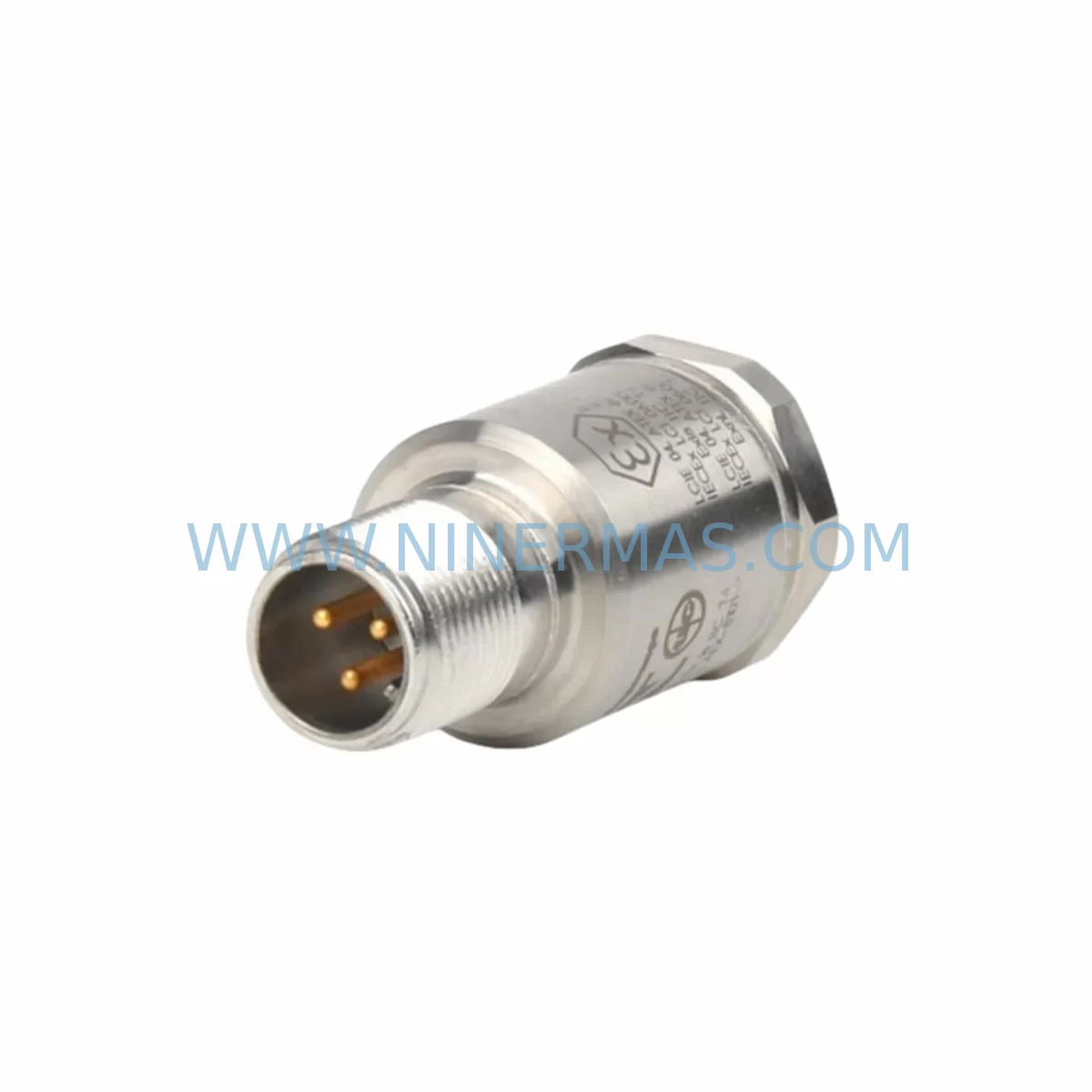

The Bently Nevada 330500-07-02 is a ruggedized piezo-velocity transducer interface module engineered for continuous vibration monitoring in demanding industrial environments. Designed to integrate with the Bently Nevada 3500 Series machinery protection system, this module serves as a direct retrofit-compatible replacement for aging or discontinued velocity monitoring hardware across rotating machinery applications including turbines, compressors, pumps, fans, and gearboxes. At NINERMAS, every 330500-07-02 unit is pre-shipment tested, documented, and backed by a 12-month warranty to support your lifecycle extension and spare parts programs.

Industrial facilities operating legacy Bently Nevada 3500 racks frequently encounter the challenge of sourcing discontinued modules without disrupting ongoing production. The 330500-07-02 addresses this directly — it slots into existing 3500 Series rack backplanes without requiring chassis replacement, preserving your installed infrastructure while restoring full vibration monitoring capability. Whether you are managing a planned outage, responding to an unplanned module failure, or executing a phased control system modernization, this module provides a reliable, field-proven solution with minimal engineering rework.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330500-07-02 within an active 3500 Series machinery protection system requires careful pre-installation planning to avoid configuration loss and unplanned downtime. Before removing the existing module, engineers should document the current slot address, channel configuration, and alert/danger setpoints stored in the 3500 Rack Configuration Software. The 3500/01 Power Supply Module should be verified for adequate current capacity to support the replacement module, particularly in fully populated racks where multiple I/O modules — such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor — are installed alongside the velocity channel.

Terminal wiring at the I/O module’s field terminal assembly (FTA) must be inspected and matched against the original wiring diagram. The 330500-07-02 connects to the transducer via a dedicated FTA; confirm that the FTA model is compatible and that cable shielding is intact to prevent signal noise in high-EMI environments such as motor control centers or variable frequency drive (VFD) enclosures. If the existing FTA is damaged or obsolete, a replacement FTA should be sourced concurrently to avoid a second maintenance window.

For facilities running Bently Nevada System 1 condition monitoring software, the channel configuration for the 330500-07-02 must be re-validated after module swap. System 1 communicates with the 3500 rack via the 3500/92 Communication Gateway Module or the 3500/93 Data Manager; ensure that the gateway’s Modbus register map reflects the correct slot assignment for the new module. If the facility uses a DCS integration — for example, via a Honeywell Experion PKS or Yokogawa CENTUM VP historian — verify that the OPC or Modbus data tags mapped to the velocity channel remain active after the swap.

In multi-rack installations, the 3500/20 Rack Interface Module (RIM) coordinates inter-rack communication; confirm that the RIM firmware version supports the 330500-07-02 and that no firmware update is required before commissioning. For sites where the 3500 rack is integrated with a Siemens S7-300 or ABB AC500 PLC via hardwired relay outputs, test the relay contact continuity and setpoint logic after module replacement to confirm that alarm and trip signals are correctly propagated to the PLC input cards.

Where HMI screens — such as those running on a GE iFIX or Wonderware InTouch SCADA platform — display velocity trend data from the 3500 system, coordinate with the controls team to confirm that the historian tag for the replaced channel continues to log correctly post-commissioning. A brief signal injection test using a calibrated velocity signal simulator is recommended to validate the full signal chain from transducer input through to the DCS or SCADA display before returning the machine to service.

Downtime Control During System Migration

Minimizing production impact during a 330500-07-02 module replacement begins with advance preparation. Schedule the swap during a planned maintenance window aligned with the machine’s lubrication or inspection interval to avoid a dedicated outage. Pre-stage the replacement module, FTA, and any required tools at the control cabinet before the maintenance window opens. Having the 3500 Rack Configuration Software laptop connected and the existing configuration file backed up ensures that setpoint re-entry takes minutes rather than hours.

During the swap, the 3500 rack’s hot-swap capability — where supported by the rack model — allows the velocity module to be removed and replaced without powering down the entire rack, preserving monitoring continuity on adjacent channels such as proximity probe inputs from 3500/25 Keyphasor Modules or temperature inputs from 3500/60 Temperature Monitor Modules. Confirm with the OEM documentation whether your specific rack revision supports hot-swap for the 330500 slot before proceeding.

After insertion, allow the module to complete its self-test sequence before re-enabling alarm outputs. Verify that the OK relay on the 3500/01 Power Supply returns to the healthy state and that System 1 or the local rack display confirms channel OK status. Document the as-left configuration — including alert and danger setpoints, time delay settings, and transducer sensitivity values — in the site’s maintenance management system (CMMS) to support future audits and spare parts planning.

NINERMAS maintains ready stock of the 330500-07-02 to support emergency replacement scenarios with short lead times. All units ship with a test report and are covered by a 12-month warranty, giving maintenance teams confidence that the replacement module will perform reliably from day one of reinstallation.

Retrofit Support FAQ

Q1: Is the 330500-07-02 a direct drop-in replacement for other 330500 series velocity modules?
The 330500-07-02 is designed for the Bently Nevada 3500 Series rack and shares the same backplane connector and slot form factor as other 330500 series variants. However, the “-07-02” suffix denotes a specific configuration (ruggedized, with particular input range and environmental rating). Before installation, confirm that the transducer type, sensitivity, and FTA model match the requirements of your specific application. NINERMAS technical support can assist with cross-reference verification prior to order.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, reconnect the FTA wiring and power the rack. Use the 3500 Rack Configuration Software to re-enter or upload the saved channel configuration, including alert/danger setpoints, time delays, and transducer sensitivity. Perform a signal injection test to verify correct reading across the full measurement range. Confirm OK relay status and validate data transmission to any connected System 1, DCS, or SCADA historian before returning the machine to normal operation.

Q3: Can the 330500-07-02 be used with non-Bently Nevada transducers?
The module is optimized for Bently Nevada piezo-velocity transducers and their specified sensitivity and impedance characteristics. Use with third-party transducers is possible in some cases but requires careful verification of signal compatibility, cable length, and shielding requirements. Consult the module’s technical manual and confirm transducer specifications before substituting non-OEM sensors to avoid measurement errors or module damage.

Q4: What does the 12-month warranty cover, and how does NINERMAS handle warranty claims?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference and a description of the fault. NINERMAS will arrange return shipping and either repair or replace the unit, subject to inspection. Warranty support is available for all units shipped from NINERMAS inventory.
