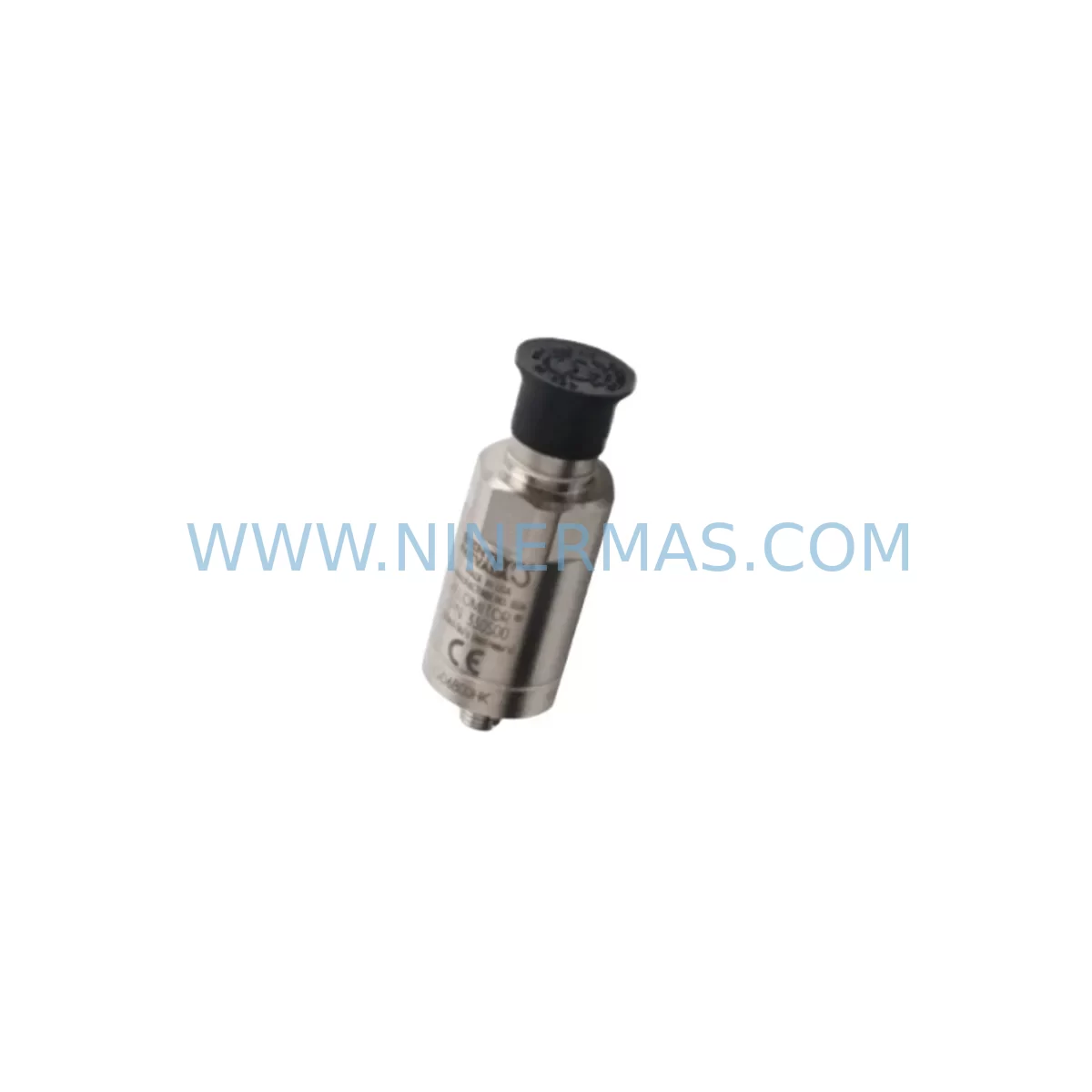

The Bently Nevada 330500-02-CN is an original Velomitor® piezo-velocity transducer engineered for continuous vibration monitoring on rotating machinery in heavy industrial environments. As a direct-fit replacement for aging or failed units within the Bently Nevada 330500 series, this spare part enables maintenance teams to restore machine protection system integrity with minimal downtime. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical asset, the 330500-02-CN delivers the measurement accuracy and mechanical robustness required for reliable operation in turbines, compressors, pumps, motors, and gearboxes.

Procurement engineers sourcing this SKU for long-term supply agreements will find that the 330500-02-CN is fully compatible with Bently Nevada 3500 Series rack-based monitoring systems, including the 3500/42M Proximitor®/Seismic Monitor module. Its broad frequency response and self-generating output eliminate the need for external signal conditioning in most standard installations, reducing cabinet complexity and simplifying commissioning after a field swap.

Maintenance engineers performing fault isolation on a vibration channel should treat the 330500-02-CN replacement as part of a structured loop verification workflow. Before declaring the transducer as the root cause of a high-vibration alarm or a channel fault, the full signal path — from the sensor mounting surface through the interconnecting cable, junction box terminations, and into the monitor input card — must be systematically checked. A failed or intermittent coaxial cable assembly, a corroded terminal block, or a damaged 3500/42M input channel can produce symptoms identical to a defective transducer. Replacing the sensor without verifying these upstream and downstream components risks repeat failures and extended downtime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for any installation using the 330500-02-CN must account for the full measurement chain and the associated control architecture. When scheduling a replacement of this Velomitor transducer, maintenance planners should simultaneously audit the following components to avoid secondary failures that could trigger another unplanned shutdown:

The interconnecting coaxial cable assembly running from the transducer to the junction box is a high-wear item in high-vibration environments. Cable jacket cracking, connector pin corrosion, and shield continuity loss are common failure modes that mimic transducer faults. Stocking a compatible cable assembly alongside the 330500-02-CN is standard practice for critical machinery. Similarly, the junction box terminal blocks and grounding bars should be inspected for oxidation and torque compliance during any sensor swap.

At the rack level, the Bently Nevada 3500/42M Proximitor®/Seismic Monitor input channel should be verified for correct configuration and channel health after installing the replacement transducer. If the 3500 rack also monitors shaft displacement via proximity probes, the associated Bently Nevada 3300 XL 8mm proximity transducer and its 3300 XL extension cable should be included in the inspection scope, as proximity and seismic channels often share the same monitor module and power supply rail.

The 3500 rack power supply module — typically a 3500/15 or 3500/05 — should be checked for output voltage stability and redundancy status. A degraded power supply can introduce noise into all connected transducer channels simultaneously, making it appear as a multi-channel sensor failure. Where redundant power supplies are fitted, both units should be tested under load.

For installations integrated with a DCS or safety instrumented system, the 4–20 mA output signal conditioner or signal isolator downstream of the 3500 rack should be verified for correct scaling and loop integrity. Galvanic isolation between the monitoring rack and the DCS input card prevents ground loop interference that can corrupt vibration trend data. If the plant uses a Bently Nevada System 1 software platform for online machinery diagnostics, the channel configuration and alarm setpoints should be re-validated after the transducer replacement to ensure the new unit’s sensitivity matches the configured full-scale range.

During annual overhauls, it is also advisable to inspect the 3500/20 rack interface module and any 3500/32 relay output modules used for trip and alarm annunciation. Relay contact wear and coil degradation are time-dependent failure modes that are best addressed during planned outages rather than discovered during an emergency. Fuse holders and fuse elements within the 3500 rack should likewise be checked and replaced on a scheduled basis as part of the overall cabinet inspection.

Site Replacement Workflow

Replacing the 330500-02-CN in the field follows a defined sequence to minimize downtime and ensure system compatibility is maintained throughout the process:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number and CN cable variant match the installed drawing. Verify the new transducer’s sensitivity (mV/mm/s) against the 3500/42M channel configuration. Mismatched sensitivity will result in incorrect vibration amplitude readings and may cause nuisance trips or missed alarms.

2. Isolation and Lockout: Follow site LOTO procedures. Isolate the 3500/42M channel in bypass mode via System 1 or the front-panel keyswitch before disconnecting the transducer to prevent spurious trip signals from propagating to the safety system.

3. Physical Swap: Remove the failed transducer, clean the mounting surface, and install the 330500-02-CN to the specified torque. Route the integral cable to the junction box, maintaining the original cable support and separation from high-voltage conductors.

4. Loop Check and Commissioning: Restore the channel from bypass, verify the output signal is within the expected quiescent range, and confirm alarm and trip setpoints are active. Document the as-found and as-left vibration readings in the maintenance management system.

5. Trend Baseline Reset: If the plant uses System 1 for long-term trend analysis, reset the baseline for the replaced channel to establish a new reference for predictive maintenance tracking.

This workflow is applicable to both like-for-like replacements of the 330500-02-CN and cross-series upgrades from older Bently Nevada velocity transducer models. The Velomitor series is designed to be backward-compatible with existing 3500 rack wiring in most standard configurations, reducing the engineering effort required for legacy system upgrades.

Spare Parts Support FAQ

Q1: Is the 330500-02-CN compatible with all Bently Nevada 3500 Series monitor modules?
The 330500-02-CN is primarily designed for use with the 3500/42M Proximitor®/Seismic Monitor. Compatibility with other 3500 series modules depends on the specific input channel type and configuration. Always verify the channel type (seismic vs. proximity) and the configured sensitivity range in the 3500 rack before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What does the “CN” suffix in the part number indicate, and does it affect interchangeability?
The “CN” suffix designates a specific cable length, connector type, or regional variant within the 330500 series. It is important to match the CN variant to the original installation drawing to ensure correct cable routing and connector mating. Substituting a different suffix variant may require field modification of the cable assembly or junction box wiring. We supply the exact CN variant as specified in your purchase order.

Q3: How is the 330500-02-CN tested before shipment, and what warranty coverage applies?
Each unit undergoes functional verification prior to dispatch, including output signal check and physical inspection. All spare parts supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units showing damage from improper installation, overvoltage, or mechanical impact are assessed on a case-by-case basis.

Q4: Can NINERMAS support long-term supply agreements for the 330500-02-CN for multi-site maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply for end-of-life and hard-to-source industrial automation components. We maintain sourcing relationships across multiple supply channels to ensure continuity of supply for critical SKUs including the 330500 series. Blanket purchase orders, consignment stock arrangements, and annual supply contracts are available for procurement teams managing multi-site or multi-unit maintenance programs. Contact our team to discuss your specific inventory requirements.
