Bently Nevada 330500-00-00 Retrofit-Compatible Piezo-Velocity Sensor

Bently Nevada 330500-00-00 Retrofit-Compatible Piezo-Velocity Sensor for Legacy Vibration Monitoring Systems

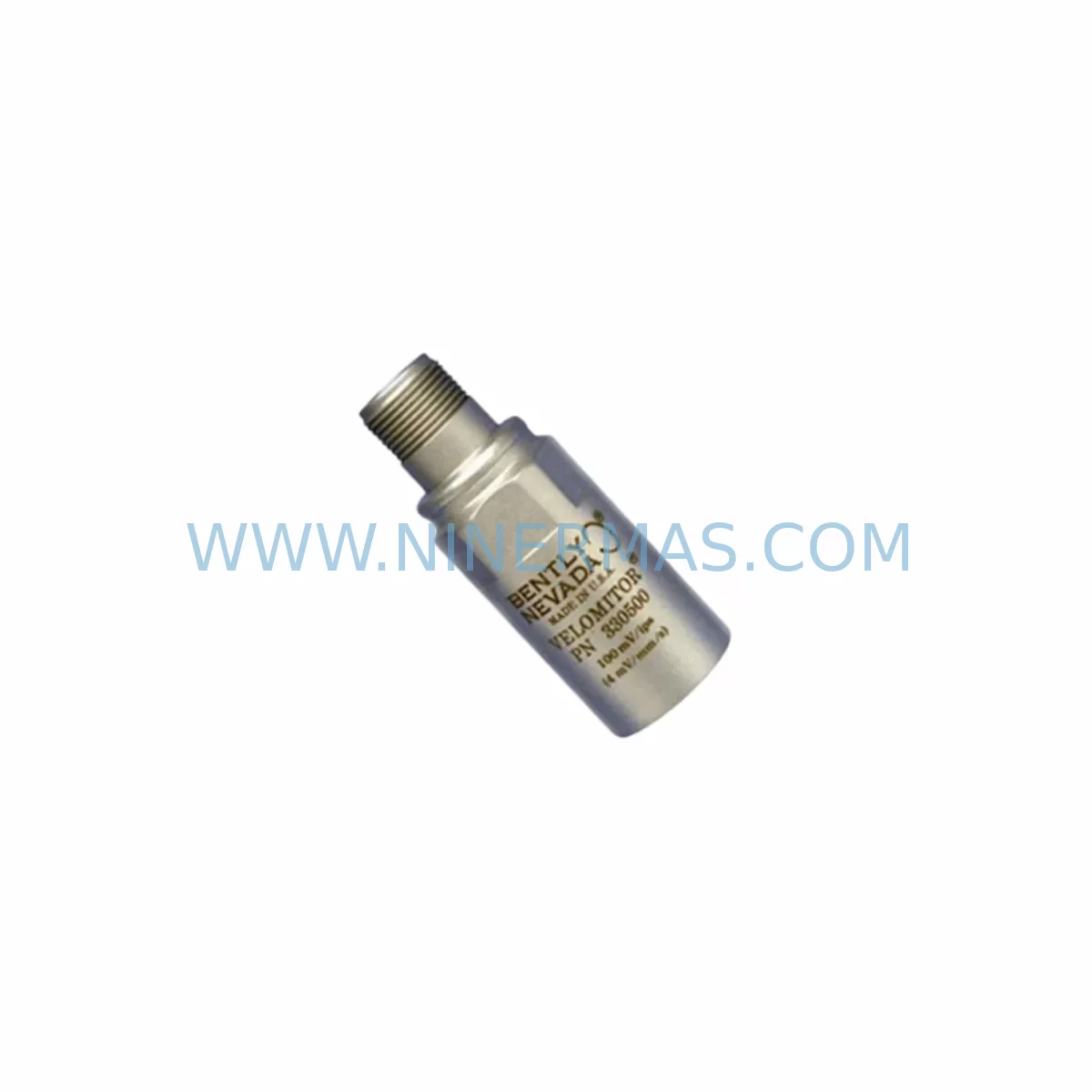

The Bently Nevada 330500-00-00 Velomitor Piezo-Velocity Sensor is a high-performance, retrofit-compatible vibration transducer engineered for seamless integration into existing machinery protection and condition monitoring systems. Designed as a direct replacement for discontinued or end-of-life velocity sensors in legacy Bently Nevada 3300, 3500, and 7200 series monitoring platforms, this sensor delivers reliable velocity output signals without requiring modifications to existing wiring, terminal blocks, or rack-mounted monitor modules. For plant engineers managing aging rotating equipment — including turbines, compressors, pumps, fans, and gearboxes — the 330500-00-00 provides a cost-effective path to extend system life while maintaining full compatibility with installed infrastructure.

The 330500-00-00 outputs a velocity signal in mV/mm/s (or mV/in/s), compatible with the signal conditioning inputs of Bently Nevada 3300 XL 11 mm Proximity Transducer System monitors, 3500/42M Proximitor/Seismic Monitor modules, and legacy 7200 series rack systems. Its wide frequency response range — typically 2 Hz to 1,000 Hz — covers the vibration signatures of most low- to medium-speed rotating machinery, making it suitable for both continuous online monitoring and periodic route-based data collection. The sensor’s integral cable and connector configuration matches the original 330500 series pinout, eliminating the need for field rewiring during replacement.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a Bently Nevada 330500-00-00 in an operating plant requires careful coordination across multiple system layers. Before removing the existing sensor, maintenance engineers should document the current vibration baseline readings from the 3500/42M Proximitor/Seismic Monitor or the 3300 XL monitor module to establish a pre-swap reference. The 3500 rack system’s I/O module assignments and channel configuration should be exported from System 1 software or the 3500 Rack Configuration Utility prior to any hardware change.

Terminal block wiring at the junction box should be photographed and labeled before disconnection. The 330500-00-00 uses a standard coaxial cable assembly; verify that the existing cable run length and routing are compatible with the replacement unit’s integral cable length. If the cable run exceeds the sensor’s integral cable, a Bently Nevada extension cable (such as the 330130 series armored extension cable) may be required to bridge the distance to the monitor rack’s BNC or terminal input.

For plants running Bently Nevada 3500 series racks, the 3500/42M module handles seismic channel inputs and provides both direct and gap voltage outputs. After installing the 330500-00-00, verify the gap voltage reading at the monitor front panel — it should fall within the specified operating range for the channel. If the plant also uses a 3500/22M Transient Data Interface or a 3500/25 Enhanced Keyphasor Module for phase reference, confirm that the new sensor’s signal does not introduce phase offset errors into the overall vibration vector calculation.

Plants operating legacy 7200 series racks may need to verify backplane slot assignments and module address settings before commissioning the replacement sensor. The 7200 series uses a different rack architecture than the 3500 platform; if a parallel migration to the 3500 rack is planned, the 3500/01 Rack Interface Module and 3500/05 Power Supply Module should be staged and tested offline before the cutover window. HMI screens in System 1 Evolution or third-party SCADA platforms (such as those using Modbus TCP or OPC-DA interfaces) should be updated to reflect any channel renaming or tag reassignment resulting from the rack migration.

For facilities also managing proximity probe systems alongside velocity sensors, the Bently Nevada 3300 XL 8 mm Proximity Transducer System (including the 330780 proximitor and 330101 probe) may be installed in adjacent rack slots. Ensure that the new velocity sensor’s cable routing does not create electromagnetic interference with proximity probe cables, particularly in high-voltage motor control cabinet environments. Signal isolation barriers or Bently Nevada 3500/33 16-Channel Relay Module outputs should be verified for correct alarm setpoint configuration after the sensor swap.

If the retrofit is part of a broader control system upgrade — for example, migrating from a legacy DCS to a modern Emerson DeltaV or Honeywell Experion platform — the 330500-00-00’s analog output can be wired directly into the new system’s AI (Analog Input) module without protocol conversion. However, if the plant is transitioning to a digital fieldbus architecture (FOUNDATION Fieldbus or PROFIBUS PA), a signal conditioner or fieldbus adapter will be required to convert the sensor’s mV velocity output to a digital process value. In such cases, a Pepperl+Fuchs or MTL signal isolator/converter is commonly used as an intermediate device during the migration phase.

Downtime Control During System Migration

Minimizing unplanned downtime during a Bently Nevada 330500-00-00 replacement is achievable with structured pre-outage preparation. The recommended approach is to perform all pre-installation checks — cable continuity, terminal labeling, monitor channel configuration backup, and spare sensor pre-testing — during normal operation, so that the actual sensor swap can be completed within a single planned maintenance window, typically two to four hours for a single-channel replacement.

Before the outage window opens, the replacement 330500-00-00 should be bench-tested using a Bently Nevada 330500 series test fixture or a calibrated vibration shaker to verify output sensitivity and frequency response. This pre-shipment functional test, which is performed on every unit supplied by NINERMAS, confirms that the sensor meets OEM specification before it reaches the field, reducing the risk of a failed installation during a critical maintenance window.

During the swap, the 3500/42M monitor channel should be placed in bypass mode to prevent spurious alarms from triggering protective shutdowns while the sensor is disconnected. After reconnection, restore the channel from bypass, verify the gap voltage and direct vibration readings, and compare against the pre-swap baseline. If System 1 software is in use, confirm that the historian is logging the new channel data correctly before closing the work order. For plants with redundant monitoring channels, the second channel can remain active throughout the swap, maintaining continuous protection on the monitored machine train.

Original program logic in the 3500 rack — including alarm setpoints, danger setpoints, and time-delay settings stored in the 3500/42M module — is preserved during a sensor replacement and does not require reprogramming. This is a key advantage of a direct drop-in replacement: the control system’s protective logic remains intact, and the only field verification required is the sensor output level check and a functional alarm test.

Retrofit Support FAQ

Q1: Is the 330500-00-00 a direct replacement for the original Bently Nevada Velomitor sensor?
Yes. The 330500-00-00 is a direct drop-in replacement for the original Bently Nevada Velomitor Piezo-Velocity Sensor. It matches the original connector pinout, mounting thread, and output signal specification, requiring no wiring changes or monitor reconfiguration. It is compatible with 3500/42M, 3300 XL, and 7200 series monitor modules.

Q2: What commissioning steps are required after installation?
After installing the 330500-00-00, verify the gap voltage reading on the 3500/42M monitor channel front panel and confirm it falls within the specified operating window. Perform a zero-span check if the monitor module supports it. Compare the direct vibration reading against the pre-swap baseline. If System 1 software is in use, confirm historian data logging is active on the channel. No reprogramming of alarm or danger setpoints is required for a direct replacement.

Q3: Does NINERMAS perform pre-shipment testing on the 330500-00-00?
Yes. Every 330500-00-00 unit supplied by NINERMAS undergoes pre-shipment functional testing to verify output sensitivity, frequency response, and connector integrity before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the lead time and stock availability for the 330500-00-00?
NINERMAS maintains stock inventory of the 330500-00-00 to support urgent replacement and planned maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For bulk orders or long-term supply agreements supporting lifecycle extension programs, please contact our sales team to discuss committed stock arrangements and pricing.
