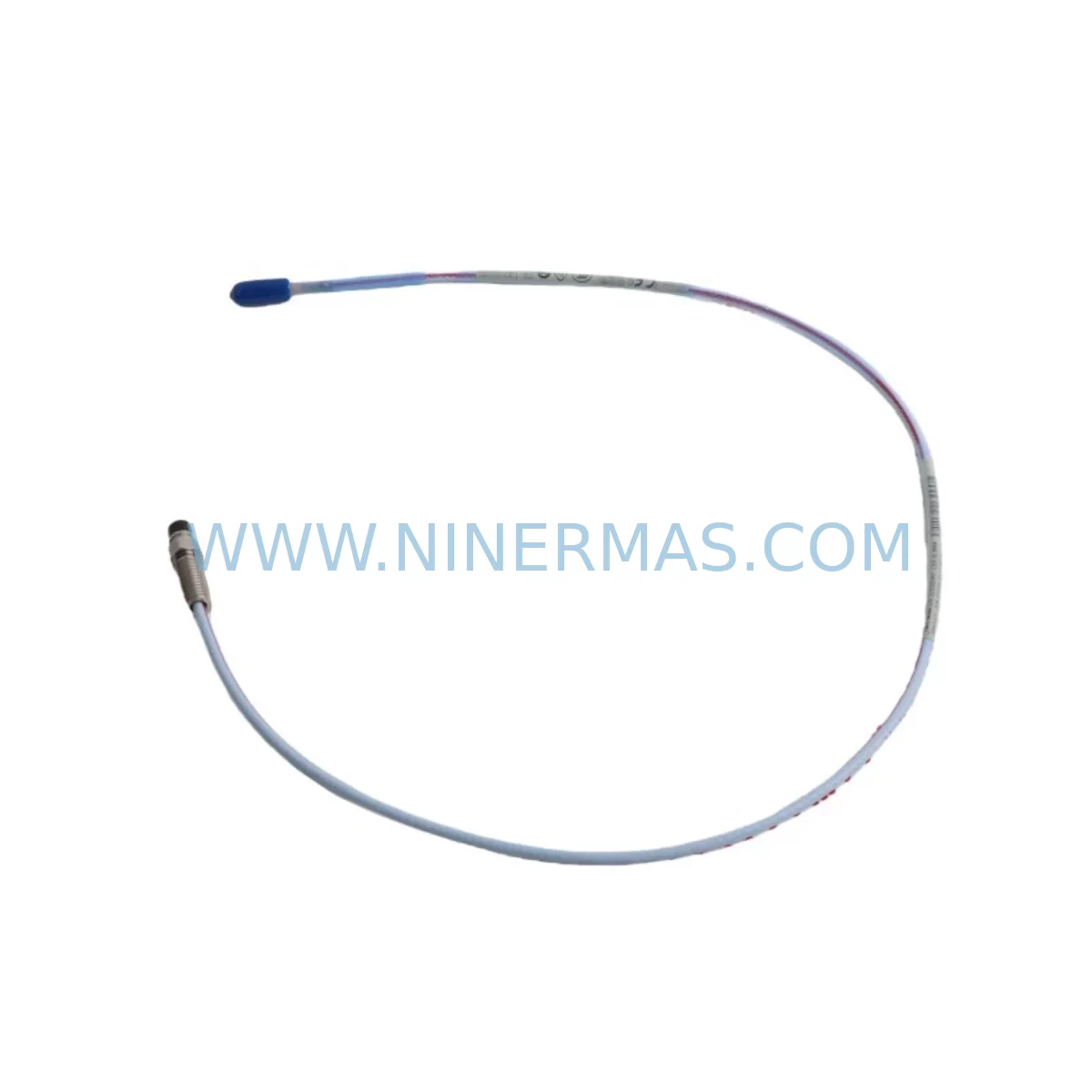

Bently Nevada 330195-02-12-05-CN Retrofit Proximity Transducer

Bently Nevada 330195-02-12-05-CN Retrofit-Compatible Proximity Transducer for Legacy 3300 Series Systems

The Bently Nevada 330195-02-12-05-CN is an eddy-current proximity transducer engineered for the 3300 Series vibration monitoring platform. Designed for retrofit-compatible deployment in aging industrial control environments, this unit delivers reliable shaft displacement and radial vibration measurement without requiring full system replacement. With a 5-metre integral cable, 8 mm tip diameter, and standard -24 VDC bias voltage output, the 330195-02-12-05-CN integrates directly into existing 3300 Series monitor racks, making it the preferred choice for maintenance engineers managing legacy rotating machinery protection systems in petrochemical, power generation, and heavy processing facilities.

As original Bently Nevada 3300 Series hardware approaches end-of-life and spare parts become increasingly scarce, the 330195-02-12-05-CN provides a verified retrofit path that preserves existing wiring infrastructure, monitor configurations, and alarm setpoints. Procurement teams and reliability engineers can source this transducer as a direct drop-in replacement for worn or failed units, eliminating the need for costly full-system upgrades during unplanned shutdowns. NINERMAS maintains in-stock inventory of the 330195-02-12-05-CN with pre-shipment functional testing and a 12-month warranty on every unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or degraded proximity transducer in a live rotating machinery protection system demands careful pre-outage planning. When the 330195-02-12-05-CN is identified as the replacement unit, the first step is to audit the existing wiring from the transducer junction box back to the 3300/16 Radial Vibration Monitor or 3300/20 Dual Vibration Monitor card in the rack. Confirm that the existing three-conductor shielded cable is intact and that the shield drain is grounded only at the monitor end to avoid ground loops that corrupt vibration readings.

The 330180 Proximitor Sensor (driver module) is a critical companion component in this retrofit. If the 330195-02-12-05-CN is being installed as part of a broader system refresh, inspect the 330180 for signs of moisture ingress or connector corrosion, as a degraded driver will produce erratic bias voltage even with a new transducer installed. Similarly, verify the 3300/55 Power Supply output is within specification — insufficient supply voltage is a common root cause of false OK relay trips during post-replacement commissioning.

For facilities running multiple measurement points, the 3300/25 Keyphasor Module should be confirmed operational before finalizing the transducer swap, as phase reference data is essential for orbit plot analysis and balancing work. If the control system interfaces with a System 1 Condition Monitoring Software workstation, update the channel configuration to reflect the new transducer serial number and confirm that the database tag mapping remains consistent with the DCS historian.

In control cabinets where space is constrained, the 3300 Series Rack backplane wiring should be inspected for chafing or loose terminal connections at the 3300/93 Termination Module. Loose terminations at this point are frequently misdiagnosed as transducer failures. When the 330195-02-12-05-CN is installed alongside a 3300/46 Overspeed Detection Module in the same rack, confirm that the rack power budget is not exceeded — add the new transducer’s quiescent current draw to the existing load calculation before energising.

For sites migrating from older 7200 Series transducer systems to the 3300 platform, note that the 330195-02-12-05-CN uses a different connector and cable standard. A 330130 Extension Cable with the correct field-end connector may be required to bridge the distance from the existing conduit entry point to the new transducer mounting location. Document all as-built cable lengths and gap measurements in the site maintenance management system before returning the machine to service.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity transducer replacement on a critical rotating machine requires a structured outage window plan. Before the machine is taken offline, pre-stage the 330195-02-12-05-CN alongside all required tools: a calibrated gap-setting gauge, a digital multimeter for bias voltage verification, the original 3300 Series wiring diagram, and a copy of the current alarm and danger setpoints from the monitor configuration.

Where the control system permits, place the affected monitor channel into bypass mode using the 3300/16 front-panel bypass switch before disconnecting the old transducer. This prevents a spurious danger alarm from triggering an emergency shutdown of adjacent machinery sharing the same protection logic. Confirm with the control room that the bypass is acknowledged in the DCS and that a time-limited bypass permit is in place per site safety procedures.

Once the 330195-02-12-05-CN is mechanically installed and the gap is set to the target value (typically 1.0–1.25 mm), reconnect the cable to the junction box and verify the bias voltage at the monitor terminal strip before releasing the bypass. A reading of -10 VDC to -18 VDC at the gap setpoint confirms correct installation. If the bias voltage is outside this range, re-check the gap, inspect the cable continuity, and verify the 330180 driver supply voltage before escalating to a component fault diagnosis.

The entire transducer swap — from machine stop to monitor bypass release — can typically be completed within a two-hour maintenance window when all components are pre-staged and the wiring documentation is current. NINERMAS ships the 330195-02-12-05-CN with a pre-shipment functional test report, allowing site engineers to confirm the unit’s bias voltage and sensitivity characteristics before the outage begins, further reducing on-site commissioning risk.

Retrofit Support FAQ

Q1: Is the 330195-02-12-05-CN a direct drop-in replacement for other 330195 variants?
The 330195-02-12-05-CN is directly interchangeable with other 330195-02 series variants sharing the same 8 mm tip diameter and 5 m cable length. Variants with different cable lengths (e.g., -03 for 3 m, -09 for 9 m) are not dimensionally interchangeable without adjusting the extension cable arrangement. Always confirm the cable length suffix before ordering to avoid a mismatch at the junction box.

Q2: What commissioning checks are required after installation?
After mechanical installation, verify the air gap using a feeler gauge or the monitor’s DC output reading. Confirm bias voltage at the monitor terminal strip is within the -10 VDC to -18 VDC window at the target gap. Check the OK relay output is energised and that the vibration reading is stable and consistent with baseline data. Update the site CMMS with the new transducer serial number and installation date.

Q3: Does NINERMAS provide pre-shipment testing for the 330195-02-12-05-CN?
Yes. Every 330195-02-12-05-CN unit shipped by NINERMAS undergoes pre-shipment functional testing covering bias voltage output, sensitivity verification, and cable continuity. A test report is included with each shipment. Units are covered by a 12-month warranty from the date of shipment, with direct technical support available from our engineering team.

Q4: Can this transducer be used with non-Bently Nevada monitor systems?
The 330195-02-12-05-CN outputs a standard eddy-current analog signal compatible with any monitor accepting a -24 VDC bias, 200 mV/mil sensitivity input. It can be integrated with third-party vibration monitors that meet these input specifications, though NINERMAS recommends verifying the target monitor’s input impedance and power supply compatibility before installation. For mixed-platform retrofits, consult our technical team for application-specific guidance.
