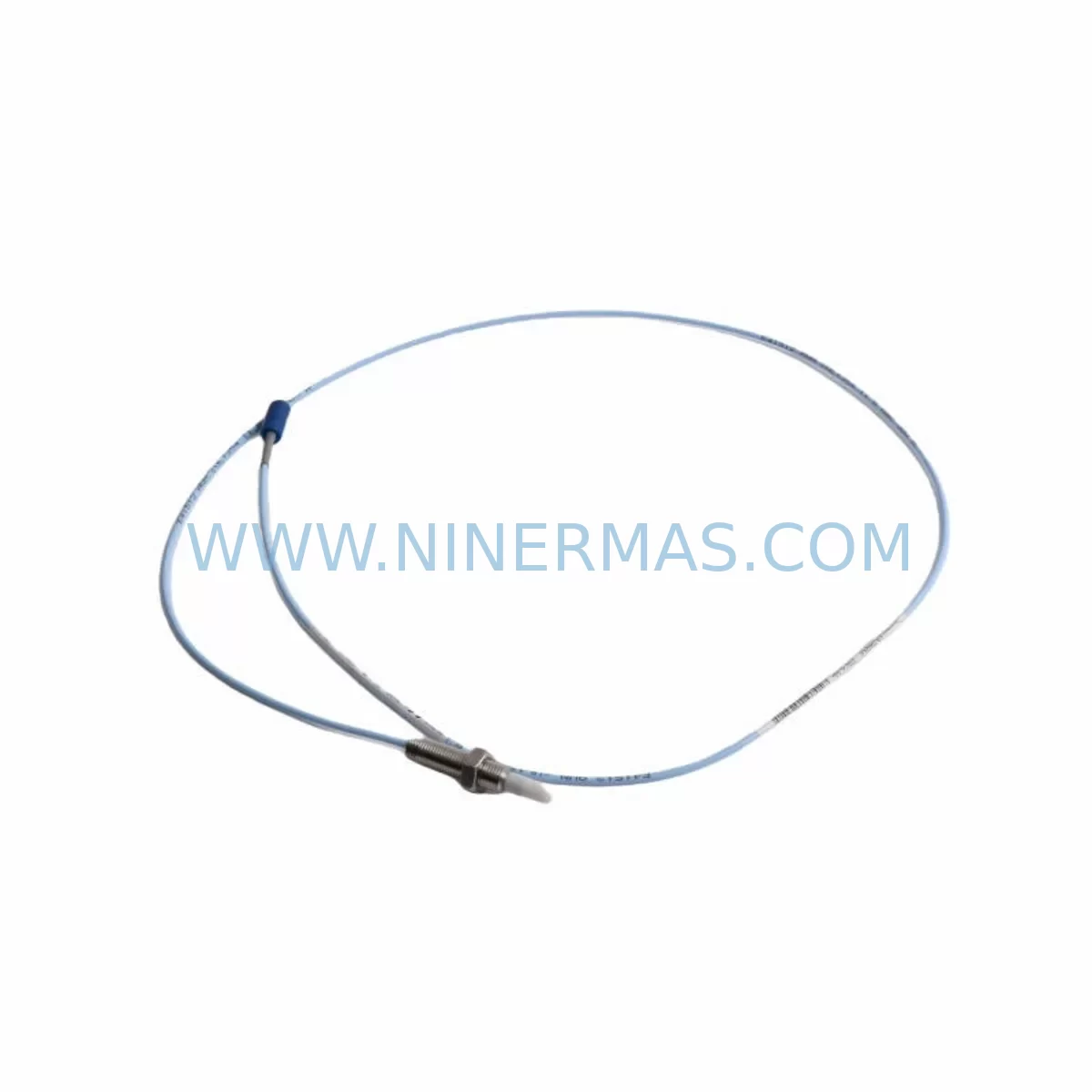

The Bently Nevada 330192-00-60-10-00 is a retrofit-compatible proximity transducer system engineered for seamless integration into aging industrial automation platforms. As a direct replacement for discontinued or end-of-life vibration monitoring components, this unit supports legacy control architectures found across rotating machinery protection systems, turbine monitoring panels, and critical process control cabinets. Whether you are managing a planned upgrade or responding to an unplanned failure, the 330192-00-60-10-00 delivers the electrical and mechanical compatibility required to restore system integrity with minimal disruption.

Designed within the Bently Nevada 3300 Series ecosystem, this proximity transducer system operates as a complete eddy-current sensing solution comprising the probe, extension cable, and proximitor sensor. The 330192-00-60-10-00 maintains the standard 200 mV/mil output sensitivity and operates across the -24 VDC power supply range consistent with legacy 3300 XL and earlier 3300 Series monitor racks. Engineers replacing failed or obsolete units should verify the existing proximitor mounting configuration, terminal block wiring assignments, and gap voltage settings before installation to ensure continuity of the original vibration alarm and trip setpoints.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330192-00-60-10-00 into an existing plant automation environment requires a structured approach that accounts for both the mechanical installation and the upstream signal chain. In most legacy turbine protection panels, the proximity transducer system feeds directly into a Bently Nevada 3300 XL 8mm Proximitor Monitor or a 3500/40M Proximitor/Seismic Monitor module housed in a 3500 Series rack. Before removing the failed unit, technicians should document the existing gap voltage reading, terminal block wiring labels, and any jumper or DIP switch settings on the monitor card that define the alarm and danger thresholds.

In control cabinets where the 3300 Series rack shares a backplane with other I/O modules — such as a Bently Nevada 3500/20 Rack Interface Module or a 3500/22M Transient Data Interface — care must be taken to isolate only the affected channel during replacement. The rack’s modular architecture allows hot-swap of individual monitor cards in some configurations, but the transducer itself requires a brief process hold or bypass activation to avoid spurious trips during the gap re-establishment procedure.

For plants migrating from older 3300 Series infrastructure toward the 3500 platform, the 330192-00-60-10-00 remains fully compatible with both generations, making it an ideal bridging component during phased upgrades. If the migration plan includes introducing a Bently Nevada 3500/42M Proximitor/Seismic Monitor or expanding I/O through a 3500/32 4-Channel Relay Module, the existing transducer wiring and conduit runs can typically be reused without modification, reducing both material cost and installation time.

Where communication protocol migration is part of the upgrade scope — for example, transitioning from hardwired relay outputs to Modbus RTU or Ethernet/IP via a Bently Nevada 3500 System 1 Gateway — the analog output of the 330192-00-60-10-00 remains the primary signal source and is unaffected by the protocol layer changes at the monitor level. This separation of the sensing layer from the communication layer simplifies validation and reduces the risk of introducing new failure modes during the migration window.

Technicians should also confirm the compatibility of the existing Bently Nevada 330130 Extension Cable or equivalent if the original cable is being reused. Impedance mismatches between probe, extension cable, and proximitor can shift the linear range and affect gap voltage calibration. In installations where the extension cable runs through high-EMI environments — near variable frequency drives, large motor starters, or transformer bays — shielded cable continuity and grounding integrity should be verified as part of the pre-commissioning checklist.

For control systems that incorporate a Bently Nevada 3300/55 Dual Voting Logic or similar redundant voting architecture, replacing one channel of a dual-channel pair requires careful coordination to maintain the voting logic integrity. The replacement 330192-00-60-10-00 should be gapped and verified on the bench before installation where possible, using a calibrated target material matching the shaft material in service, to minimize the on-site commissioning window and reduce exposure to unprotected operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a proximity transducer system in a live production environment. The 330192-00-60-10-00 supports a structured replacement methodology that protects the original program logic and maintains field control continuity throughout the swap procedure.

The recommended approach begins with activating the monitor bypass function on the affected channel within the 3300 or 3500 Series rack before disconnecting the failed transducer. This prevents the monitor from issuing a spurious danger trip to the plant DCS or safety PLC during the physical replacement. Once the bypass is confirmed active and logged in the maintenance management system, the probe can be safely removed from the bearing housing, the extension cable disconnected at the junction box, and the proximitor sensor released from its mounting.

Installation of the replacement 330192-00-60-10-00 follows the reverse sequence. After mechanical installation and wiring reconnection — verifying terminal polarity and shield grounding at both the junction box and the proximitor input terminals — the gap voltage must be measured and adjusted to the target value specified in the original machine train documentation. Typical target gap voltages for 8mm probes fall in the range of -9.5 VDC to -10.5 VDC at nominal air gap, but the machine-specific setpoint should always take precedence.

Once gap voltage is confirmed within tolerance, the bypass is released and the channel is returned to normal monitoring mode. The entire replacement sequence, when pre-planned with the correct spare on hand, can typically be completed within a two- to four-hour maintenance window, preserving the original alarm and trip logic without requiring any changes to the monitor configuration or the upstream DCS historian tags. All units supplied by NINERMAS are functionally tested prior to shipment and include a test certificate, supporting rapid confidence verification upon receipt and reducing the on-site commissioning burden.

Retrofit Support FAQ

Q1: Is the 330192-00-60-10-00 a direct drop-in replacement for other 330192 suffix variants?
The 330192 family shares a common probe body and output sensitivity standard, but suffix codes define cable length, connector type, and temperature rating. The -00-60-10-00 suffix specifies a 60-inch integral cable and 10-foot extension. Before ordering, confirm that the cable lengths match your installation geometry. If the existing installation uses a different suffix, the proximitor and monitor configuration may still be compatible, but physical cable routing must be verified on site.

Q2: What wiring checks are required before powering up the replacement unit?
Verify the -24 VDC supply voltage at the proximitor input terminals before connecting the transducer. Confirm that the shield drain wire is grounded at one end only (typically at the proximitor end) to avoid ground loops. Check terminal block torque values against the rack documentation and inspect for any corrosion or contamination on the connector pins that may have contributed to the original failure.

Q3: Can this unit be used with a 3500 Series monitor rack without modification?
Yes. The 330192-00-60-10-00 is compatible with 3500 Series Proximitor Monitor inputs, including the 3500/40M and 3500/42M modules, provided the monitor is configured for the 200 mV/mil sensitivity standard. No hardware modification to the monitor card is required. Confirm the monitor’s transducer type configuration via the Rack Configuration Software (RCS) before commissioning.

Q4: What does the 12-month warranty cover, and what is the lead time?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional performance against the original Bently Nevada specification. Each unit is functionally tested and ships with a test certificate. Stock availability is maintained for immediate dispatch; lead time for in-stock units is typically 3–7 business days depending on destination. Contact our sales team for current inventory status and expedited shipping options.
