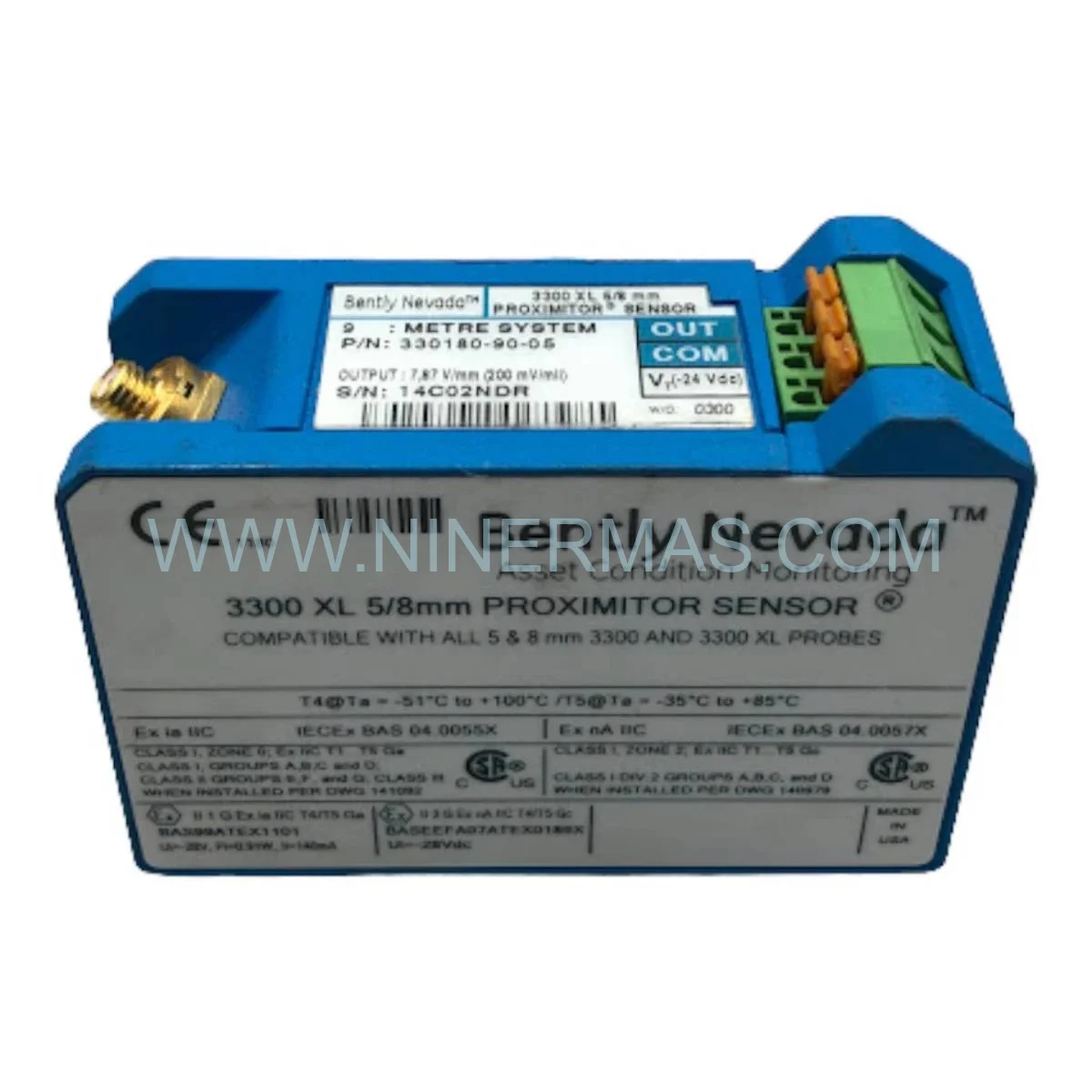

Bently Nevada 330180-90-05 Proximitor Sensor | Retrofit & Upgrade Solution

Bently Nevada 330180-90-05 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across power generation and petrochemical facilities, the Bently Nevada 330180-90-05 stands out as a cornerstone component in any machinery protection modernization initiative. This 3300 XL Series proximitor sensor delivers the measurement precision and signal integrity required to breathe new life into aging vibration monitoring architectures — extending asset operational lifespan while dramatically reducing unplanned downtime risk. Its role in performance enhancement is not merely incremental; it represents a fundamental shift from reactive maintenance to predictive, data-driven asset management.

The Bently Nevada 330180-90-05 is engineered with backward compatibility at its core, making it an ideal retrofit candidate for facilities still operating legacy Bently Nevada 3300 Series frameworks. Whether you are migrating from first-generation eddy-current sensor arrays or consolidating fragmented monitoring nodes into a unified DCS backbone, this component slots into existing conduit pathways and signal chains with minimal re-engineering overhead. Its -200 mV/mil output sensitivity aligns precisely with established 3300 XL calibration baselines, eliminating the need for costly signal conditioning adapters during system migration.

From a total cost of migration perspective, deploying the 330180-90-05 as part of a phased retrofit strategy significantly de-risks the transition from obsolete hardware to modern industrial network architectures. Rather than forcing a full system cutover — with its associated production downtime and capital expenditure spikes — this component enables incremental modernization, preserving existing wiring infrastructure while delivering measurable performance gains at each upgrade milestone.

Upgrade Highlights & Compatibility

• ✅ Seamless Legacy Integration: Direct drop-in replacement for 3300 XL Series sensor positions — no signal chain reconfiguration required
• Enhanced Measurement Accuracy: 0-10 kHz frequency response captures high-speed shaft dynamics missed by older sensor generations
• ✅ Future-Proof Architecture: Compatible with both legacy 3300 monitoring racks and modern Bently Nevada System 1 software platforms
• Harsh Environment Resilience: Rated -40°C to +85°C operating range — sustains performance in steam turbine halls, offshore platforms, and desert installations
• ✅ Reduced Migration Risk: Factory-calibrated output eliminates field calibration variables during system cutover windows
• Hardware Upgrade Efficiency: 5-meter integrated cable preserves existing conduit routing, minimizing civil works during retrofit execution

Modernization Use Cases & Success Stories

DCS Integration — Gas Turbine Overhaul Program: A combined-cycle power plant operating aging GE Frame 7 turbines required vibration monitoring modernization without full DCS replacement. By deploying the 330180-90-05 across 24 bearing measurement points, the facility achieved seamless integration with their existing Emerson DeltaV DCS via 4-20 mA signal conditioning — delivering real-time shaft orbit data to the control room without a single process interruption. The retrofit reduced false-trip incidents by eliminating sensor drift endemic to the previous 15-year-old sensor population.

TSI System Upgrade — Petrochemical Compressor Train: A refinery operating a critical ethylene compressor train faced an EOL (End-of-Life) declaration on their original proximitor sensor fleet. Rather than replacing the entire Turbine Supervisory Instrumentation (TSI) rack, the engineering team executed a targeted hardware upgrade using the 330180-90-05. The component’s identical mechanical footprint and electrical interface enabled a 72-hour planned shutdown replacement across 18 measurement channels — versus the 3-week outage originally estimated for a full rack replacement. Performance enhancement was immediate: vibration baseline noise floor dropped by 18%, improving early fault detection sensitivity.

Legacy Compatibility — Offshore Platform Life Extension: An offshore production platform with a 20-year-old machinery protection system required a 10-year life extension without platform-wide automation upgrades. The 330180-90-05’s robust construction and wide temperature tolerance made it the preferred retrofit solution for bearing monitoring on seawater injection pumps and gas compression modules — environments where sensor reliability directly impacts production continuity.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | Complete Part Number | 330180-90-05 | | Product Series | Bently Nevada 3300 XL Proximitor | | Lifecycle Status | Active — Current Production | | Output Sensitivity | -200 mV/mil (-7.87 V/mm) nominal | | Frequency Response | 0 to 10,000 Hz | | Operating Temperature | -40°C to +85°C (-40°F to +185°F) | | Integrated Cable Length | 5 meters (16.4 ft) | | Legacy System Compatibility | 3300 XL Series monitoring racks | | Modern Platform Compatibility | Bently Nevada System 1, DCS 4-20 mA interfaces | | Retrofit Drop-In Fit | Yes — identical mechanical and electrical interface | | Factory Calibration | Yes — pre-calibrated, no field adjustment required | | Weight | 0.246 kg | | Country of Origin | USA | | Condition | Brand New, Factory Sealed | | Warranty | 12 Months |

Supply Chain & Deployment Support

• Original & Factory Sealed: Every 330180-90-05 unit ships in original Bently Nevada packaging with full manufacturer traceability documentation — critical for regulated industries requiring component certification records
• Expedited Global Logistics: In-stock inventory enables same-day dispatch to support emergency retrofit timelines. Express freight options available to all major industrial hubs across Asia-Pacific, Middle East, Europe, and the Americas
• Technical Support for Legacy Hardware: Our industrial automation specialists provide pre-installation compatibility verification, wiring diagram review, and post-installation commissioning guidance — particularly valuable for teams executing first-time 3300 XL retrofits without OEM field service access
• Obsolete Hardware Advisory: For facilities managing mixed fleets of active and EOL Bently Nevada components, we provide migration roadmap consultation to prioritize retrofit sequencing and minimize total system risk exposure

Retrofit FAQ — Upgrade Guide

Q1: Will the 330180-90-05 physically fit into my existing sensor mounting positions without modification?
Yes. The 330180-90-05 maintains the standard 3300 XL Series mechanical envelope, including thread specification and probe body diameter. In the vast majority of retrofit scenarios, the sensor installs directly into existing proximity probe holders without machining or adapter hardware. Verify your existing gap voltage and target material before installation to confirm calibration alignment.

Q2: How does the 330180-90-05 communicate with older 3300 Series monitoring racks versus modern DCS platforms?
The sensor outputs a standard -200 mV/mil analog signal compatible with all 3300 XL Series monitor inputs. For modern DCS integration, the signal is typically conditioned through a 4-20 mA transmitter or directly interfaced via Bently Nevada System 1 software using existing I/O modules. No firmware changes or protocol converters are required for legacy rack installations.

Q3: What is the recommended replacement strategy if my current sensor fleet is approaching EOL?
A phased retrofit approach is recommended: prioritize sensors on critical machinery (turbines, compressors) in the first phase, followed by balance-of-plant equipment. The 330180-90-05’s active production status ensures long-term spare parts availability, making it a reliable anchor component for 10+ year asset life extension programs.

Q4: Can the 330180-90-05 serve as a direct substitute for other 330180-series variants in my system?
The 330180-90-05 is specifically configured with a 5-meter cable and standard sensitivity output. While it shares the same probe body and thread specification as other 330180-series variants, cable length and sensitivity ratings must be matched to your monitor’s configuration. Consult your 3300 XL monitor documentation or contact our technical team to confirm cross-compatibility before substitution.

Q5: What documentation is provided to support regulatory compliance during a retrofit project?
Each unit ships with the original Bently Nevada product datasheet, calibration certificate, and country-of-origin documentation. For facilities subject to API 670 machinery protection standards or ISO 13373 condition monitoring requirements, these documents support the audit trail required for retrofit project sign-off.

Q6: How quickly can replacement units be sourced for an emergency unplanned outage?
In-stock units are available for same-day dispatch. For critical plant emergencies, contact our team directly for expedited freight coordination — we regularly support 24-48 hour door-to-site delivery to major industrial regions globally.
