Bently Nevada 330180-52-05 Safety-Reliable Proximity Transducer

Bently Nevada 330180-52-05 Safety-Reliable Proximity Transducer for Critical Control Sites

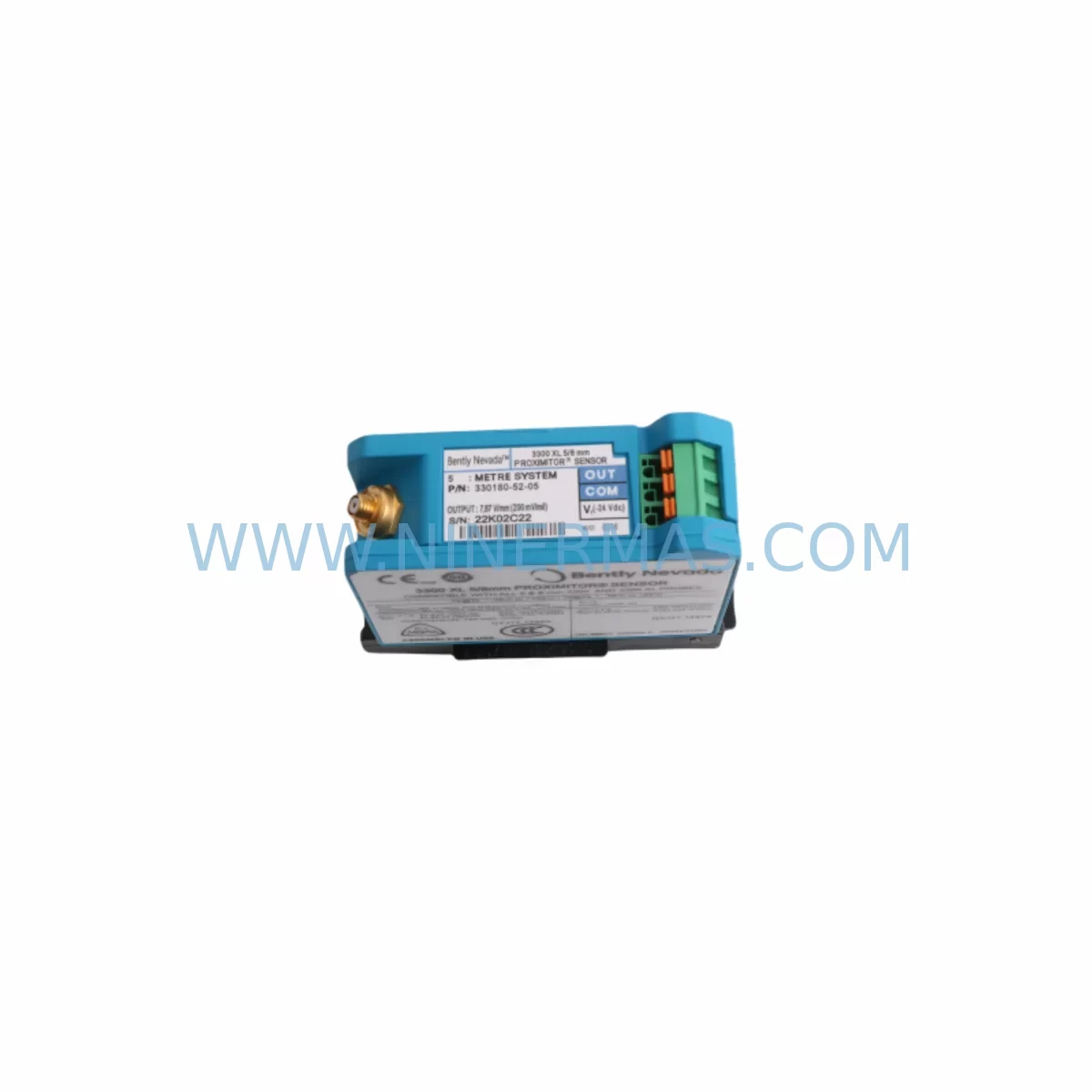

The Bently Nevada 330180-52-05 is a ruggedized proximity transducer module engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to integrate seamlessly into Bently Nevada’s 3300 Series monitoring architecture, this module delivers high-accuracy, non-contact displacement measurement that is essential for protecting rotating machinery, safeguarding personnel, and maintaining uninterrupted production across petrochemical, power generation, mining, water treatment, metallurgical, port, and marine applications.

In critical control cabinets where electromagnetic interference, voltage transients, and mechanical vibration are constant threats, the 330180-52-05 provides a stable, low-drift signal output that feeds directly into safety interlock loops and machinery protection systems. Its ruggedized construction resists moisture ingress, particulate contamination, and thermal cycling — conditions that routinely cause signal drift, false trips, and unplanned shutdowns in lesser transducer designs. By maintaining signal integrity under these stresses, the module actively reduces the risk of control loop interruption, spurious actuator response, and costly non-scheduled downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A robust machinery protection architecture built around the Bently Nevada 330180-52-05 proximity transducer module depends on a carefully coordinated ecosystem of complementary components. In a typical critical control cabinet, the transducer signal is conditioned by a Bently Nevada 3300 XL 8mm Proximitor Sensor, which converts the raw eddy-current signal into a calibrated voltage output suitable for the monitoring rack. This signal then feeds into a Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which performs real-time vibration analysis, alarm management, and relay-driven trip outputs to the safety interlock system.

To protect the entire monitoring chain from power-line disturbances, surge events, and voltage sags — all of which can corrupt vibration readings or cause nuisance trips — a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply with integrated SFB (Selective Fuse Breaking) technology is recommended as the cabinet power backbone. Upstream of the power supply, a Weidmüller WPM 4 surge protection device clamps transient overvoltages before they reach sensitive signal conditioning electronics.

For the safety interlock relay layer, Pilz PNOZ X3 safety relays provide dual-channel, force-guided contact monitoring that meets PLd / SIL 2 requirements, ensuring that a trip signal from the 3500 monitor results in a deterministic, fail-safe actuator response. In high-EMI environments such as variable-frequency drive (VFD) rooms or arc furnace bays, Belden 9182 shielded instrumentation cable is the preferred interconnect between the proximitor and the monitor rack, minimizing capacitive coupling and ground loop interference that would otherwise introduce signal noise into the displacement measurement.

Where the control cabinet also hosts a Rockwell Automation 1756-EN2T EtherNet/IP communication module for DCS integration, proper cable segregation and ferrite bead filtering on the proximitor cable shield terminations are essential to prevent high-frequency noise from the Ethernet bus from coupling into the analog vibration signal path. Additionally, a Bently Nevada 3500/22M Transient Data Interface module can be added to the rack to capture high-resolution waveform data during startup and coast-down events, providing the engineering team with actionable diagnostics for predictive maintenance decisions.

Finally, cabinet thermal management — achieved through Rittal SK 3105 thermostat-controlled fan units — ensures that the 330180-52-05 module and its associated electronics operate within their rated temperature envelope even in high-ambient-temperature plant rooms, preventing thermal-induced signal drift and extending component service life.

Critical Industrial Safety Applications

The Bently Nevada 330180-52-05 proximity transducer module is deployed across a wide spectrum of safety-critical industrial sectors where rotating machinery reliability is non-negotiable:

Petrochemical & Refinery: Installed on centrifugal compressor trains, reactor feed pumps, and crude distillation column overhead compressors, the 330180-52-05 provides continuous shaft displacement monitoring that feeds API 670-compliant machinery protection systems. Early detection of rotor instability, oil whirl, or bearing wear prevents catastrophic seal failures and hydrocarbon releases.

Power Generation: Steam turbine and gas turbine generator sets rely on proximity transducer arrays to monitor shaft eccentricity, differential expansion, and thrust position. The ruggedized construction of the 330180-52-05 withstands the high-temperature, high-vibration environment of turbine bearing pedestals, where standard transducers frequently fail prematurely.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, water spray, and structural vibration. The sealed, ruggedized housing of the 330180-52-05 maintains measurement accuracy in these conditions, supporting predictive maintenance programs that reduce unplanned mill stoppages.

Water & Wastewater Treatment: High-service pumping stations and blower trains in water treatment facilities require continuous vibration monitoring to comply with operational reliability standards. The 330180-52-05 integrates into existing Bently Nevada monitoring racks without modification, simplifying spare parts management for plant maintenance teams.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower compressors present severe electromagnetic interference from large motor drives and induction heating systems. The low-impedance, shielded signal architecture of the 330180-52-05 maintains signal fidelity in these high-EMI environments.

Port & Marine: Shipboard propulsion systems, bow thrusters, and cargo pump turbines require vibration monitoring equipment that tolerates salt-laden air, humidity, and vessel motion. The ruggedized design of the 330180-52-05 meets the environmental demands of marine machinery spaces, supporting classification society compliance.
