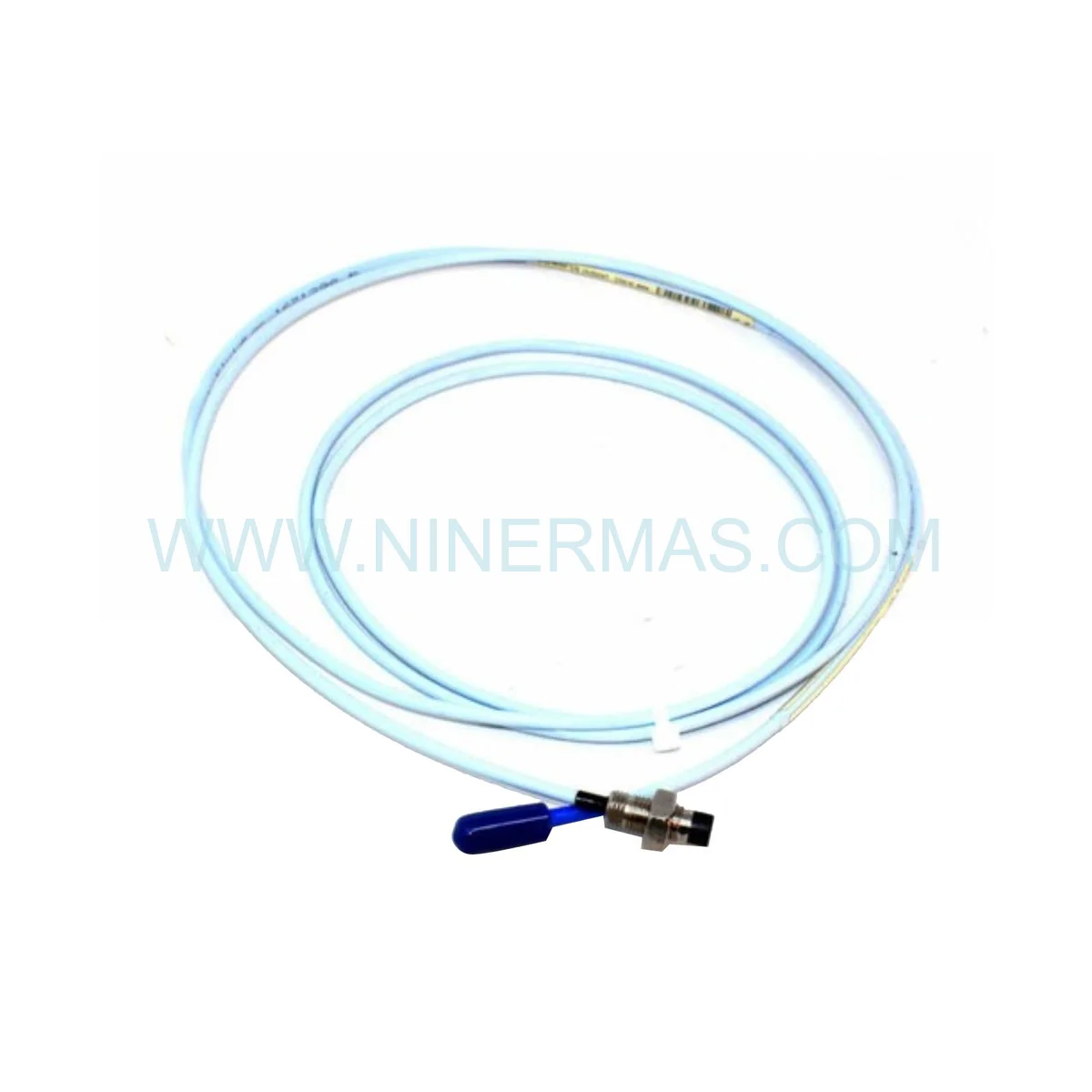

Bently Nevada 330141-08-50-02-05-00 | 3300 XL 8mm Proximity Probe — New & Original

Bently Nevada 330141-08-50-02-05-00 | Reliable Automation Component for Mission-Critical Rotating Machinery

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, sustaining maximum system availability in rotating machinery environments demands instrumentation that performs without compromise. The Bently Nevada 330141-08-50-02-05-00 — an 8mm proximity probe from the renowned 3300 XL series — delivers exactly that. Deployed across turbines, compressors, and generator sets, this probe provides non-contact, continuous shaft vibration and radial position data that feeds directly into machinery protection systems, enabling predictive maintenance strategies that eliminate unplanned downtime and protect capital assets.

Durability under adversity is a defining characteristic of the 330141-08-50-02-05-00. Rated for operation between -40°C and +105°C, this probe maintains measurement integrity in environments saturated with oil mist, process gases, and mechanical vibration. Installation demands attention to target material selection — AISI 4140 steel is the recommended substrate — and proper gap setting within the 0.5 to 2.0 mm linear range. Torque specifications must be observed on the M8 x 1.0 metric thread to prevent housing stress that could compromise calibration.

As a critical spare component, maintaining at least one unit of the 330141-08-50-02-05-00 in your on-site inventory is a cornerstone of any robust reliability program. Mean Time To Repair (MTTR) is directly tied to spare parts availability; for mission-critical assets, the cost of a single unplanned outage far exceeds the investment in a verified, factory-original replacement probe held in reserve.

Key Operational Features

Non-Contact Eddy Current Sensing — Zero mechanical wear; continuous operation without physical contact with the rotating shaft.
High-Availability Design — Engineered for 24/7 continuous duty in process-critical environments with no scheduled maintenance intervals.
Seamless System Integration — Fully compatible with Bently Nevada 3300 XL Proximitor sensors and legacy 3300 series monitoring racks; no signal conditioning modifications required.
Redundancy-Ready Architecture — Supports dual-probe redundant configurations for X-Y vibration measurement on critical shaft planes.
Wide Thermal Tolerance — Operational from -40°C to +105°C, covering the full spectrum of industrial process environments.
Frequency Response to 10 kHz — Captures high-frequency vibration signatures essential for early-stage bearing defect detection and rotor dynamics analysis.

Maintenance & Performance Benchmarks

The 330141-08-50-02-05-00 integrates into industrial network architectures of all scales — from standalone single-channel protection panels to enterprise-wide distributed control systems (DCS) managing hundreds of measurement points. Its analog output signal (-24 VDC bias, standard Bently Nevada convention) interfaces directly with 3300 XL Proximitor modules, which in turn feed 4-20 mA or digital signals into process historians and safety instrumented systems (SIS).

For large-scale installations, the probe’s consistent sensitivity factor (200 mV/mil, 7.87 V/mm) eliminates the need for individual channel recalibration when performing fleet-wide replacements, dramatically reducing maintenance labor hours. In smaller installations, the standardized M8 form factor allows hot-swap replacement during scheduled outage windows without requiring specialized tooling. Firmware compatibility with Bently Nevada System 1 software ensures that historical vibration trend data remains uninterrupted across probe replacement events.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 330141-08-50-02-05-00 dispatched from our facility is shipped in Original Factory Packaging, preserving the probe’s calibration integrity and protecting the precision-machined tip from transit damage. For urgent plant maintenance scenarios, same-day dispatch is available on confirmed in-stock units — contact our team before 14:00 (GMT+8) to qualify.

We specialize in global supply chain solutions for End-of-Life (EOL) and legacy Bently Nevada modules, ensuring that plants operating older 3300 series infrastructure can source verified, original components without being forced into costly system-wide upgrades. Our inventory is sourced directly from authorized channels and subject to incoming quality inspection prior to dispatch. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to any facility globally, with full tracking and customs documentation support.

Engineering Support & FAQ

Q1: What is the correct installation gap for the 330141-08-50-02-05-00 on a steel shaft?
A: The recommended initial gap is 1.0 mm (40 mils), which places the operating point at the center of the 0.5-2.0 mm linear range. Use a non-metallic feeler gauge or a calibrated gap-setting tool. Verify the DC gap voltage reads approximately -10 VDC at the Proximitor output terminal.

Q2: Which Proximitor sensor models are compatible with this probe?
A: The 330141-08-50-02-05-00 is designed for use with Bently Nevada 3300 XL Proximitor sensors (e.g., 330180 series). It also maintains backward compatibility with earlier 3300 series Proximitors. Confirm the extension cable length matches the Proximitor’s calibrated system length.

Q3: What firmware versions of Bently Nevada System 1 support this probe’s data integration?
A: System 1 versions 5.x and above natively support 3300 XL series probe configurations. For System 1 Evolution (v7.x+), the probe is recognized automatically via the Proximitor module’s digital identification. Consult your System 1 configuration guide for channel assignment procedures.

Q4: How is the warranty claim process handled for this unit?
A: Our 12-month warranty covers manufacturing defects and material failures under normal operating conditions. To initiate a claim, contact sale@ninermas.com with your order reference, a description of the fault, and photographic evidence. Replacement units are dispatched within 3-5 business days upon claim approval. Return shipping labels are provided for defective units.

Q5: Can the 330141-08-50-02-05-00 be used in hazardous area (ATEX/IECEx) installations?
A: Yes, subject to zone classification verification. Consult the official Bently Nevada product datasheet for specific ATEX category and IECEx certification details applicable to your installation zone. Ensure the associated Proximitor and barrier/isolator are rated for the same hazardous area classification.

Q6: Is recalibration required after replacing a probe in a running system?
A: Each 330141-08-50-02-05-00 is factory-calibrated to Bently Nevada standards. Post-installation, a system-level verification — confirming DC gap voltage, sensitivity, and alarm setpoint response — is strongly recommended before returning the machine to service. Full recalibration of the Proximitor is not required if the replacement probe is from the same calibrated system length.
