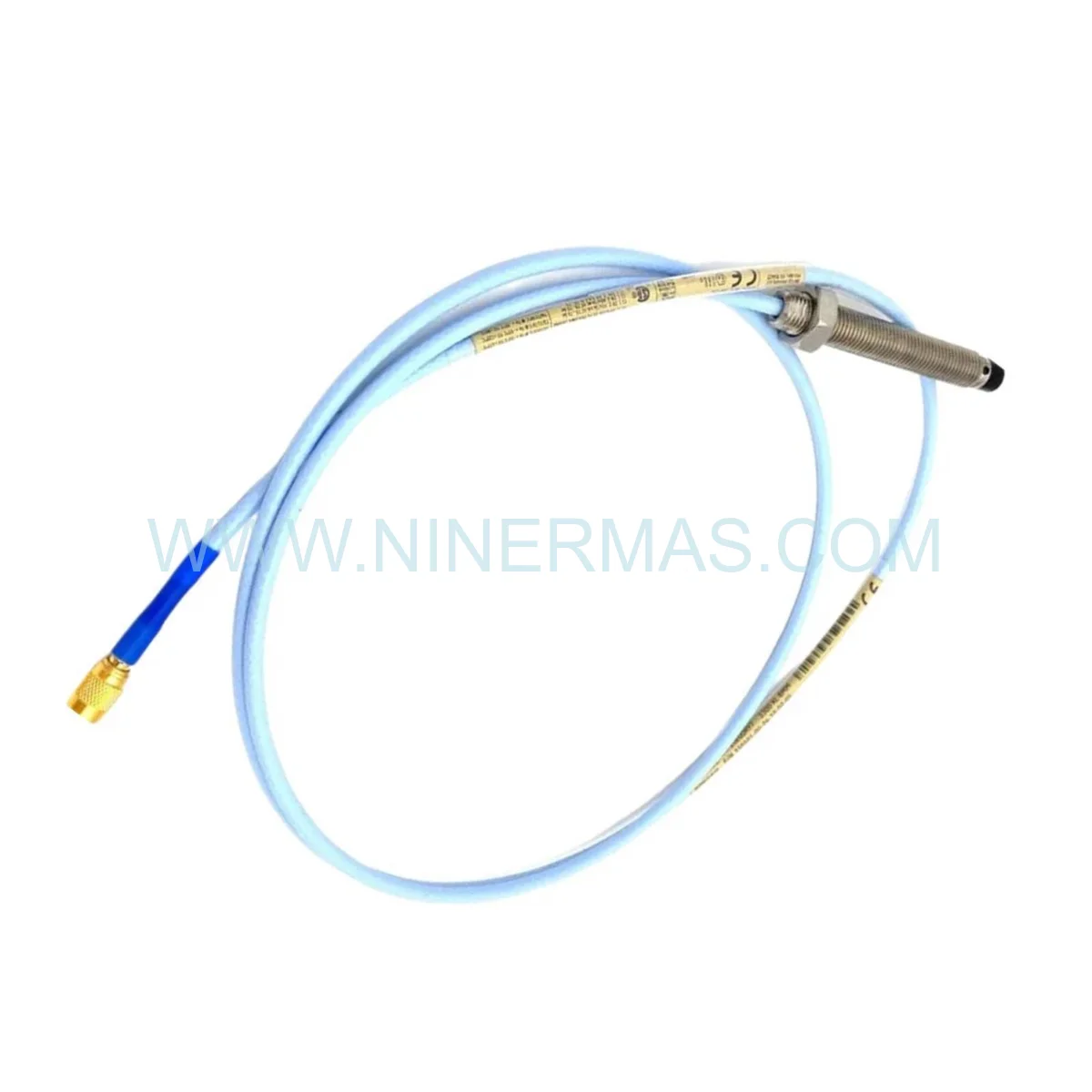

Bently Nevada 330141-08-20-01-05-00 3300 XL 8mm Proximity Transducer Probe — Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a precision proximity transducer in a rotating machinery protection loop. The Bently Nevada 330141-08-20-01-05-00 is not merely a sensor — it is the first line of defense in any Distributed Control System (DCS) or Safety Instrumented System (SIS) tasked with monitoring shaft radial vibration and axial displacement on critical turbomachinery. Deployed across steam turbines, centrifugal compressors, and high-speed pumps, this 8mm eddy-current probe delivers non-contact, continuous measurement with sub-micron resolution, feeding real-time data into the broader Process Control architecture that governs plant safety and uptime.

What distinguishes the Bently Nevada 330141-08-20-01-05-00 from generic aftermarket alternatives is its engineered compatibility within the 3300 XL Proximity System ecosystem. The probe’s calibration curve, impedance characteristics, and coaxial cable termination are factory-matched to Bently Nevada proximitor sensors and 3300 series monitors — ensuring signal fidelity that third-party Legacy Components simply cannot replicate. For facilities running Fieldbus-integrated condition monitoring networks, this OEM-grade compatibility eliminates the signal drift and false-trip risks that plague non-original substitutes.

In today’s tightening spare-parts market, Factory Sealed stock of the 330141-08-20-01-05-00 is increasingly scarce. As Baker Hughes / Bently Nevada continues to rationalize its legacy catalog, procurement windows for original, unopened units are narrowing. Securing verified OEM inventory now — rather than at the moment of failure — is the strategic decision that separates proactive maintenance programs from reactive crisis management.

Key Technical Highlights

8mm Eddy-Current Sensing Technology — Non-contact measurement eliminates mechanical wear; ideal for continuous 24/7 Process Control environments.
Sensing Range: 0-80 mils (0-2.0 mm) — Wide linear range accommodates both radial vibration and thrust position monitoring without range-switching.
Frequency Response: 0-10 kHz ( 3 dB) — High-speed dynamic response captures sub-synchronous, synchronous, and super-synchronous vibration components critical for DCS Hardware alarm logic.
Operating Temperature: 40°C to +105°C — Qualified for extreme environments including arctic outdoor installations and high-ambient turbine enclosures.
Redundancy-Ready Design — Dual-probe mounting configurations supported; enables 1oo2 and 2oo3 voting architectures in SIS applications per IEC 61511.
Stainless Steel Housing with PEEK Insulation — Corrosion-resistant construction rated for H -bearing atmospheres and high-pressure wash-down zones.
API 670 Compliant — Meets the machinery protection standard mandated by major EPC contractors and insurance underwriters globally.

Vertical Industry Applications

Petrochemical & Refining: Installed on cracked-gas compressors and reactor feed pumps, the 330141-08-20-01-05-00 provides the early-warning vibration data that prevents unplanned shutdowns costing upwards of $500,000 per day. Its resistance to hydrocarbon vapors and process fluid ingress makes it the preferred choice for API 670-governed machinery trains.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear plants rely on proximity probes for shaft eccentricity and journal bearing clearance monitoring. The 3300 XL system’s Fieldbus-compatible output integrates directly into plant DCS Hardware, enabling automated load-shedding before bearing damage propagates.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps operate in high-dust, high-vibration environments that rapidly degrade inferior sensors. The robust construction of this probe sustains measurement accuracy across multi-year maintenance intervals, reducing the frequency of costly planned outages.

Marine & Offshore: Propulsion turbines and gas compressors on LNG carriers and FPSO vessels demand sensors certified for marine environments. The 330141-08-20-01-05-00’s temperature range and corrosion resistance meet DNV and ABS classification requirements for critical rotating equipment.

Pulp & Paper: Recovery boiler fans and turbine-driven chippers present unique challenges — high ambient humidity, chemical exposure, and variable load profiles. Continuous vibration monitoring via this probe enables condition-based maintenance scheduling, replacing calendar-based overhauls with data-driven decisions that extend equipment life by 20-35%.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Bently Nevada 330141-08-20-01-05-00 offered through our inventory is 100% Original OEM — sourced directly from authorized distribution channels and stored under controlled conditions to preserve Factory Sealed integrity. Each probe ships with its original manufacturer packaging, individual calibration certificate traceable to NIST standards, and full documentation package including installation drawings and wiring diagrams.

Our supply chain model is built for industrial urgency. We maintain bonded warehouse stock specifically for Legacy Components and EOL (End-of-Life) parts that are no longer available through standard distribution. When a turbine trips at 2:00 AM and your maintenance team needs a replacement probe by morning, our emergency logistics network delivers:

• DHL Express: Next-flight-out service to 220+ countries, with same-day dispatch for orders confirmed before 14:00 CST
• FedEx International Priority: Door-to-door tracking with customs clearance support for regulated industrial goods
• UPS Worldwide Express: Time-definite delivery with proactive exception management for critical shipments

A 12-Month Comprehensive Warranty covers all units against defects in materials, workmanship, and factory calibration drift. Our technical team provides post-sale support including installation verification, signal commissioning guidance, and compatibility confirmation for your specific 3300 XL system configuration.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 330141-08-20-01-05-00 probe is genuinely original and not a counterfeit?
A: Authentic Bently Nevada probes carry a laser-etched serial number on the probe body that can be cross-referenced against Baker Hughes / Bently Nevada’s factory records. The original packaging includes a holographic authenticity label, individual calibration certificate with serial number, and a QR code linking to the product’s factory test data. We provide all original documentation with every shipment, and our technical team can assist you in verifying authenticity before installation.

Q2: Where can I obtain the official datasheet and installation manual for this probe?
A: The official Bently Nevada 3300 XL Proximity Transducer System datasheet (document number 141536-01) and installation manual are included in the documentation package shipped with each unit. Our sales team can also provide pre-sale copies upon request to support your engineering review and procurement approval process.

Q3: Is the 330141-08-20-01-05-00 compatible with older 3300 series monitors, or only the 3300 XL generation?
A: This probe is fully compatible with all 3300 XL proximitor sensors and monitors. Backward compatibility with earlier 3300 (non-XL) system components depends on the specific monitor model and firmware revision. Our application engineers can review your existing system configuration and confirm compatibility before you commit to purchase — simply provide your monitor model numbers and system documentation.

Q4: What target material should be used with this probe for optimal linearity?
A: The 330141-08-20-01-05-00 is factory-calibrated for AISI 4140 steel targets. Alternative materials including 410 stainless steel and Inconel 718 are supported with recalibration. Non-magnetic materials such as aluminum or titanium are not suitable for eddy-current sensing and will produce non-linear outputs. Target surface finish should be 32 microinches Ra (0.8 µm) or better.

Q5: Can this probe be used in SIL-rated Safety Instrumented Systems?
A: Yes. When integrated into a properly designed Safety Instrumented Function (SIF) with appropriate voting logic (1oo2 or 2oo3) and a Bently Nevada 3300 XL monitor with SIL certification, the 330141-08-20-01-05-00 can contribute to SIL 2 loop architectures per IEC 61511. Functional Safety documentation and PFD data are available upon request for your SIL assessment.

Q6: What is the lead time for emergency orders, and do you support maintenance stock procurement?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST, with international delivery in 1-3 business days via DHL/FedEx/UPS. For Maintenance Stock programs, we offer reserved inventory agreements that guarantee unit availability for your facility over a 12-24 month horizon — eliminating the risk of stockouts during critical overhaul windows.
