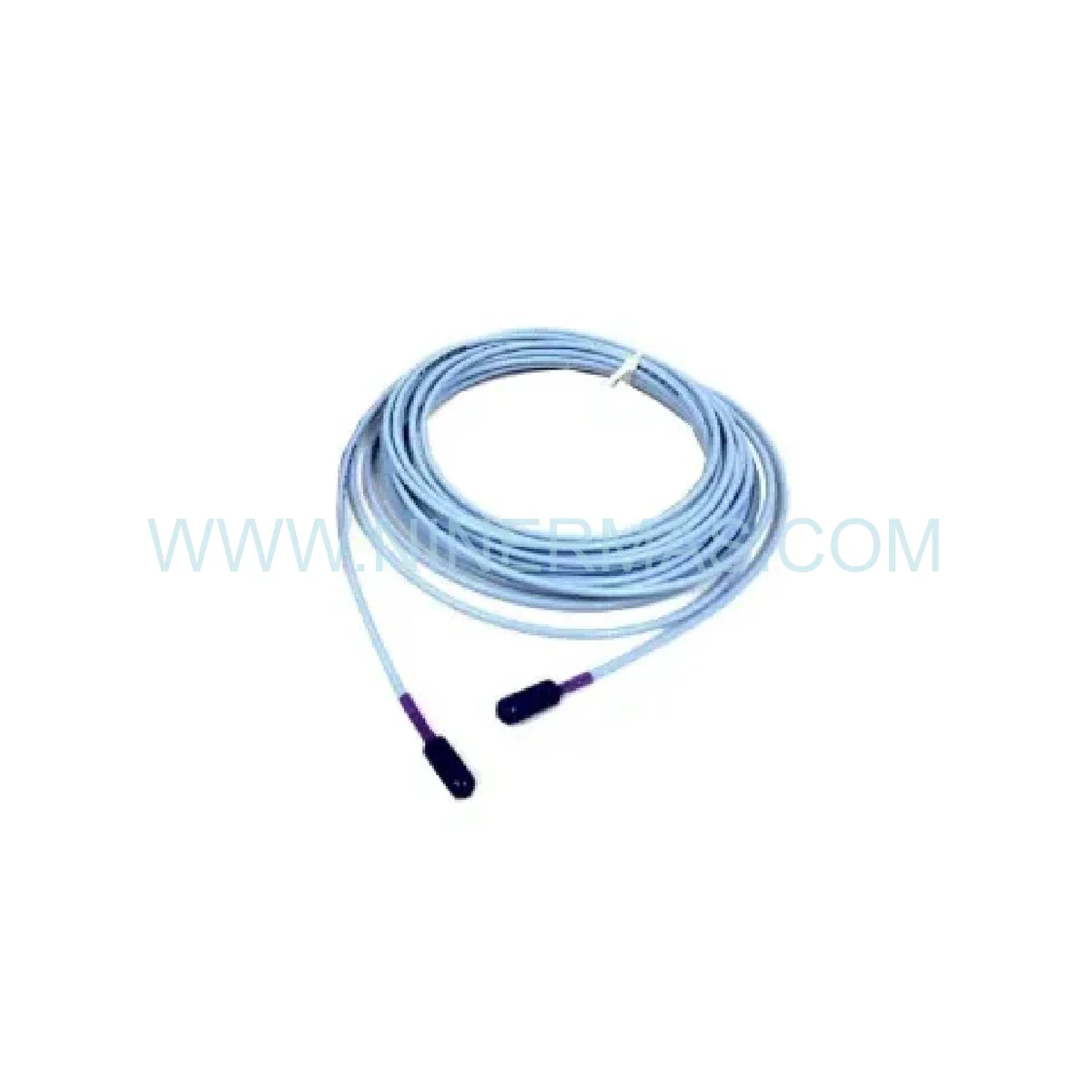

Bently Nevada 330140-08-15-12-05-00 8mm Proximity Transducer — New & Original

Bently Nevada 330140-08-15-12-05-00 8mm Proximity Transducer | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing rotating machinery assets, the Bently Nevada 330140-08-15-12-05-00 stands as a cornerstone automation component in mission-critical protection architectures. Deployed across turbomachinery trains, compressor strings, and large motor-generator sets, this 8mm eddy-current probe delivers continuous, non-contact shaft displacement data that feeds directly into machinery protection systems — sustaining system availability and enabling process optimization before fault conditions escalate to unplanned outages.

Durability under demanding industrial conditions is where the 330140-08-15-12-05-00 consistently demonstrates its engineering pedigree. The stainless steel probe body resists corrosion in humid, chemically aggressive, and high-vibration environments. Installation in confined bearing housings requires careful attention to thread engagement (8mm — 1.0 metric) and gap-setting discipline; the probe must be positioned within the 1.0-2.0 mm linear range to guarantee the rated 7.87 V/mm sensitivity. Proper cable routing away from high-voltage conductors eliminates electromagnetic interference that could compromise signal integrity.

As a strategic spare-parts holding, the 330140-08-15-12-05-00 is indispensable for facilities operating legacy or end-of-life 3300 XL systems. Maintaining at least one verified-original unit in bonded stores eliminates the multi-week lead times that turn a routine probe swap into a production-halting event — a fundamental principle of operational excellence in any reliability-centered maintenance program.

Key Operational Features

Non-Contact Eddy-Current Sensing — Zero mechanical wear; continuous operation without scheduled replacement intervals
High-Bandwidth Response (DC to 10 kHz) — Captures sub-synchronous, synchronous, and high-frequency vibration signatures for comprehensive I/O module-level diagnostics
Wide Thermal Tolerance ( 40 °C to +105 °C) — Maintains calibration stability across outdoor installations, furnace-adjacent positions, and arctic-grade environments
Seamless System Integration — Fully compatible with 3300 XL proximitor drivers and Bently Nevada monitoring racks; plug-and-play replacement with no firmware reconfiguration
API 670 Compliance — Meets the industry standard for machinery protection instrumentation, supporting both protection and predictive-maintenance data streams
Redundancy-Ready Architecture — Supports dual-probe configurations for high-availability XY shaft orbit measurement on critical turbine and compressor trains

Maintenance & Performance Benchmarks

The 330140-08-15-12-05-00 integrates cleanly into industrial network architectures of all scales — from standalone single-channel monitors on auxiliary pumps to fully networked, multi-channel System 1 condition monitoring platforms managing hundreds of measurement points across an entire plant.

In small-scale deployments, the probe pairs with a single 3300 XL proximitor to deliver a self-contained radial vibration channel requiring minimal infrastructure. In enterprise-scale architectures, the same probe feeds into distributed I/O modules that aggregate data across turbine halls, compressor stations, and motor control centers, enabling plant-wide process optimization through centralized analytics dashboards.

Benchmark field data confirms that facilities maintaining calibrated 330140-08-15-12-05-00 probes with documented gap-voltage records achieve mean time between false trips exceeding 24 months — a direct contributor to reduced maintenance labor and improved overall equipment effectiveness (OEE).

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 330140-08-15-12-05-00 unit dispatched from our facility ships in original factory packaging with full traceability documentation — a non-negotiable requirement for regulated industries and insurance-backed maintenance programs. Same-day dispatch is available for in-stock orders confirmed before the daily cut-off, supporting emergency maintenance scenarios where every hour of downtime carries measurable financial impact.

Our global supply network specifically addresses the challenge of EOL (End-of-Life) and legacy module sourcing. As Bently Nevada 3300 XL components transition through their product lifecycle, locating verified-original stock becomes progressively more difficult through standard distribution channels. We maintain bonded inventory of mission-critical automation components precisely to bridge this gap — ensuring that a single obsolete probe does not become the bottleneck that halts an entire production train.

Worldwide express logistics partnerships enable delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific, with full customs documentation and export compliance support included as standard.

Engineering Support & FAQ

Q1: What is the correct installation gap for the 330140-08-15-12-05-00, and how do I verify it on-site?
A: Set the probe tip-to-target gap to approximately 1.5 mm (60 mils) — the midpoint of the 1.0-2.0 mm linear range — to maximize dynamic measurement headroom. Verify by applying a known DC bias voltage from the proximitor and confirming the output reads approximately 10.5 VDC ± 0.5 V at the nominal gap. Use precision feeler gauges during initial installation; re-verify after first thermal cycle.

Q2: Which proximitor drivers are firmware-compatible with this probe?
A: The 330140-08-15-12-05-00 is designed for use with Bently Nevada 3300 XL series proximitor sensors (e.g., 330180 series). It is not directly interchangeable with legacy NSv (7200 series) drivers due to differing oscillator frequencies and output scaling. Always cross-reference the system integration manual before substituting components across series generations.

Q3: How do I initiate a warranty claim if the probe fails within the coverage period?
A: Contact our technical support team at sale@ninermas.com with the purchase order reference, installation date, and a brief fault description. We will issue an RMA number within one business day. Warranty coverage includes material defects and workmanship failures under normal operating conditions; damage from over-torquing, incorrect target material, or supply voltage exceedance is excluded.

Q4: Can this probe be used in hazardous (Ex-rated) areas?
A: The standard 330140-08-15-12-05-00 configuration is not intrinsically safe (IS) rated. For Zone 1 / Division 1 hazardous area installations, consult Bently Nevada’s IS-certified variants and ensure the associated proximitor and barrier components carry the appropriate ATEX or NEC certification for the installation classification.

Q5: What surface finish and minimum target diameter are required for accurate readings?
A: Target surface finish should be — 63 µin Ra (1.6 µm Ra). The minimum target diameter must be at least 3 the probe diameter — i.e., — 24 mm for this 8 mm probe — to avoid edge-effect errors. Runout on the target surface should be controlled to prevent false vibration readings from geometric imperfections.

Q6: Is recalibration required after long-term storage?
A: Units stored in original factory packaging under controlled conditions (15-25 °C, <60% RH) retain factory calibration for up to 24 months. Prior to installation after extended storage, perform a bench verification of the gap-voltage curve against the published sensitivity specification to confirm no drift has occurred.
