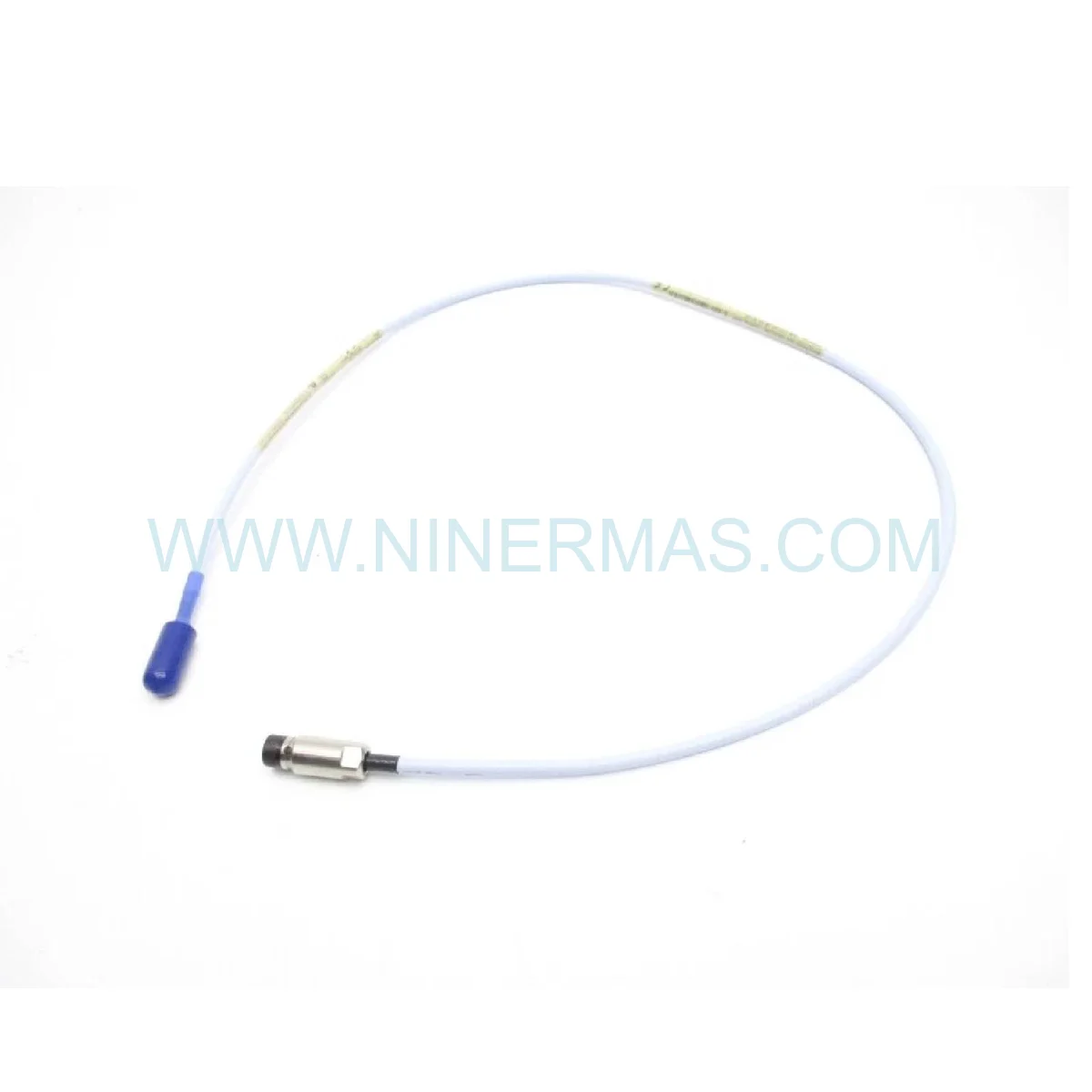

Bently Nevada 330140-08-05-02-05-00 | Retrofit & Upgrade Proximity Probe

Bently Nevada 330140-08-05-02-05-00 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

From the perspective of a System Migration Architect, the Bently Nevada 330140-08-05-02-05-00 occupies a mission-critical position in any industrial modernization roadmap. As aging DCS and TSI platforms approach end-of-service thresholds, this 8mm proximity probe serves as the precision sensing backbone that bridges legacy infrastructure with contemporary monitoring architectures — extending asset life cycles while delivering measurable gains in vibration data accuracy and system uptime.

What distinguishes the 330140-08-05-02-05-00 in retrofit engagements is its inherent backward compatibility with the 3300 and 3300 XL rack ecosystems. Whether you are sustaining an existing Bently Nevada installation or executing a phased migration toward a fully modernized condition monitoring platform, this probe integrates without requiring rack replacement or signal chain redesign — dramatically reducing engineering hours and commissioning risk.

From a total cost of migration perspective, deploying the 330140-08-05-02-05-00 as a drop-in upgrade component eliminates the capital expenditure associated with full system overhauls. Facilities can achieve performance enhancement targets incrementally, maintaining operational continuity while systematically retiring obsolete sensing hardware — a strategy that consistently delivers the lowest risk-adjusted migration cost in rotating machinery protection projects.

Upgrade Highlights & Compatibility

• Zero-Rack-Modification Integration: Fully compatible with 3300 and 3300 XL monitoring racks — no hardware redesign required for retrofit deployment.
• ✅ Extended Frequency Response: 0-10 kHz bandwidth supports high-speed machinery monitoring demands that legacy sensors cannot reliably address.
• Legacy Compatibility Assured: Maintains signal chain integrity with existing Proximitor sensors and extension cables already installed in the field.
• ✅ Future-Proof Sensing Architecture: API 670, ISO 7919, and ISO 10816 compliance ensures alignment with current and forthcoming machinery protection standards.
• Harsh Environment Resilience: Stainless steel housing with PTFE insulation rated from -40°C to +125°C — engineered for continuous duty in power generation and petrochemical environments.
• ✅ Hazardous Area Readiness: Compatible with approved barriers for Class I Division 2 and ATEX Zone 2 installations — no additional sensing hardware required.

Modernization Use Cases & Success Stories

DCS-Integrated Turbine Protection Upgrades: In combined-cycle power plants executing DCS modernization programs, the 330140-08-05-02-05-00 has been deployed as the primary shaft displacement sensor during phased rack upgrades. Its plug-compatible form factor allowed engineering teams to replace worn legacy probes without interrupting adjacent monitoring channels — achieving a performance leap in radial vibration resolution while the broader DCS migration proceeded in parallel.

TSI System Retrofit in Petrochemical Compressor Trains: Retrofit project leads managing TSI upgrades on centrifugal compressor strings have leveraged the 330140-08-05-02-05-00 to replace first-generation 3300 series probes exhibiting signal drift. The seamless integration with existing Proximitor infrastructure eliminated the need for new cable routing or junction box modifications — compressing retrofit schedules by an average of 30-40% compared to full sensor system replacements.

Hydro Turbine Thrust Position Modernization: Facilities upgrading hydro turbine protection systems have utilized this probe for axial position measurement modernization, capitalizing on its compatibility with legacy signal conditioners while delivering the measurement precision required by updated API 670 protection logic — a hardware upgrade that future-proofs the installation without displacing the existing monitoring philosophy.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | **330140-08-05-02-05-00** | | Probe Diameter | 8mm (5/16 inch) | | Frequency Response | 0 to 10 kHz | | Operating Temperature | -40°C to +125°C (-40°F to +257°F) | | Thread Specification | 5/8-18 UNF-2A | | Housing Material | Stainless Steel with PTFE Insulation | | Compliance Standards | API 670, ISO 7919, ISO 10816 | | Rack Compatibility | Bently Nevada 3300 & 3300 XL Series | | Hazardous Area Rating | Class I Div 2 / ATEX Zone 2 (with approved barriers) | | Lifecycle Status | Active — Current Production | | Warranty | 12 Months — Materials & Workmanship | | Retrofit Deployment | Drop-in replacement; no rack modification required |

Supply Chain & Deployment Support

Original & Factory Sealed: Every 330140-08-05-02-05-00 unit ships in original manufacturer packaging with full traceability documentation — critical for regulated industries where component provenance must be verified during retrofit audits and machinery protection system commissioning.

Expedited Global Logistics: Our supply chain infrastructure supports urgent retrofit timelines with priority dispatch to power generation facilities, petrochemical complexes, and manufacturing sites worldwide. Whether your migration is planned or driven by an unplanned legacy component failure, we maintain inventory depth to support rapid deployment.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Bently Nevada system configurations. From gap voltage verification to Proximitor pairing guidance and calibration data interpretation, we provide the retrofit-specific technical assistance that generic distributors cannot offer — ensuring your 330140-08-05-02-05-00 installation delivers full performance from day one.

Retrofit FAQ — Upgrade Guide

Q1: Will the 330140-08-05-02-05-00 fit the existing probe holder and installation space in my legacy 3300 rack installation?
A: Yes. The 330140-08-05-02-05-00 retains the standard 8mm probe body diameter and 5/8-18 UNF-2A thread specification consistent with the 3300 XL platform. In the vast majority of retrofit scenarios, the probe installs directly into existing holders without mechanical modification. For non-standard installations, our technical team can review your mounting configuration prior to shipment.

Q2: How does the 330140-08-05-02-05-00 communicate with older Proximitor signal conditioners already installed in the field?
A: The 330140-08-05-02-05-00 is designed for full signal chain compatibility with Bently Nevada Proximitor sensors across the 3300 and 3300 XL generations. The probe outputs a standard eddy-current signal that legacy Proximitors process without firmware updates or hardware modifications — enabling a true hardware upgrade without disrupting the existing signal conditioning infrastructure.

Q3: What are the recommended spare part alternatives if the 330140-08-05-02-05-00 is unavailable during an emergency shutdown?
A: Within the 330140 series, variants with differing cable lengths and connector configurations may serve as interim alternatives depending on your installation geometry. Our technical team can assess cross-compatibility based on your specific Proximitor model and gap calibration data. We recommend maintaining at least one spare 330140-08-05-02-05-00 on-site for critical machinery to eliminate unplanned downtime risk.

Q4: Can this probe be used in a new DCS or TSI platform if we are migrating away from the legacy Bently Nevada architecture entirely?
A: The 330140-08-05-02-05-00 outputs a standard eddy-current proximity signal compatible with most modern vibration monitoring platforms that accept Bently Nevada-standard inputs. For migrations to third-party DCS or TSI systems, signal interface compatibility should be confirmed with the target platform vendor. Our team can provide technical specifications to support your integration assessment.

Q5: What is the recommended gap setting for the 330140-08-05-02-05-00 during retrofit installation?
A: The standard recommended installation gap is 1.0mm (40 mils) from the target surface. However, the optimal gap should be verified against the calibration data for your specific Proximitor model, as sensitivity curves may vary. Our technical support team can provide Proximitor-specific gap recommendations upon request.

Q6: Does the 330140-08-05-02-05-00 support integration with modern condition monitoring software platforms via existing Bently Nevada racks?
A: Yes. When deployed within a 3300 XL rack infrastructure, the 330140-08-05-02-05-00 feeds vibration and position data through the existing Proximitor and rack communication architecture, which can interface with modern condition monitoring and asset performance management software via standard Bently Nevada communication protocols — enabling a Performance Enhancement pathway without full hardware replacement.
