Bently Nevada 330104-15-23-50-02-00 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330104-15-23-50-02-00 Service-Ready Spare Part for Industrial Maintenance

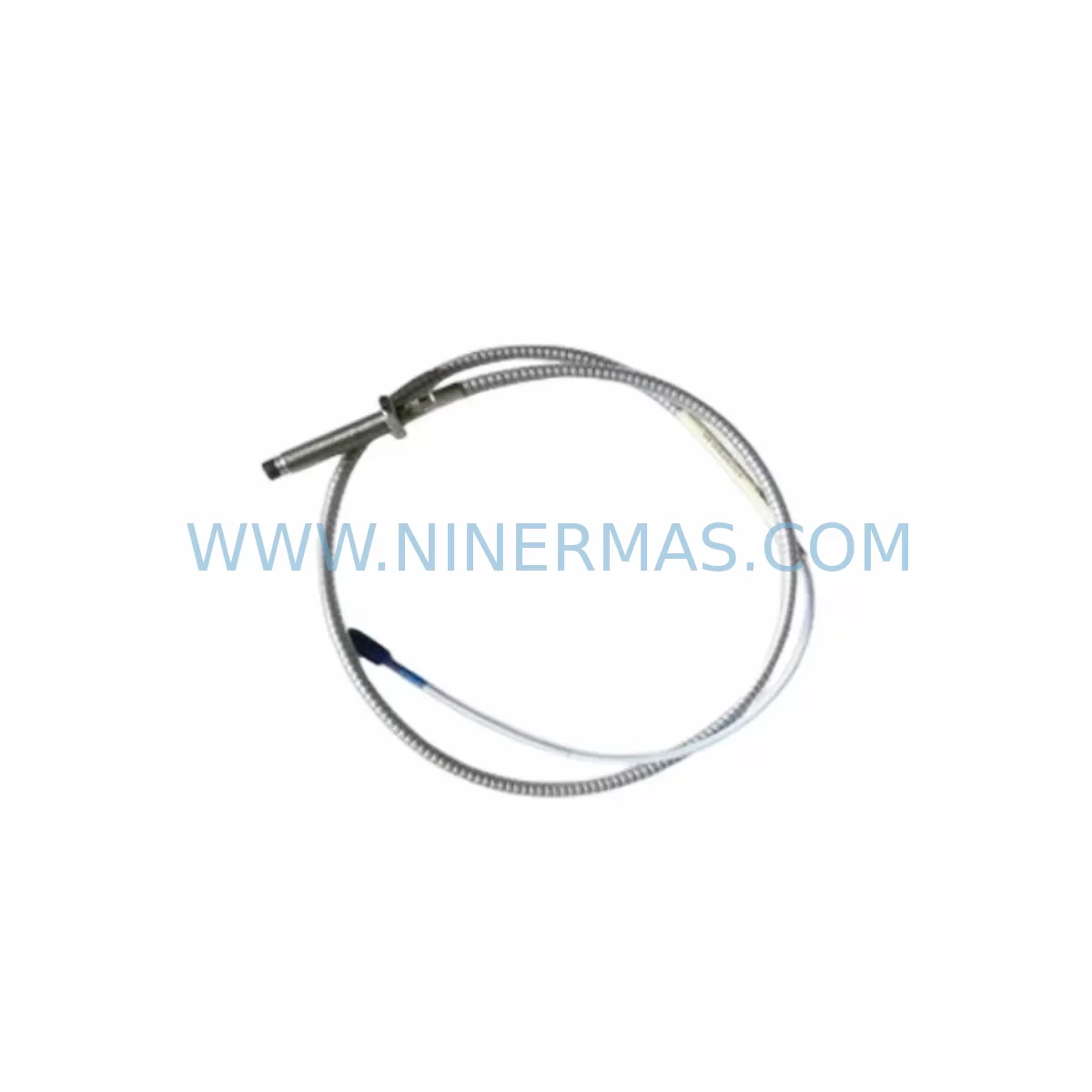

The Bently Nevada 330104-15-23-50-02-00 is a ruggedized proximity probe engineered for continuous vibration monitoring in demanding industrial environments. As a critical spare part within the Bently Nevada 3300 Series eddy-current proximity system, this probe delivers reliable shaft displacement and radial vibration measurement across rotating machinery including turbines, compressors, pumps, and motors. For maintenance engineers managing rotating equipment reliability programs, stocking the 330104-15-23-50-02-00 as a ready-to-deploy spare is a fundamental strategy for minimizing unplanned downtime and protecting high-value assets.

The 330104-15-23-50-02-00 features a ruggedized housing designed to withstand harsh plant environments — including high-temperature zones, oil mist, chemical exposure, and mechanical vibration. Its standardized cable length and connector interface ensure direct compatibility with Bently Nevada 3300 series extension cables and proximitor/oscillator modules, enabling fast field replacement without system reconfiguration. When a probe fails during operation, the ability to swap in a pre-tested, original-specification replacement within minutes is the difference between a controlled maintenance event and an extended production outage.

From a procurement engineering perspective, the 330104-15-23-50-02-00 represents a well-defined, long-lifecycle spare with stable sourcing. Bently Nevada proximity probes are widely deployed across oil & gas, power generation, petrochemical, and heavy manufacturing facilities globally. Maintaining at least one unit in your critical spare inventory — validated against your installed system configuration — is consistent with best-practice reliability-centered maintenance (RCM) programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for rotating machinery instrumented with the Bently Nevada 330104-15-23-50-02-00 requires a systems-level view of the entire proximity measurement chain. The probe does not operate in isolation — its signal integrity depends on the condition and compatibility of every upstream and downstream component in the monitoring loop.

When scheduling replacement of the 330104-15-23-50-02-00, maintenance engineers should simultaneously inspect and, where appropriate, replace the associated Bently Nevada 3300 XL 8mm extension cable (typically a 330130-series cable matched to the probe’s cable length suffix). Extension cable degradation — including jacket cracking, connector corrosion, or impedance drift — is a leading cause of false vibration alarms and measurement errors that are often misattributed to probe failure. Verifying the full cable assembly as a matched set is essential for restoring measurement accuracy.

The Bently Nevada 3300 Proximitor/Oscillator module (such as the 330180 or 3300/16 series) should be bench-tested or replaced concurrently if it has accumulated significant operating hours or shows signs of output drift. These modules provide the oscillator drive signal and condition the probe output to a calibrated voltage proportional to gap distance — any degradation here directly affects the reliability of the vibration data fed to your condition monitoring system.

At the panel level, inspect the terminal blocks and field wiring connecting the proximitor output to the monitoring rack. Loose terminations, corroded terminals, or undersized conductors introduce noise into the 4–20 mA or voltage signal chain. For facilities using Bently Nevada 3500 Series rack-based monitoring systems, confirm that the 3500/42M or equivalent I/O module firmware and configuration remain aligned with the replacement probe’s sensitivity (typically –7.87 V/mm or –200 mV/mil).

If the 330104-15-23-50-02-00 is installed in a turbine or compressor train monitored by a Bently Nevada System 1 condition monitoring platform, validate that the channel configuration, alarm setpoints, and transducer database entries are updated to reflect the replacement probe’s serial number and calibration data. This step is frequently overlooked during emergency replacements and can result in masked alarms or incorrect trend baselines.

For facilities integrating Bently Nevada proximity data into a DCS or PLC-based safety system — such as a Yokogawa CENTUM VP, Emerson DeltaV, or Siemens PCS 7 platform — verify that the analog input card receiving the proximitor output is functioning within specification. A degraded AI card can introduce offset errors that mimic probe drift. Similarly, if the monitoring signal passes through a signal isolator or signal conditioner before reaching the DCS, inspect the isolator for output accuracy and isolation integrity.

During annual shutdowns or major overhauls, it is good practice to replace probe mounting hardware — including the probe holder, lock nut, and any anti-vibration compound — alongside the probe itself. Worn or corroded mounting hardware can cause probe position drift under thermal cycling, leading to gap measurement errors that are difficult to diagnose remotely. Additionally, inspect the junction box or field enclosure housing the probe cable connections for moisture ingress, which is a common failure mode in outdoor or wash-down environments.

For facilities operating legacy Bently Nevada systems beyond their published product lifecycle, the 330104-15-23-50-02-00 provides a direct-fit replacement that extends system service life without requiring a full instrumentation upgrade. Pairing this probe with a verified stock of matched extension cables and a spare proximitor module creates a self-contained replacement kit that enables sub-hour field restoration — a critical capability for facilities with high-consequence rotating equipment.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the installed probe, document the existing gap voltage reading from the proximitor output (typically between –10 VDC and –18 VDC at operating gap). Record the probe serial number, cable length, and connector condition. Confirm that the replacement 330104-15-23-50-02-00 matches the installed probe’s SKU suffix digits — each position in the part number encodes probe length, cable length, and connector type, and mismatches will result in incorrect sensitivity or physical incompatibility.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the monitored machine. For online replacement on non-safety-critical channels, consult your site’s bypass and override procedure for the monitoring system. Notify the control room before placing any monitoring channel in bypass to prevent false trip conditions.

Step 3 — Physical Replacement: Remove the existing probe by unscrewing from the probe holder. Clean the probe holder threads and inspect for damage. Install the 330104-15-23-50-02-00 and set the initial gap per the OEM specification (typically 1.0–1.5 mm / 40–60 mil for standard 8mm probes). Connect the extension cable and verify connector seating and locking.

Step 4 — Calibration Verification: With the machine at rest, verify the proximitor output voltage against the expected gap-voltage curve. Adjust the probe gap as needed to achieve the target quiescent voltage. Compare the reading against the pre-removal baseline and the system’s calibration record.

Step 5 — Return to Service: Remove any monitoring bypasses, confirm alarm setpoints are active, and notify the control room that the channel is restored. Log the replacement in your CMMS (Computerized Maintenance Management System) with the new probe serial number, installation date, and gap setting. Schedule a follow-up vibration trend review at 24 and 72 hours post-restart to confirm stable baseline readings.

Compatibility Note: The 330104-15-23-50-02-00 is designed as a direct replacement for worn or failed probes within the Bently Nevada 3300 Series proximity system. It is not cross-compatible with non-Bently Nevada proximitor modules without independent calibration verification. Always confirm system compatibility before installation in mixed-brand monitoring architectures.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the Bently Nevada 330104-15-23-50-02-00?
All 330104-15-23-50-02-00 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify probe sensitivity, cable continuity, and connector integrity before dispatch.

Q2: How do I confirm compatibility between the 330104-15-23-50-02-00 and my installed Bently Nevada system?
Compatibility is determined by matching the full SKU suffix to your installed probe’s part number. The suffix digits encode probe tip length, cable length, and connector type. Additionally, confirm that your proximitor/oscillator module (e.g., 330180 series) is rated for 8mm probe systems. If you are unsure, provide your existing probe part number and proximitor model to our technical team at sale@ninermas.com for pre-purchase compatibility verification.

Q3: Can NINERMAS support long-term or blanket purchase orders for the 330104-15-23-50-02-00?
Yes. NINERMAS supports long-term supply agreements and blanket PO arrangements for critical spare parts including the 330104-15-23-50-02-00. We maintain sourcing relationships that support consistent availability for facilities with annual maintenance schedules, multi-site procurement programs, or reliability-centered maintenance (RCM) spare parts strategies. Contact sale@ninermas.com to discuss volume pricing and lead time commitments.

Q4: What pre-shipment testing is performed on the 330104-15-23-50-02-00 before delivery?
Each unit is tested for probe tip sensitivity (mV/mil or V/mm output linearity), cable continuity and insulation resistance, connector mechanical integrity, and physical inspection for housing damage or contamination. Test records are available upon request for quality-critical procurement programs. Units are packaged in anti-static, moisture-resistant packaging suitable for international air and sea freight.
