Bently Nevada 330104-06-25-05-02-00 Retrofit Proximity Transducer

Bently Nevada 330104-06-25-05-02-00 Retrofit-Compatible Proximity Transducer for Legacy Systems

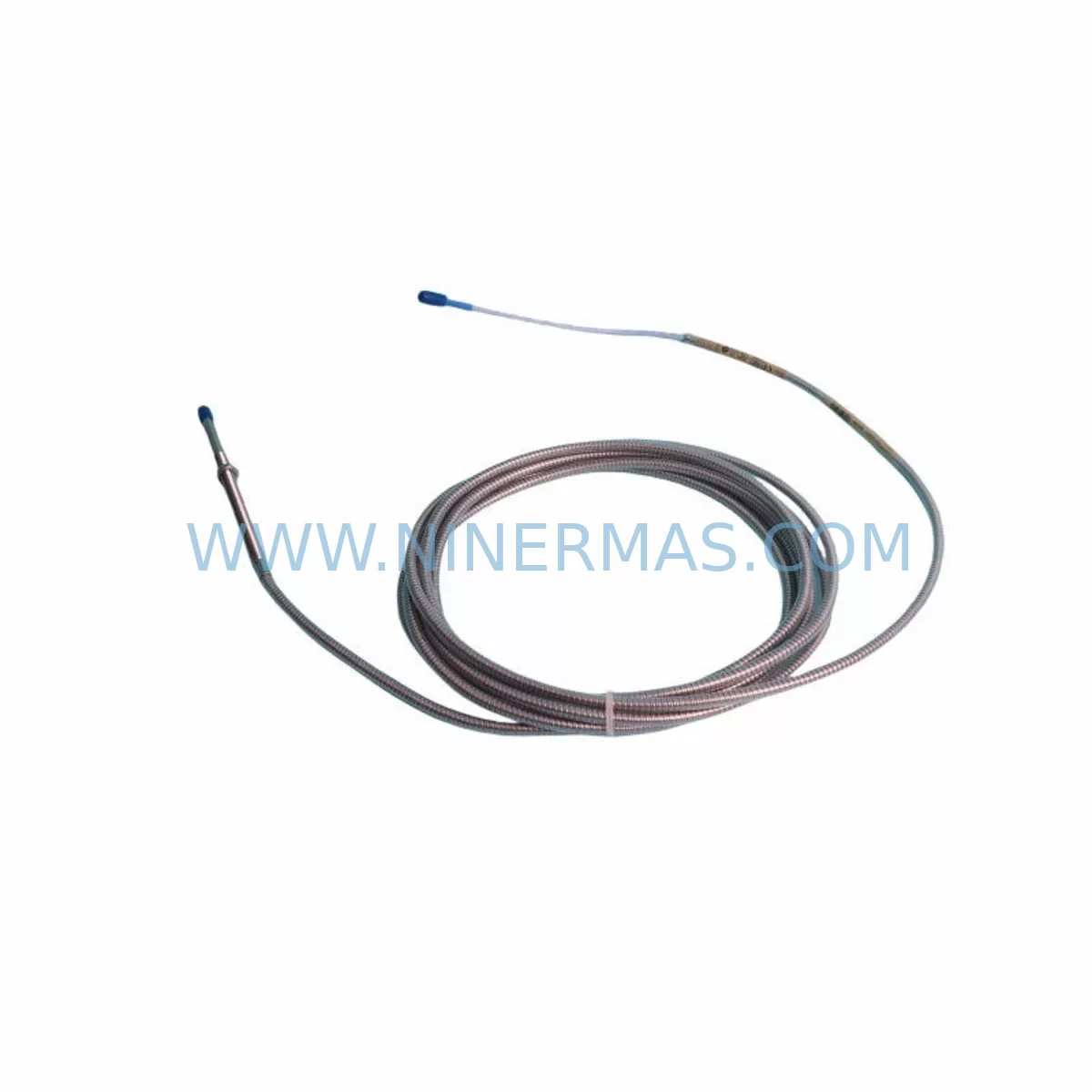

The Bently Nevada 330104-06-25-05-02-00 is a ruggedized eddy-current proximity transducer module engineered for continuous shaft vibration and position monitoring in rotating machinery. As a direct retrofit-compatible replacement within the Bently Nevada 3300 Series platform, this unit is widely deployed in legacy turbine control panels, compressor monitoring racks, and critical rotating equipment protection systems where the original OEM modules have reached end-of-life or are no longer available through standard distribution channels.

For maintenance engineers and reliability teams managing aging DCS or machinery protection infrastructure, the 330104-06-25-05-02-00 provides a validated drop-in upgrade path that preserves existing wiring, terminal assignments, and signal conditioning logic — minimizing retrofit risk and reducing planned outage duration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330104-06-25-05-02-00 into an existing machinery protection or condition monitoring system requires a structured pre-retrofit assessment. Before removing the legacy transducer, engineers should document the current gap voltage reading, confirm the proximitor supply voltage (typically –24 VDC from the 3300 Series proximitor such as the 330180-51-05 or 330180-91-00), and verify that the existing coaxial extension cable — commonly a 330130-045-00-00 or equivalent — is free of damage and within specification for the new probe’s sensitivity rating.

On the monitor side, confirm that the 3500/42M or 3500/45 vibration monitor module is configured for the correct transducer scale factor (typically 7.87 V/mm or 200 mV/mil). If the existing rack uses a 3300/16 Monitor, verify that the channel’s OK relay logic and alert/danger setpoints are still valid after the transducer swap. In systems where the 3500/20 Rack Interface Module (RIM) handles Modbus or RS-232 communication back to the DCS, no protocol reconfiguration is typically required — the analog signal chain remains unchanged.

For control cabinets that also house a 3500/92 Communication Gateway Module for Ethernet/IP or Modbus TCP integration, the retrofit of the proximity transducer itself does not affect the communication layer. However, if the cabinet upgrade is part of a broader migration from a legacy 3300 Series rack to a 3500 Series rack, engineers must account for differences in backplane slot assignments, power supply capacity (the 3500/15 Power Supply supports up to 40 W per rack), and I/O module addressing before going live.

Where the existing installation includes a Keyphasor module (3500/25) for phase reference, confirm that the Keyphasor signal is correctly routed and that the new proximity probe’s output does not introduce ground loop interference. Signal isolation barriers or the use of a dedicated 3500/40M Proximitor/Seismic Monitor may be appropriate in electrically noisy environments such as those near variable frequency drives or high-current motor starters.

For sites running legacy HMI screens built on System 1 Condition Monitoring Software or third-party SCADA platforms, the transducer replacement is transparent at the software level — provided the analog signal scaling and OK status relay wiring remain consistent. No HMI screen reconfiguration is required unless the plant team chooses to update alarm descriptors or trend baselines as part of the retrofit scope.

All replacement units supplied by NINERMAS are functionally tested prior to shipment. Each 330104-06-25-05-02-00 is verified for output linearity, OK circuit continuity, and connector integrity. Units are shipped with protective end caps and anti-static packaging to prevent damage during transit to remote or offshore sites.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing proximity transducers on operating rotating equipment. For planned outages, the recommended approach is to pre-stage the 330104-06-25-05-02-00 alongside the existing installation, confirm the gap voltage in a bench test fixture if available, and prepare all terminal documentation before the maintenance window opens.

During the swap, the original coaxial cable and proximitor should be retained unless they are also being replaced as part of a full 3300-to-3500 series migration. Retaining the existing cable eliminates one variable from the commissioning process and reduces the risk of introducing wiring errors under time pressure. Once the new probe is installed and the gap is set to the manufacturer’s recommended value (typically 1.0–1.5 mm for most shaft applications), the monitor’s OK LED should illuminate within seconds of powering the proximitor.

If the system uses a 3500/22M Transient Data Interface for startup transient capture, verify that the new probe’s sensitivity is correctly entered in the System 1 database before the machine is brought back online. Failure to update the scale factor will result in incorrect vibration amplitude readings and may trigger nuisance trips during run-up.

For critical applications where zero unplanned downtime is acceptable, NINERMAS recommends maintaining a minimum of one spare 330104-06-25-05-02-00 unit on-site. With a 12-month warranty and verified pre-shipment testing, the unit can be held in inventory with confidence that it will perform to specification when needed. Our team can also support expedited shipment for emergency breakdown situations, with same-day dispatch available for in-stock units.

Retrofit Support FAQ

Q1: Is the 330104-06-25-05-02-00 a direct replacement for the original Bently Nevada part of the same number?
Yes. This unit is manufactured or sourced to the same functional specification as the original OEM part. It is compatible with the same proximitor, extension cable, and monitor configurations used in the original 3300 Series installation. No mechanical or electrical modification is required for a like-for-like swap.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the recommended value (typically 1.0–1.5 mm) and verify the DC gap voltage at the monitor terminal strip. Confirm the OK relay is energized and that vibration readings are within the expected baseline range for the machine at rest. If the monitor was previously calibrated to a different probe sensitivity, update the scale factor in the monitor configuration or System 1 database accordingly.

Q3: Can this transducer be used with both 3300 Series and 3500 Series monitors?
Yes, provided the proximitor and extension cable are compatible with the target monitor’s input specifications. The 330104-06-25-05-02-00 is designed for use with standard Bently Nevada proximitors and is electrically compatible with both 3300 and 3500 Series monitor inputs when the correct scale factor is applied. Confirm channel configuration in the monitor before energizing.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?
The 12-month warranty covers manufacturing defects and functional failure under normal operating and storage conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. In-stock units are typically dispatched within 1–3 business days. Emergency orders can be accommodated with same-day dispatch upon confirmation. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability confirmation.
