Bently Nevada 330104-06-12-10-02-00 Spare Part: Precision Vibration Monitoring for Critical Rotating Equipment

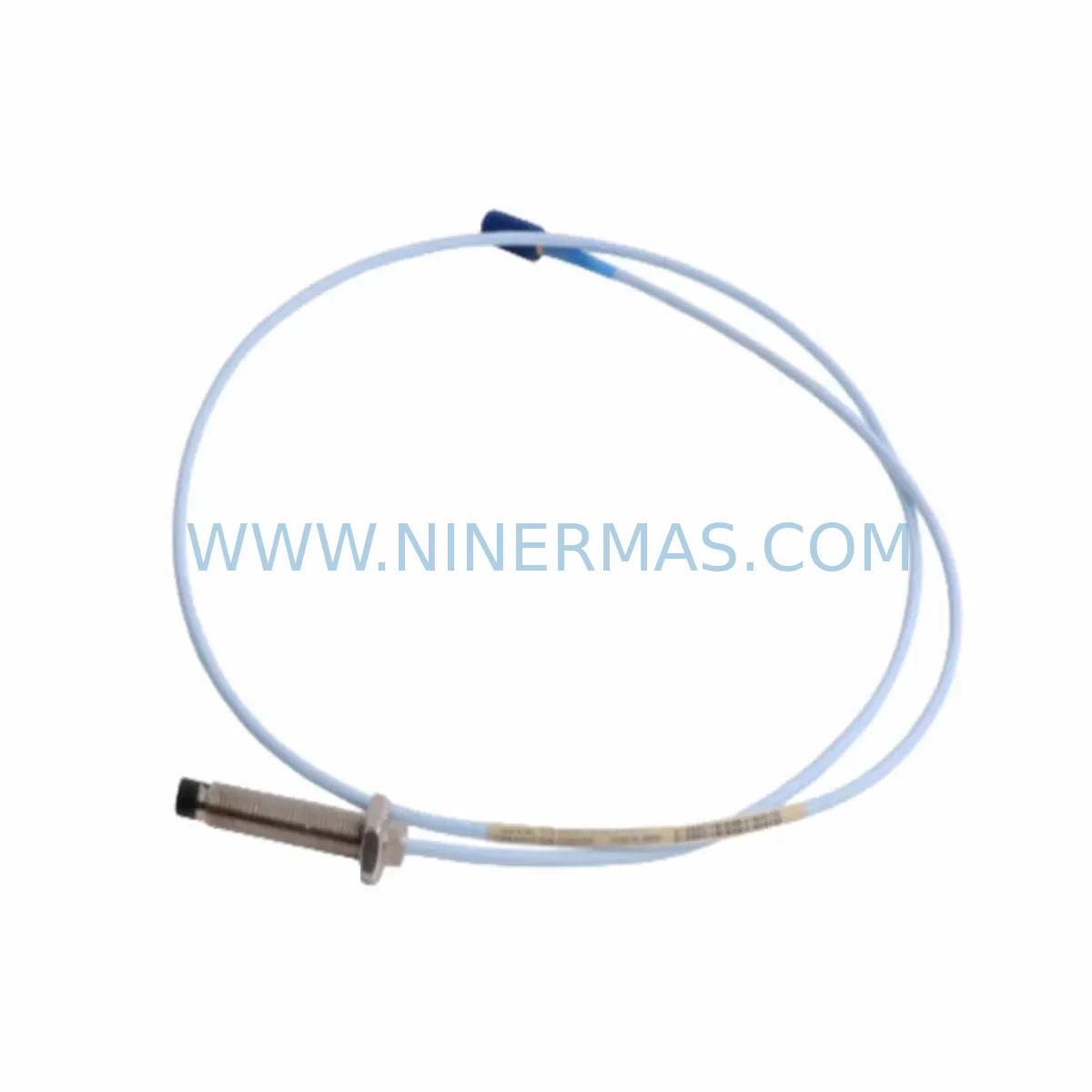

The Bently Nevada 330104-06-12-10-02-00 is a ruggedized proximity probe engineered for continuous vibration and position monitoring of rotating machinery in demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series machinery protection system, this eddy-current proximity probe delivers non-contact displacement measurement critical to turbine, compressor, pump, and motor protection strategies across oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

For maintenance engineers managing aging control infrastructure, sourcing a verified, service-ready replacement for the 330104-06-12-10-02-00 is a time-sensitive priority. Unplanned vibration probe failures can trigger false trips, mask real machinery faults, or — in worst-case scenarios — allow catastrophic bearing or shaft damage to go undetected. Stocking this probe as a critical spare eliminates that risk and supports rapid site restoration when a monitoring channel goes offline.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-06-12-10-02-00 proximity probe in the field, a disciplined maintenance approach requires inspecting the entire vibration monitoring loop — not just the probe tip. The probe operates as part of a three-component eddy-current system: the probe itself, an extension cable, and a proximitor (driver/oscillator). Failure or degradation in any one element will compromise the entire channel’s accuracy.

Begin by verifying the condition of the 330130 series extension cable connecting the probe to the proximitor. Armored extension cables in high-vibration zones are prone to micro-fractures in the coaxial shielding, which introduce noise into the gap voltage signal. Simultaneously, inspect the 330180 or 330100 series proximitor module mounted in the junction box or field enclosure — check for moisture ingress, terminal corrosion, and output voltage drift. A proximitor outputting outside the –2 VDC to –18 VDC linear range indicates calibration loss or internal failure.

At the rack level, confirm that the associated 3500/40M or 3500/42M Proximitor Monitor module is receiving clean channel input. These rack-mounted I/O modules process the gap voltage and generate the 4–20 mA or relay trip outputs used by the plant DCS or safety system. If the monitor card shows a Not OK status after probe replacement, verify the 3500/20 Power Supply module is delivering stable –24 VDC to the field loop — power supply degradation is a common root cause of intermittent probe channel faults.

For facilities running integrated machinery protection, also inspect the 3500/22M Transient Data Interface if waveform capture is part of your condition monitoring strategy. Wiring integrity at the 3500 Rack Backplane terminal blocks should be confirmed — loose or corroded terminations at the I/O module connectors can simulate probe failures and lead to unnecessary replacements. Where signal runs exceed recommended cable lengths, a signal isolator or barrier (such as a Bently Nevada 990 series or equivalent Zener barrier for hazardous area installations) should be tested for continuity and isolation resistance.

In facilities with older 3300 Series racks being migrated toward 3500 architecture, the 330104-06-12-10-02-00 probe remains compatible with both platforms, making it a practical choice for mixed-generation machinery protection environments. Procurement engineers should consider stocking a minimum of two probes per critical machine train — particularly for high-speed compressors, steam turbines, and boiler feed pumps where vibration monitoring is tied to SIS trip logic.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a hot-work or confined-space permit as applicable. Isolate the monitoring channel at the 3500 rack by placing the affected monitor module into Bypass mode to prevent a spurious trip during probe removal.

Step 2 — Probe Removal: Disconnect the extension cable at the probe connector. Using the appropriate probe wrench, unthread the 330104-06-12-10-02-00 from its mounting boss. Inspect the mounting threads and boss face for fretting or corrosion — clean and re-tap if necessary before installing the replacement.

Step 3 — Gap Setting: Install the replacement probe and set the air gap to the manufacturer-specified value (typically 50 mil / 1.27 mm for standard steel targets). Use a calibrated gap-setting tool or feeler gauge. Confirm the proximitor output voltage falls within the linear range (–9 VDC to –11 VDC at nominal gap for most 3300 XL configurations).

Step 4 — Channel Verification: Reconnect the extension cable and restore the monitor module from Bypass. Observe the channel OK indicator and confirm the vibration reading is within expected baseline values for the machine at rest or at operating speed. Document the as-found and as-left gap voltage readings in the maintenance record.

Step 5 — Return to Service: Notify the control room that the monitoring channel is restored. Update the spare parts inventory and initiate a replenishment order to maintain minimum stock levels for the next planned or unplanned maintenance event.

This workflow minimizes downtime to under 60 minutes for a trained technician and ensures the replacement probe is correctly commissioned before the machine returns to full load.
